EtroX ® V Test Socket Polymer

Compliance Info

Slide 1 of 2, currently active
Slide 2 of 2

General Info

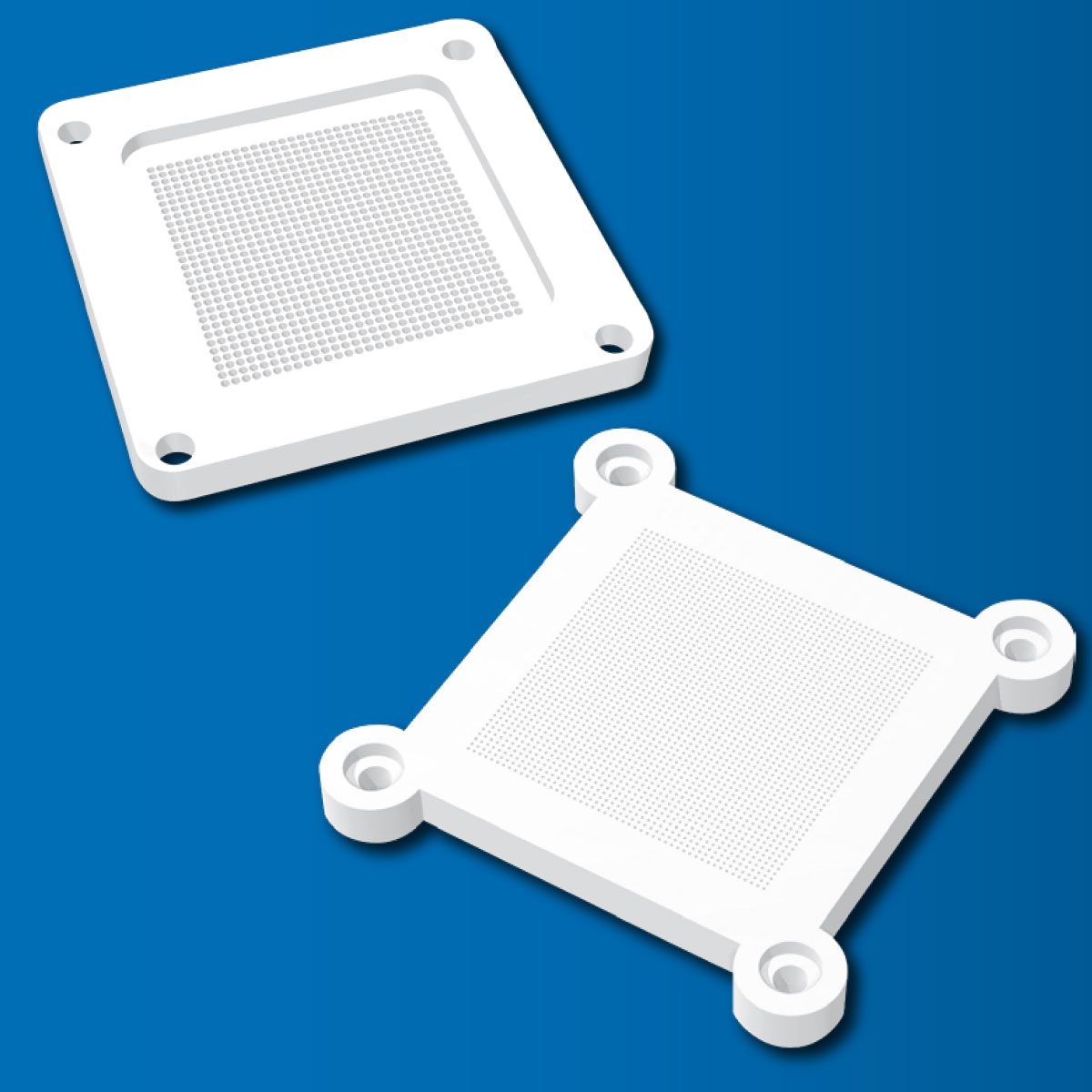

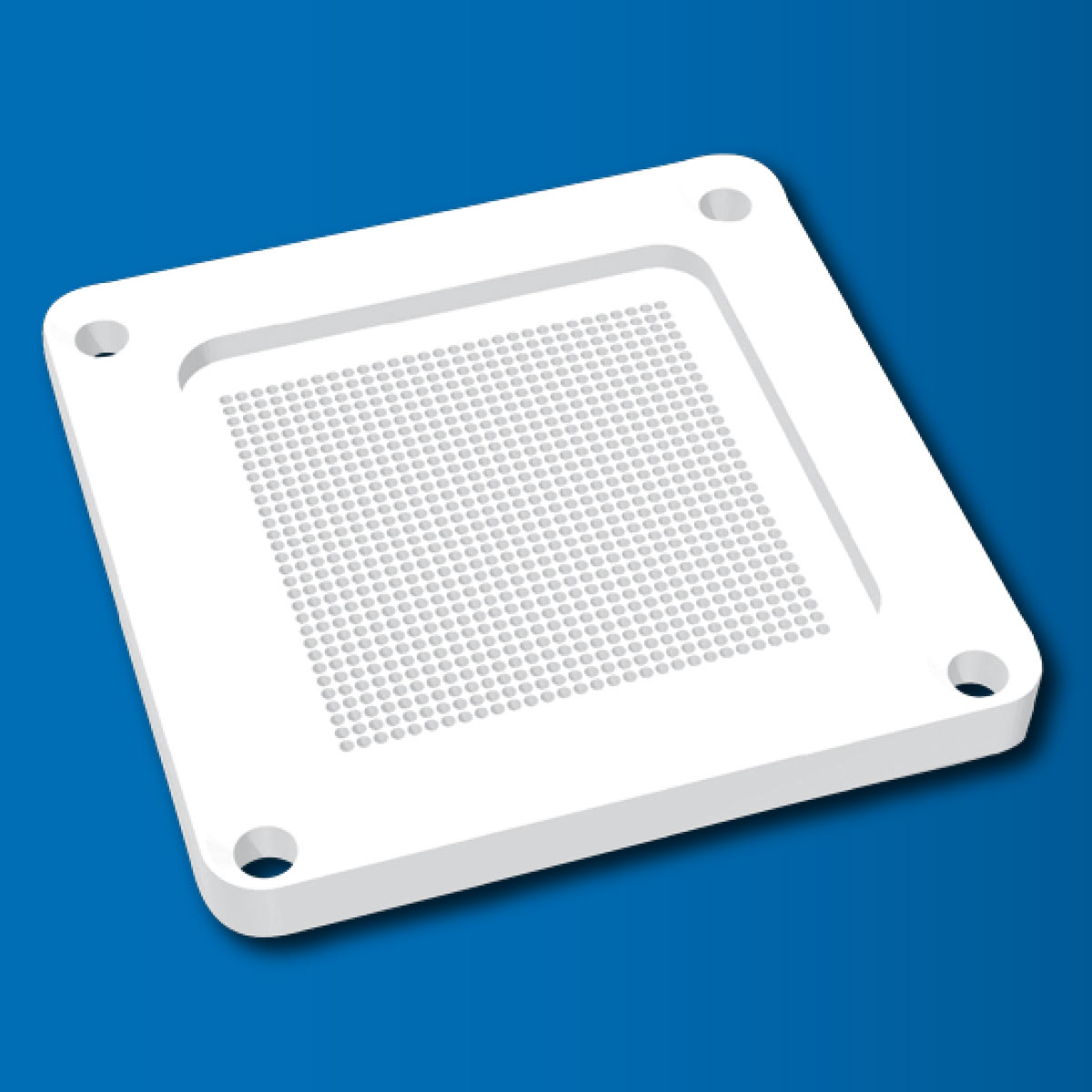

EtroX® V is an engineered polymer formulated for the extreme demands of the electronics and semiconductor industries. EtroX® V is particularly suitable for machining high-precision test sockets with extremely small boreholes. Machined test sockets made from EtroX® V can be machined with a minimum diameter of 0.1 mm with clean round holes that have minimal to no burr formation. EtroX® V offers a combination of dimensional stability, hardness, low internal stress, high-temperature performance (250 C / 482 F), and low moisture absorption, making it an ideal option for back-end test socket applications, including jigs, fixtures, and test sockets.

Key Properties

Very high tensile modulus of elasticity
Very high ball indentation hardness
Very low water absorption
Very low residual stress
Very high dimensional stability even at high continuous operating temperatures of up to 250 °C
Excellent machinability

Limitations

Poor Chemical Resistance to Halogens and Their Acids Including Bromine, Chlorine, Fluorine, HBr and HF

Applications

Electronics Manufacturing Jigs and Fixtures
Semiconductor Test Sockets
Holders for The Assembly of Smart Phones And Other Electronics Devices

Resin Trade Names

Manufacturer Trade Names

EtroX ® V

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Sheet Sizes 6mm (.232inches) x 300mm (11.81inches) x 1230mm (48.42inches) 6mm (.232inches) x 620mm (24.40inches) x 1000mm (39.37inches) 8mm (0.31inches) x 500mm (19.68inches) x 1230mm (48.42inches) 10mm (0.39inches) x 500mm (19.68inches) x 1230mm (48.42inches) 10mm (0.39inches) x 500mm (19.68inches) x 1230mm (48.42inches) 12mm (0.47inches) x 500mm (19.68inches) x 1230mm (48.42inches) 20 (0.78inches) and 30mm (1.18inches) thickness also available Rod Sizes 50mm (1.96inches) x 1000mm (39.37inches) 50mm (1.96inches) x 3000mm (118.11inches) Note: This product may have minimum quantity requirements or longer lead times depending on size requested and quantity.

Available Colors

White

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of EtroX ® V Test Socket Polymer

DETAIL
Description			Value
Material Type			Semi-Crystalline Thermoplastic
Chemical Name			PEEK Polyetheretherketone
Trade Name			EtroX ® V
Additives			Proprietary
Color			White
Manufacturer			Rochling
PHYSICAL
Property	Test	Unit of Measure	Value
Density	DIN EN ISO 1183-1	g/cm³	1.62
	DIN EN ISO 1183-1	lb/in³	0.059
Water Absorption, Saturation, Immersion	DIN EN ISO 62	% by wt.	0.15
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Modulus	DIN EN ISO 527	psi	768,700
Tensile Elongation at Break	DIN EN ISO 527	%	2.5
Hardness	DIN EN ISO 868	Shore D	88
IZOD Impact-Notched	ISO 179-1/1eA	ft-lb/in	0.476
THERMAL
Property	Test	Unit of Measure	Value
Melting Point Temp	ISO 11357-3	°C	341
	ISO 11357-3	°F	645
Max Continuous Operating Temp		°C	250
		°F	482
Minimum Operating Temp		°C	-60
		°F	-76
Thermal Conductivity	ISO 22007-4	BTU-in/ft²-hr-°F	3.05
	ISO 22007-4	W / (m*K)	0.44
ELECTRICAL
Property	Test	Unit of Measure	Value
Dielectric Strength	IEC 60243	V/mil	889
Dielectric Constant at 1 MHz	DIN EN IEC 62631-2-1	NA	4.9
Dissipation Factor at 1 MHz	DIN EN IEC 62631-2-1	1 MHz	0.001
Surface Resistivity	DIN EN 62631-3-2	ohm/cm	>10^12
COMPLIANCE
Description			Value
USDA			No
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
UV Resistant			No
Relative Cost			$$$$$$$
Machinability			5

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

EtroX ® V is a registered trademark of Röchling Engineering Plastics.
