XtremeEPP ™ 1894 FR LDS-36 Low Density Flame Resist Thermal Shield

Compliance Info

Slide 1 of 2, currently active
Slide 2 of 2

General Info

XtremeEPP ™ 1894 FR LDS-36 is a low-density composite material specifically designed to meet the flame, smoke and toxicity requirements of Marine and infrastructure applications. The mechanical properties of this flame-retardant material make it the ideal solution for challenging thermal shielding applications.

XtremeEPP ™ 1894 FR LDS-36 is available in different densities.

Key Properties

Meets flame, smoke and toxicity requirements for most building projects
Light Weight
Installs quickly and is easily modified
Reduces maintenance costs; water resistant and non-corrosive
Transparent to radio frequency waves

Limitations

Applications

Applications Where adherence to fire safety codes are mandatory
Structural Transportation Applications
Structural Off- Shore Oil & Gas Applications
Aerospace & Military Structural Applications
Thermal Shielding Applications

Resin Trade Names

Manufacturer Trade Names

XtremeEPP ™ 1894 FR LDS-36

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

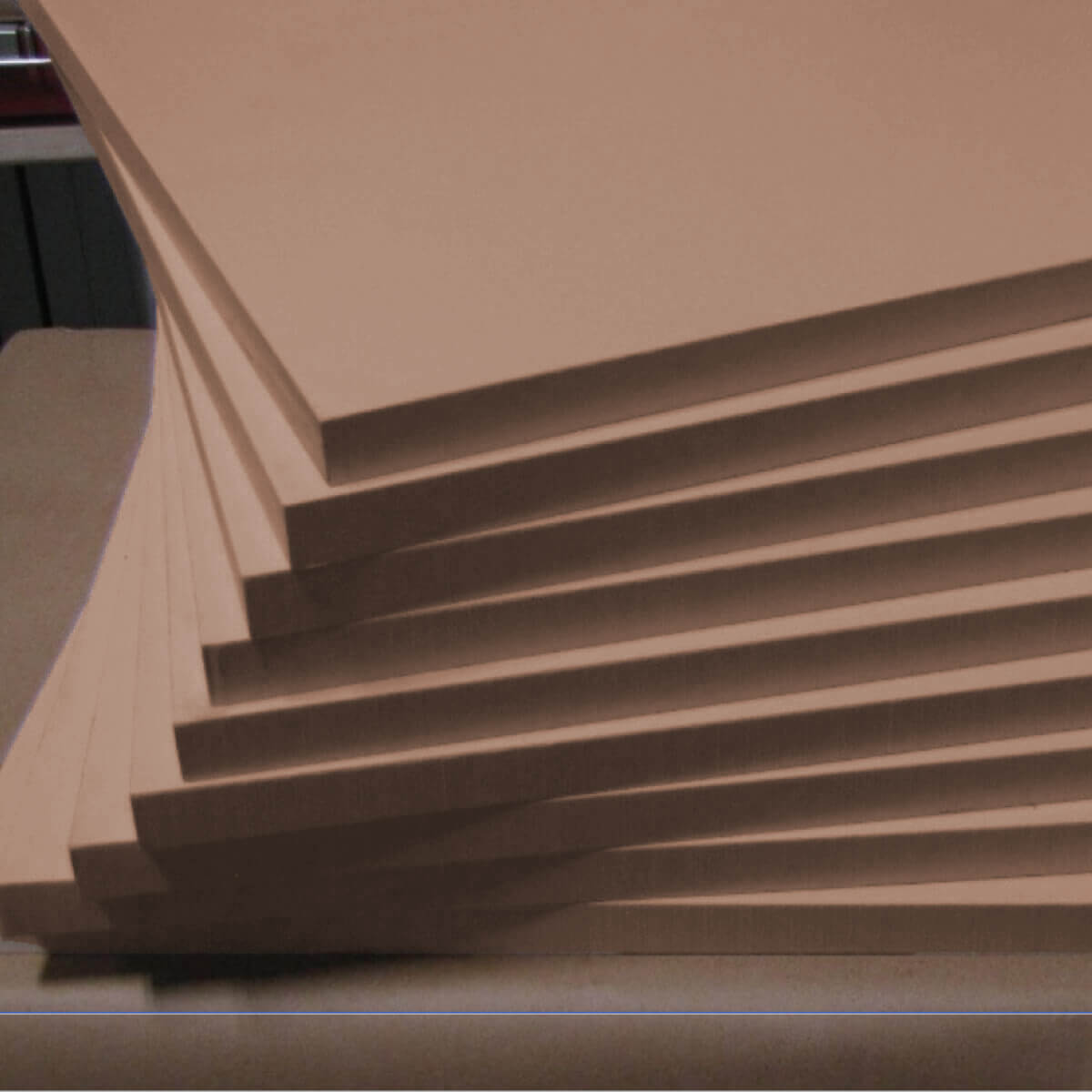

XtremeEPP 1894 FR LDS-36 composites are available in sheet form and may be readily used for customer installation. Standard sheet sizes range from .500 in x 24 in x 24 and 24 in x 48 in. Custom sizes are available upon request and subject to minimums.

Available Colors

Brown

Safety Data Sheet

Typical Properties of XtremeEPP ™ 1894 FR LDS-36 Low Density Flame Resist Thermal Shield

DETAIL
Description			Value
Material Type			Thermoset Composite
Trade Name			XtremeEPP ™ 1894 FR LDS-36
Additives			Proprietary
Color			Brown
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D3575	g/cm³	0.55
	ASTM D3575	lb/in³	0.02
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi	2,800
Tensile Modulus	ASTM D638	psi	270,000
Compressive Strength	ASTM D695	psi	6,000
Compressive Modulus	ASTM D695	psi	320,000
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	ASTM D696	x 10-5 in./in./°F	0.823
Max Continuous Operating Temp		°C	260
		°F	500
Thermal Conductivity	ASTM D5930	BTU-in/ft²-hr-°F	0.78
	ASTM D5930	x 10^4 cal/cm-sec-°C	2.6
COMPLIANCE
Description			Value
FDA			No
USDA			No
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
UV Resistant			No
Relative Cost			$$$
Machinability			3

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

XtremeEPP™ is a registered trademark of Boedeker Plastics, Inc.
