General Info
Vespel ® SP-21 has 15% graphite by weight added to the base resin for increased wear resistance and reduced friction. SP-21 has the highest mechanical properties of the graphite-filled grades, making it ideal for valve seats, seal rings, bearings, thrust washers, and dynamic seals in demanding applications wihout lubrication.
DuPont™ Vespel® SP-21 is offered in isostatically molded billet and unidirectionally pressed slab forms, specified as Type II, Class 1M and Type II, Class 1P, respectively, in accordance with ASTM 6456-10 / MIL-R-46198. Additionally, Vespel® SP-21 is designated as Class 2 per AMS 3644G.
Click for more information on the complete line of Vespel PI Plastics
Key Properties
- High Strength at High Temperatures
- Low Friction
- Low Wear
Limitations
- Chemical Resistance to Some Strong Acids and Bases
- Hydrolyzes in Presence of Steam
Applications
- Bearings
- Bushings
- Dynamic Seals
- Seal Rings
- Thrust Washers
- Valve Seats
Resin Trade Names
Manufacturer Trade Names
- DuPont™ Vespel® Polyimide SP-21
Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

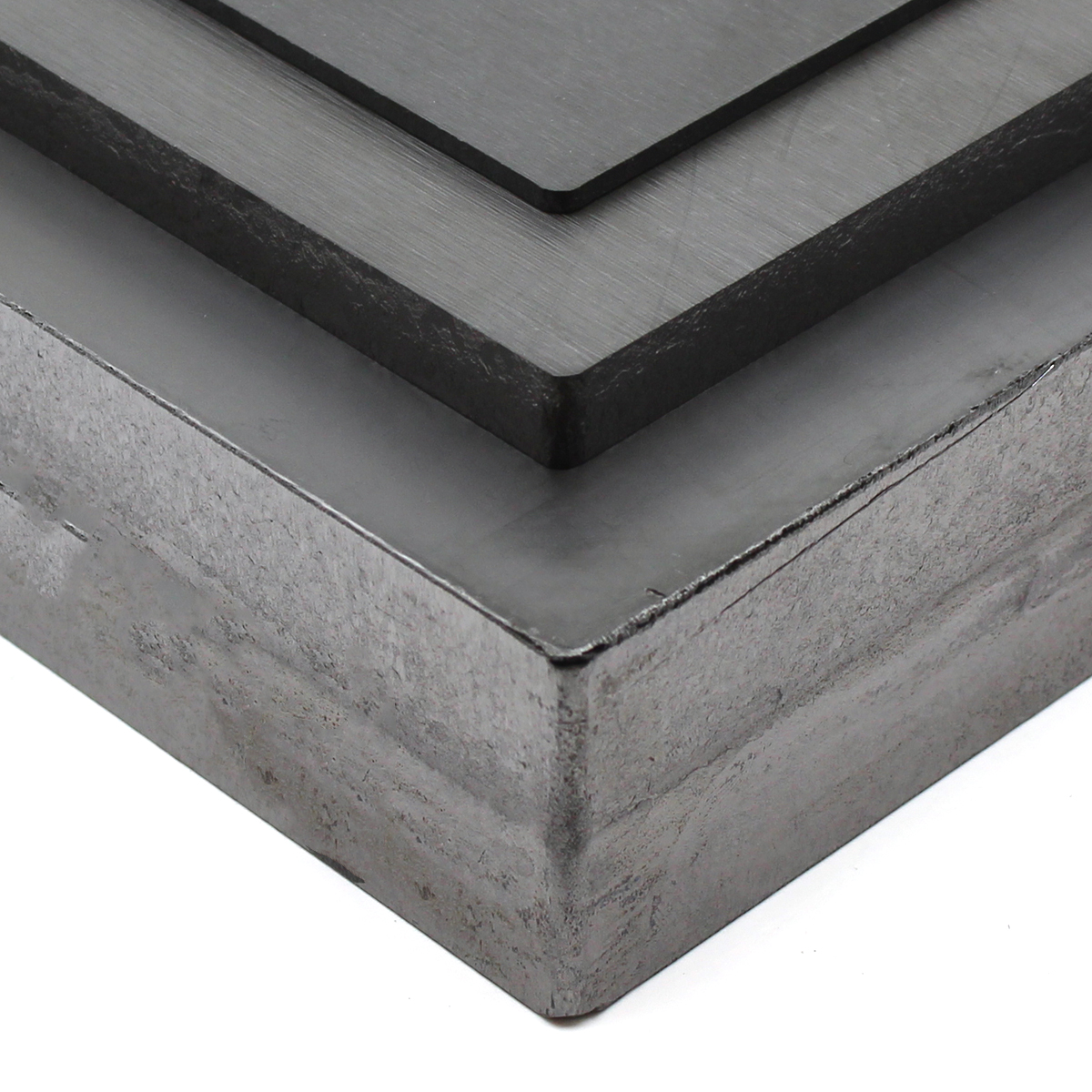

Available Sizes
Sheet
Thickness .062” to 2.000”
Width & Length 10.000” x 10.000”
Rod
Diameters .125” to 3.250”
Max Length 38.000”
Tube
OD Outside Diameter 3.100” to 12.500”
ID Inside Diameter 2.000” to 11.500”
Max Length 33.000”
Boedeker offers cut to size service on all in-stock items and same day shipping. If you don’t see the size your looking for contact us for alternative options.
