About PVC & CPVC

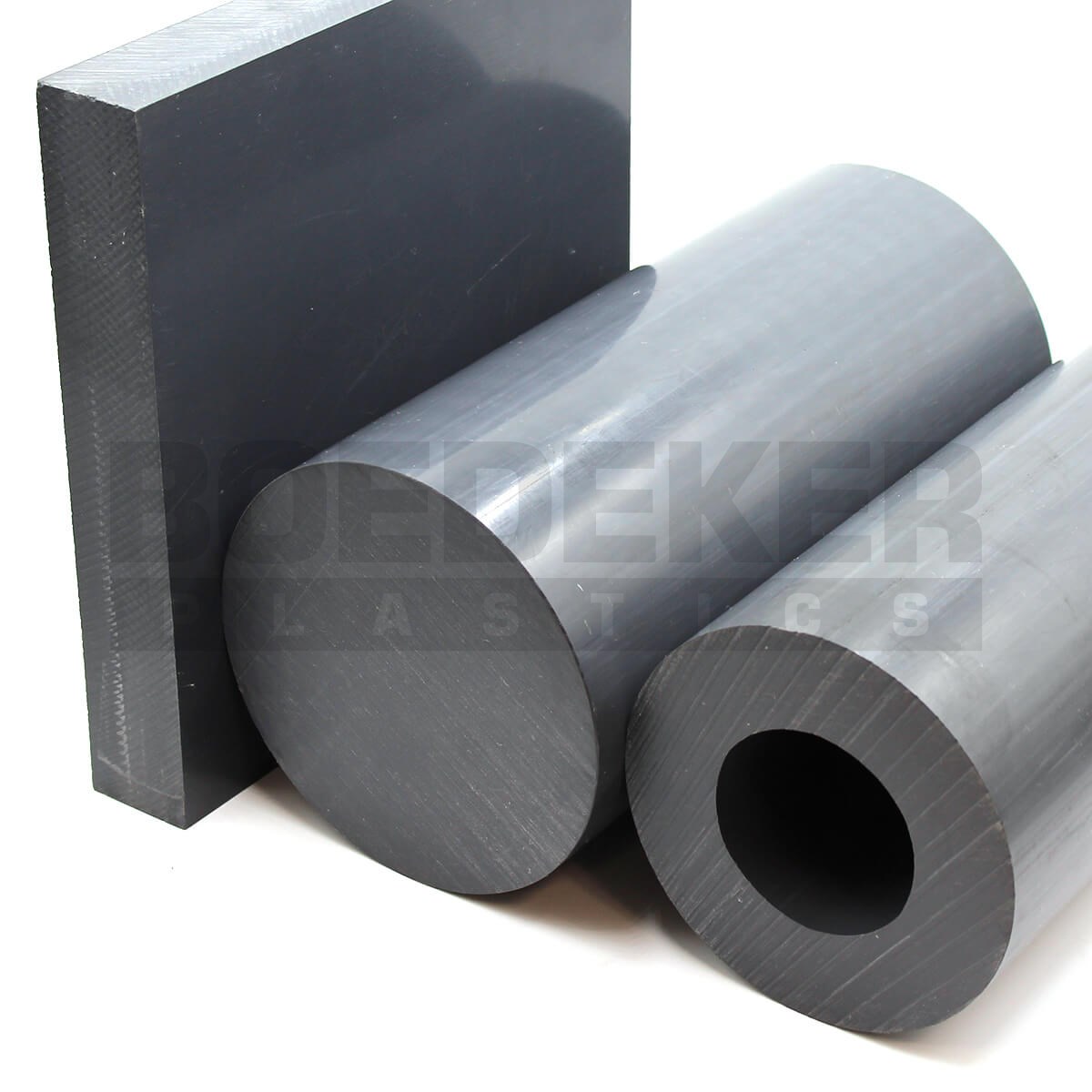

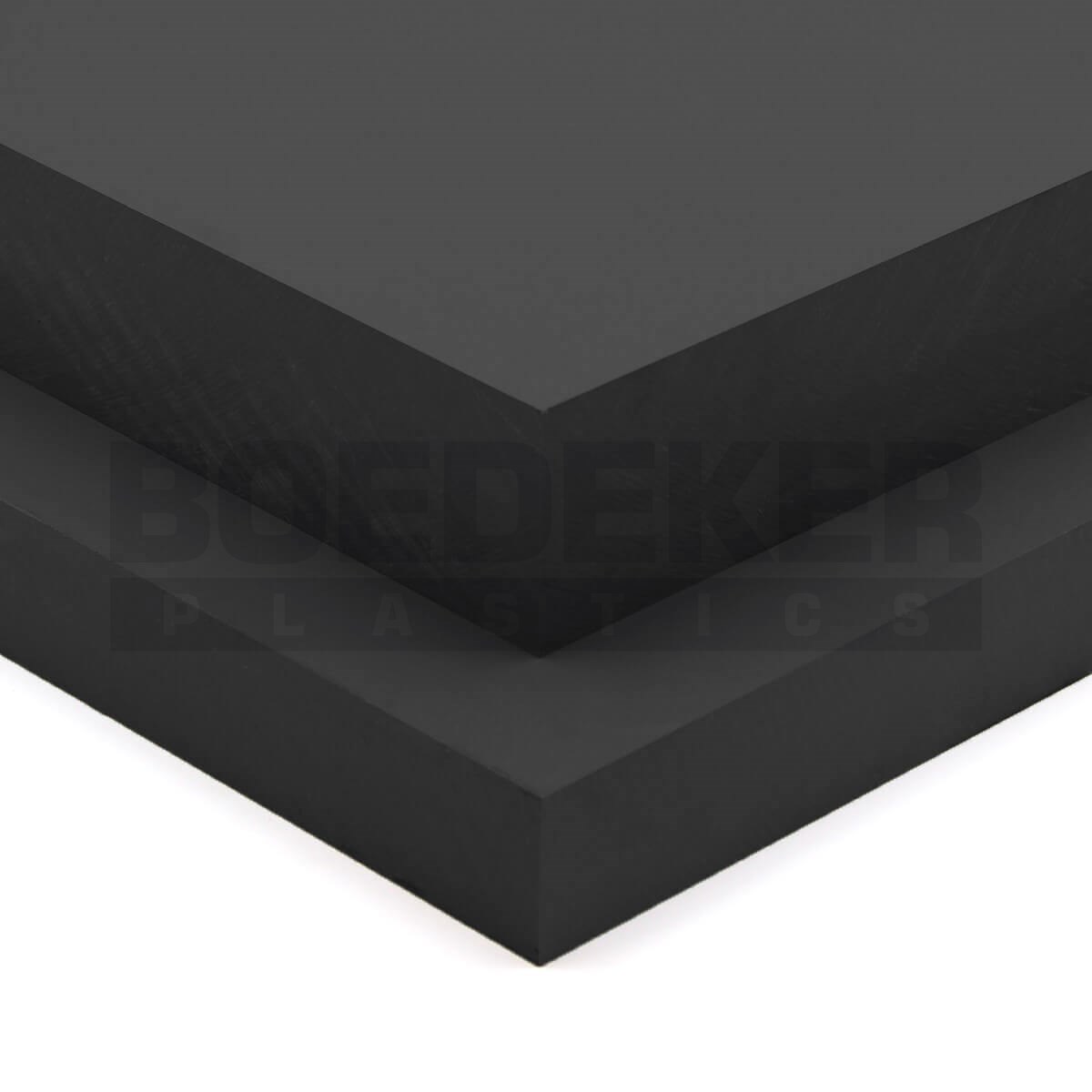

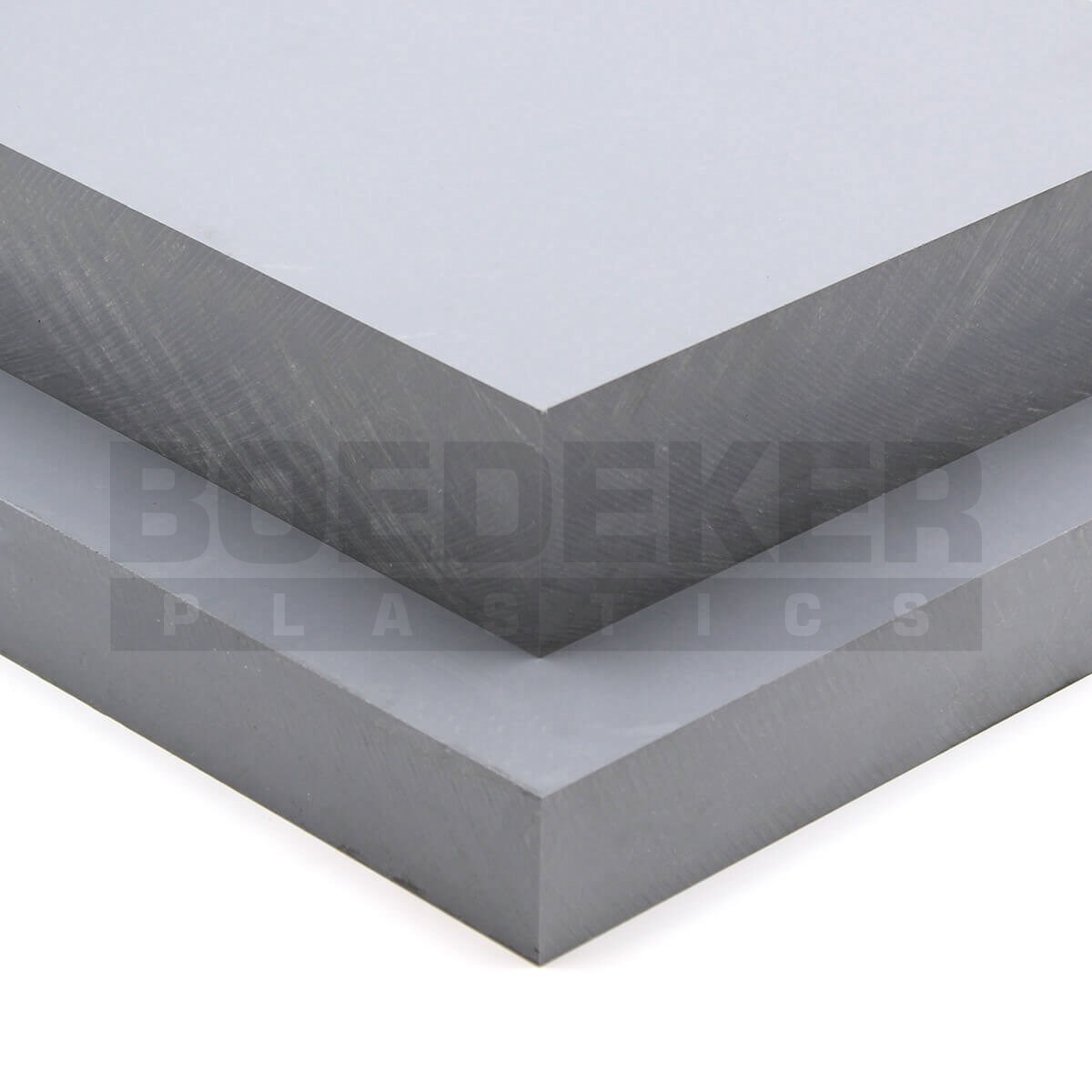

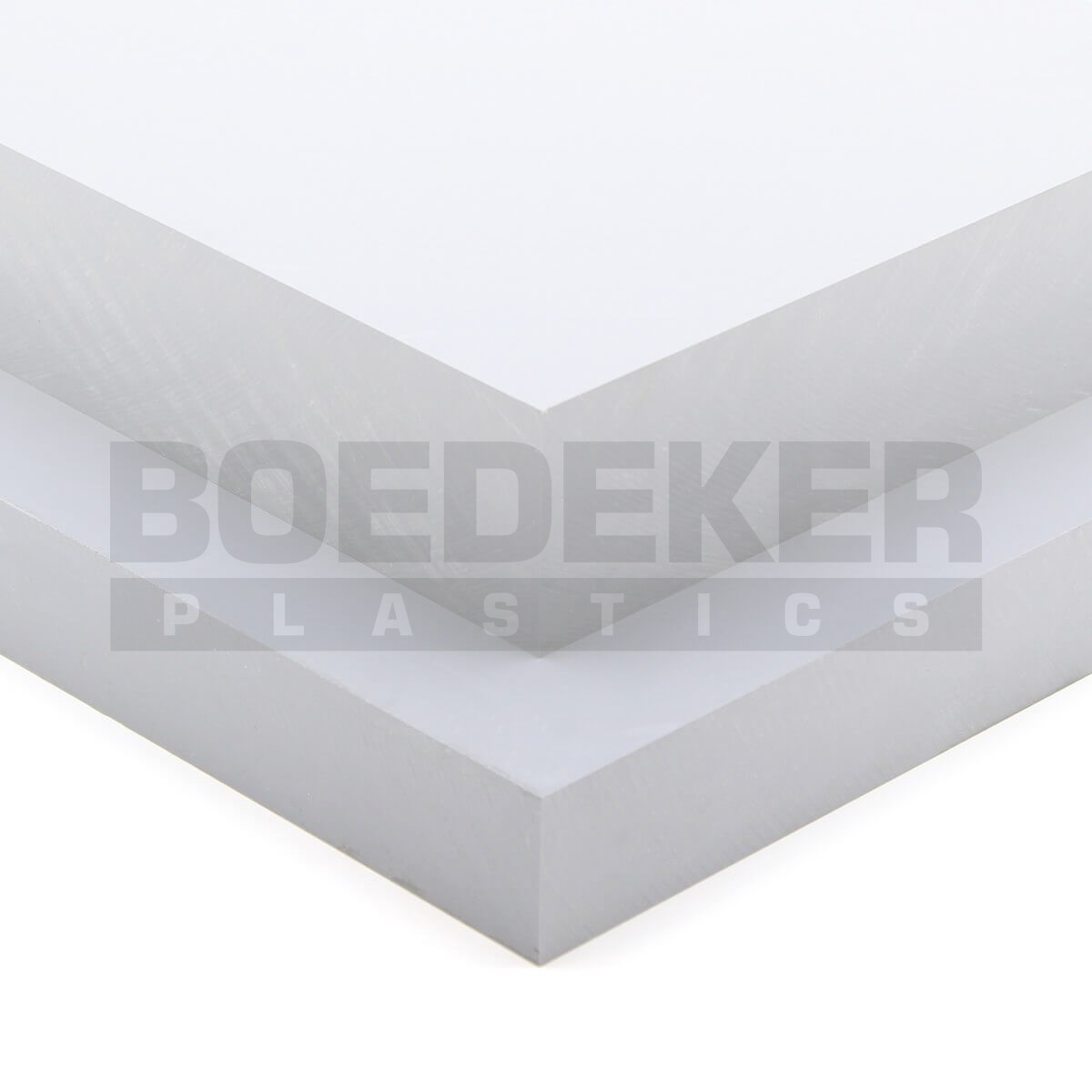

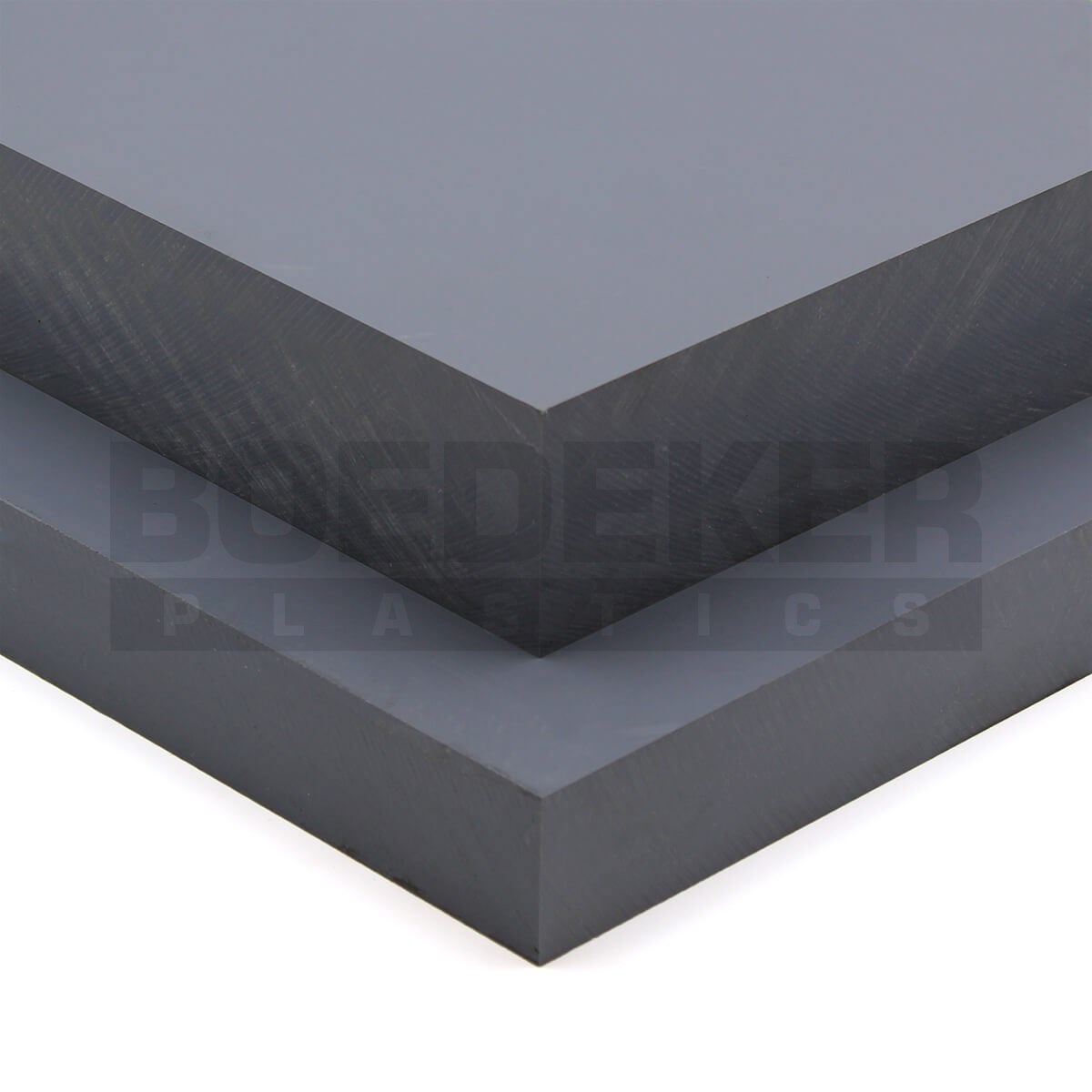

PVC & CPVC are available in sheet, rod, tube, film, custom profile and machined and molded parts. PVC is available in different different grades with the most common in Type 1 and Type 2, which offers higher impact strength. CPVC offers higher operating temp and enhanced corrosion resistance over PVC.

See ALL PVC Plastics

See ALL CPVC Plastics

Need help deciding? Use our plastics selection tool

PVC & CPVC Key Properties

PVC

PVC is the most widely used member of the vinyl family. It is most commonly used in pipe and fittings. PVC offers excellent corrosion and weather resistance. It has a high strength-to-weight ratio and is a good electrical and thermal insulator.

Good Electrical and Thermal Insulating Properties	High Strength-To-Weight Ratio	PVC May Be Cemented, Welded, Machined, Bent and Shaped Readily.
PVC May Be Used to Temperatures Of 140°F (60°C)	Self-Extinguishing Per UL Flammability Tests	UV Resistant

CPVC

CPVC shares most of the features and properties of its close relative, PVC with improved chemical resistance and higher operating temperature of 200 F. It is also readily workable, including machining, welding, and forming. Because of its excellent corrosion resistance at elevated temperatures, CPVC is ideally suited for self-supporting constructions where temperatures up to 200°F (93°C) are present. The ability to bend, shape, and weld CPVC enables its use in a wide variety of process application.

Easy to Fabricate with Bending, Forming and Welding	Enhanced Continuous Use Temp Of 200F Over PVC of 140 F	High Dielectric Strength 1,250 Volts/mil
High Rigidity, Strength and Hardness at Increased Temperatures up to +185 F	Higher Chemical Resistance Than PVC	Will Not Sustain Burning UL Rated 94 V-0

Common PVC & CPVC Applications

Manifolds	Electrical Cabinets	Pipe Flanges and Spacers
Plating Tanks , Air Handling (Scrubbers, Ducts, and Fume Hoods)	Pump & Valve Components	Stripping Tanks
Wastewater Treatment Components	Chemical Plant Tower Packing	Process Vessels

Boedeker Plastics, Inc. & PVC & CPVC

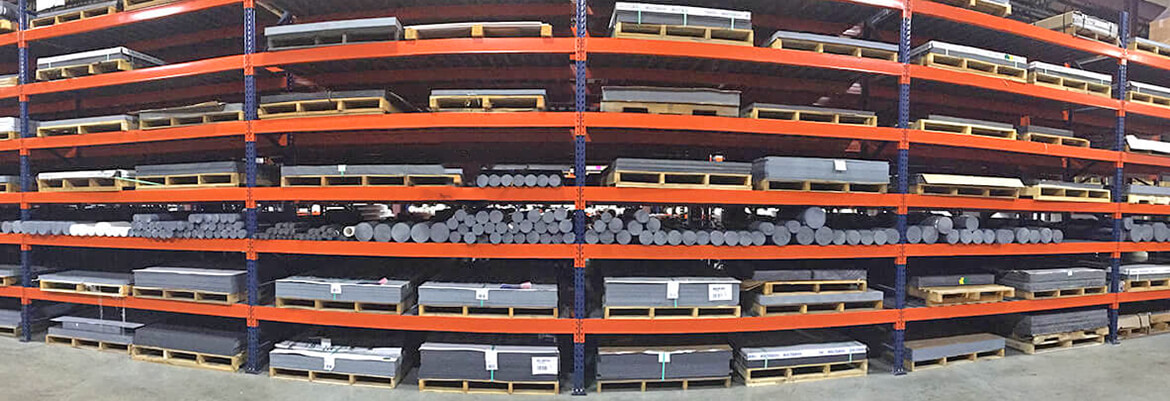

We stock a wide range of commercially available PVC & CPVC sheet, rod, tube & film and offer cut to size, same day shipping on all inventoried PVC & CPVC materials. Our entire inventory of PVC & CPVC is coded for full traceability, we offer manufacturer certs. and C of C’s upon request at the time of order for all orders.

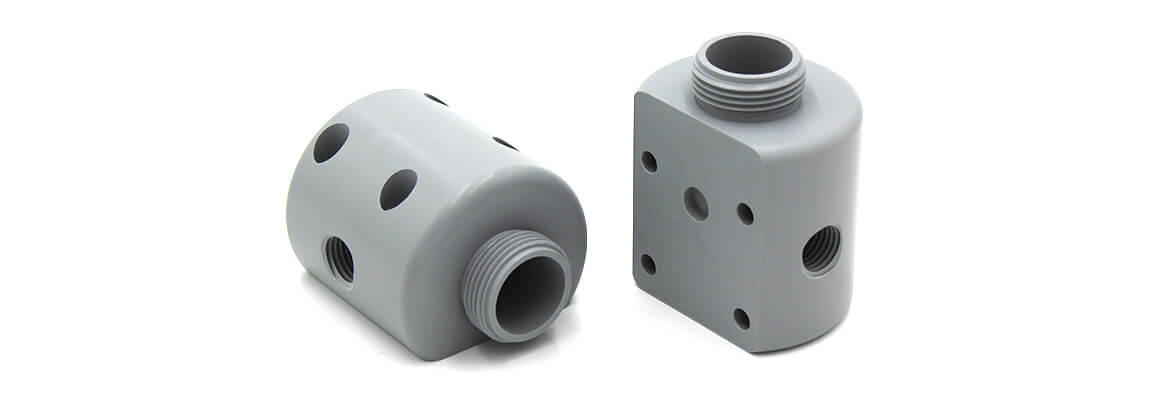

We specialize in plastics-only machining and produce CNC machined PVC & CPVC parts for prototype to production quantities. We offer technical support with PVC & CPVC materials & parts regarding material selection by application, part design assistance & machining support.
