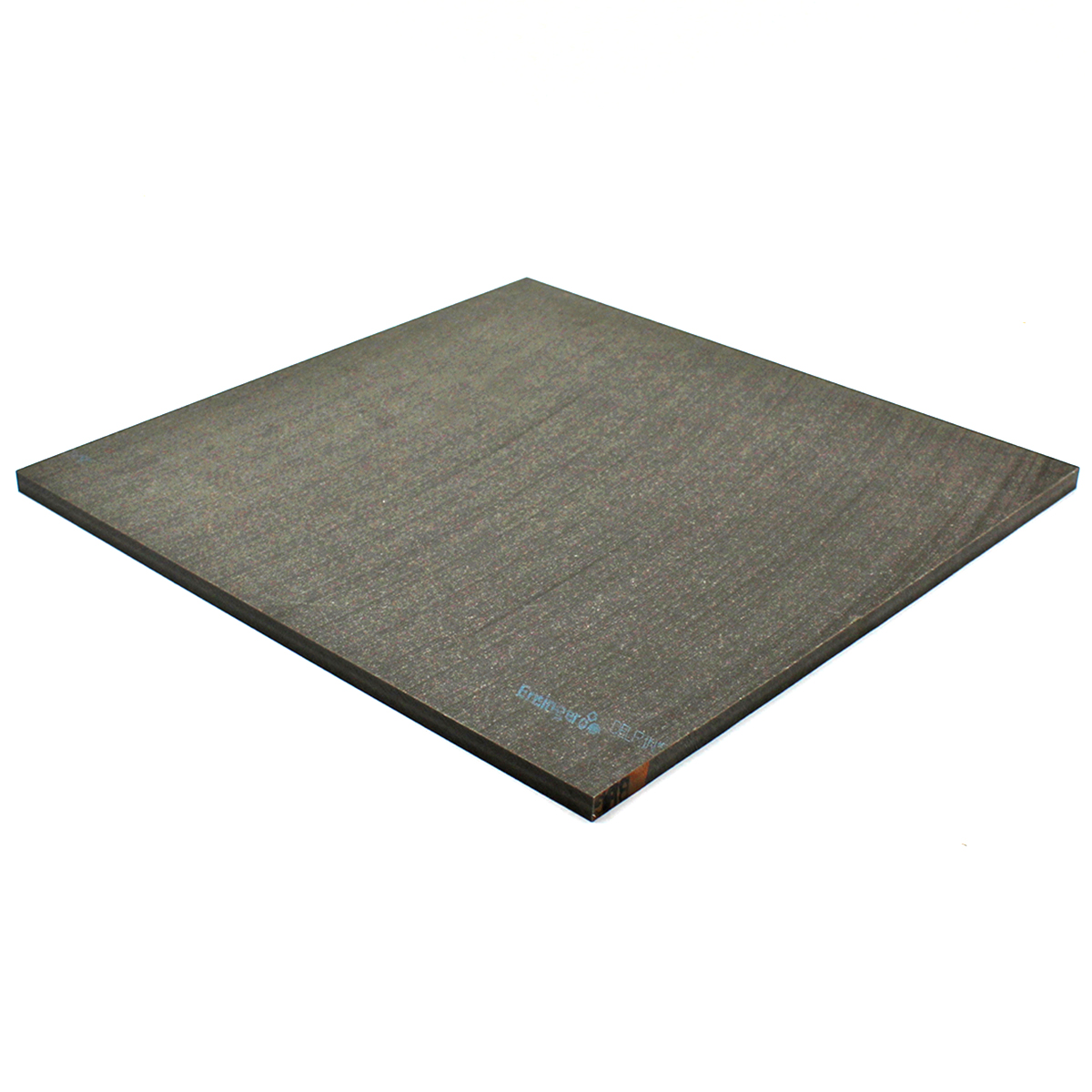

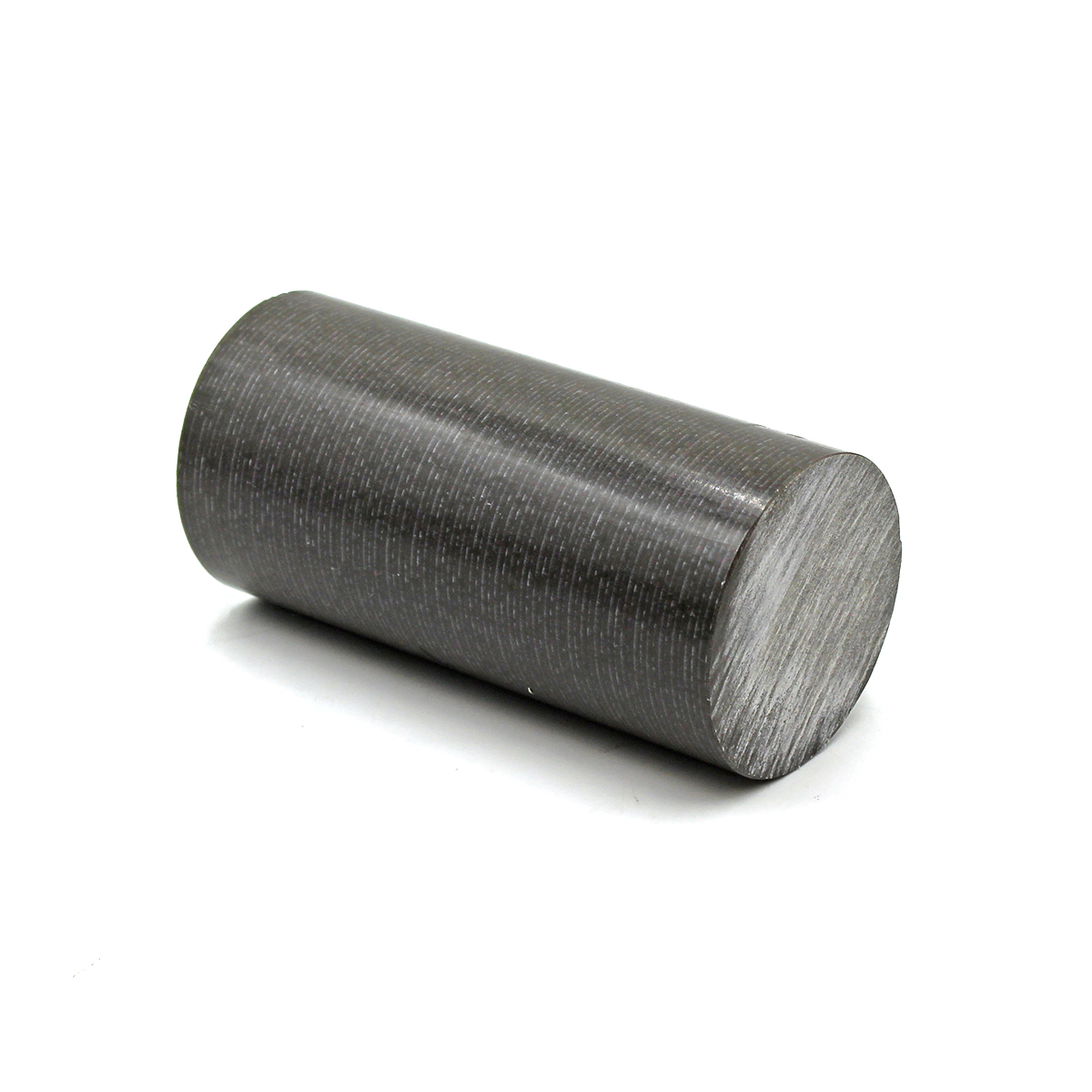

Delrin ® 500 AF Blend 13% PTFE-filled Acetal

Compliance Info

Slide 1 of 3, currently active
Slide 2 of 3
Slide 3 of 3

General Info

Delrin® 500AF brown is very similar to Delrin® 100AF (both resins made by DuPont) in that this material performs exceedingly well in bearing or low friction applications that also require good strength and dimensional stability characteristics. Containing PTFE fibers, this modified acetal homopolymer material has a slightly more crystaline structure than Delrin® 100AF.

It is designed for applications requiring low wear and, or low friction against steel, itself or other plastics. It is perfect for plastic bushing or bearing applications requiring a low coefficient of friction.

Click for more information on the complete line of Delrin Acetal Plastic Products

DELRIN® 100 AF Blend is the most common and commercially available DELRIN® AF grade. DELRIN® 100 AF Blend offers an attractive blend of properties and lower cost compared to DELRIN® AF Full Strength and is the the most widely used of Delrin ® AF grades.

Key Properties

Excellent Wear Properties
Good Machinability
High Mechanical Load Capacity
Low Static Friction

Limitations

Wear Resistance in Dry Environments
Poor Resistance to Strong Acids and Alkalies
Larger Cross Sections are prone to Centerline Porosity

Applications

Automotive Industry Applications
Bushings & Bearings
Business Machines
Conveyor Technology Applications
Heavy Duty Industry Applications
Packaging and Paper Machinery Applications
Printing Machine Applications
Thrust Washers
Valve Seats
Wear Components

Resin Trade Names

DELRIN® 500 AF

Manufacturer Trade Names

DELRIN® 500 AF Blend

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

500 AF Blend May Require Minimum Quantities in Sheet, Rod and Tube sizes Contact Us for availability

Available Colors

Brown to Dark Brown

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of Delrin ® 500 AF Blend 13% PTFE-filled Acetal

DETAIL
Description			Value
Material Type			Semi-Crystalline Thermoplastic
Chemical Name			POM Polyoxymethylene Acetal Homopolymer
Trade Name			DELRIN® 500 AF Blend
Additives			13 % PTFE fibers
Color			Brown to Dark Brown
Manufacturer			Ensinger
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	1.5
	ASTM D792		0.054
Water Absorption, 24 hrs, Immersion	ASTM D570	% by wt.	0.18
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi	7,200
Tensile Modulus	ASTM D638	psi	475,000
Tensile Elongation at Break	ASTM D638	%	4
Flexural Strength	ASTM D790	psi	13,000
Flexural Modulus	ASTM D790	psi	495,000
Compressive Strength	ASTM D695	psi- 10% Deformation	14,000
Compressive Modulus	ASTM D695	psi	200,000
Hardness	ASTM D785	Rockwell M	Rockwell M79
IZOD Impact-Notched	ASTM D256	ft-lb/in	0.8
Static Coefficient of Friction	(Dry vs Steel) Static	N/A	0.2
Dynamic Coefficient of Friction	(Dry vs Steel) Dynamic	NA	0.19
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	ASTM D696	x 10-5 in./in./°F	5
Heat Deflection Temp	ASTM D648	°C at 264 psi	118
	ASTM D648	°F at 264 psi	244
Melting Point Temp	ASTM D3418	°C	175
	ASTM D3418	°F	347
Max Continuous Operating Temp		°C	85
		°F	185
Minimum Operating Temp		°C	-50
		°F	-58
Flammability Rating	UL94	NA	HB
COMPLIANCE
Description			Value
FDA			No
USDA			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
ASTM Shape Spec			ASTM D6100-14 S-POM 01301939400 6,800 psi, 340,000 psi
UV Resistant			No
Relative Cost			$$$$
Machinability			1

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

DELRIN® is a registered trademark of DuPont.
