XP-106 TECAPEEK ® 40% Fiberglass Filled PEEK

Compliance Info

Slide 1 of 3, currently active
Slide 2 of 3
Slide 3 of 3

General Info

TECAPEEK CM XP106 40% Glass-Filled PEEK is a high-performance, semi-crystalline thermoplastic engineered for applications requiring exceptional strength, stiffness, dimensional stability, and chemical resistance at elevated temperatures. This compression-molded grade is reinforced with 40% glass fiber, providing significantly higher mechanical strength and rigidity than unfilled PEEK while maintaining PEEK’s broad chemical compatibility and excellent thermal performance.

With a tensile modulus of approximately 1.2 million psi, flexural strength of 18,000 psi, and a melting temperature of 649°F, TECAPEEK CM XP106 is well suited for demanding structural components exposed to high loads, aggressive chemicals, and elevated operating temperatures.

Common applications include structural parts, equipment components, valve and pump components, and other demanding parts used in the oil & gas, chemical processing, and refinery industries.

Click for more information on the complete line of TECAPEEK Plastics

Key Properties

40 Percent Glass Fiber Reinforced
Broad Chemical Resistance
Commonly Used in Oil and Gas Chemical Processing and Refinery Applications
Compression Molded
Excellent Dimensional Stability
Excellent Strength
High Stiffness
High Temperature Performance
Low Elongation Under Load
Natural Beige Color
Suitable for Demanding Structural Applications

Limitations

Applications

Chemical Processing Components
Equipment Components
Oil and Gas Components
Pump Components
Refinery Components
Structural Parts
Valve Components

Resin Trade Names

Manufacturer Trade Names

XP-106 TECAPEEK®

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

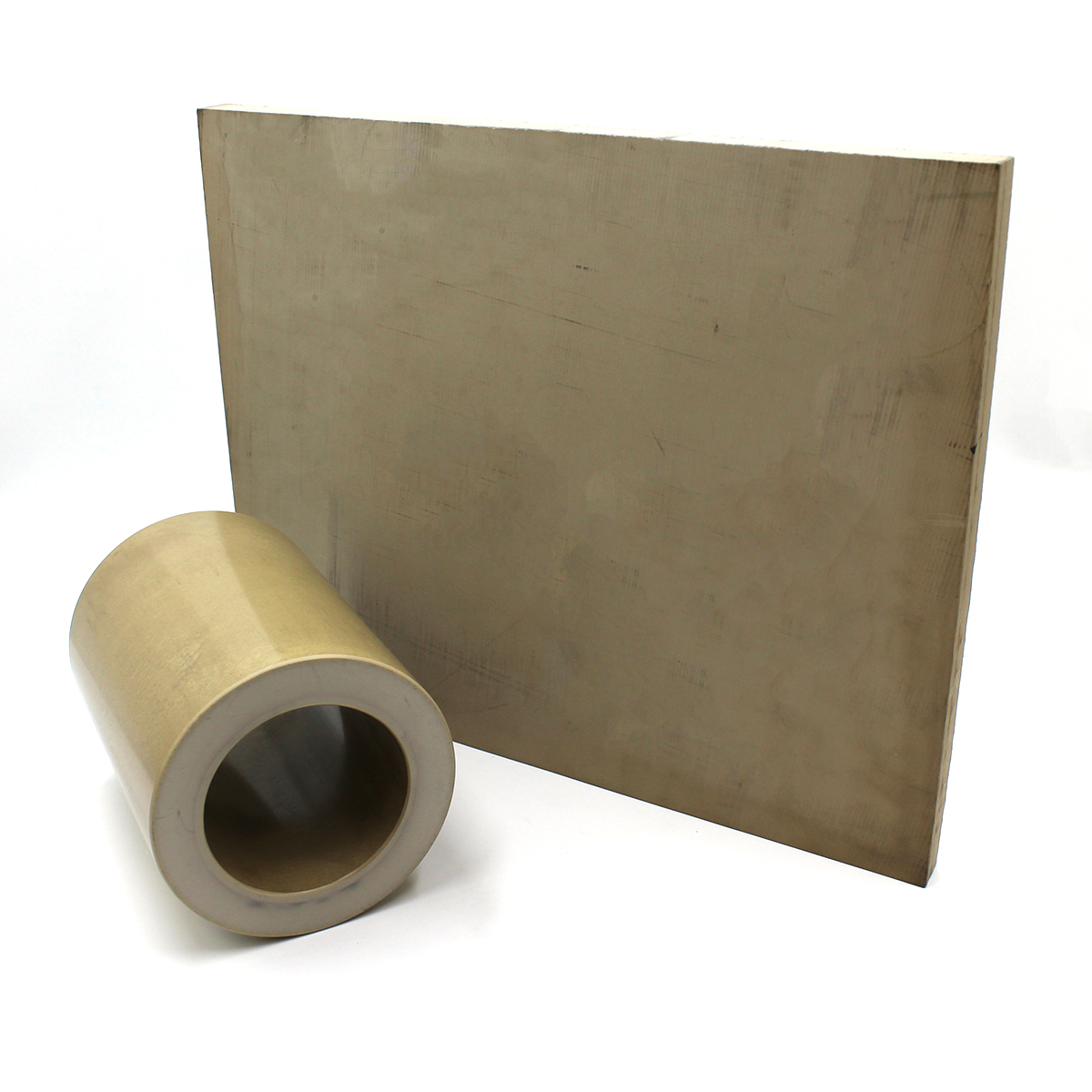

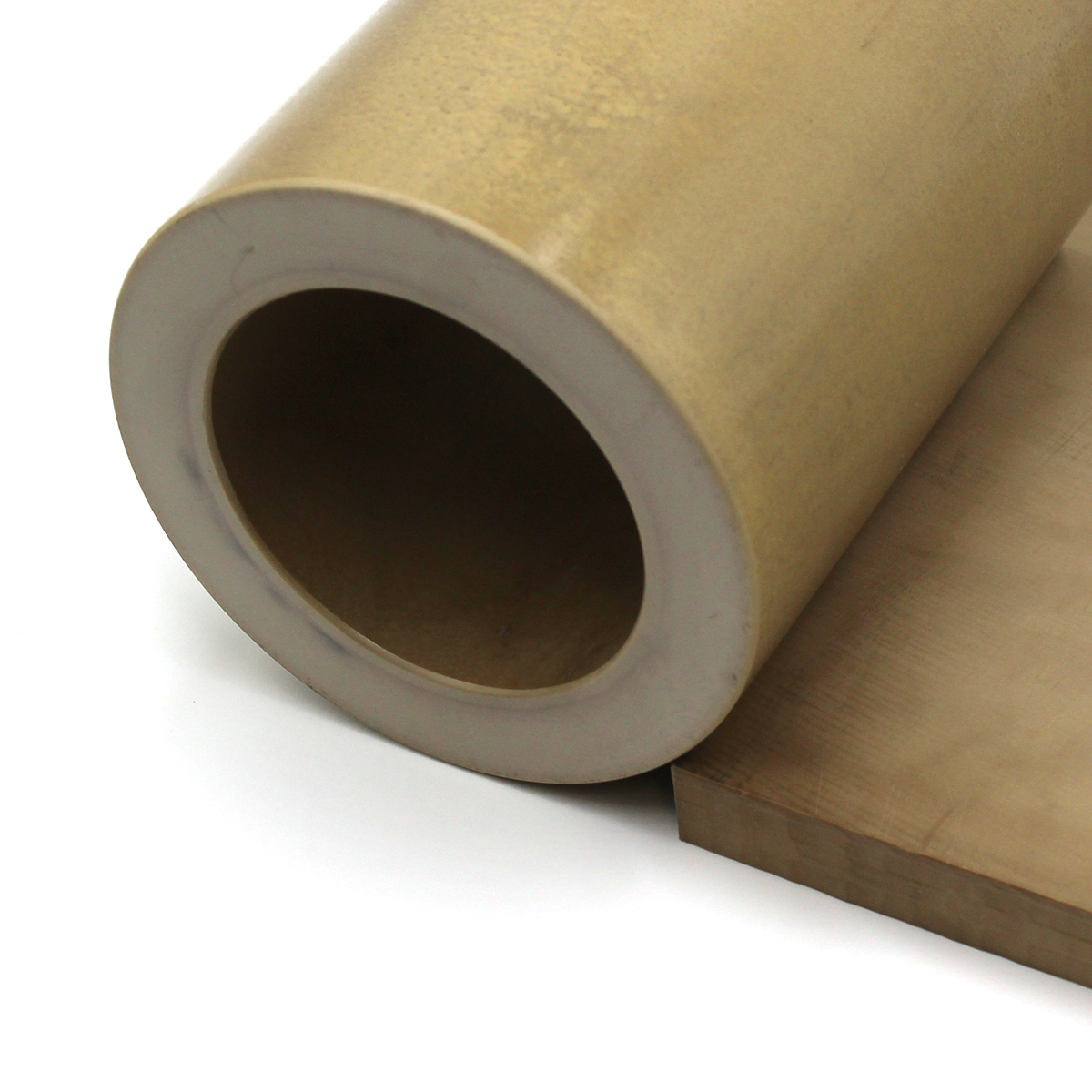

Compression Molded PEEK Sheet Thickness .250 inches to 2.500 inches Size W X L 10.000 inches x 10.000 inches Thickness .250 inches to 2.500 inches Size W X L 13.000 inches x 13.000 inches Thickness .375 inches to 2.500 inches Size W X L 15.000 inches x 30.000 inches Thickness .375 inches to 2.500 inches Size W X L 24.000 inches x 24.000 inches Rod Diameter 1.000 inches to 3.125 inches Lengths 3.000 inches to 6.000 inches L Tube Outside Diameter 1.750 inches to 8.000 inches Lengths 3.000 inches to 8.000 inches L Outside Diameter 8.250 inches to 90.000 inches Lengths 3.000 inches to 6.000 inches L Disks Diameter 3.250 inches to 26.000 inches Thickness .500 inches to 3.000 inches

Available Colors

Natural

Safety Data Sheet

Typical Properties of XP-106 TECAPEEK ® 40% Fiberglass Filled PEEK

DETAIL
Description			Value
Material Type			Semi-Crystalline Thermoplastic
Chemical Name			PEEK Polyetheretherketone
Trade Name			XP-106 TECAPEEK®
Additives			40% Glass
Color			Natural
Manufacturer			Ensinger
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	1.68
	ASTM D792	lb/in³	0.061
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi	12,000
Tensile Modulus	ASTM D638	psi	1,200,000
Tensile Elongation at Break	ASTM D638	%	1.7
Flexural Strength	ASTM D790	psi	18,000
Flexural Modulus	ASTM D790	psi	1,250,000
Compressive Strength	ASTM D695	psi- 10% Deformation	26,250
Compressive Modulus	ASTM D695	psi	555,000
IZOD Impact-Notched	ASTM D256	ft-lb/in	0.75
THERMAL
Property	Test	Unit of Measure	Value
Melting Point Temp	ASTM D3418	°C	348
	ASTM D3418	°F	649
Max Continuous Operating Temp	249	°F	480
Minimum Operating Temp		°C	-60
		°F	-76
COMPLIANCE
Description			Value
FDA			No
NSF			No
USP Class VI			No
OTHER
Description			Value
Relative Cost			$$$$$$

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

TECAPEEK® is a registered trademark of Ensinger.
