SIMONA ® PVC VS-1 (FM 4910)

Compliance Info

Slide 1 of 2, currently active
Slide 2 of 2

General Info

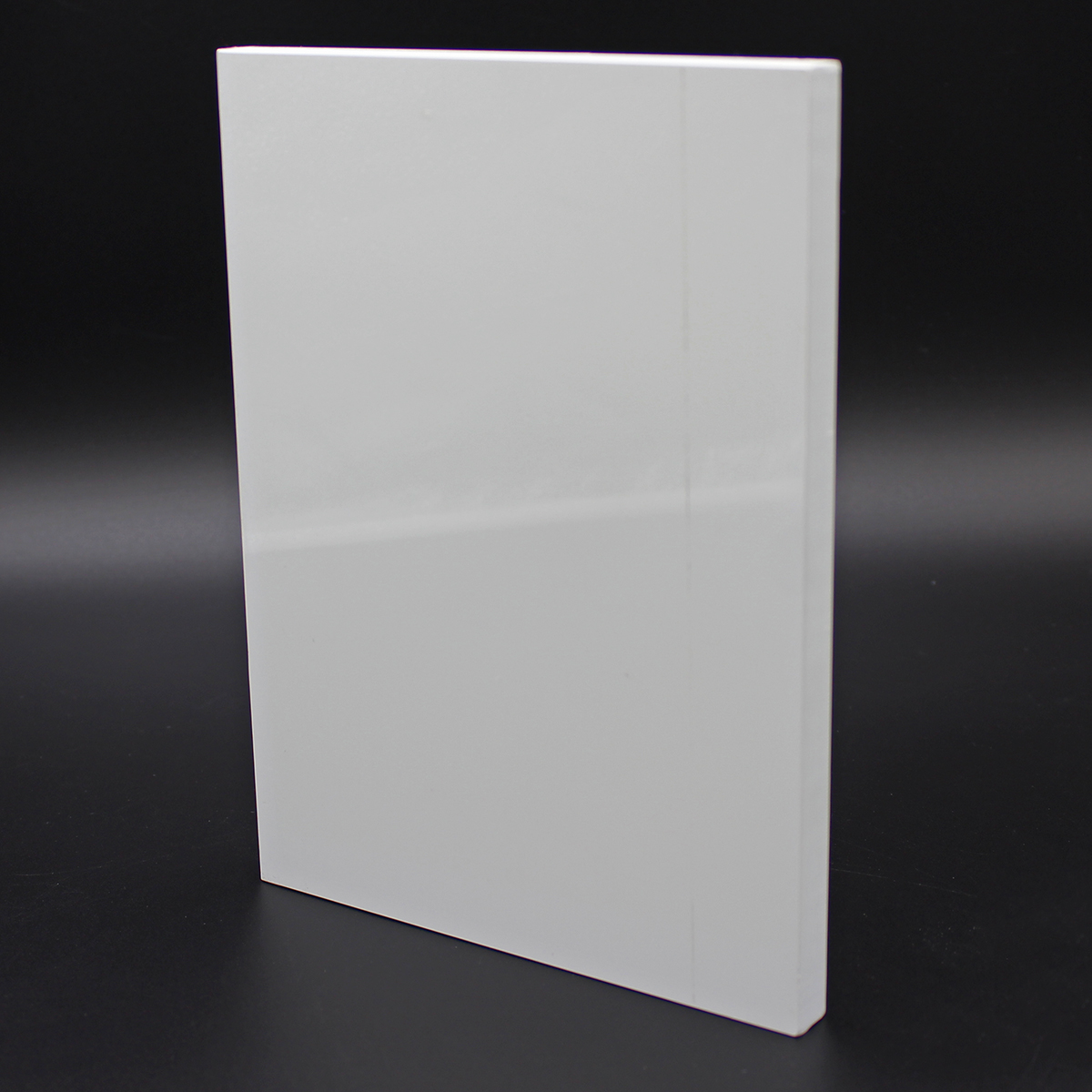

SIMONA® PVC Type I VS-1 sheet is listed FM 4910 for semiconductor equipment. This economical grade withstands service temperatures to 154°F (68°C) and forms and fabricates easily. SIMONA also offers PVC Type I CRP-1 with significantly higher impact strength and service temperatures approaching PVC-C.

Click for more information on the complete line of PVC & CPVC Plastics

Key Properties

ASTM E-84 Class A Rating
Consistent White Color
FM 4910 And UL 94 V-0 Listed
Good Balance of Price and Performance
Resists Acids, Alkalines, & UPW Contact

Limitations

Higher Weight than many other Thermoplastics
Limited Operating Temperature of 140 F

Applications

Chemical Distribution Equipment
Dry Tool Enclosures
Electrical Cabinets
Valve Boxes, Rinse Modules
Wafer Transfer Interfaces
Wet Process Tool Cabinetry

Resin Trade Names

Manufacturer Trade Names

SIMONA® PVC VS-1

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Sheet Extruded White | Thickness .118” to .750” Pressed White | Thickness 1.00” Standard sheet size is 48.000” x 96.000” Welding Rod PVC Type 1 .118”, .157” & .197” Diameters Boedeker offers cut to size service on all in-stock items and same day shipping. If you don’t see the size your looking for contact us for alternative options.

Available Colors

White

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of SIMONA ® PVC VS-1 (FM 4910)

DETAIL
Description			Value
Material Type			Amorphous Thermoplastic
Chemical Name			PVC Polyvinyl Chloride
Trade Name			SIMONA® PVC VS-1
Additives			Proprietary
Color			White
Manufacturer			SIMONA
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	1.415
	ASTM D792	lb/in³	0.051
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi	7,500
Hardness	ASTM D2240	NA	Shore D84
IZOD Impact-Notched	ASTM D256	ft-lb/in	1.06
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	ASTM D696	x 10-5 in./in./°F	6
Max Continuous Operating Temp		°C	60
		°F	140
Minimum Operating Temp		°C	-10
		°F	14
Flammability Rating	UL94	NA	V-0
COMPLIANCE
Description			Value
FDA			No
USDA			No
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
Relative Cost			$$
Machinability			2

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

SIMONA® is a registered trademark of Simona.
