General Info

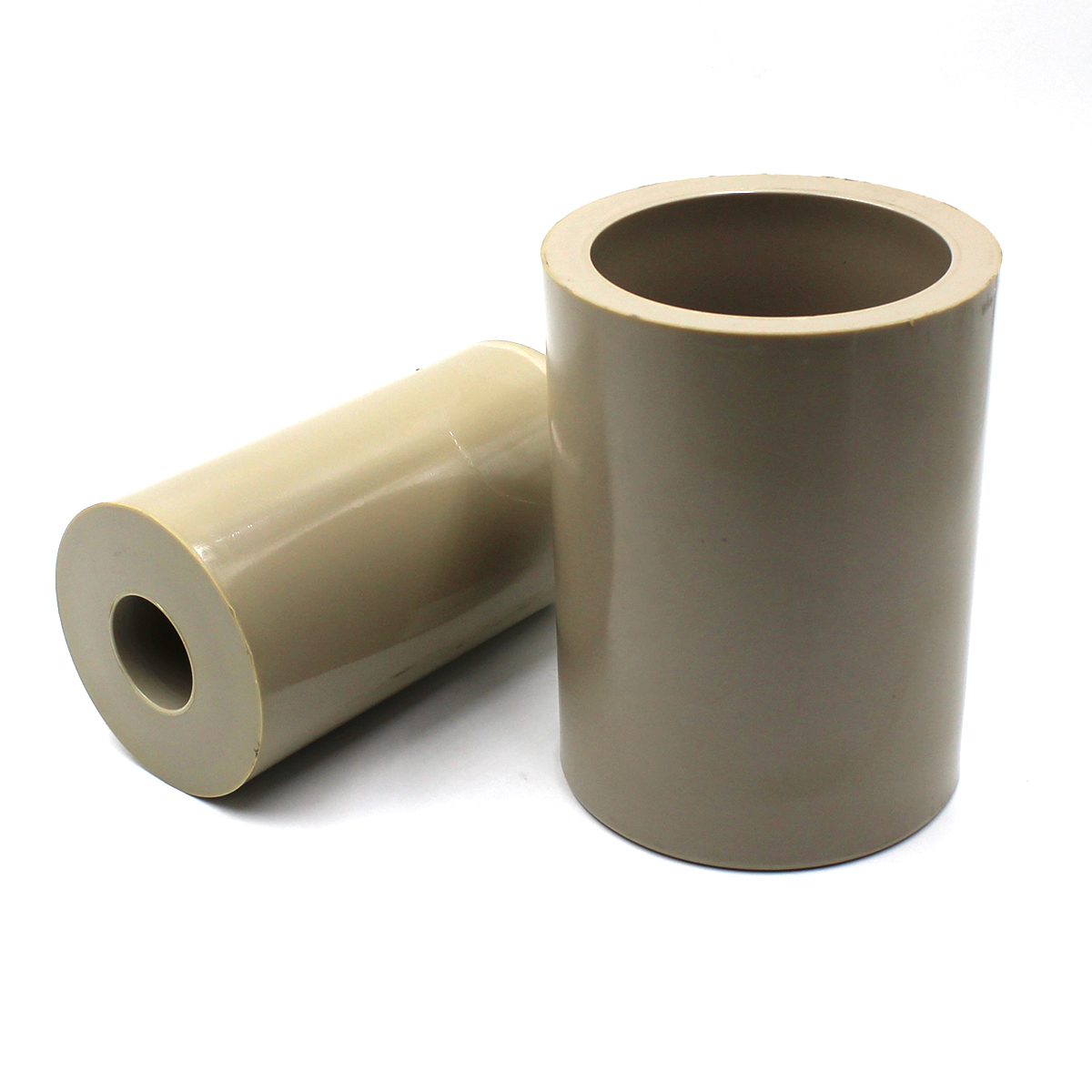

BOETEK™ PEEK IM 4000G Unfilled Natural Tube is made from VESTAKEEP® L 4000 G resin is an unreinforced polyetherether-ketone. It is FDA-compliant and has a continuous use temperature of 480°F (250°C). Offering high strength and stiffness, and high ductility. It can be used in hot water or steam without permanent loss in physical properties. With excellent chemical resistance, it excels in hostile environments; BOETEK™ PEEK is a high-strength alternative to fluoropolymers. It carries a V-0 flammability rating and exhibits very low smoke and toxic gas emissions when exposed to flame.
It is often used in aerospace, oil & gas, food processing, pump, valve, compressor, medical, chemical processing, and other industries. Typical applications include backup rings, seals, pump and valve components, and valve seats.
If you require unfilled PEEK in sheet, rod, film, or other shapes, we offer a wide range of options for these shapes in extruded or compression molded options. For our full PEEK materials offering to, click for more information on the complete line of PEEK Plastic Products
Key Properties
- Excellent Chemical Resistance
- High Temperature Resistance
- Unaffected by continuous exposure to hot water or steam
- Very Low Moisture Resistance
- Low Outgassing Material
- Total Mass Loss (TML%) .31%
- Collected Volatile Condensable Materials (CVCM%) 0.00%
- Water Vapor Regained (WVR%) 0.06%
Limitations
- Poor Chemical Resistance to Halogens and Their Acids Including Bromine, Chlorine, Fluorine, HBr and HF
Applications
- Back Up Rings
- Electrical Components
- Electrical Connectors
- Manifolds
- Pump & Valve Components
- Semiconductor Components
- Valve Seats
Resin Trade Names
Manufacturer Trade Names
- BOETEK™ PEEK IM 4000G Unfilled Natural
Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.
Available Sizes
Tube Only
4.250 Inch-Long Tubes
OD X ID X Length
7.250 Inch x 6.250 Inch x 4.250 Inch
7.250 Inch x 6.500 Inch x 4.250 Inch
7.250 Inch x 6.750 Inch x 4.250 Inch
7.500 Inch x 6.500 Inch x 4.250 Inch
7.500 Inch x 6.750 Inch x 4.250 Inch
7.500 Inch x 7.000 Inch x 4.250 Inch
7.750 Inch x 6.750 Inch x 4.250 Inch
7.750 Inch x 7.000 Inch x 4.250 Inch
7.750 Inch x 7.250 Inch x 4.250 Inch
8.000 Inch x 7.000 Inch x 4.250 Inch
8.000 Inch x 7.250 Inch x 4.250 Inch
8.000 Inch x 7.500 Inch x 4.250 Inch
8.250 Inch x 7.250 Inch x 4.250 Inch
8.250 Inch x 7.500 Inch x 4.250 Inch
8.750 Inch x 8.000 Inch x 4.250 Inch
8.750 Inch x 8.250 Inch x 4.250 Inch
9.000 Inch x 8.000 Inch x 4.250 Inch
9.000 Inch x 8.250 Inch x 4.250 Inch
9.000 Inch x 8.500 Inch x 4.250 Inch
9.250 Inch x 8.250 Inch x 4.250 Inch
9.250 Inch x 8.500 Inch x 4.250 Inch
10.000 Inch x 9.000 Inch x 4.250 Inch
10.000 Inch x 9.250 Inch x 4.250 Inch
10.000 Inch x 9.500 Inch x 4.250 Inch
10.250 Inch x 9.250 Inch x 4.250 Inch
10.250 Inch x 9.500 Inch x 4.250 Inch
6.000 Inch Long Tubes
OD X ID X Length
1.125 Inch x 0.500 Inch x 6.000 Inch
1.125 Inch x 0.625 Inch x 6.000 Inch
1.500 Inch x 0.500 Inch x 6.000 Inch
1.500 Inch x 0.625 Inch x 6.000 Inch
1.500 Inch x 1.000 Inch x 6.000 Inch
1.750 Inch x 0.625 Inch x 6.000 Inch
1.750 Inch x 1.000 Inch x 6.000 Inch
1.750 Inch x 1.250 Inch x 6.000 Inch
2.000 Inch x 1.000 Inch x 6.000 Inch
6.250 Inch Long Tubes
OD X ID X Length
2.000 Inch x 1.250 Inch x 6.250 Inch
2.000 Inch x 1.500 Inch x 6.250 Inch
2.250 Inch x 1.250 Inch x 6.250 Inch
2.250 Inch x 1.500 Inch x 6.250 Inch
2.250 Inch x 1.750 Inch x 6.250 Inch
2.500 Inch x 1.500 Inch x 6.250 Inch
2.500 Inch x 1.750 Inch x 6.250 Inch
2.500 Inch x 2.000 Inch x 6.250 Inch
2.750 Inch x 1.750 Inch x 6.250 Inch
2.750 Inch x 2.000 Inch x 6.250 Inch
2.750 Inch x 2.250 Inch x 6.250 Inch
3.000 Inch x 2.000 Inch x 6.250 Inch
3.000 Inch x 2.250 Inch x 6.250 Inch
3.000 Inch x 2.500 Inch x 6.250 Inch
3.250 Inch x 2.250 Inch x 6.250 Inch
3.250 Inch x 2.500 Inch x 6.250 Inch
3.250 Inch x 2.750 Inch x 6.250 Inch
3.500 Inch x 2.500 Inch x 6.250 Inch
3.500 Inch x 2.750 Inch x 6.250 Inch
3.500 Inch x 3.000 Inch x 6.250 Inch
3.750 Inch x 2.750 Inch x 6.250 Inch
3.750 Inch x 3.000 Inch x 6.250 Inch
3.750 Inch x 3.250 Inch x 6.250 Inch
4.000 Inch x 3.000 Inch x 6.250 Inch
4.000 Inch x 3.250 Inch x 6.250 Inch
4.000 Inch x 3.500 Inch x 6.250 Inch
4.250 Inch x 3.250 Inch x 6.250 Inch
4.250 Inch x 3.500 Inch x 6.250 Inch
4.250 Inch x 3.750 Inch x 6.250 Inch
4.500 Inch x 3.500 Inch x 6.250 Inch
4.500 Inch x 3.750 Inch x 6.250 Inch
4.500 Inch x 4.000 Inch x 6.250 Inch
4.750 Inch x 3.750 Inch x 6.250 Inch
4.750 Inch x 4.000 Inch x 6.250 Inch
4.750 Inch x 4.250 Inch x 6.250 Inch
5.000 Inch x 4.000 Inch x 6.250 Inch
5.000 Inch x 4.250 Inch x 6.250 Inch
5.000 Inch x 4.500 Inch x 6.250 Inch
5.250 Inch x 4.250 Inch x 6.250 Inch
5.250 Inch x 4.500 Inch x 6.250 Inch
5.250 Inch x 4.750 Inch x 6.250 Inch
5.500 Inch x 4.500 Inch x 6.250 Inch
5.500 Inch x 4.750 Inch x 6.250 Inch
5.500 Inch x 5.000 Inch x 6.250 Inch
5.750 Inch x 4.750 Inch x 6.250 Inch
5.750 Inch x 5.000 Inch x 6.250 Inch
5.750 Inch x 5.250 Inch x 6.250 Inch
6.000 Inch x 5.000 Inch x 6.250 Inch
6.000 Inch x 5.250 Inch x 6.250 Inch
6.000 Inch x 5.500 Inch x 6.250 Inch
6.250 Inch x 5.250 Inch x 6.250 Inch
6.250 Inch x 5.500 Inch x 6.250 Inch
6.250 Inch x 5.750 Inch x 6.250 Inch
6.500 Inch x 5.500 Inch x 6.250 Inch
6.500 Inch x 5.750 Inch x 6.250 Inch
6.500 Inch x 6.000 Inch x 6.250 Inch
6.750 Inch x 5.750 Inch x 6.250 Inch
6.750 Inch x 6.000 Inch x 6.250 Inch
6.750 Inch x 6.250 Inch x 6.250 Inch
7.000 Inch x 6.000 Inch x 6.250 Inch
7.000 Inch x 6.250 Inch x 6.250 Inch
7.000 Inch x 6.500 Inch x 6.250 Inch
