Acetal Copolymer

Compare Go To Comparison Add Additional Products For Comparison

-

1. Select Shape

2. Please Select Thickness

2. Please Select Diameter

2. Please Select Outer Diameter

2. Please Select Type & Size

Unit of Measure

In order to provide an accurate quote for your part, you'll need to provide some information through our custom quote request form.

3. Please Select Dimensions *

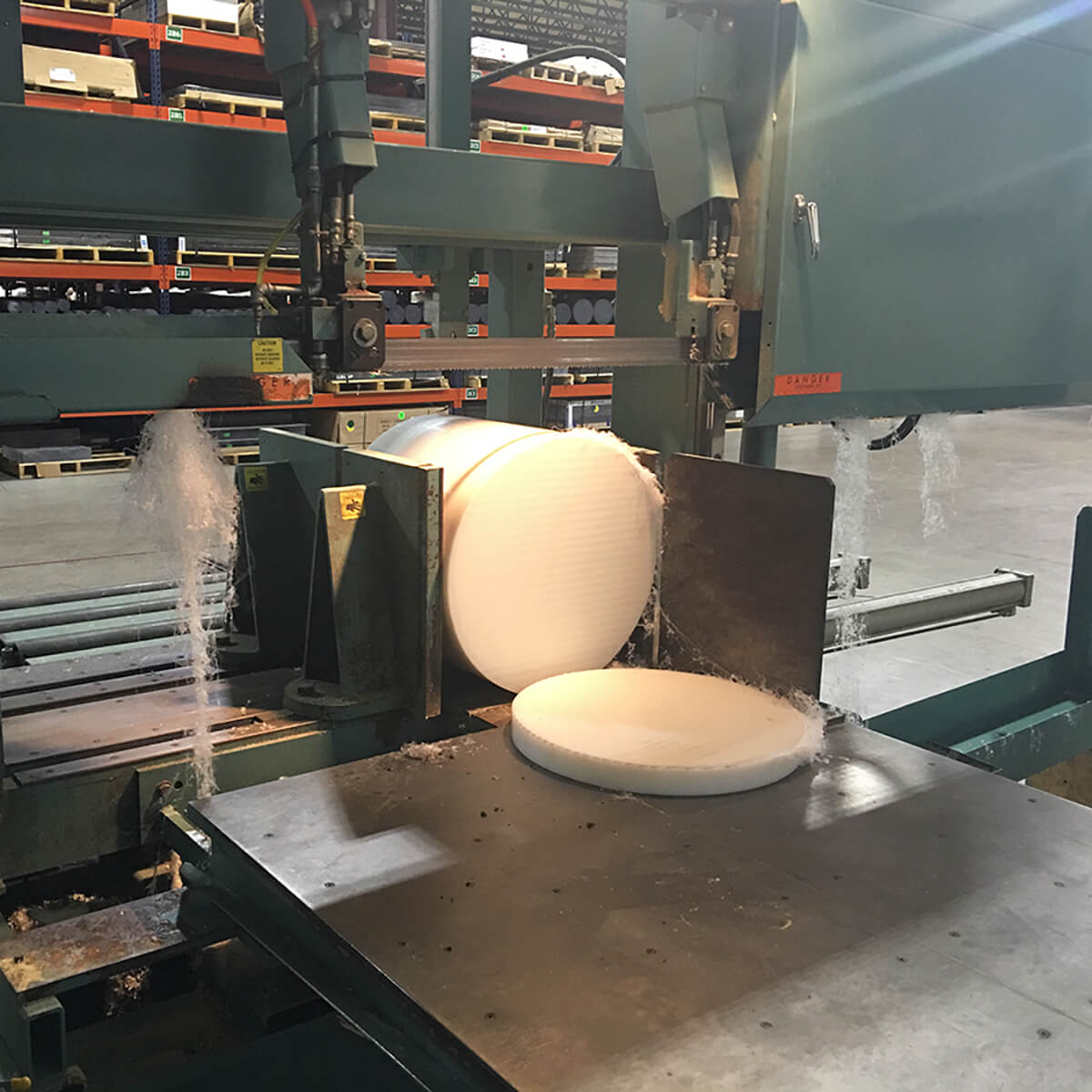

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

3. Please Select Length *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

General Info

ACETAL COPOLYMER (unfilled) grade offers excellent performance at a slightly lower cost than Delrin ® homopolymer. Some acetal copolymer may exhibit center line porosity, but porosity-free material is available. Certain grades are FDA, USDA, NSF, Canada AG and 3-A Dairy compliant. Low stress levels and high strength assure flatness and dimensional stability up to a maximum continuous service temperature of 180°F (80°C). Acetal copolymers are available in a wide variety of colors.

Learn more about Acetron, Delrin & Tecaform Acetal Grades.

Key Properties

  • High Strength and Stiffness
  • Wear Resistance in Wet Environments
  • Low H2O Absorption
  • Excellent Machinability
  • Higher Chemical and Hot Water Resistance than Homopolymer Acetal
  • Less Centerline Porosity than Homopolymer Acetal
  • Lower Outgassing than Homopolymer Acetal

Limitations

  • Wear Resistance in Dry Environments
  • Lower Temperature Stability (to 180 F)
  • Poor Resistance to Strong Acids and Alkalies
  • Formaldehyde Outgassing
  • Lower Stiffness than Homopolymer Acetal

Applications

  • Bushings & Bearings
  • Gears & Sprockets
  • Manifolds
  • Pump & Valve Components
  • Rollers
  • Wear Strips

Resin Trade Names

  • Celcon® POM Acetal

Manufacturer Trade Names

  • Acetron® Acetal Grades
  • Delrin® Acetal Grades
  • GEHR Acetal Grades
  • Pomalux® Acetal Grades
  • Semitron® ESd 225 Static Dissipative Acetal
  • Sustarin® C Acetal Grades
  • TECAFORM® Acetal Grades
  • Turcite ® Acetal Grades
  • Unital® Acetal Grades
  • ZL® Acetal Grades

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Available Colors

  • Black
  • Blue
  • Brown
  • Gray
  • Green
  • Orange
  • Red
  • Rust
  • White
  • Yellow

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of Acetal Copolymer

DETAIL
Description Value
Material Type Semi-Crystalline Thermoplastic
Chemical Name POM Polyoxymethylene Acetal Copolymer
Additives Unfilled
Color White
PHYSICAL
Property Test Unit of Measure Value
Density ASTM D792 g/cm³ 1.41
  ASTM D792 lb/in³ 0.051
Water Absorption, 24 hrs, Immersion ASTM D570 % by wt. 0.2
MECHANICAL
Property Test Unit of Measure Value
Tensile Strength ASTM D638 psi 9,500
Tensile Modulus ASTM D638 psi 400,000
Tensile Elongation at Break ASTM D638 % 30
Flexural Strength ASTM D790 psi 12,000
Flexural Modulus ASTM D790 psi 400,000
Compressive Strength ASTM D695 psi 15,000
Compressive Modulus ASTM D695 psi 400,000
Hardness ASTM D785 NA Rockwell M88 / R120
IZOD Impact-Notched ASTM D256 ft-lb/in 1
THERMAL
Property Test Unit of Measure Value
Coefficient of Linear Thermal Expansion ASTM D696 x 10-5 in./in./°F 5.4
Heat Deflection Temp ASTM D648 °C at 264 psi 104
  ASTM D648 °F at 264 psi 220
Melting Point Temp ASTM D3418 °C 168
  ASTM D3418 °F 335
Max Continuous Operating Temp °C 82
  °F 180
Minimum Operating Temp °C -50
  °F -58
Thermal Conductivity ASTM C117 BTU-in/ft²-hr-°F 1.6
  ASTM C117 x 10^4 cal/cm-sec-°C 5.5
Flammability Rating UL94 NA HB
ELECTRICAL
Property Test Unit of Measure Value
Dielectric Strength ASTM D149 V/mil 420
Dielectric Constant at 1 MHz ASTM D150 NA 3.8
Dissipation Factor at 1 MHz ASTM D150 NA 0.005
Surface Resistivity ASTM D257 ohm/square > 10^13
COMPLIANCE
Description Value
FDA Yes
USDA Yes
NSF Yes
3-A Dairy Yes
Canadian Food Inspection Agency Yes
USP Class VI No
OTHER
Description Value
UV Resistant No
Relative Cost $$$
Machinability 1

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

DELRIN is a registered trademark of DuPont.
