General Info

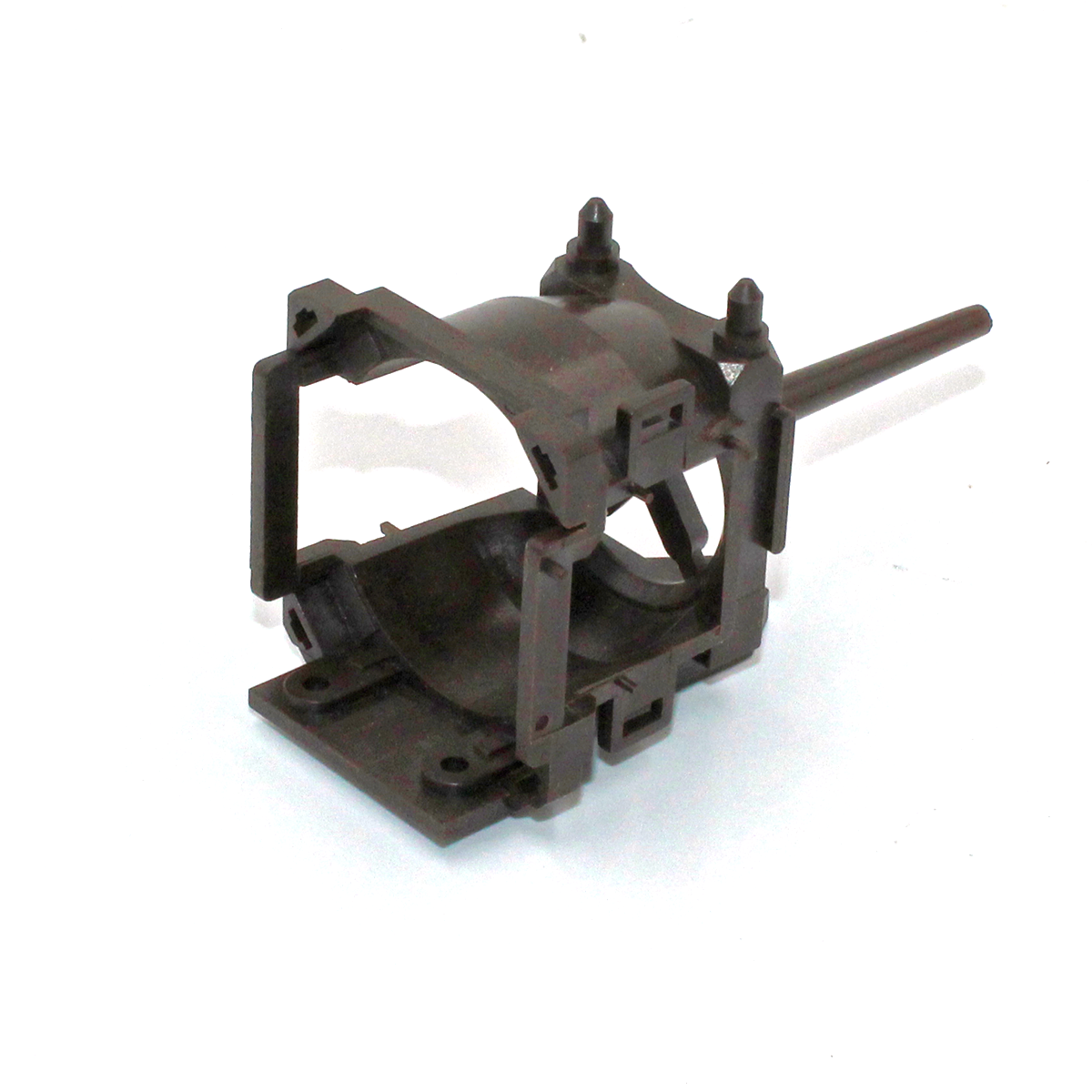

Celazole® TU-60 is a high performance unfilled blend, ideal for applications requiring no fillers. This material works well for complex geometries in high temp, high load applications. It is ideal for lamp sockets, connectors and backup seals.
Click for more information on the complete line of Celazole PBI Products
For Celazole PBI resin (powder/pellet), solution, film, or fiber please contact: Mr. Mike Gruender, Vice President of Sales & Marketing, PBI Performance Products, Inc. in Charlotte, NC (USA) at 1-704-554-3036 or e-mail him at [email protected]
Boedeker Plastics, Inc. is a preferred partner of PBI Performance Products, Inc. in the supply of Celazole PBI parts and shapes.
Key Properties
- Chemical Resistant
- High Temperature Performance
- V-0 Flame Rating
Limitations
Applications
- Electrical Connectors
- End Effector Pads
- Gears
- Glass Handling
- Oil Field Equipment
- Oven Conveyors
- Plasma Torch Tips, Insulators
- Semiconductor Wafer Transportation
- Temperature Sensor Housings
Resin Trade Names
Manufacturer Trade Names
Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.
Available Sizes
Contact us for a specific size, we offer cut to size to optimize yield. Longer lead-times and minimums may apply for some sizes.
Compression Molded Shapes

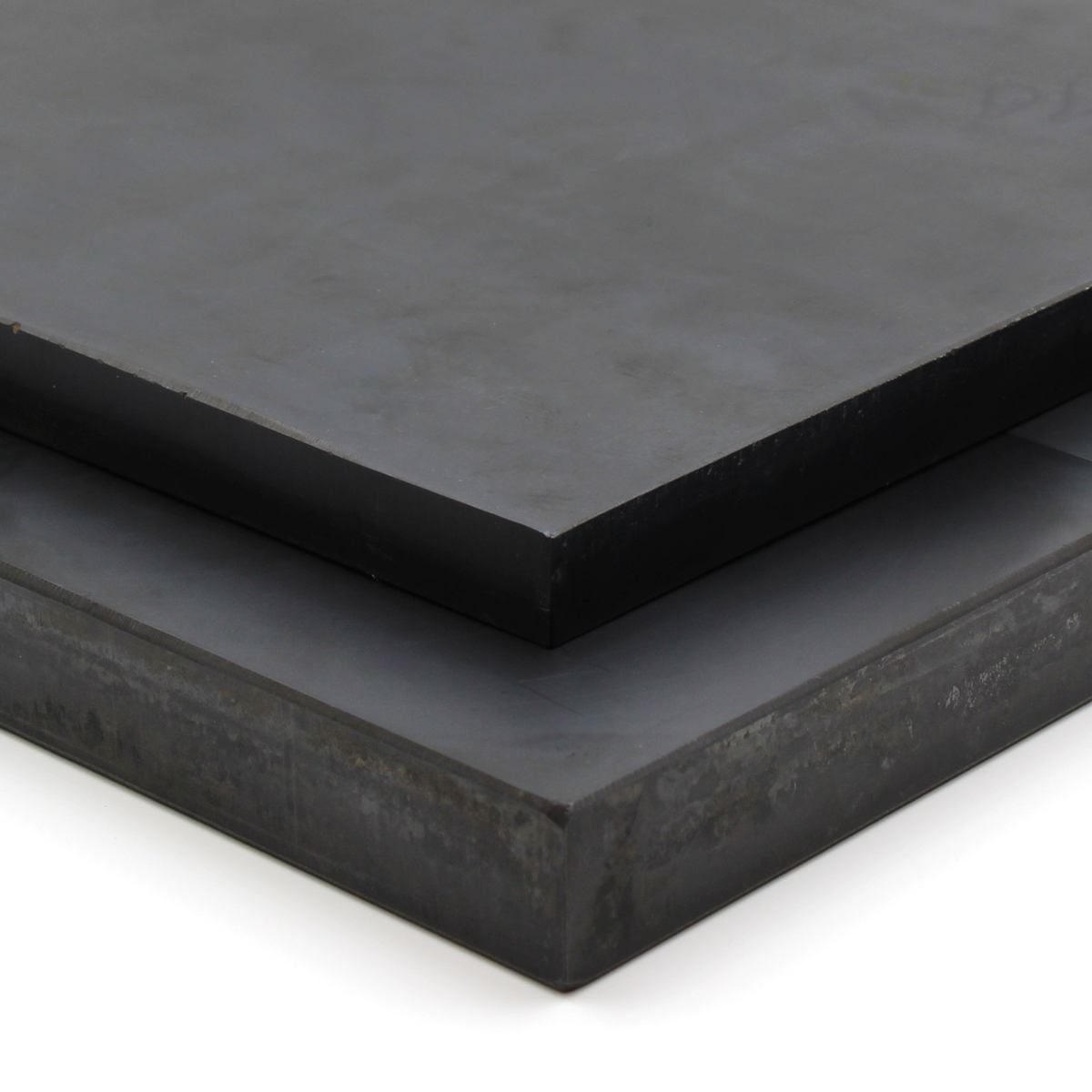

Sheet - Compression Molded
Thickness .250 to 2.000 inch
Sizes (Width x Length)
5.000 x 10.000 inch
10.000 x 10.000 inch
12.000 x 12.000 inch
15.000 x 10.500 inch
18.000 x 12.000 inch
24.000 x 12.000 inch
Rod - Compression Molded
Diameters 2.000 to 8.000 inch
Lengths
Diameters below 2.000 inch up to 17.700 inch
Diameters from 2.000 to 8.000 inch from .250 to 6.000 inch
Tubes- Compression Molded
OD 4.000 to 15.000 inch
Up to 3.000 inch wall thickness
Lengths from 3.000 to 6.000 inch long
Disks- Compression Molded
Diameter 4.000 to 15.000 inch x Thickness of up to 3.000 inch

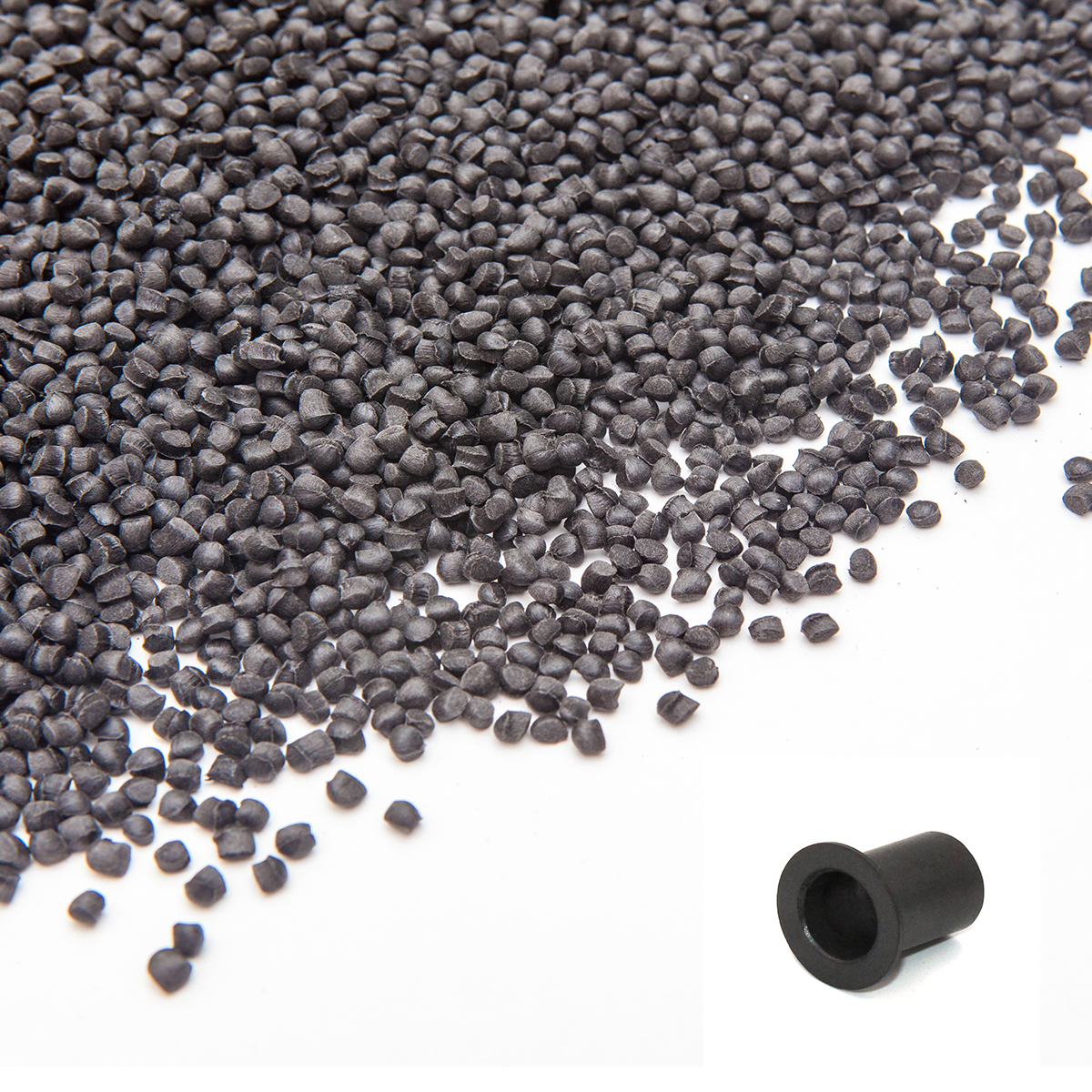

Injection Molded Shapes - Contact us for specific sizes, tooling can be made for new sizes depending on your size and quantity requirement, additional costs may apply. We also offer injection molded parts, contact us to evaluate if your part is a fit for injection molding.
Bushing sizes - Injection Molded
.750 OD x .250 ID x .750 inch L
1.000 OD x .500 ID x 1.000 inch L
1.500 OD x .750 ID x 1.500 inch L
Sheet - Injection Molded
2.500 x 2.500 x .100 inch (edge gated)
2.500 x 2.500 x .200 inch (edge gated)
2.500 x 2.500 x .250 inch (center gated)
2.500 x 2.500 x .375 inch (center gated)
2.500 x 2.500 x .500 inch (center gated)
2.500 x 2.500 x .750 inch (center gated)
6.000 x 6.000 x .500 inch (center gated)
Disk - Injection Molded
3.500 OD x .125 Inch thick
3.500 OD x .250 inch thick
3.500 OD x .375 inch thick
3.500 OD x .750 inch thick
5.000 OD x .750 inch thick
5.000 OD x .500 inch thick
Rod -Injection Molded
.500 and .750 inch OD x 4.000 inch long
Balls - Injection Molded
.1875, .250, .375, .500 inch
NOTE: For PBI resin (powder / pellet) or filament please contact:
Mr. Mike Gruender, PBI Polymer Product Manager for PBI Performance Products, Inc. in Charlotte, NC (USA) at 1-704-554-3036 or e-mail him at [email protected].
