General Info
SustaPEEK XDT is FDA compliant X-Ray detectable PEEK for enhanced food & product safety in a wide range of food processing & pharmaceutical applications offering X-Ray detectability with X-Ray detection systems. SustaPEEK XDT offers excellent mechanical properties, chemical resistance, 480° F continuous use temperature, hot water and steam resistance & low moisture absorption. SustaPEEK products are manufactured with PEEK resin from Victrex.
To find out how detectable Metal & X-Ray detectable plastics are, go to our Metal & X-Ray Detectability Page, watch our technical video and download our free white paper on this topic. Learn More
Key Properties
- X-Ray Detectable
- Continuous use temperature of 480° F
- Good dimensional stability
- FDA compliant
- Outstanding rigidity at high temperatures
- Excellent hydrolysis resistance
- Excellent chemical resistance
Limitations
- Poor Chemical Resistance to Halogens and Their Acids Including Bromine, Chlorine, Fluorine, HBr and HF
Applications
- Baffles
- Bushings & Bearings
- Conveyor Components
- Cups & Sleeves
- Forming Plates
- Gears
- Guides
- Mixer Components
- Pillow Blocks
- Piston Fillers
- Rollers
- Scraper Blades
- Sprockets
- Wear Plates
- Wear Strips
Resin Trade Names
Manufacturer Trade Names
Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.
Available Sizes
Sheet*

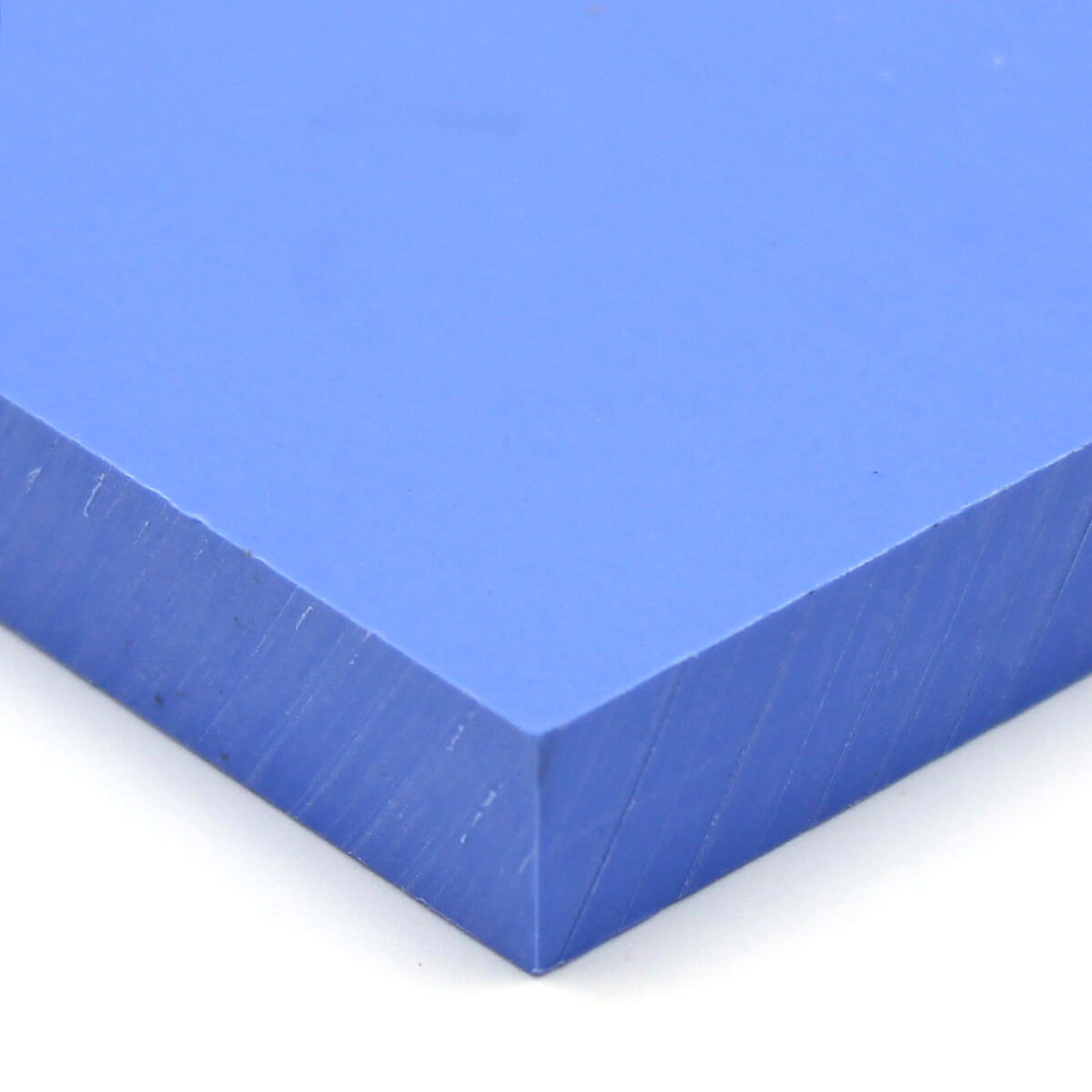

Thickness .375” to 6.000”
Width & Length 24.000” x 48.000”
Thickness .500” to 2.000”
Width & Length 48.000” x 96.000”
Width & Length 48.000” x 120.000”
Rod*

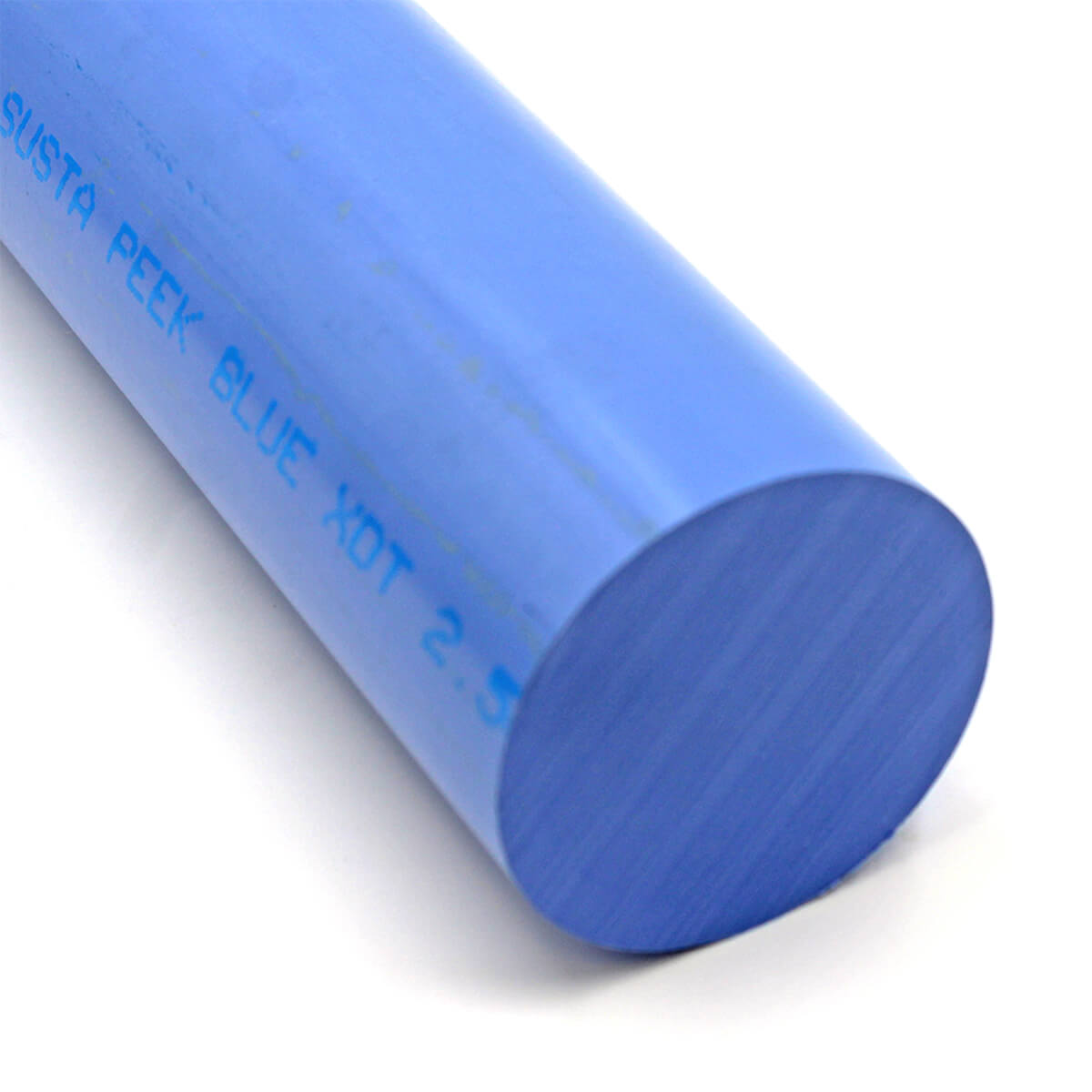

Diameters .250” to 6.000” Length 10’
Diameters 7.000” to 12.000” Length 3’
Tube*
Various Sizes Available OD & ID vary depending on formulation.
(*) Minimums may apply for some formulations depending on grade & shape size required.
Boedeker offers cut to size service on all in-stock items and same day shipping. If you don’t see the size your looking for contact us for alternative options.
