General Info

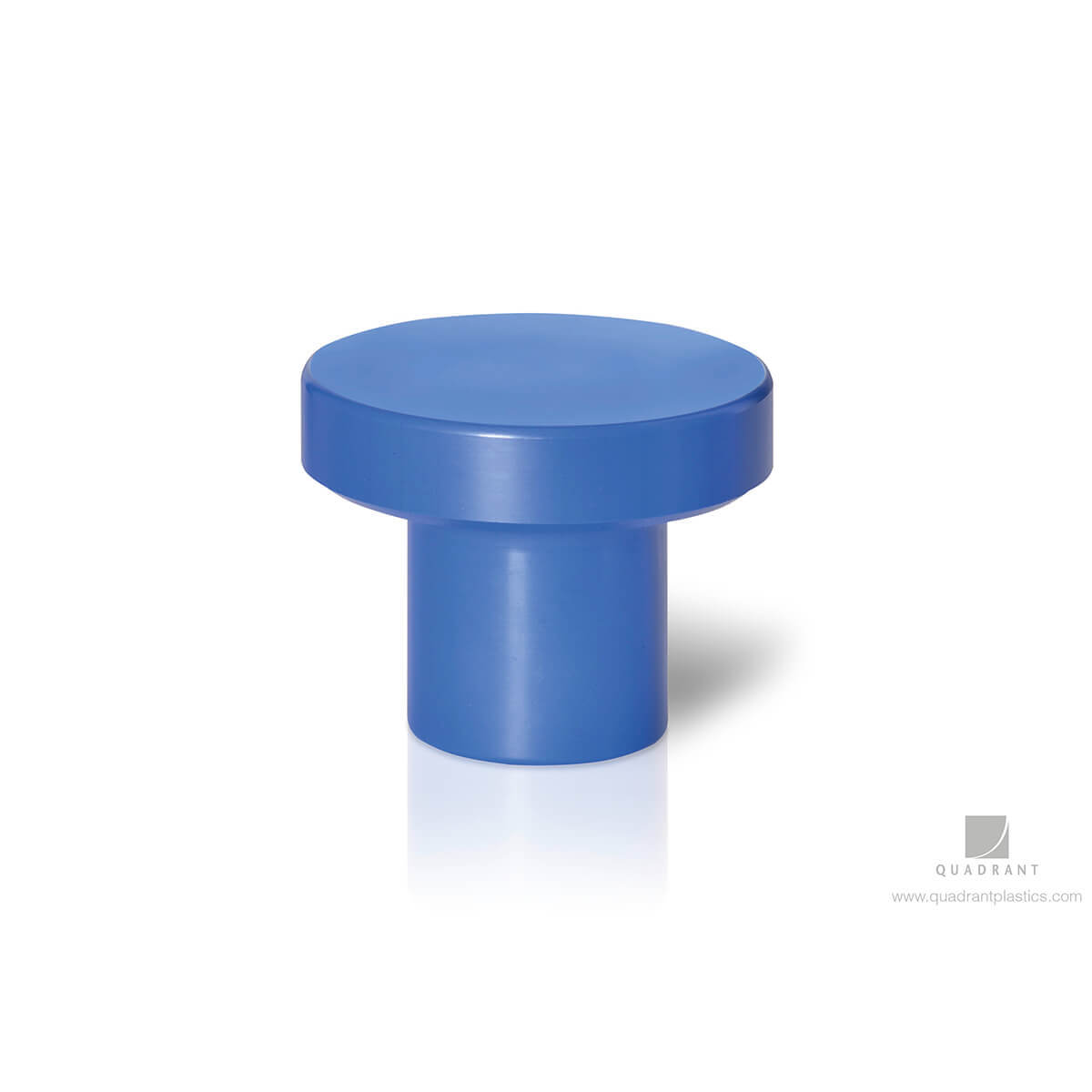

Ketron® TX PEEK was developed for the food industry and other applications that require an FDA compliant and European Union compliance material. Ketron® TX is an internally lubricated PEEK that offers improved wear and frictional performance over virgin PEEK. Ketron® TX is ideal for food, pharmaceutical, and beverage processing applications where the application requires extreme performance via either temperature, critical tolerance, or even frictional heat; all while improving wear performance and part life by lowering the coefficient of friction over standard PEEK.
Click for more information on the complete line of Ketron PEEK Plastic Products
Key Properties
- European Union Compliant
- Excellent chemical and hydrolysis resistance
- Excellent dimensional stability
- FDA Compliant
- High Continuous Use Temp 480 F / 248 C
- High Heat Deflection Temp at 264 psi 320 F / 160 C
- High mechanical strength, stiffness and creep resistance at elevated temperatures
- Improved bearing and wear properties over Virgin PEEK
- Inherent low flammability and very low levels of smoke evolution during combustion
- Lower (COF) Friction than Virgin PEEK
Limitations
- Poor Chemical Resistance to Halogens and Their Acids Including Bromine, Chlorine, Fluorine, HBr and HF
Applications
- Beverage Processing Bearing and Wear Components
- Conveyor Wear Components
- Food Processing Bearing and Wear Components
- High Temperature / High PV Bushing and Bearings
- High Temperature / High PV Thrust Washers
- Mixing Shaft Bushings
- Pharmaceutical Bearing and Wear Components
- Rollers
Resin Trade Names
Manufacturer Trade Names
Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.
Available Sizes
Sheet Sizes
.196 in (5mm) Thickness x 24.212 in (615 mm) Width x 118.110 in (3000 mm) Length***
.236 in (6 mm) Thickness x 24.212 in (615 mm) Width x 118.110 in (3000 mm) Length***
.314 in (8 mm) Thickness x 24.212 in (615 mm) Width x 118.110 in (3000 mm) Length***
.393 in (10 mm) Thickness x 24.212 in (615 mm) Width x 118.110 in (3000 mm) Length***
.472 in (12 mm) Thickness x 24.212 in (615 mm) Width x 118.110 in (3000 mm) Length**
.590 in (15 mm) Thickness x 24.212 in (615 mm) Width x 118.110 in (3000 mm) Length***
.629 in (16 mm) Thickness x 24.212 in (615 mm) Width x 118.110 in (3000 mm) Length***
.708 in (18 mm) Thickness x 24.212 in (615 mm) Width x 118.110 in (3000 mm) Length***
.787 in (20 mm) Thickness x 24.212 in (615 mm) Width x 118.110 in (3000 mm) Length***
.984 in (25 mm) Thickness x 24.212 in (615 mm) Width x 118.110 in (3000 mm) Length**
1.181 in (30 mm) Thickness x 24.212 in (615 mm) Width x 118.110 in (3000 mm) Length***
1.377 in (35 mm) Thickness x 24.212 in (615 mm) Width x 118.110 in (3000 mm) Length***
1.574 in (40 mm) Thickness x 24.212 in (615 mm) Width x 118.110 in (3000 mm) Length***
1.771 in (45 mm) Thickness x 24.212 in (615 mm) Width x 118.110 in (3000 mm) Length***
1.968 in (50 mm) Thickness x 24.212 in (615 mm) Width x 118.110 in (3000 mm) Length**
2.165 in (55 mm) Thickness x 24.212 in (615 mm) Width x 118.110 in (3000 mm) Length***
2.362 in (60 mm) Thickness x 24.212 in (615 mm) Width x 118.110 in (3000 mm) Length**
Rod Sizes
.236 in (6 mm) Diameter x 118.110 in (3000 mm) in Length**
.275 in (7 mm) Diameter x 118.110 in (3000 mm) in Length***
.314 in (8 mm) Diameter x 118.110 in (3000 mm) in Length**
.354 in (9 mm) Diameter x 118.110 in (3000 mm) in Length***
.393 in (10 mm) Diameter x 118.110 in (3000 mm) in Length***
.433 in (11 mm) Diameter x 118.110 in (3000 mm) in Length***
.472 in (12 mm) Diameter x 118.110 in (3000 mm) in Length***
.551 in (14 mm) Diameter x 118.110 in (3000 mm) in Length***
.590 in (15 mm) Diameter x 118.110 in (3000 mm) in Length***
.629 in (16 mm) Diameter x 118.110 in (3000 mm) in Length***
.708 in (18 mm) Diameter x 118.110 in (3000 mm) in Length***
.787 in (20 mm) Diameter x 118.110 in (3000 mm) in Length***
.984 in (25 mm) Diameter x 118.110 in (3000 mm) in Length*
1.181 in (30mm) Diameter x 118.110 in (3000 mm) in Length**
1.377 in (35 mm) Diameter x 118.110 in (3000 mm) in Length***
1.968 in (50 mm) Diameter x 118.110 in (3000 mm) in Length*
2.362 in (60 mm) Diameter x 118.110 in (3000 mm) in Length***
2.755 in (70 mm) Diameter x 118.110 in (3000 mm) in Length***
3.149 in (80 mm) Diameter x 118.110 in (3000 mm) in Length***
3.543 in (90 mm) Diameter x 118.110 in (3000 mm) in Length***
3.937 in (100 mm) Diameter x 118.110 in (3000 mm) in Length***
* Boedeker Stocked Rod Sizes
** Typical Stock Sizes at MFG and Longer lead times and minimums may apply
*** Minimum quantities and longer lead times will apply for these sizes

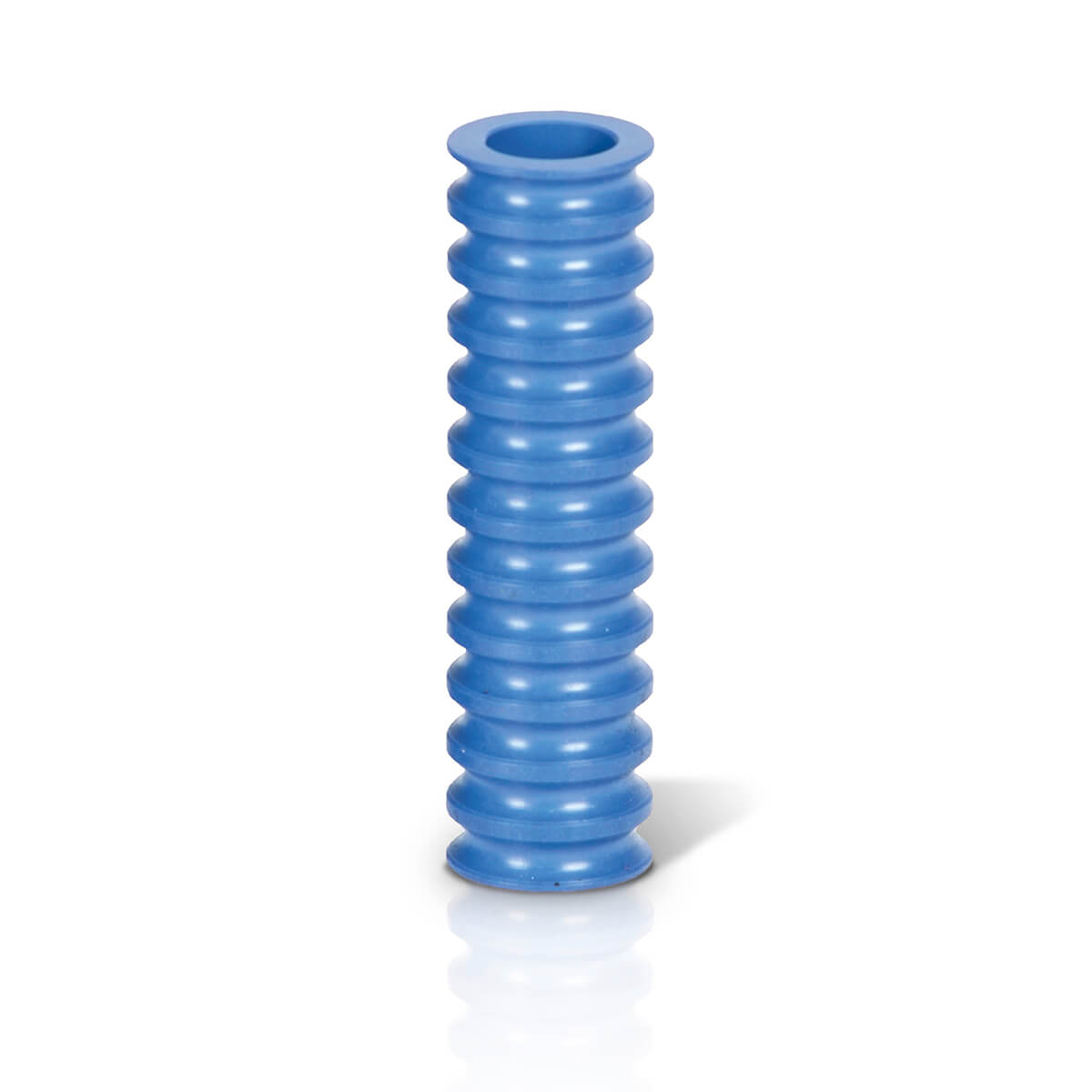

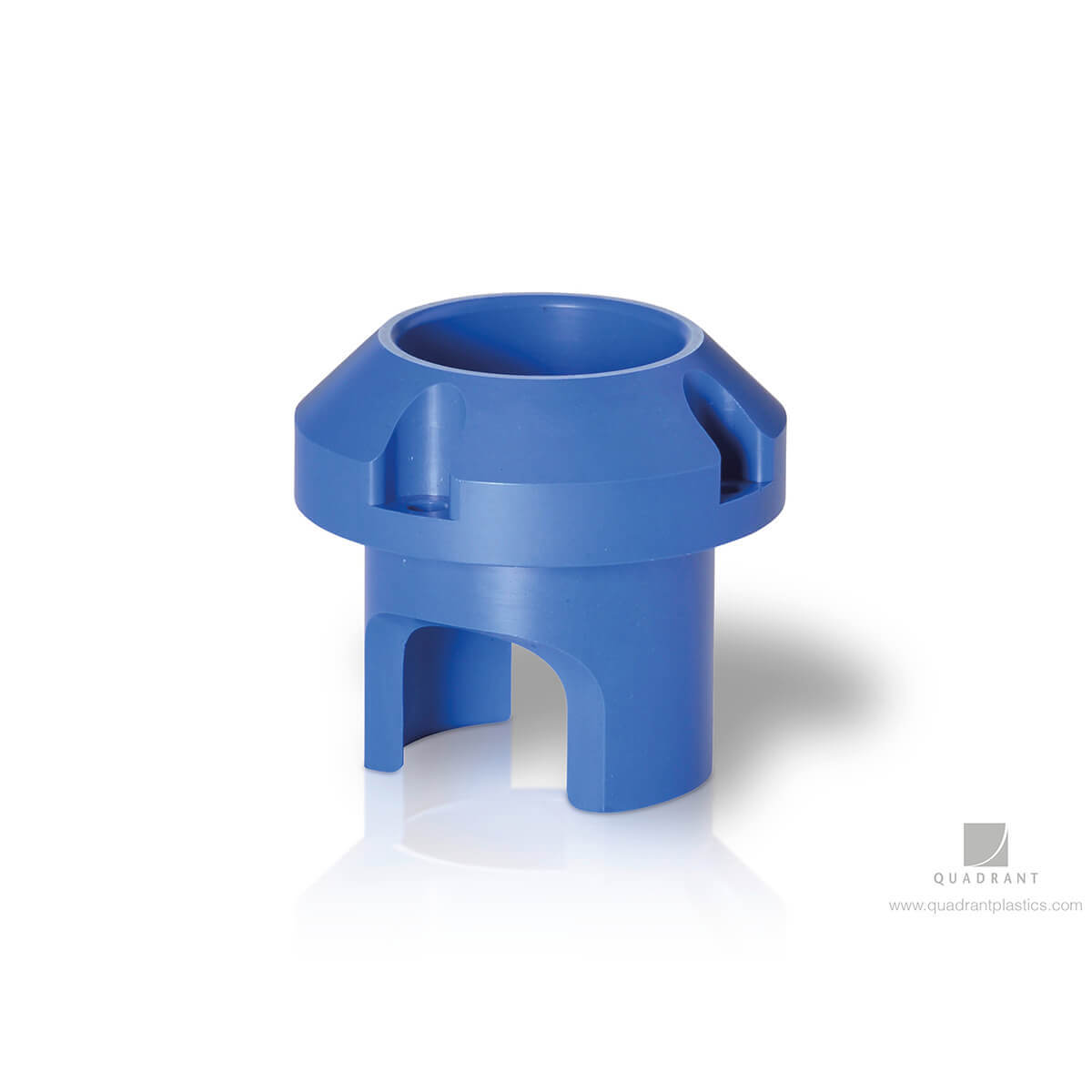

Contact us if you do not see the size you need. We also produce machined parts from Ketron TX.
