General Info
XP-267 Proprietary PTFE modified compound was developed for oil and gas applications where PFA impregnated 3-D asbestos fabric were used in ram seals and other sealing elements.
XP-267 - Compound is especially well suited in Cyclic Steam Stimulation and Steam Flooding Wells. Ensinger XP-267 is a proprietary compound that is resistant to oil filled chemicals, gases, steam and other completion or production fluids and is suitable for temperatures up to 325 C based on field trials where properly designed/backed up XP-267 seals have performed successfully at 2,000-3,000 psi in Ram Seals and 15,000 psi in Stem and Packer Chevron Seals.
XP-267 is a unique Proprietary PTFE modified compound which is dimensionally stable and resistant to deformation and creep at high temperatures and pressures. XP-267 is compression molded and machinable into complex geometries.
Key Properties
- 2.75 Times Lower Deformation Under Load than PTFE
- Reduced Void Content vs. PTFE
- Lower Moisture Permeation than PTFE
- Performance up to 320 C and 2200 psi in ram seal applications
- Up to 15,000 PSI service in stem seals, chevron packings and wire line guide applications
- Exhibits lower deformation and creep at elevated temperature and pressures vs. PTFE/ 25% Carbon
- Higher strength and resistance to deformation during obstruction impediment movement
- Low and repeatable friction during long periods in the loaded position
- Longer seal life due to improved stability and abrasion resistance of the compound due to proprietary formulation of organic inorganic modifiers and the higher performance base resin
Limitations
Applications
- Ram Seals
- Replacement of PFA Impregnated Asbestos Fabric
- Seals and Gasket Applications
- Steam and Packer Chevron Seal Applications
- Steam Well Sealing Applications
- Stem Seals
Resin Trade Names
Manufacturer Trade Names
- XP-267 Proprietary PTFE Modified HP/HT Grade
Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

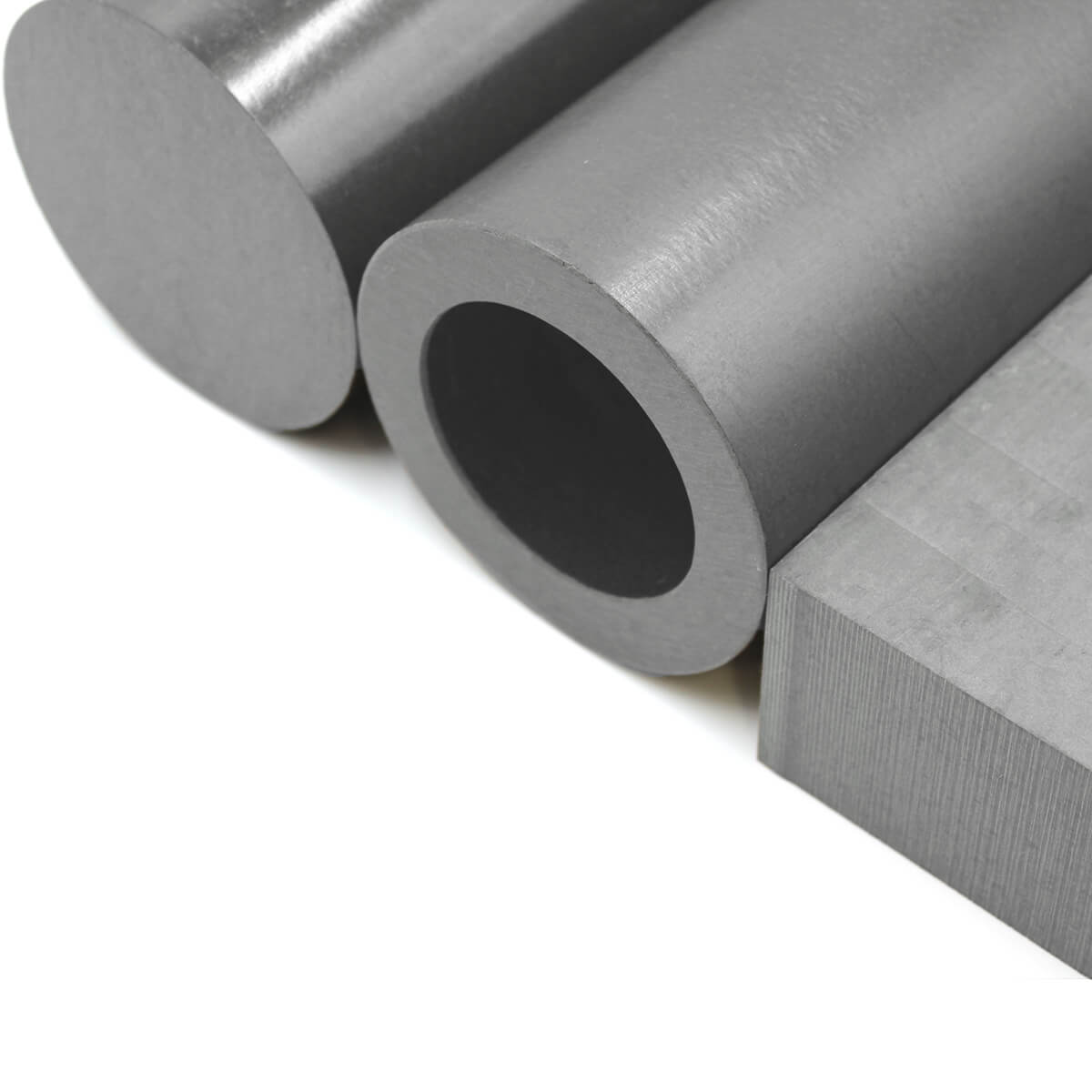

Available Sizes
Sheet / Plate
Thicknesses .250 in to 3.000 in
Sizes W x L, 10 in x 10 in, 13 in x 13 in, 15 in x 30 in, 24 in x 24 in
Rod
Diameters 1.000 in to 3.125 in
Lengths 3.000 in to 6.000 in
Disc
Diameters 3.250 in to 26.000 in
Lengths .500 in to 3.000 in
Tube
OD and ID 1.500 in to 81.500 in*
Lengths 3.000 in to 6.000 in
*Contact us with your finish OD x ID size and we will quote optimized size using available tooling.
Contact Us for availability on machined parts and all sizes listed or other sizes not listed.
