Propylux ® HS2 (Polypropylene-Heat Stabilized)

Compliance Info

Slide 1 of 3, currently active
Slide 2 of 3
Slide 3 of 3

General Info

Propylux® HS2 (polypropylene-heat stabilized) - Medical grade Propylux HS2 is made from an FDA, USP VI compliant polypropylene base resin. Through a unique heat-stabilizing process, the compression molded material is able to withstand higher temperatures with less water absorption than standard polypropylene. Recommended sterilization techniques for Propylux HS2 include steam autoclaving and cold sterilization.

Click for more information on the complete line of Polypropylene Plastics

Key Properties

Able to Withstand Higher Service Temperatures Than Propylux HS
Less Water Absorption Than Standard Polypropylene
Laser-Markable
Enhanced Dimensional Stability Vs. Propylux HS

Limitations

Applications

Cranio-Maxillofacial Trays
Medical Caddies
Medical Cases
Provisional Trials
Sterilization Tray Components

Resin Trade Names

Manufacturer Trade Names

Propylux® HS2

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

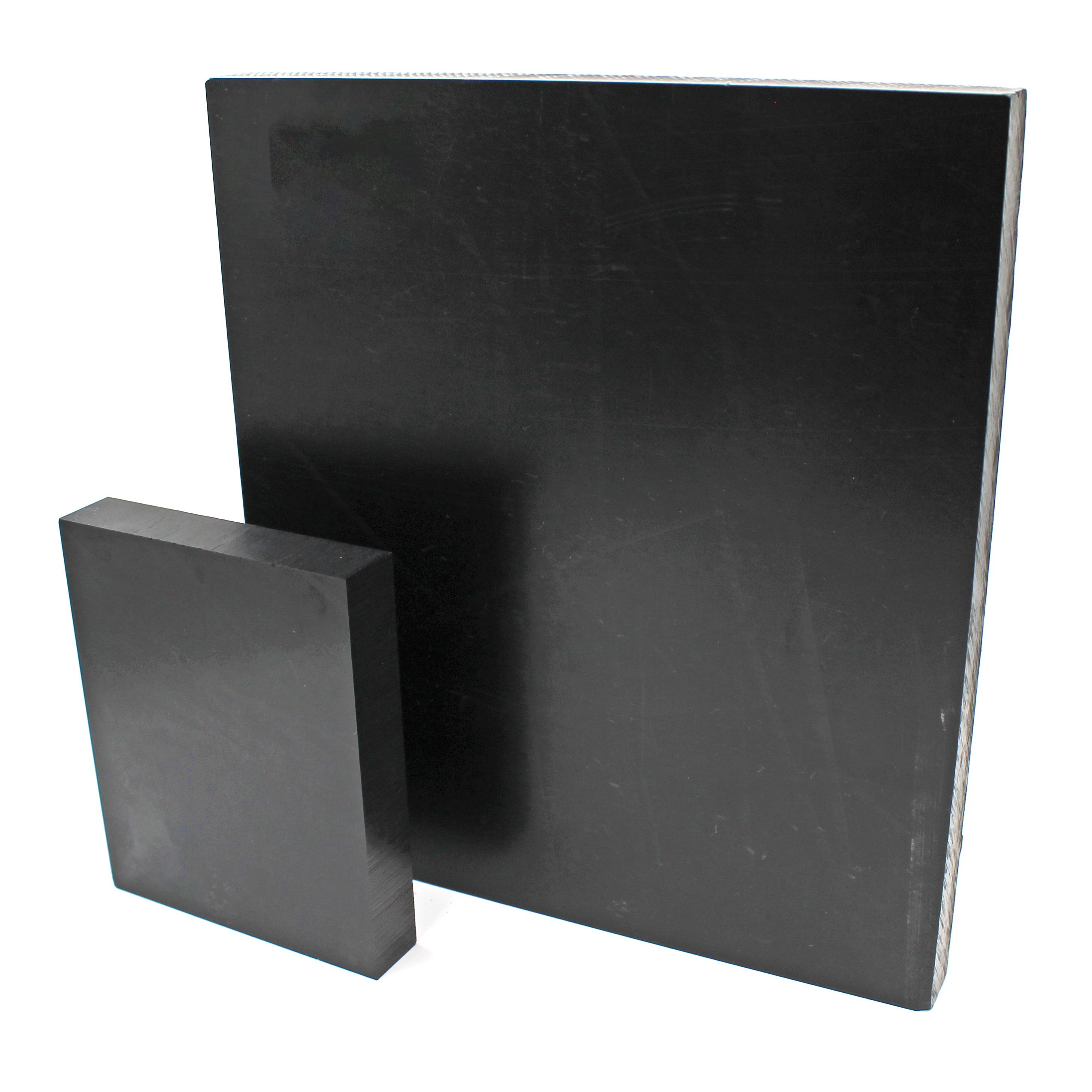

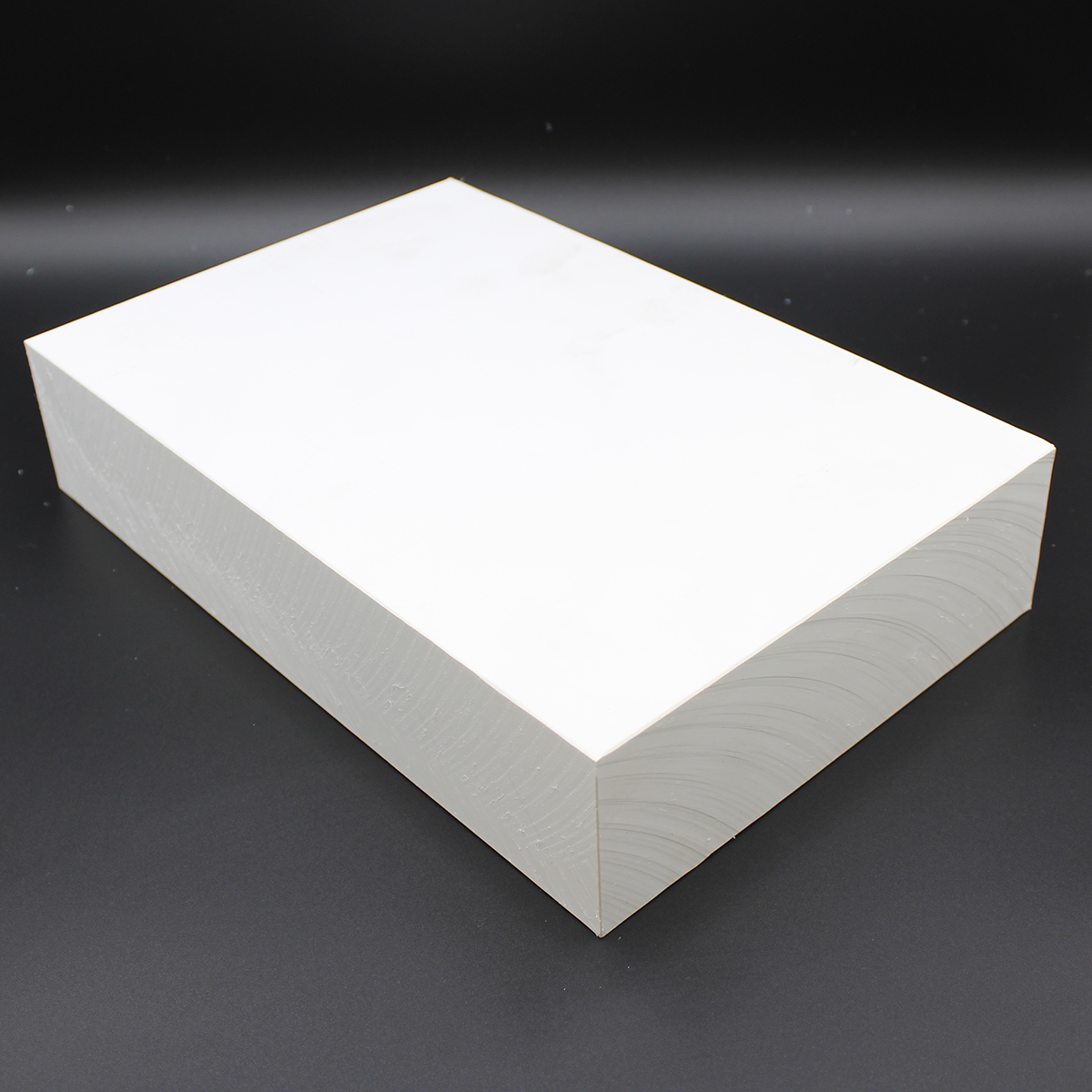

Sheet: 1" to 2.5" thick (1/2" increments) Sheet Sizes: 40.5"x48" (1" to 1.5" thick) 24"x48" (2" to 2.5" thick)

Available Colors

White WHV200
Black BKV200

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of Propylux ® HS2 (Polypropylene-Heat Stabilized)

DETAIL
Description			Value
Material Type			Semi-Crystalline Thermoplastic
Chemical Name			PP Polypropylene
Trade Name			Propylux® HS2
Additives			Heat Stabilized
Color			Black or White
Manufacturer			Westlake
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	0.92
	ASTM D792	lb/in³	0.033
Water Absorption, 24 hrs, Immersion	ASTM D570	% by wt.	0.01
Water Absorption, Saturation, Immersion	ASTM D570	% by wt.	0.005
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi	4,475
Tensile Modulus	ASTM D638	psi	319,000
Tensile Elongation at Break	ASTM D638	%	70
Flexural Strength	ASTM D790	psi	9,370
Flexural Modulus	ASTM D790	psi	329,000
Compressive Strength	ASTM D695	psi	6,880
Hardness		NA	Rockwell R94
IZOD Impact-Notched	ASTM D256	ft-lb/in	1.6
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	ASTM D696	x 10-5 in./in./°F	9.2
Heat Deflection Temp	ASTM D648	°C at 264 psi	83
	ASTM D648	°F at 264 psi	181
Flammability Rating	UL94	NA	HB
COMPLIANCE
Description			Value
FDA			Yes
USDA			Yes
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			Yes
OTHER
Description			Value
UV Resistant			No
Relative Cost			$$$
Machinability			2

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

PROPYLUX is a registered trademark of Westlake Plastic Company.
