King MediGrade ® Antimicrobial HDPE

Compare Go To Comparison Add Additional Products For Comparison

-

1. Select Shape

2. Please Select Thickness

2. Please Select Diameter

2. Please Select Outer Diameter

2. Please Select Type & Size

Unit of Measure

In order to provide an accurate quote for your part, you'll need to provide some information through our custom quote request form.

3. Please Select Dimensions *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

3. Please Select Length *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

General Info

King MediGrade® is a super tough, high-density polyethylene building sheet with an advanced antimicrobial technology for protecting the product surface against stain and odor causing bacteria, algae and fungi. Unlike surface antimicrobials, King Plastic’s advanced antimicrobial technology protects against bacterial degradation for the lifetime of the product. It is the product of a proprietary process called K-Stran™, the most advanced manufacturing process for superior flatness and consistency. King MediGrade® has a matte gloss finish on both sides of the sheet. It is environmentally stabilized to withstand the harshest outdoor conditions. King MediGrade® will not rust, delaminate or rot when exposed to UV, humidity or water. Healthcare facilities, medical equipment and case goods made with King MediGrade® will stay cleaner and fresher between cleanings. Studies have shown that surfaces with the antimicrobial technology can inhibit the amount of certain product-damaging bacteria by 99.99%* compared to an untreated surface. The polymer sheet never needs painting or refinishing, works like wood and is easy to fabricate using common woodworking tools and techniques.

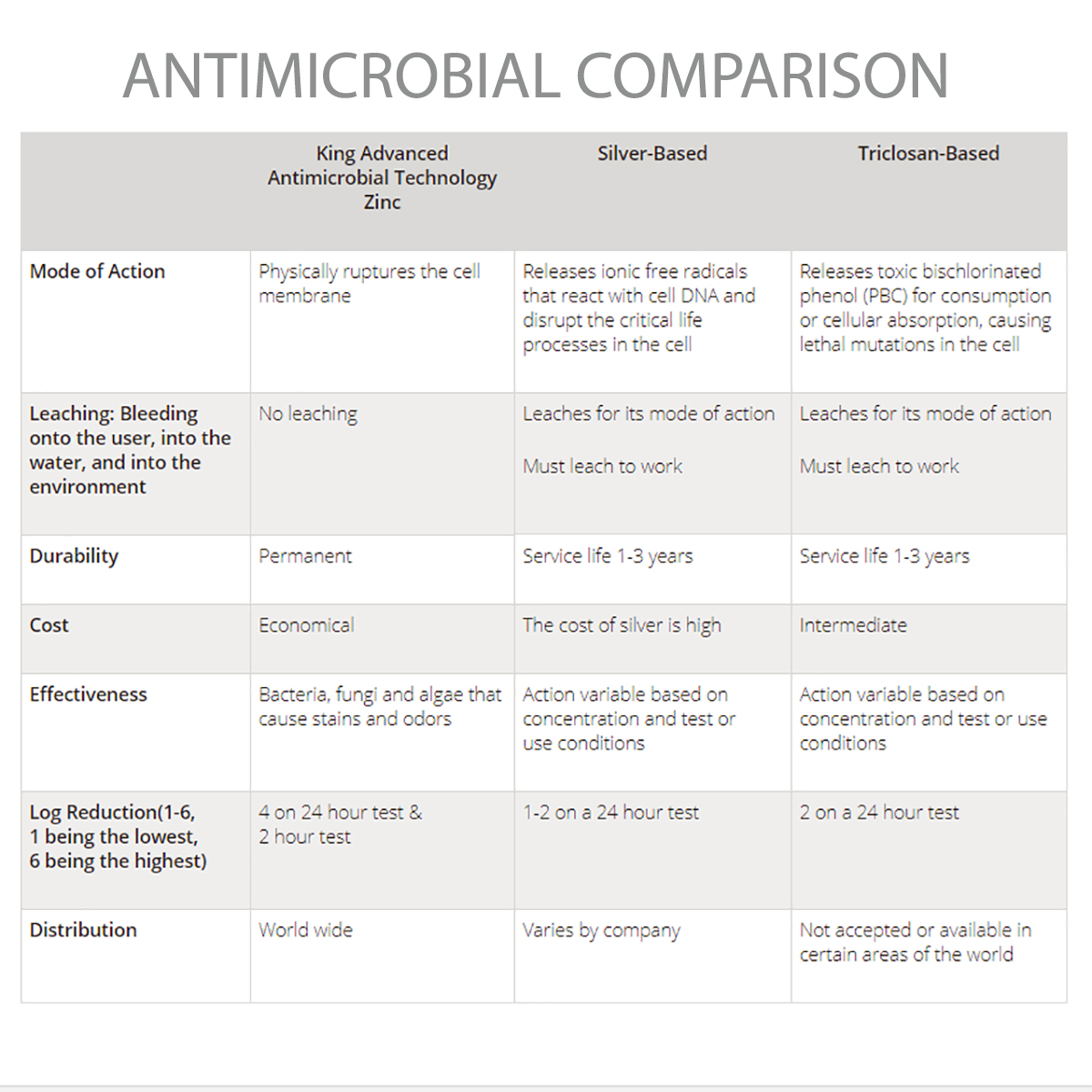

King MediGrade® uses an advance antimicrobial technology for protecting the product surface against stain and odor causing bacteria, algae and fungi. Because the antimicrobial agent is bonded at the molecular level throughout the sheet, King MediGrade® retains its protection throughout life of the application, and does not harm the environment. The polymer sheets are safe, non-toxic and non-hazardous to ship and handle. King MediGrade® polymer products are easy to clean and disinfect using standard cleaning and disinfecting procedures. Frequent cleaning will not affect King MediGrade® products.

Whether you build, design, manage, or own facilities, you can protect the product surface against stain and odor causing bacteria, algae and fungi by installing King MediGrade® polymer sheet products.

Key Properties

  • Anti-Microbial
  • UV Stabilized
  • Matte Gloss Finish Both Sides
  • FDA & USDA Compliant

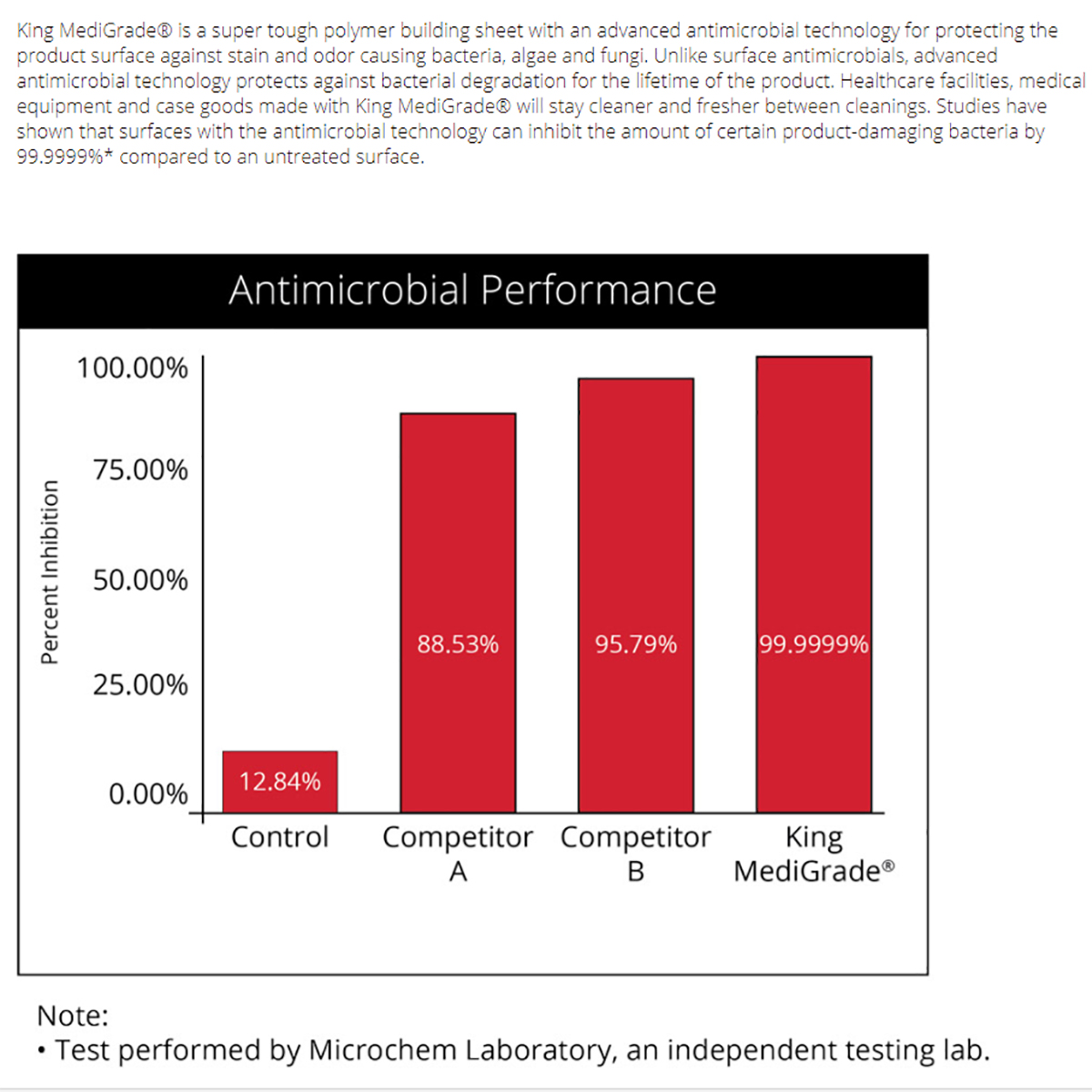

  • Inhibits the amount of certain product damaging bacteria by 99.99%* compared to an untreated surface
  • Tested for antimicrobial efficacy using ASTM E2149 and JIS Z2801
  • Protects against bacterial degradation for the lifetime of the product
  • Active antimicrobial ingredient is EPA registered and accepted for use in polymers and plastics
  • Made entirely from FDA approved materials
  • No volatile organic compounds (VOCs)
  • Chemical-resistant and easy to clean
  • Bonded at the molecular level, enabling permanent surface protection that is effective for the service life of the application
  • Non-leaching and non-migrating
  • Applications will stay cleaner and fresher between cleanings

Limitations

  • High Coefficient of Thermal Linear Thermal Expansion
  • Low Heat Defection & Continuous Use Temp
  • Relatively Low Mechanical Properties

Applications

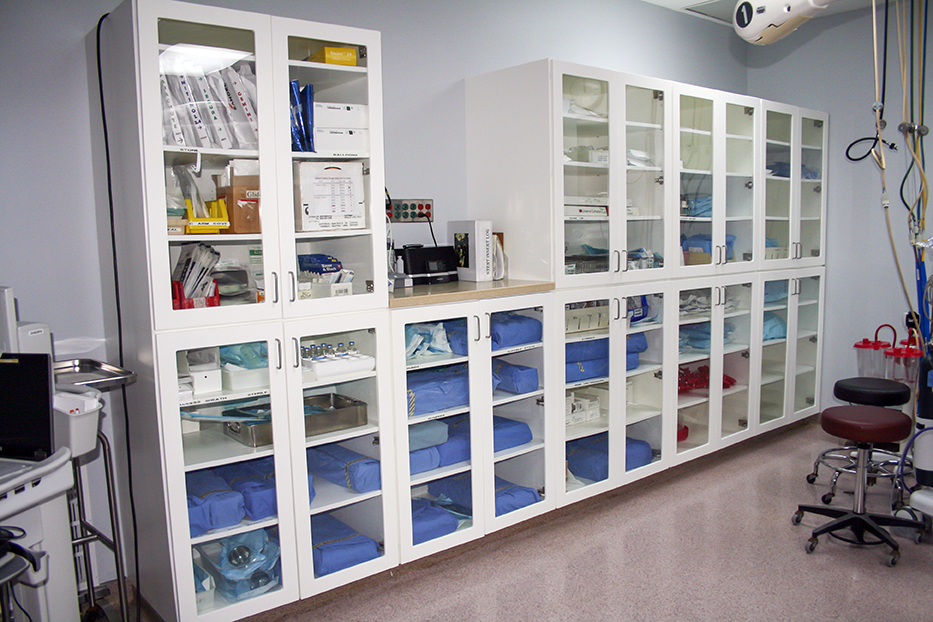

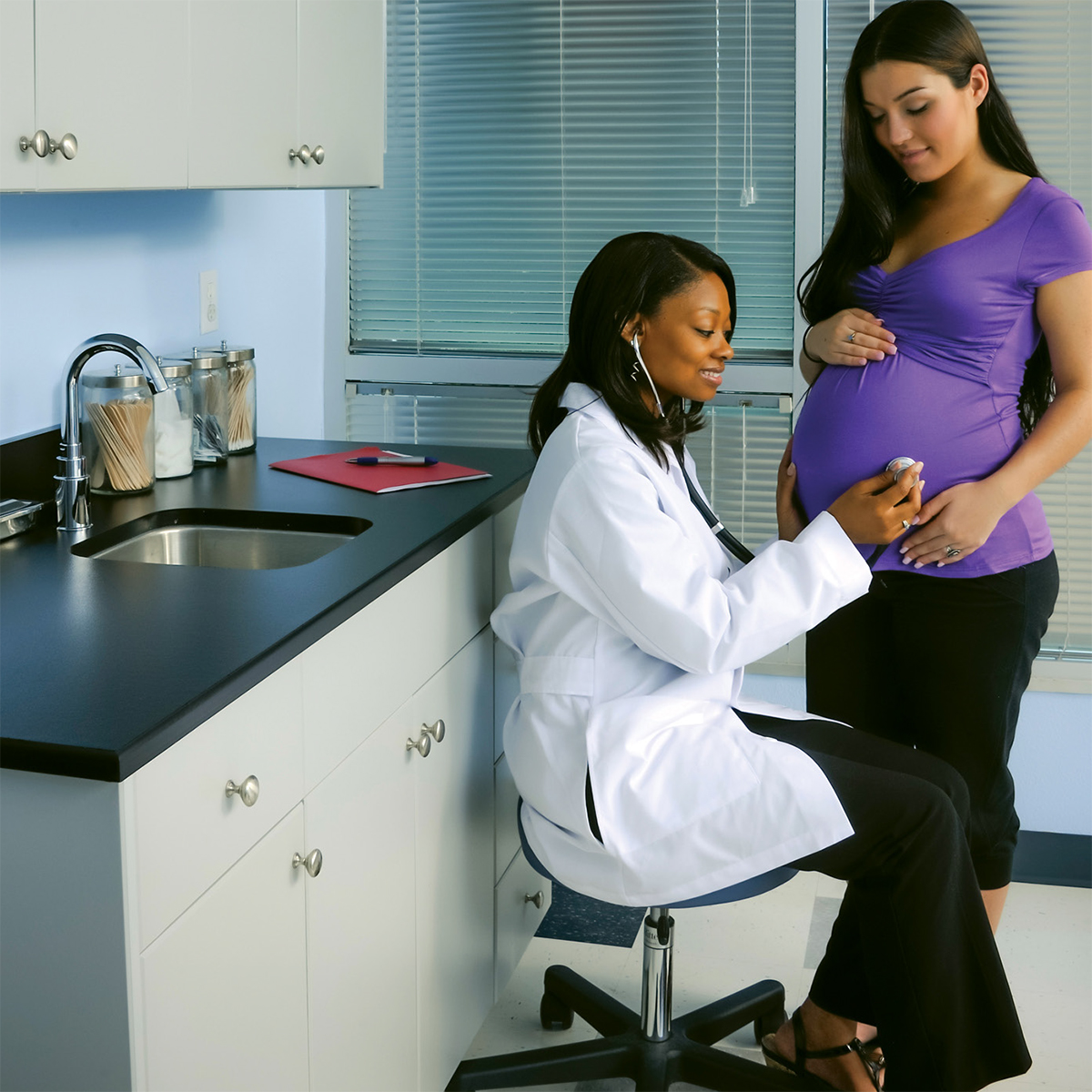

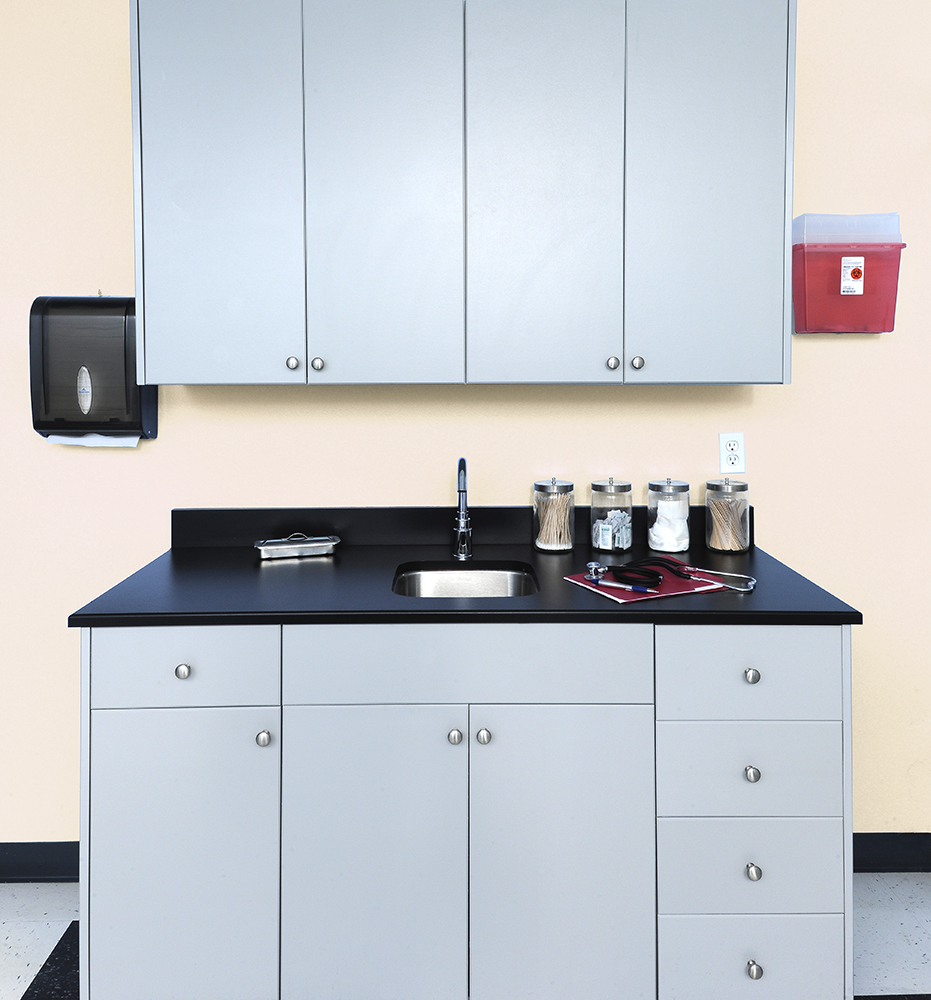

  • Cabinetry and Storage Carts
  • Clean Rooms
  • Dental Facilities

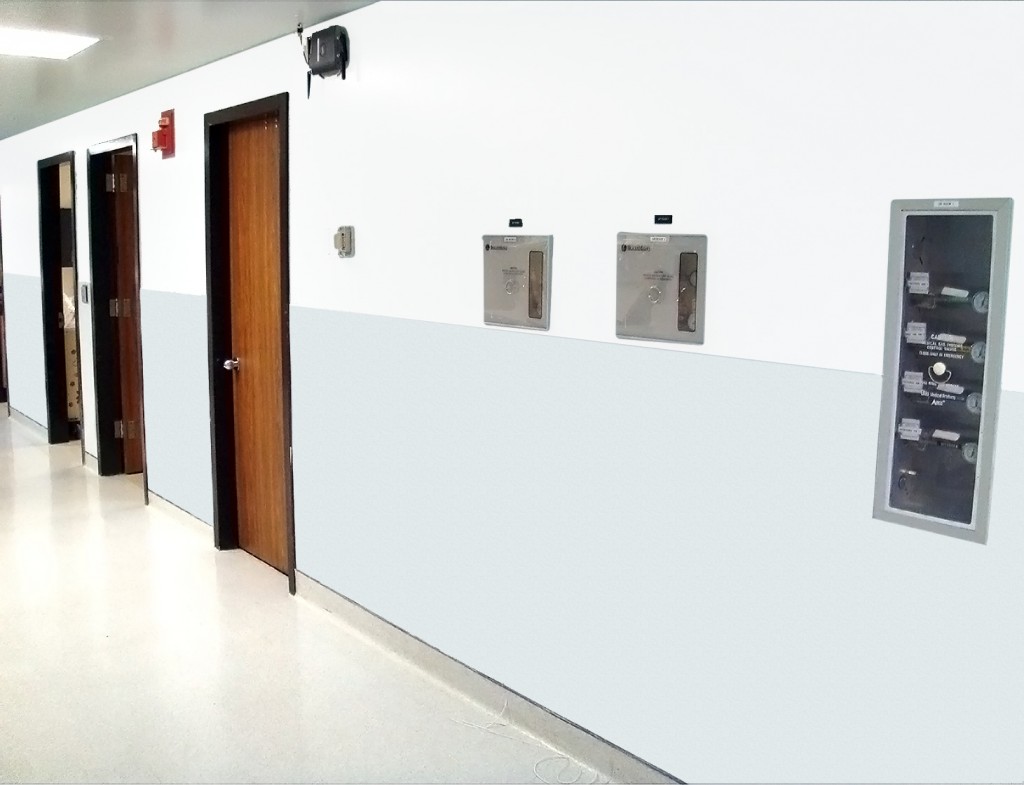

  • Hospitals
  • Locker Rooms
  • Medical Facilities
  • Medical Laboratories

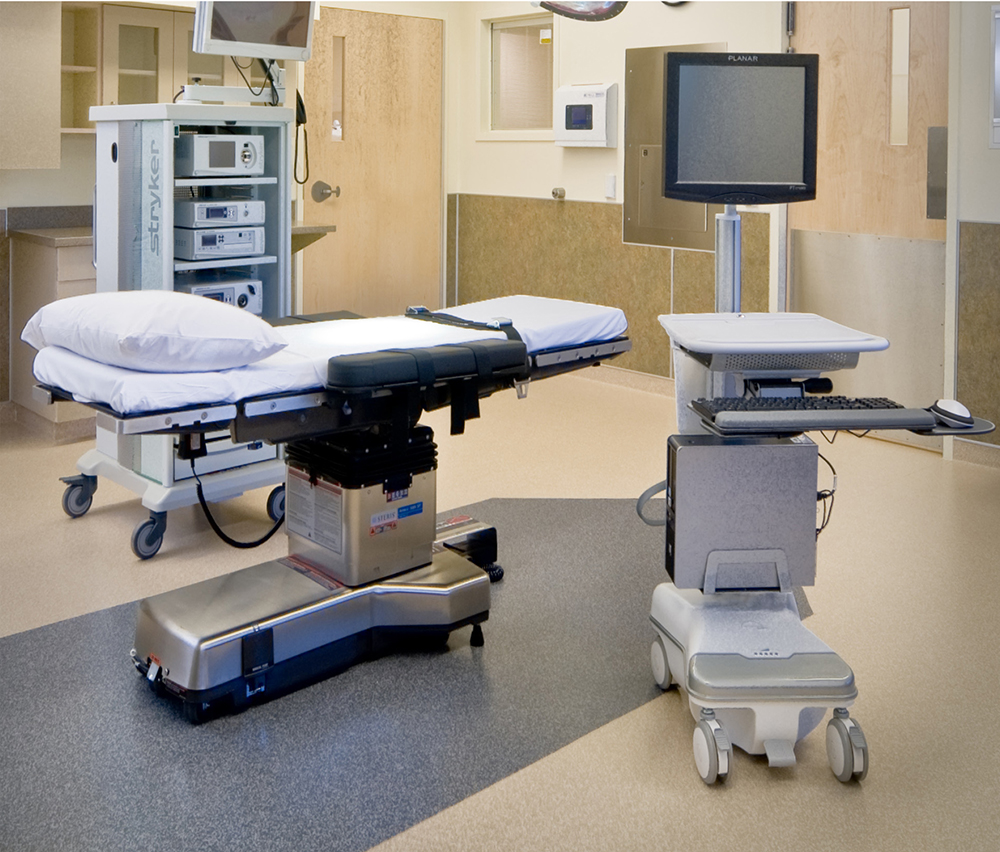

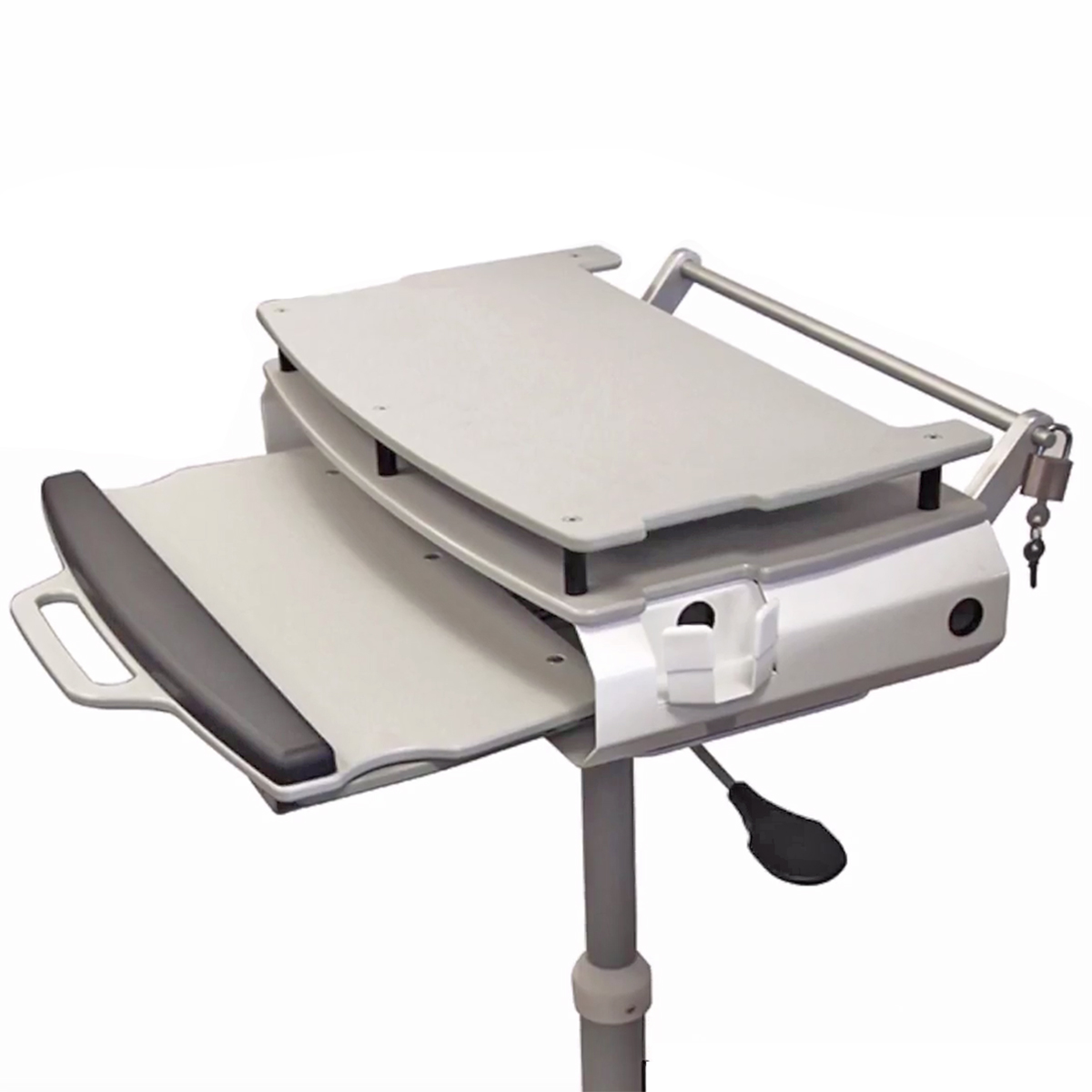

  • Mobile Computer Carts
  • Nursing Homes
  • Nurses Stations
  • Rest Rooms
  • Veterinary Facilities

Resin Trade Names

Manufacturer Trade Names

  • King MediGrade®

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Sheet Thickness .250 inch (6.35 mm) to .750 inch ( 19.05 mm) Width and Length 48.000 inch (1219.2 mm) x 96.000 inch (2438.4 mm) Length and width plus only at room temperature Custom sheet sizes, gauges, and colors available upon request Disclaimer: Antimicrobial may affect color. Boedeker offers cut to size service on all in-stock items and same day shipping. If you don’t see the size your looking for contact us for alternative options.

Available Colors

  • Dolphin Gray

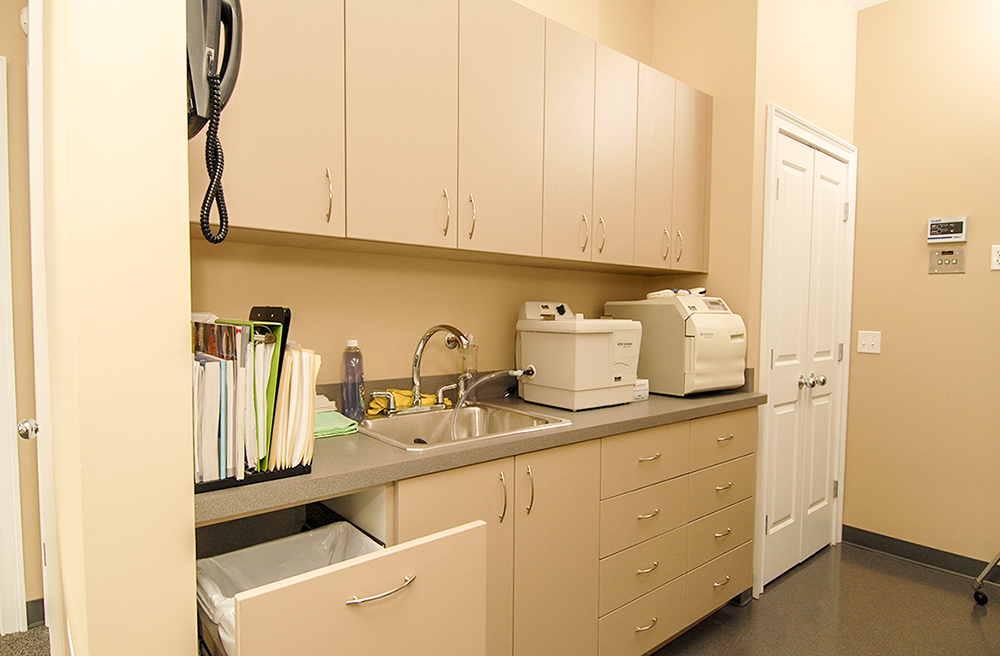

  • Sanshade
  • Seafoam
  • White/White

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of King MediGrade ® Antimicrobial HDPE

DETAIL
Description Value
Material Type Semi-Crystalline Thermoplastic
Chemical Name HDPE High Density Polyethylene
Trade Name King MediGrade®
Additives King Advanced Antimicrobial Additive Technology
Color Multiple Colors
Manufacturer King Plastic Corp.
PHYSICAL
Property Test Unit of Measure Value
Density ASTM D792 g/cm³ 0.96
  ASTM D792 lb/in³ 0.035
MECHANICAL
Property Test Unit of Measure Value
Tensile Strength ASTM D638 psi 4,500
Tensile Elongation at Break ASTM D638 % 600
Flexural Strength ASTM D790 psi 4,480
Flexural Modulus ASTM D790 psi 225,000
Compressive Strength ASTM D695 psi 4,790
Hardness ASTM D785 NA Shore D69
IZOD Impact-Notched ASTM D256 ft-lb/in 1.4
THERMAL
Property Test Unit of Measure Value
Heat Deflection Temp ASTM D648 °C at 264 psi 84
  ASTM D648 °F at 264 psi 183
Max Continuous Operating Temp °C 82
  °F 180
Minimum Operating Temp °C -60
  °F -76
Flammability Rating UL94 NA HB
COMPLIANCE
Description Value
FDA Yes
USDA Yes
NSF No
3-A Dairy No
Canadian Food Inspection Agency No
USP Class VI No
OTHER
Description Value
ASTM Shape Spec ASTM D4976
UV Resistant Yes
Relative Cost $$$
Machinability 1

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

King MediGrade® is a registered trademark of King Plastic Corporation.
