General Info
Ideal for dry/indoor applications, this material offers a low maintenance and cost effective solution for eliminating external lubrication without compromising performance. 100% polyester material (textile and resin) with the solid lubricant graphite evenly dispersed throughout the resin system.
Click for more information on the complete line of CIP Composites
Key Properties
- elf lubricating•Low coefficient of friction•Excellent mechanical strength•Low thermal expansion•Negligible water swell
- Anisotropic Properties - Will Vary When Comparing Values Normal or Parallel to Laminate
- Compressive Strength, Breaking – ASTM D695 - Normal to Laminate = 50,000 PSI
- Compressive Strength, Breaking – ASTM D695 - Parallel to Laminate = 13,500 PSI
- CLTE Will Also Vary Based on Laminate Orientation – Contact Boedeker for Full Specifications
Limitations
- Not Intended for High Speed Bearing Applications, Ideal for High Load & Slow Rotating Speed
Applications

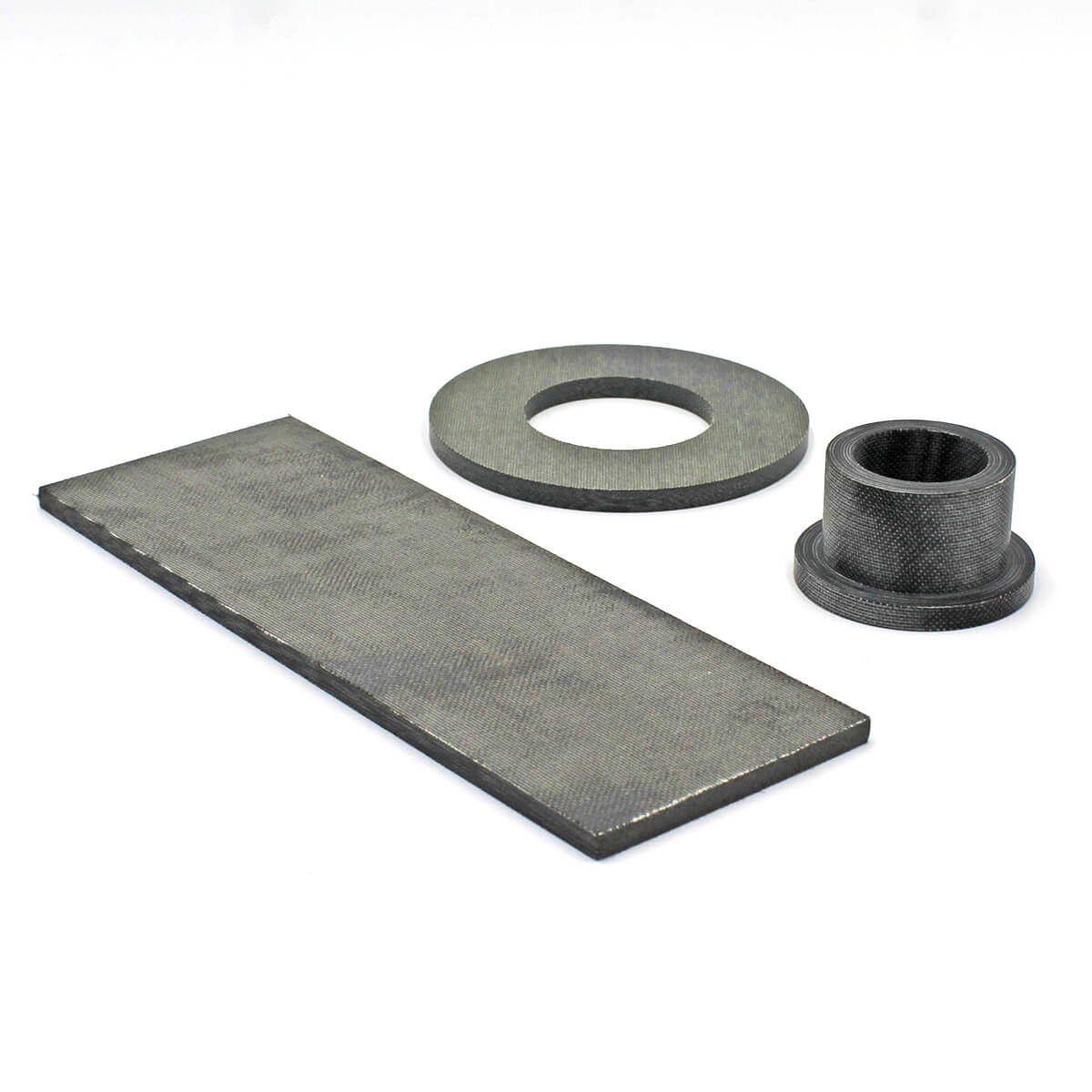

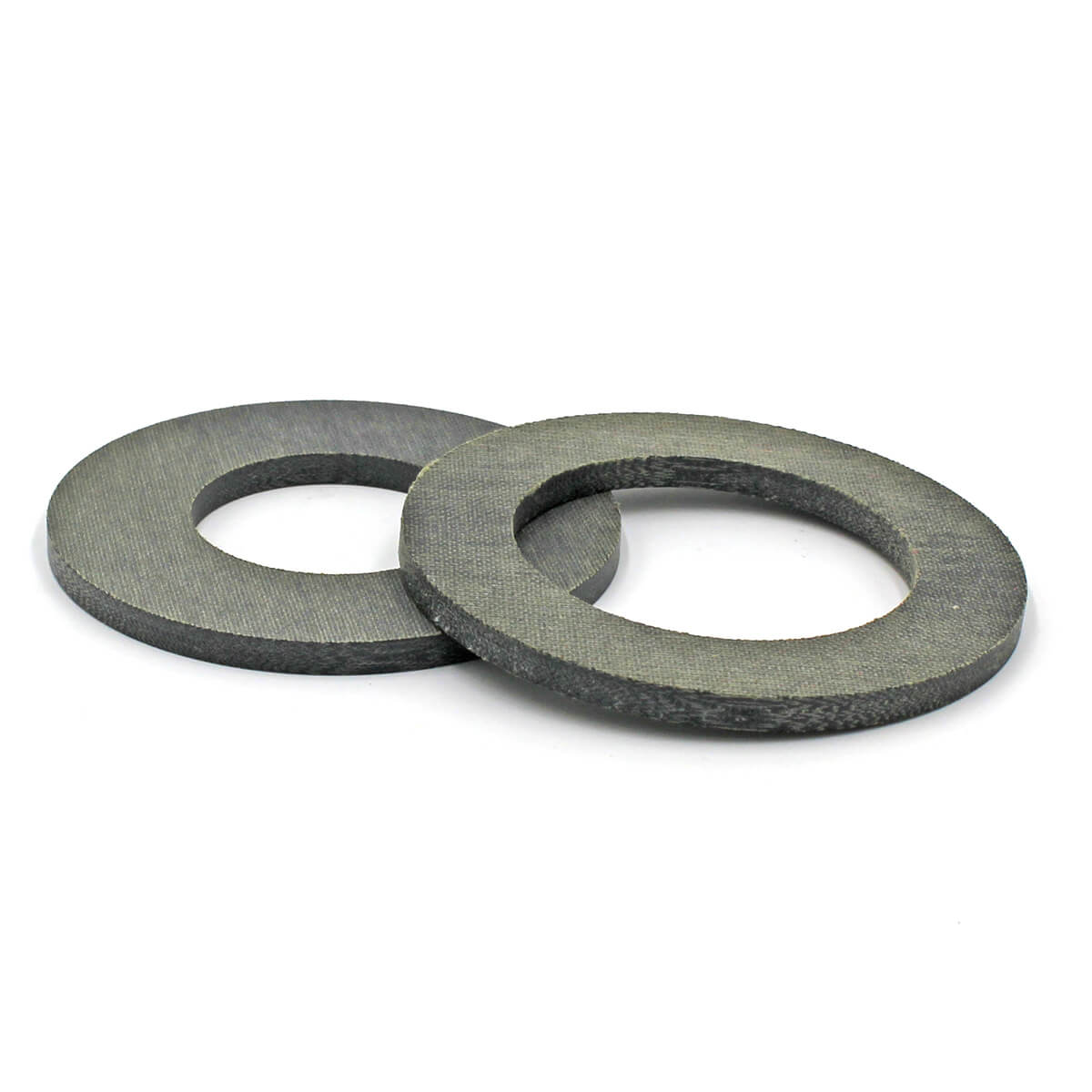

- Anti Rotation Disc
- Auger Assembly Components
- Hydraulic Wear Rings

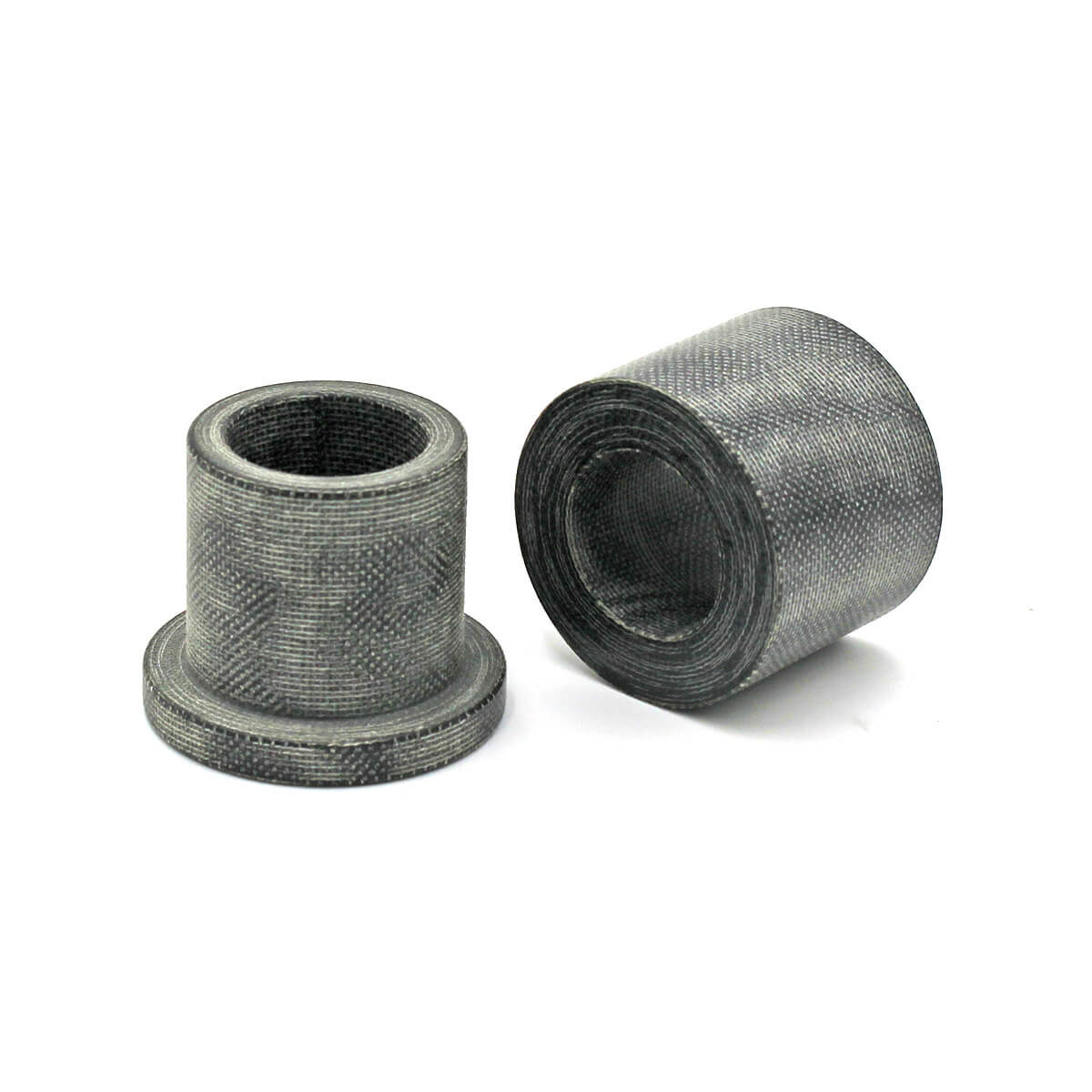

- Industrial Bushings
- Wear Pads
Resin Trade Names
Manufacturer Trade Names
- CIP Marine
- CIP101
- CIP111
- CIP121
- CIP131
- CIP131A
- CIP151
- CIP151A
- CIP153A
- CIP251A
- CIP252B
- CIP333A
- CIP353A
Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

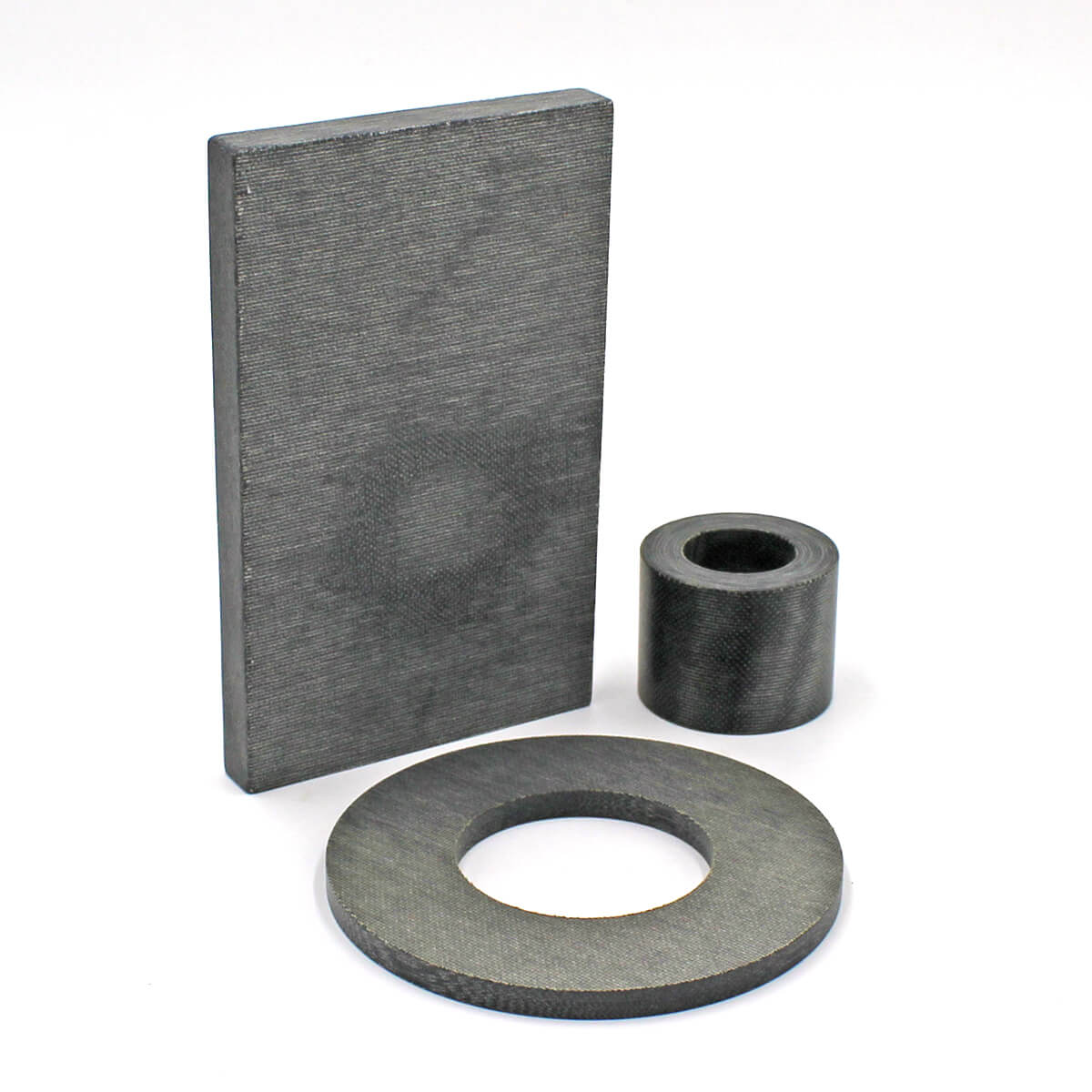

Available Sizes
Sheet
Thickness .125" to 6.000"
Standard Widths 16.000", 24.000" & 32.000"
Standard Lengths 24.000", 36.000", 48.000" & 50.000"

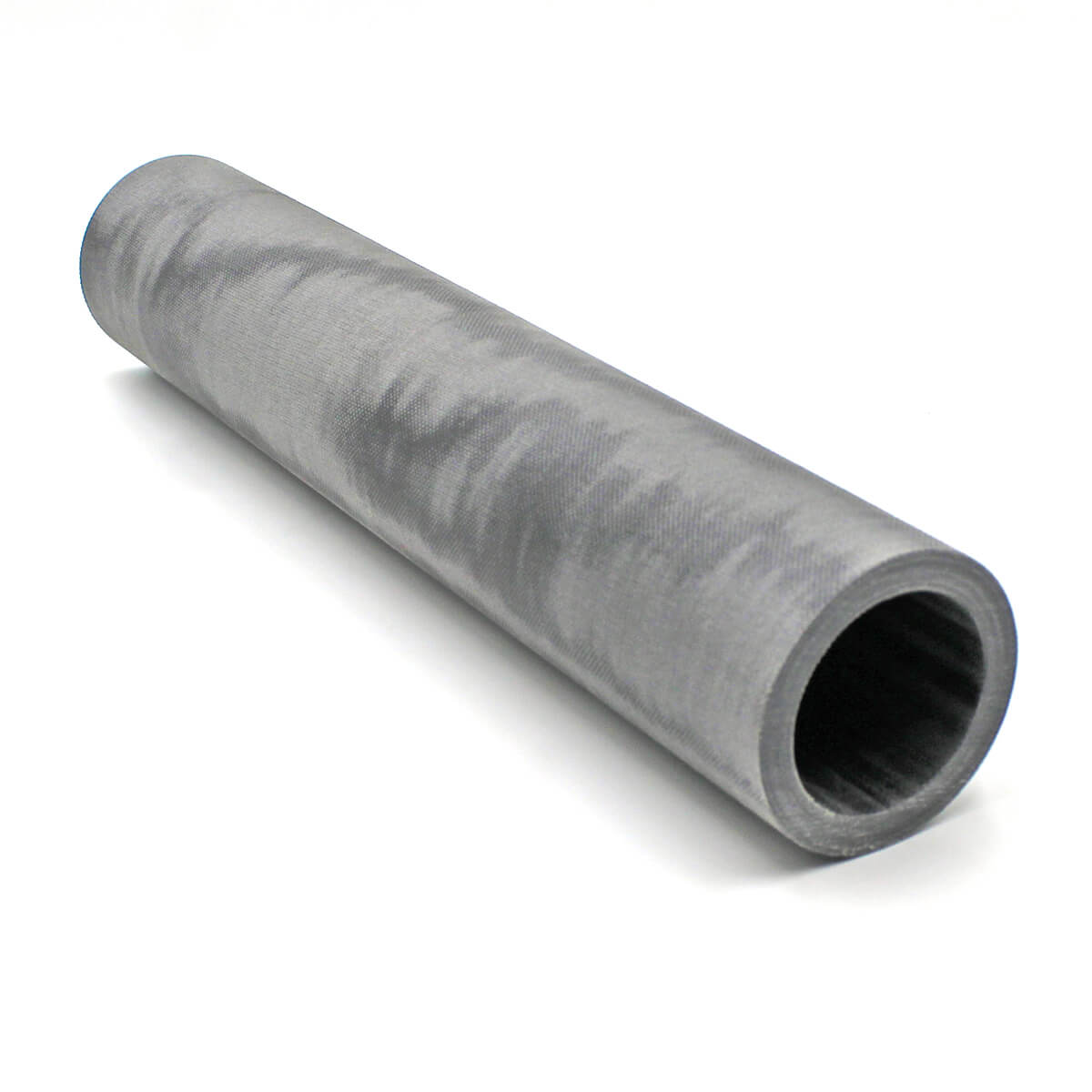

Tube
Maximum Outside Diameter 65.000"
Minimum Inside Diameter 0.500"
Standard Lengths 16.000", 24.000" & 32.000"
