Vespel ® Polyimide SP-211 Graphite & PTFE Filled

Compliance Info

Slide 1 of 2, currently active
Slide 2 of 2

General Info

Vespel ® SP-211 has 10% PTFE and 15% graphite by weight added to the base resin for the lowest coefficient of friction over a wide range of operating conditions. It also has excellent wear resistance up to 300°F (149°C).

Click for more information on the complete line of Vespel PI Plastics

Key Properties

High Strength at High Temperatures
Low Friction
Low Wear

Limitations

Chemical Resistance to Some Strong Acids and Bases
Hydrolyzes in Presence of Steam

Applications

Bushings & Bearing
Dynamic Seals
Thrust Washers

Resin Trade Names

DuPont™ Vespel®

Manufacturer Trade Names

DuPont™ Vespel® Polyimide SP-211

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

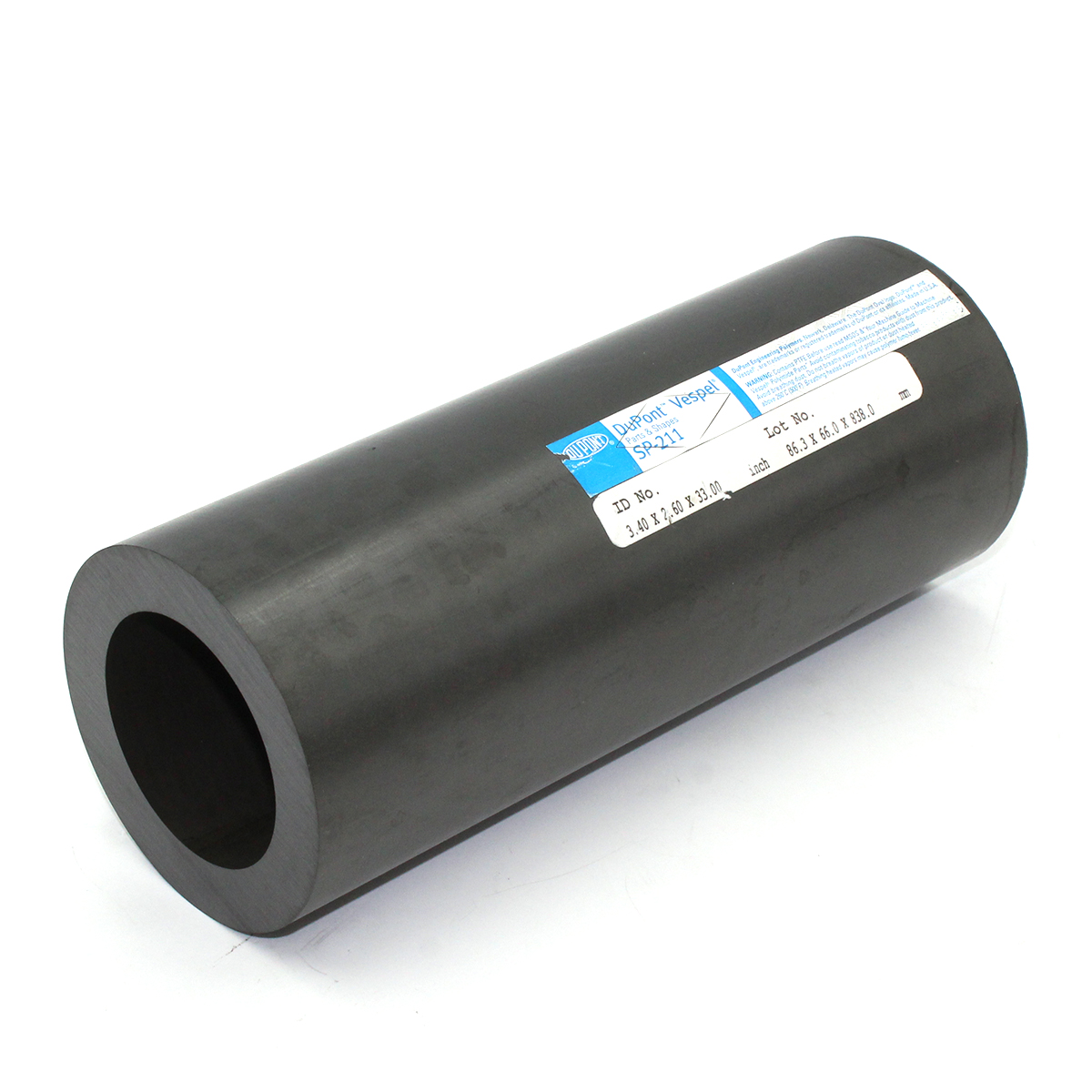

Sheet Thickness .062” to 2.000” Width & Length 10.000” x 10.000” Rod Diameters .125” to 3.250” Max Length 38.000” Tube OD Outside Diameter 3.100” to 12.500” ID Inside Diameter 2.000” to 11.500” Max Length 33.000” Boedeker offers cut to size service on all in-stock items and same day shipping. If you don’t see the size your looking for contact us for alternative options.

Available Colors

Black

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of Vespel ® Polyimide SP-211 Graphite & PTFE Filled

DETAIL
Description			Value
Material Type			Imidized Amorphous Thermoplastic
Chemical Name			PI Polyimide
Trade Name			DuPont™ Vespel® Polyimide SP-211
Additives			15% Graphite & 10% PTFE
Color			Black
Manufacturer			DuPont
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	1.55
	ASTM D792	lb/in³	0.056
Water Absorption, 24 hrs, Immersion	ASTM D570	% by wt.	0.21
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi	6,500
Tensile Elongation at Break	ASTM D638	%	3.5
Flexural Strength	ASTM D790	psi	10,000
Flexural Modulus	ASTM D790	psi	450,000
Compressive Strength	ASTM D695	psi	14,800
Compressive Modulus	ASTM D695	psi	300,000
Hardness	ASTM D785	NA	Rockwell E1 - 20
Static Coefficient of Friction	Static COF in Air*	NA	0.2
Dynamic Coefficient of Friction	COF@PV = 3.5 MPa m/s (100K psi-ft/min)*	NA	0.08
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	ASTM D696	x 10-5 in./in./°F	3
Max Continuous Operating Temp		°C	260
		°F	500
Minimum Operating Temp		°C	-195
		°F	-319
Thermal Conductivity	ASTM C117	BTU-in/ft²-hr-°F	5.3
	ASTM C117	x 10^4 cal/cm-sec-°C	18.3
Flammability Rating	UL94	NA	V-0
COMPLIANCE
Description			Value
FDA			No
USDA			No
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
UV Resistant			No
Relative Cost			$$$$$$$$$$
Machinability			5

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

DuPont™ Vespel® is a registered trademark of DuPont.
