General Info
A very cost effective material commonly used for wear ring, stable in hydraulic fluids, and nonabrasive to mating surfaces. 100% polyester material (textile and resin) with PTFE evenly dispersed throughout the resin system. Material is recognized as safe with indirect contact with food – FDA: Title 21 parts 107-199. This material can easily be dyed, however, may require an up charge and a minimum order must be met. NOTE: the color may vary slightly from run to run.
Click for more information on the complete line of CIP Composites
Key Properties
- Self lubricating
- Low coefficient of friction
- High load capacity
- Excellent mechanical strength
- Low thermal expansion
- Chemically resistant
- Anisotropic Properties - Will Vary When Comparing Values Normal or Parallel to Laminatee
- Compressive Strength, Breaking – ASTM D695 - Normal to Laminate = 50,000 PSI
- Compressive Strength, Breaking – ASTM D695 - Parallel to Laminate = 13,500 PSI
- CLTE Will Also Vary Based on Laminate Orientation – Contact Boedeker for Full Specifications
Limitations
- Not Intended for High Speed Bearing Applications, Ideal for High Load & Slow Rotating Speed
Resin Trade Names
Manufacturer Trade Names
- CIP Marine
- CIP101
- CIP111
- CIP121
- CIP131
- CIP131A
- CIP151
- CIP151A
- CIP153A
- CIP251A
- CIP252B
- CIP333A
- CIP353A
Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

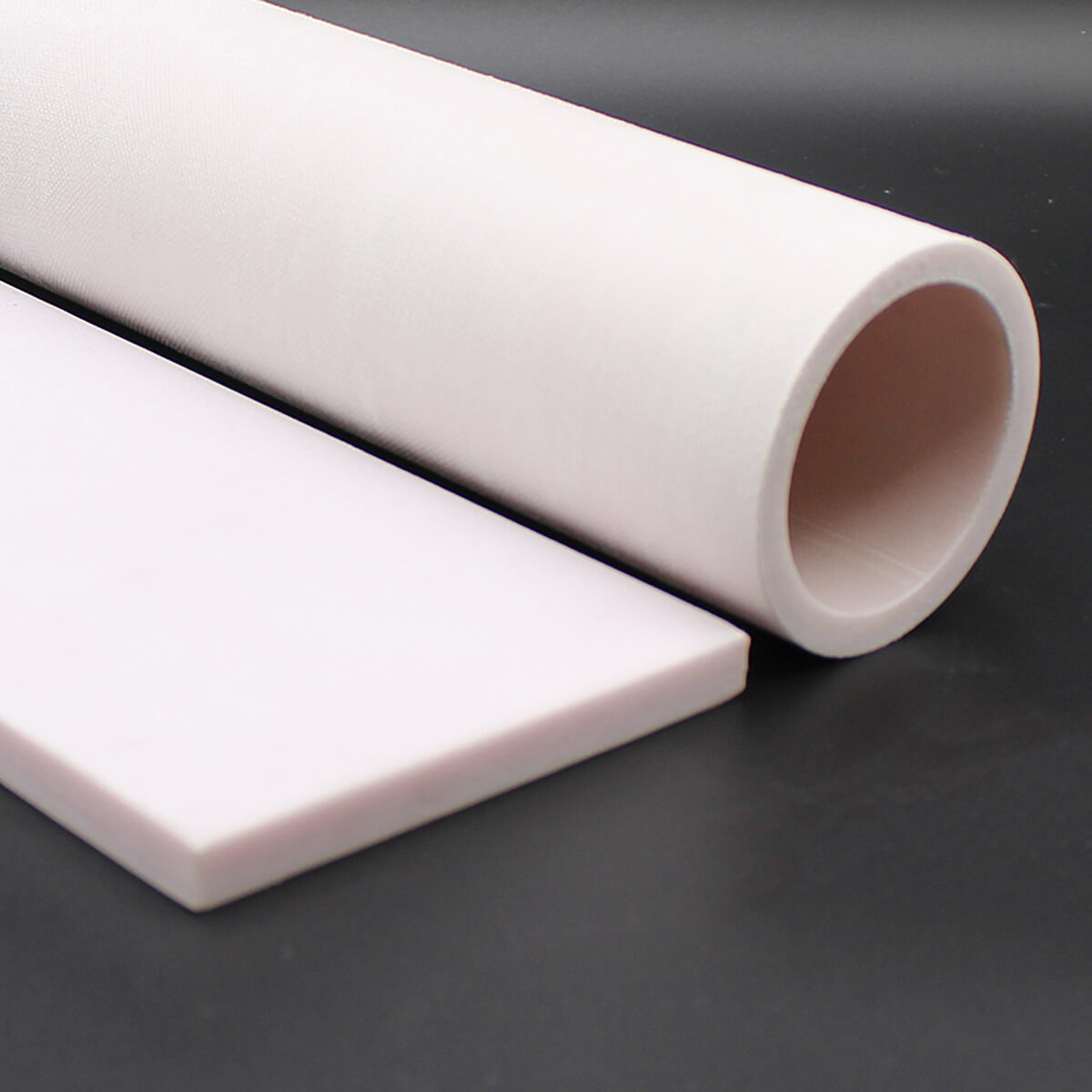

Available Sizes

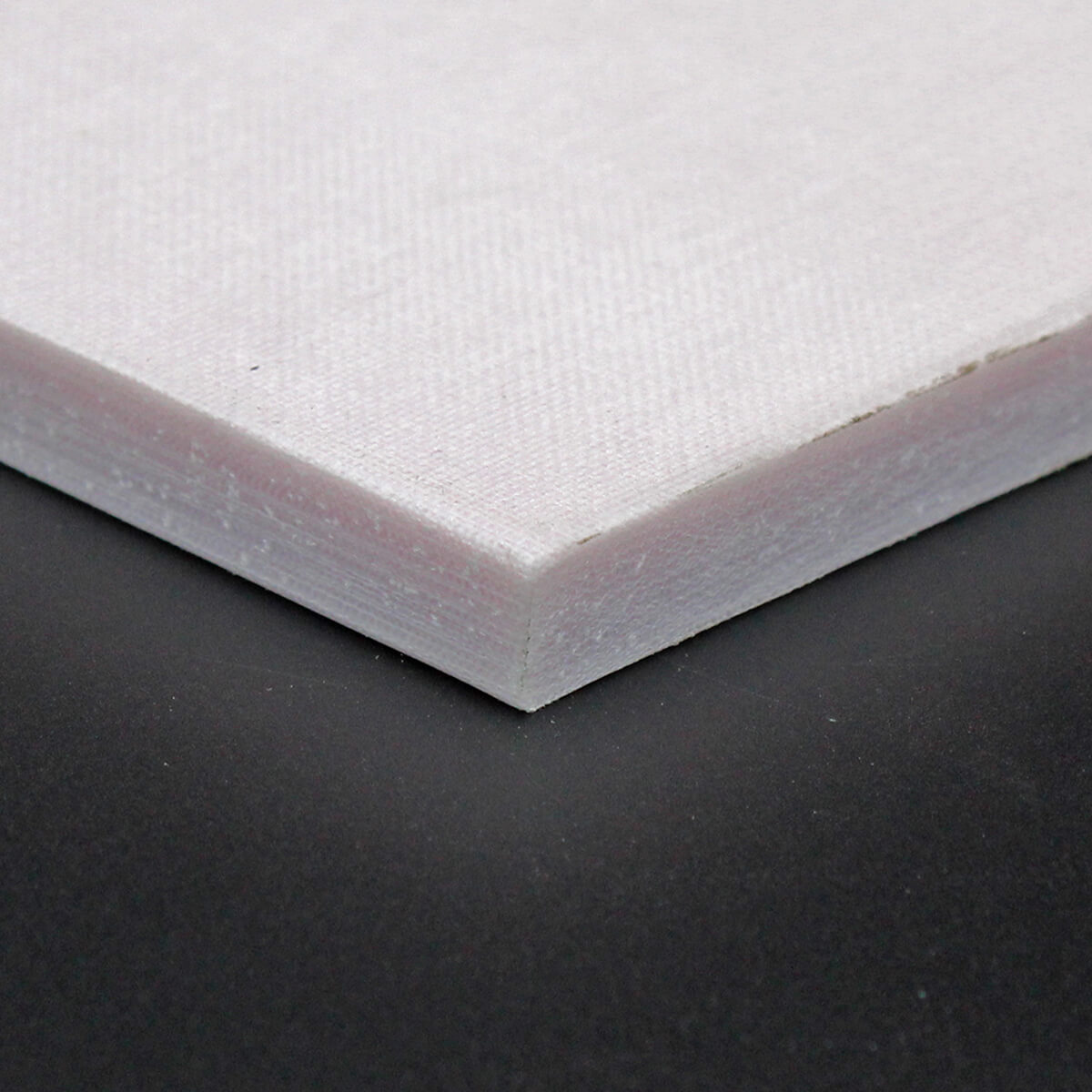

Sheet
Thickness .125" to 6.000"
Standard Widths 16.000", 24.000" & 32.000"
Standard Lengths 24.000", 36.000", 48.000" & 50.000"
Tube
Maximum Outside Diameter 65.000"
Minimum Inside Diameter 0.500"
Standard Lengths 16.000", 24.000" & 32.000"
Available Colors
- White w/pink hue & Custom Colors
