VIVAK ® PETG Sheet

Compare Go To Comparison Add Additional Products For Comparison

-

1. Select Shape

2. Please Select Thickness

2. Please Select Diameter

2. Please Select Outer Diameter

2. Please Select Type & Size

Unit of Measure

In order to provide an accurate quote for your part, you'll need to provide some information through our custom quote request form.

3. Please Select Dimensions *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

3. Please Select Length *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

General Info

VIVAK® sheet is a transparent thermoplastic sheet. Among its other advantages, this sheet product is made from PETG resin that is NSF listed and is FDA compliant.

VIVAK sheet offers excellent impact strength and is a cost effective thermoplastic for the Point of Purchase (POP) industry. It offers deep draws and precise molded-in details without sacrificing structural integrity. VIVAK sheet can be bonded or fastened with adhesives, ultrasonic welding or rivets.

In addition, VIVAK sheet is easily decorated by painting, silk screening, or hot stamping. VIVAK sheet is well suited for a variety of POP displays and interior signage.

FDA Compliant - Commonly Used for FDA Compliant Machine Guards in Food Processing & Pharma Applications

Meets the requirements of ANSI Z87.1

Custom thickness and color options available

Run-to-Size sheet offered

Key Properties

  • Additional Property Data
  • 86% Light Transmission -Total - ASTM D1003
  • 1.0% Light Transmission – Haze - ASTM D1003
  • 0.06 Flammability (Burn Rate) – ASTM D635
  • 53.8 % Smoke Density Rating – ASTM D2843
  • 880 F Self-Ignition Temperature – ASTM E84
  • 450 Smoke Developed Index – ASTM E84
  • FDA Complaint
  • Resin is NSF Listed
  • Ease of Fabrication
  • Forms precise molded-in details
  • Will not sacrifice structural integrity, wasily decorated by painting, silk screening or hot stamping.

Limitations

  • Not UV Resistant

Applications

  • Glazing Applications
  • Machine Guards
  • Greeting Card Displays
  • Revolving Merchandise Racks
  • POP Displays
  • Menu Boards
  • Photo Frames, and slat wall inventory displays

Resin Trade Names

Manufacturer Trade Names

  • VIVAK ® PETG Sheet

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Sheet and Film Thickness .020 inch, .030 inch, .040 inch, .060 inch, .080 inch, .100 inch, .118 inch, .177 inch, .220 inch, .236 inch, .375 inch, .500 inch Sheet and Film Sizes 48.000 x 96.000 inch Some thickness are available in 60.000 inch widths Masking varies from Joggable Film, Clear Hi-Tak Film and MVM White Film Clear and Satin Finish Available Cut to Size and Run to size available

Available Colors

  • Transparent Clear

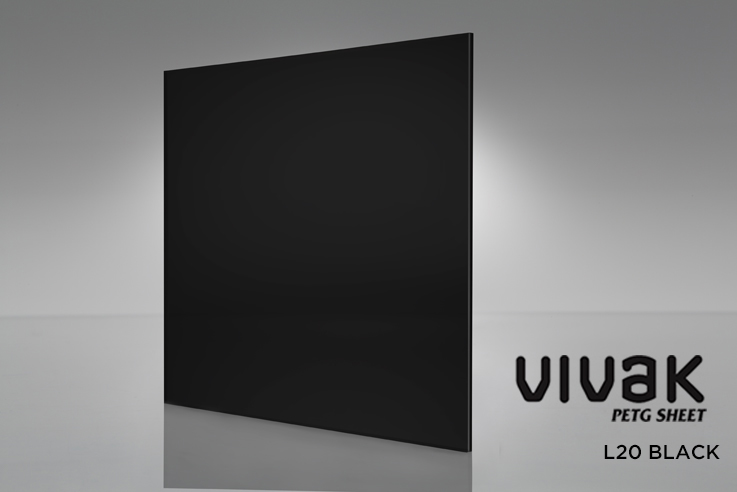

  • L20 Black

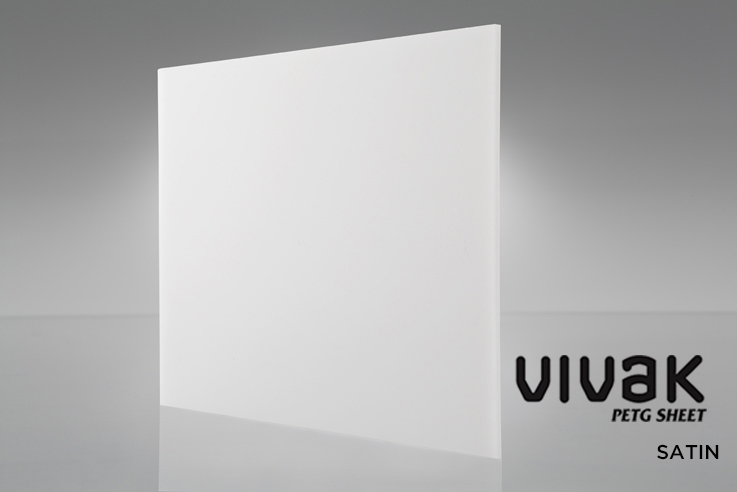

  • Satin Finish

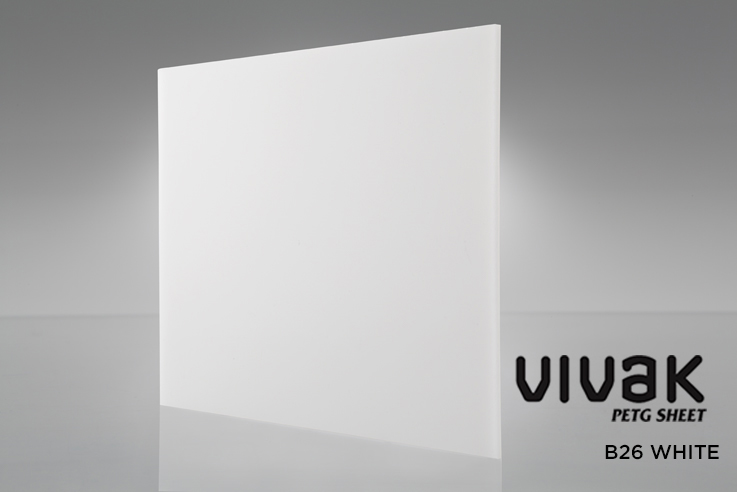

  • B26 White

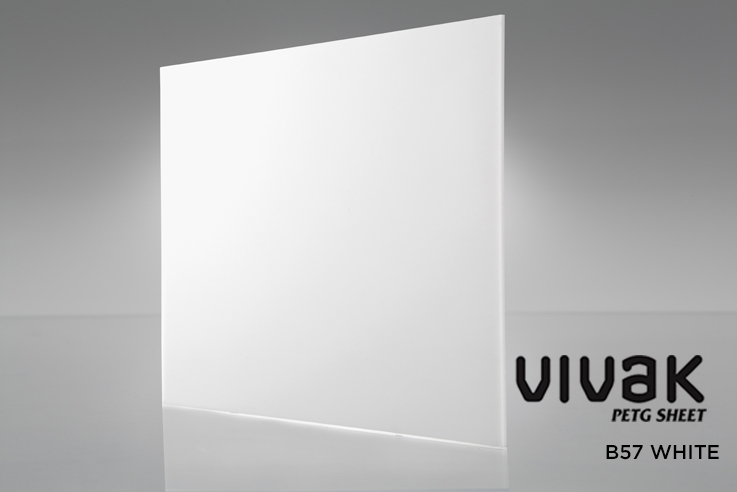

  • B57 White

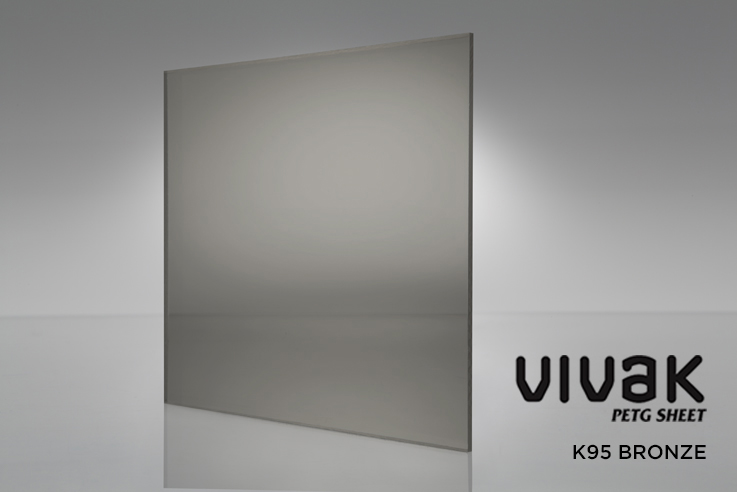

  • K95 Bronze

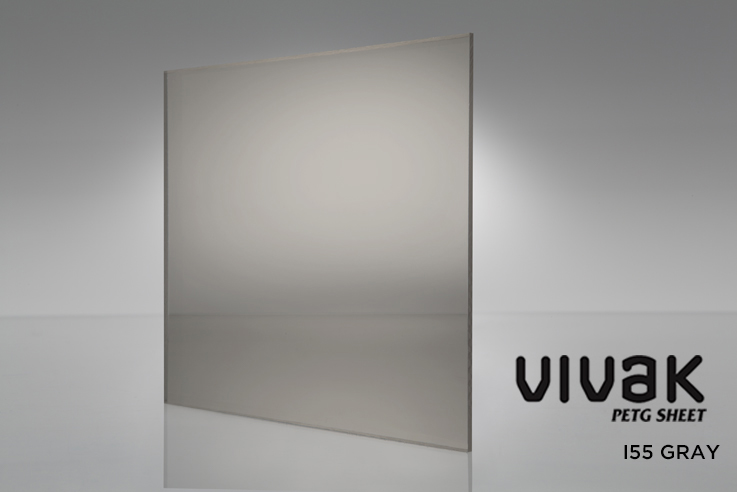

  • I55 Gray

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of VIVAK ® PETG Sheet

DETAIL
Description Value
Material Type Amorphous Thermoplastic
Chemical Name PETG Polyethylene Terephthalate Glycol Modified
Trade Name VIVAK ® PETG Sheet
Additives Unfilled
Color Transparent Clear
PHYSICAL
Property Test Unit of Measure Value
Density ASTM D792 g/cm³ 1.27
  ASTM D792 lb/in³ 0.046
Water Absorption, 24 hrs, Immersion ASTM D570 % by wt. 0.2
MECHANICAL
Property Test Unit of Measure Value
Tensile Strength ASTM D68 psi 7,700
Tensile Modulus ASTM D638 psi 320,300
Flexural Strength ASTM D790 psi 11,200
Flexural Modulus ASTM D790 psi 310,000
Compressive Strength ASTM D695 psi 8,000
Hardness ASTM D785 Rockwell R R-115
IZOD Impact-Notched ASTM D256 ft-lb/in 1.2
THERMAL
Property Test Unit of Measure Value
Coefficient of Linear Thermal Expansion ASTM D696 x 10-5 in./in./°F 3.8
Heat Deflection Temp ASTM D648 °C at 264 psi 70
  ASTM D648 °F at 264 psi 157
Max Continuous Operating Temp °C 82
  °F 180
Minimum Operating Temp °C -50
  °F -58
Thermal Conductivity ASTM E1225 BTU-in/ft²-hr-°F 1.3
Flammability Rating UL94 NA HB
ELECTRICAL
Property Test Unit of Measure Value
Dielectric Constant at 1 MHz ASTM D150 1 MHz 2.4
COMPLIANCE
Description Value
FDA Yes
USDA Yes
NSF Yes
3-A Dairy No
Canadian Food Inspection Agency No
USP Class VI No
OTHER
Description Value
UV Resistant No
Relative Cost $$$

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

VIVAK ® is a registered trademark of PLASKOLITE
