SIMONA ® HDPE Boat Board

Compare Go To Comparison Add Additional Products For Comparison

-

1. Select Shape

2. Please Select Thickness

2. Please Select Diameter

2. Please Select Outer Diameter

2. Please Select Type & Size

Unit of Measure

In order to provide an accurate quote for your part, you'll need to provide some information through our custom quote request form.

3. Please Select Dimensions *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

3. Please Select Length *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

General Info

SIMONA® HDPE Boat Board is formulated for extreme marine conditions, with maintenance-free integral colors. Providing long-term durability for boat building components, outdoor and indoor cabinetry.

Key Properties

  • Easy to Fabricate Using Standard Woodworking Tools
  • Integral Color Hides Marring, Scratches
  • Maintenance-Free, Easy to Clean
  • Resists Impacts, Extreme Weather
  • Solid Polymer Composition Won’t Delaminate, Rot or Splinter
  • Uniform Color and Surface Consistency

Limitations

  • High Heat Environments
  • High Loads
  • Subject to Creep, Cold Flow
  • Thermal Expansion
  • Tight Tolerance Applications

Applications

  • Cup and Rod Holders
  • Deck and Seating Components
  • Doors, Hatch and Well Covers
  • Instrument and Control Base Plates
  • Instrument Panels
  • Steps, Grab Rails
  • Storage and Tackle Bins
  • Tables, Trim, Cabinets

Resin Trade Names

Manufacturer Trade Names

  • SIMONA® HDPE Boat Board

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Sheet Finish | Matte | Masking One Side All Color Combinations | Thickness .250” to 1.000” Standard sheet size is 54.000” x 96.000” Custom colors & sizes available upon request. Boedeker offers cut to size service on all in-stock items and same day shipping. If you don’t see the size your looking for contact us for alternative options.

Available Colors

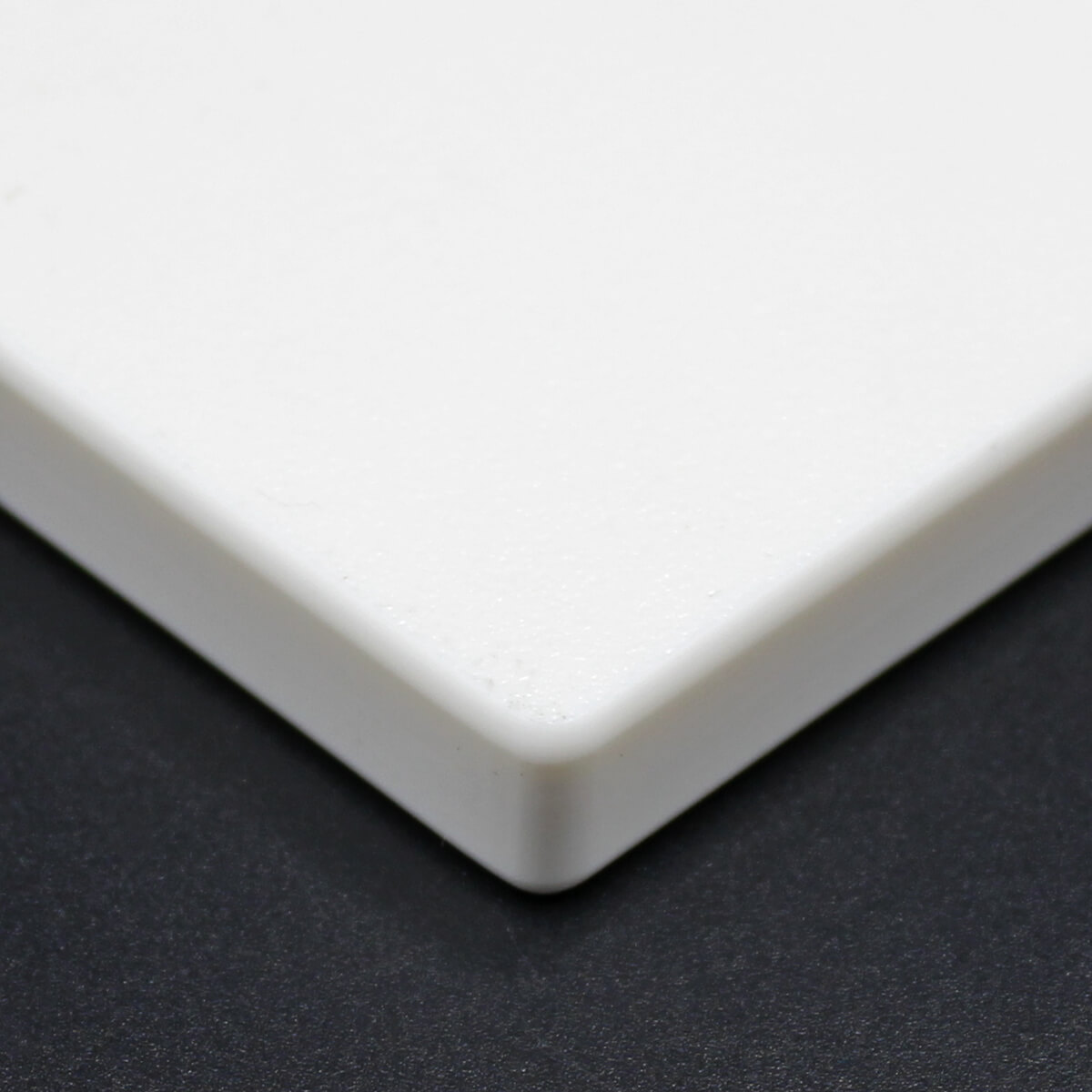

  • Polar White

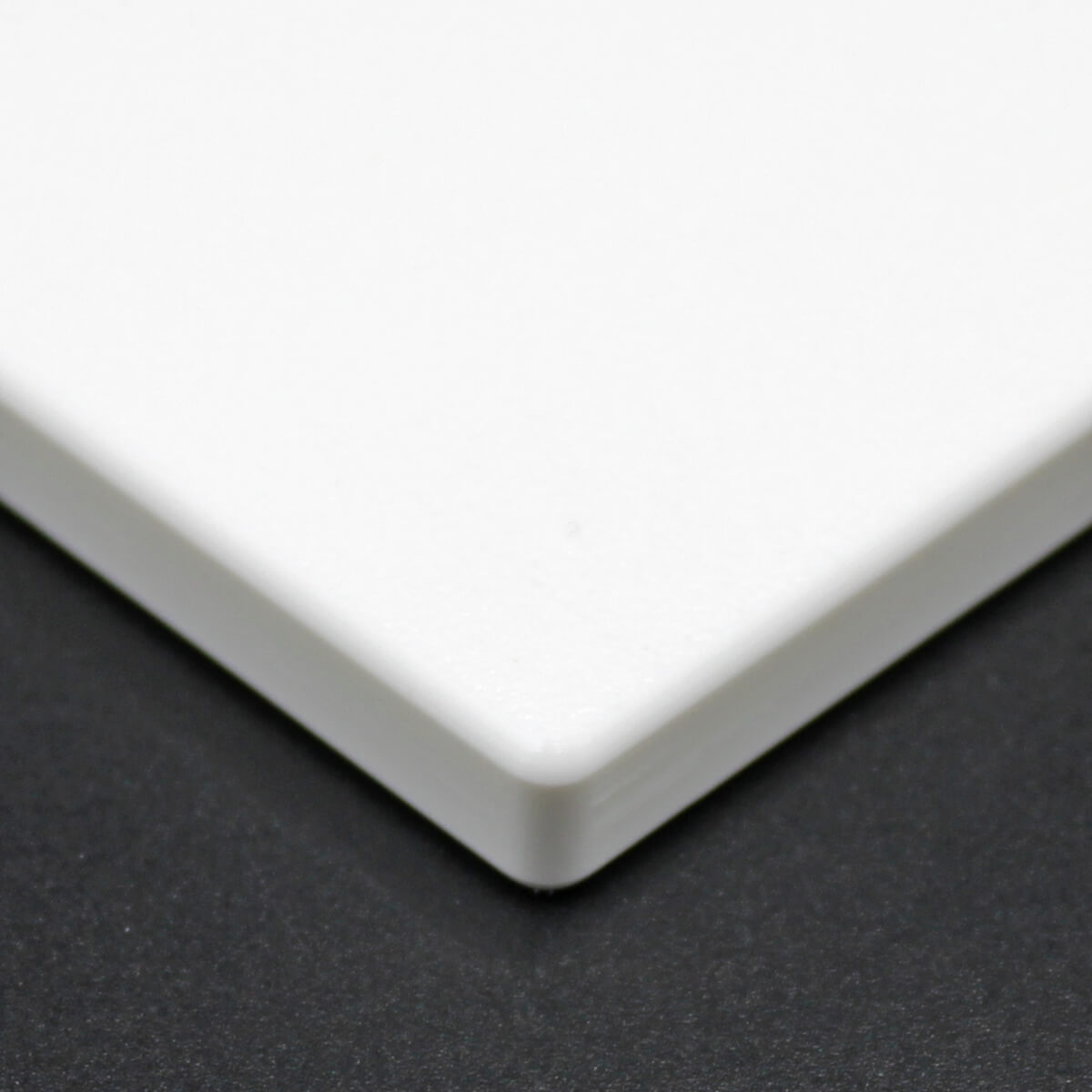

  • Bright Wight

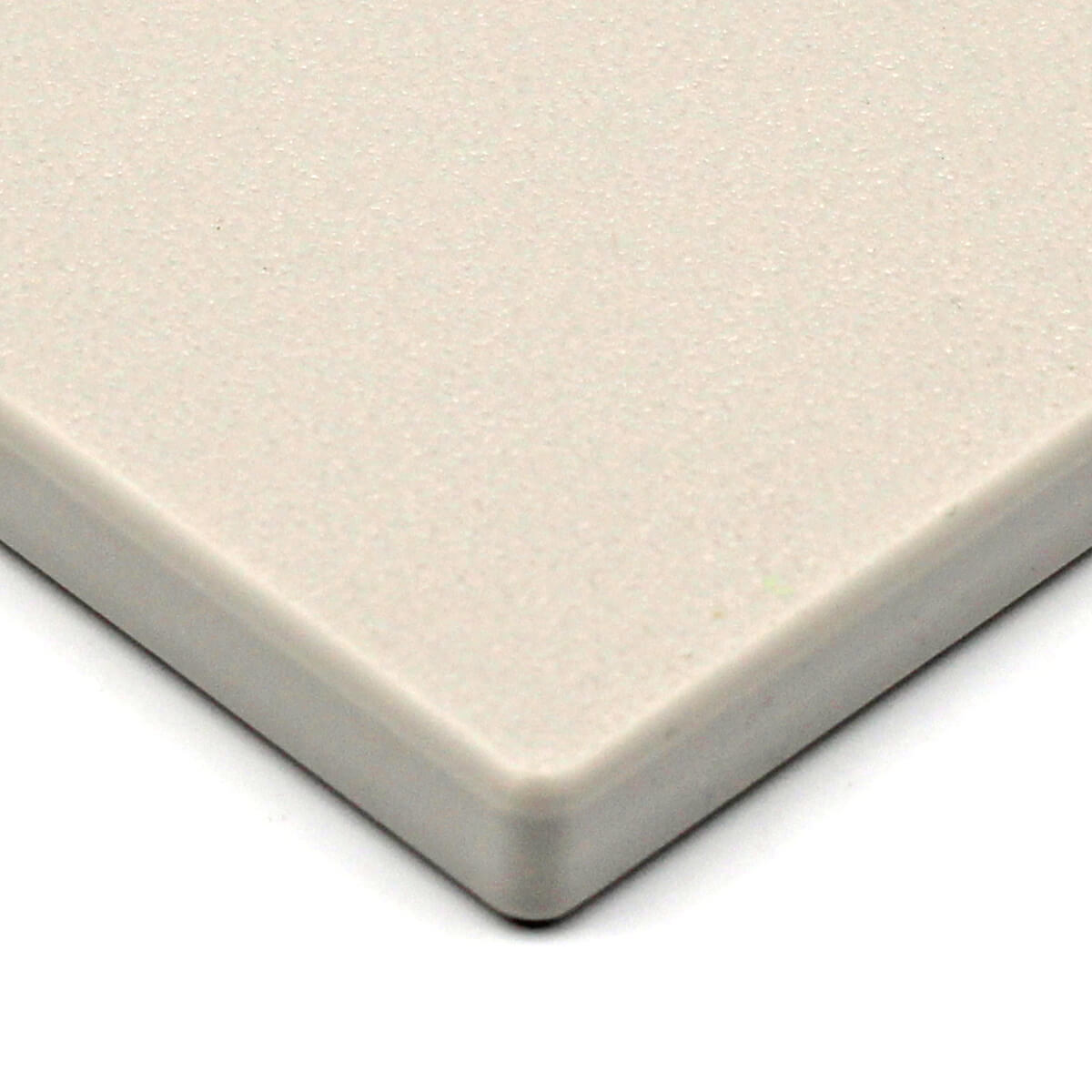

  • Dolphin Gray
  • Glacier Gray

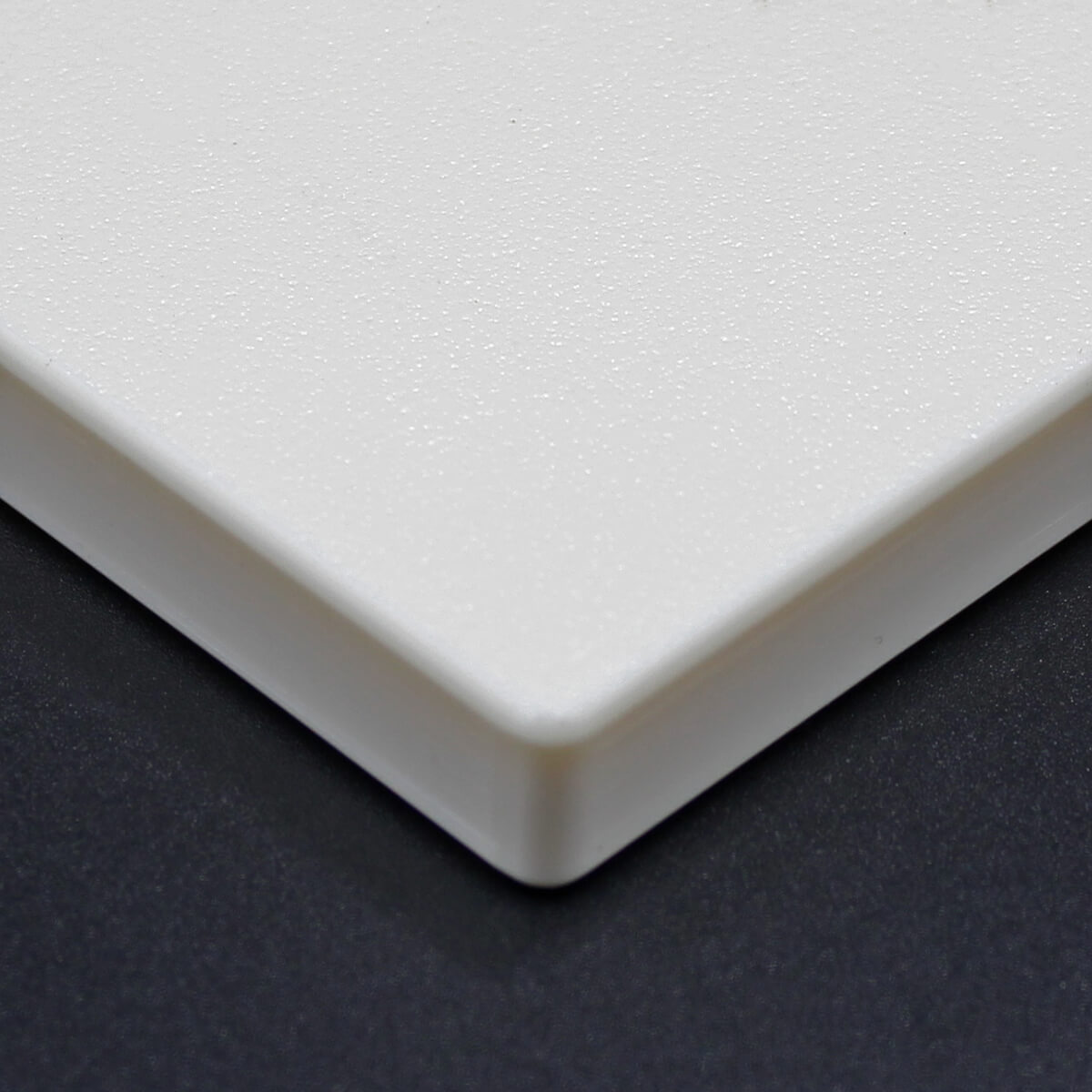

  • Seafoam

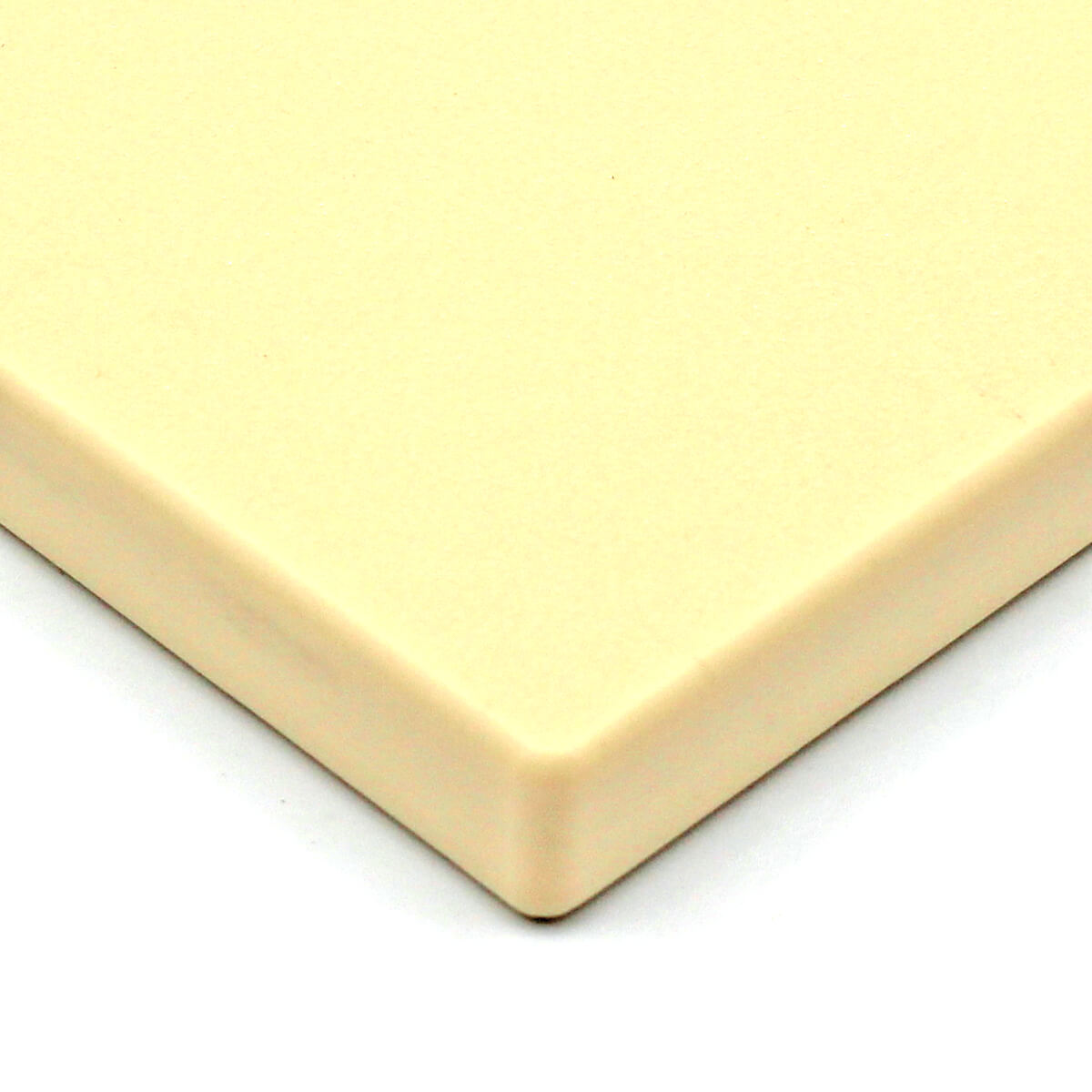

  • Sandshade
  • Brown

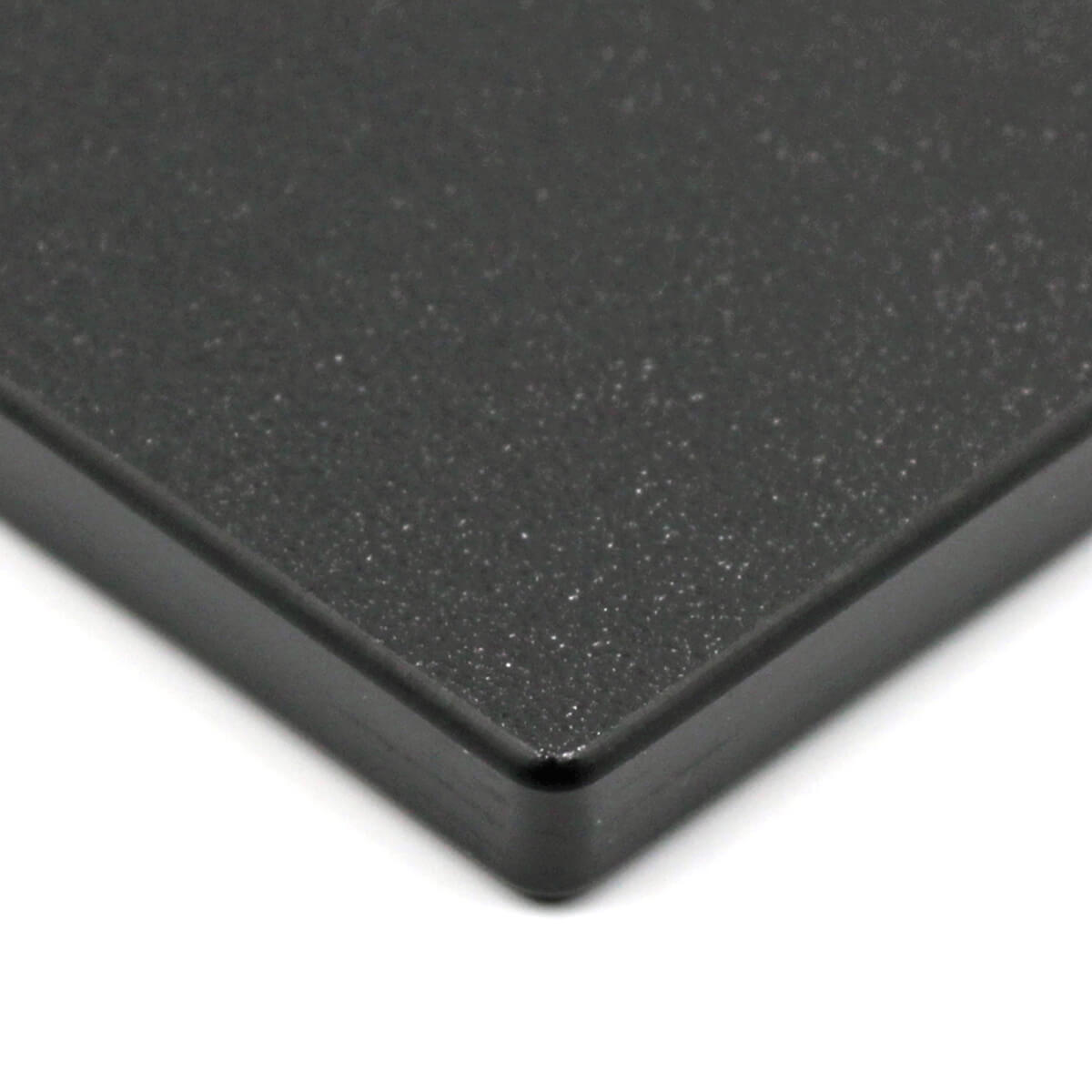

  • Black

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of SIMONA ® HDPE Boat Board

DETAIL
Description Value
Material Type Semi-Crystalline Thermoplastic
Chemical Name HDPE High Density Polyethylene
Trade Name SIMONA® HDPE Boat Board
Additives Colorant
Color Multiple Colors
Manufacturer SIMONA
PHYSICAL
Property Test Unit of Measure Value
Density ASTM D792 g/cm³ 0.96
  ASTM D792 lb/in³ 0.035
Water Absorption, 24 hrs, Immersion ASTM D570 % by wt. 0.01
Water Absorption, Saturation, Immersion ASTM D570 % by wt. 0.01
MECHANICAL
Property Test Unit of Measure Value
Tensile Strength ASTM D638 psi 4,400
Tensile Elongation at Break ASTM D638 % 300
Flexural Modulus ASTM D790 psi 190,000
Hardness ASTM D2240 NA Shore D65
IZOD Impact-Notched ASTM D256 ft-lb/in 2.75
Static Coefficient of Friction ASTM C1894 NA 0.2
Dynamic Coefficient of Friction ASTM C1894 NA 0.2
THERMAL
Property Test Unit of Measure Value
Coefficient of Linear Thermal Expansion ASTM D696 x 10-5 in./in./°F 10
Heat Deflection Temp ASTM D648 °C at 264 psi 43.4
  ASTM D648 °F at 264 psi 110
Melting Point Temp ASTM D3418 °C 130
  ASTM D3418 °F 267
Max Continuous Operating Temp °C 82
  °F 180
Minimum Operating Temp °C -60
  °F -76
COMPLIANCE
Description Value
FDA Yes
USDA Yes
NSF No
3-A Dairy No
Canadian Food Inspection Agency No
USP Class VI No
OTHER
Description Value
UV Resistant Yes
Relative Cost $$
Machinability 1

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

SIMONA® is a registered trademark of Simona.
