General Info

BOETEK™ Static Control 48-SD is a specialized formulation of Polyetheretherketone (PEEK) polymer engineered for critical applications that require static control, dimensional stability, high strength, and stiffness, as well as superior thermal performance, capable of withstanding temperatures up to 475°F continuously. It is ideal for semiconductor and electronics applications.

This product has a surface resistivity range of 10^6 to 10^9, placing it in the static dissipative range. It maintains its strength and stiffness while preventing static discharge during assembly and packaging operations, minimizing the risk of human contact with static charge.

BOETEK™ Static Control 48-SD is compression-molded and fully annealed, providing excellent dimensional stability, which makes it ideal for intricate CNC-machined components.

Key Properties

Surface resistivity 10^6 – 10^9 Ohm/Square (Static Dissipative Range)
Thermal performance to 475°F (246°C) Continuous Use
Excellent Chemical Resistance
Excellent Dimensional Stability

Limitations

Poor Chemical Resistance to Halogens and Their Acids Including Bromine, Chlorine, Fluorine, HBr and HF

Applications

Burn in Test Sockets, Contactors & Nests
Critical Test Fixture Applications
Electronic Device Handling Equipment
High Temp Fixtures That Require Static Control
Structural Applications in Wet Process Tools
Wafer Handling Components

Resin Trade Names

Manufacturer Trade Names

BOETEK™ Static Control 48-SD PEEK

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

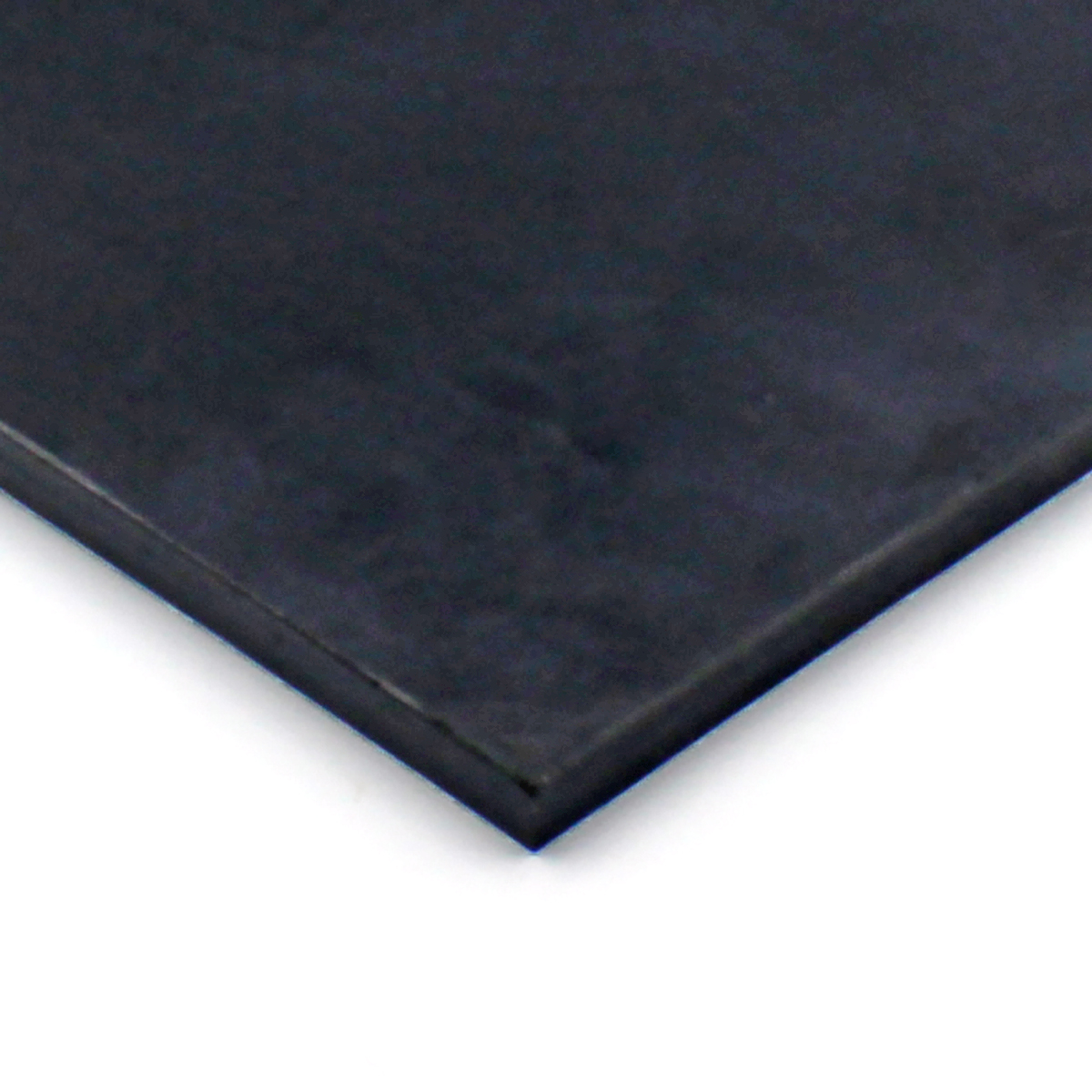

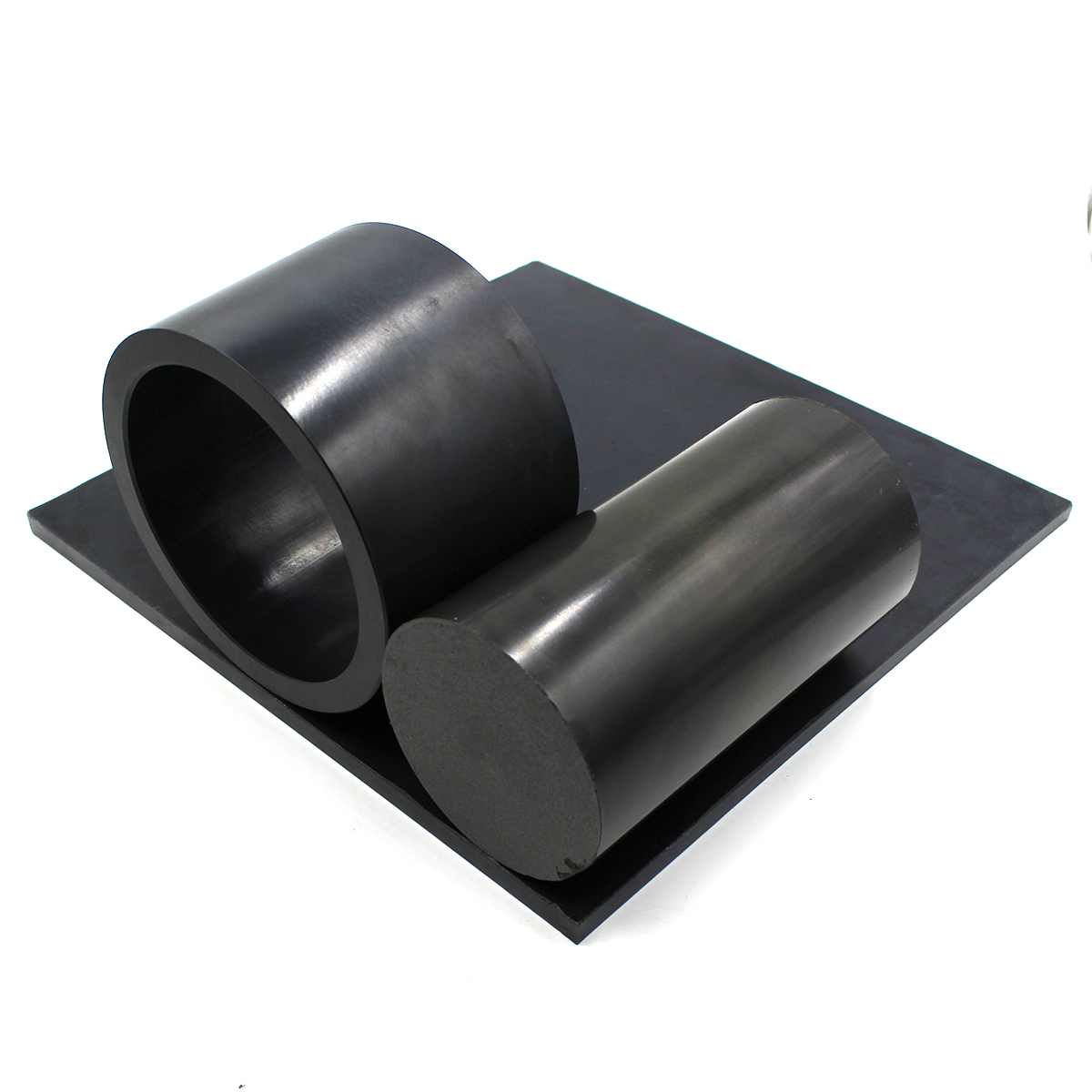

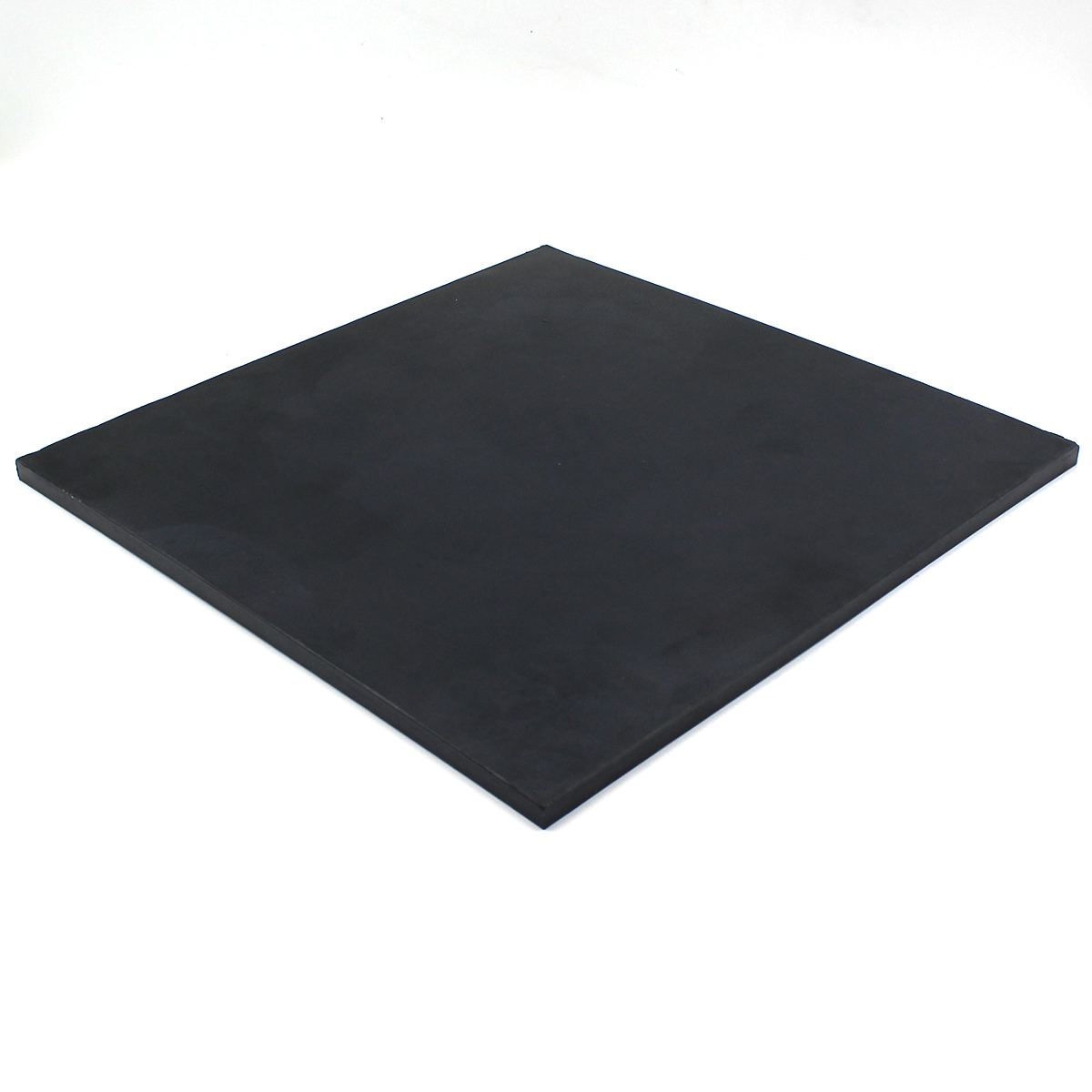

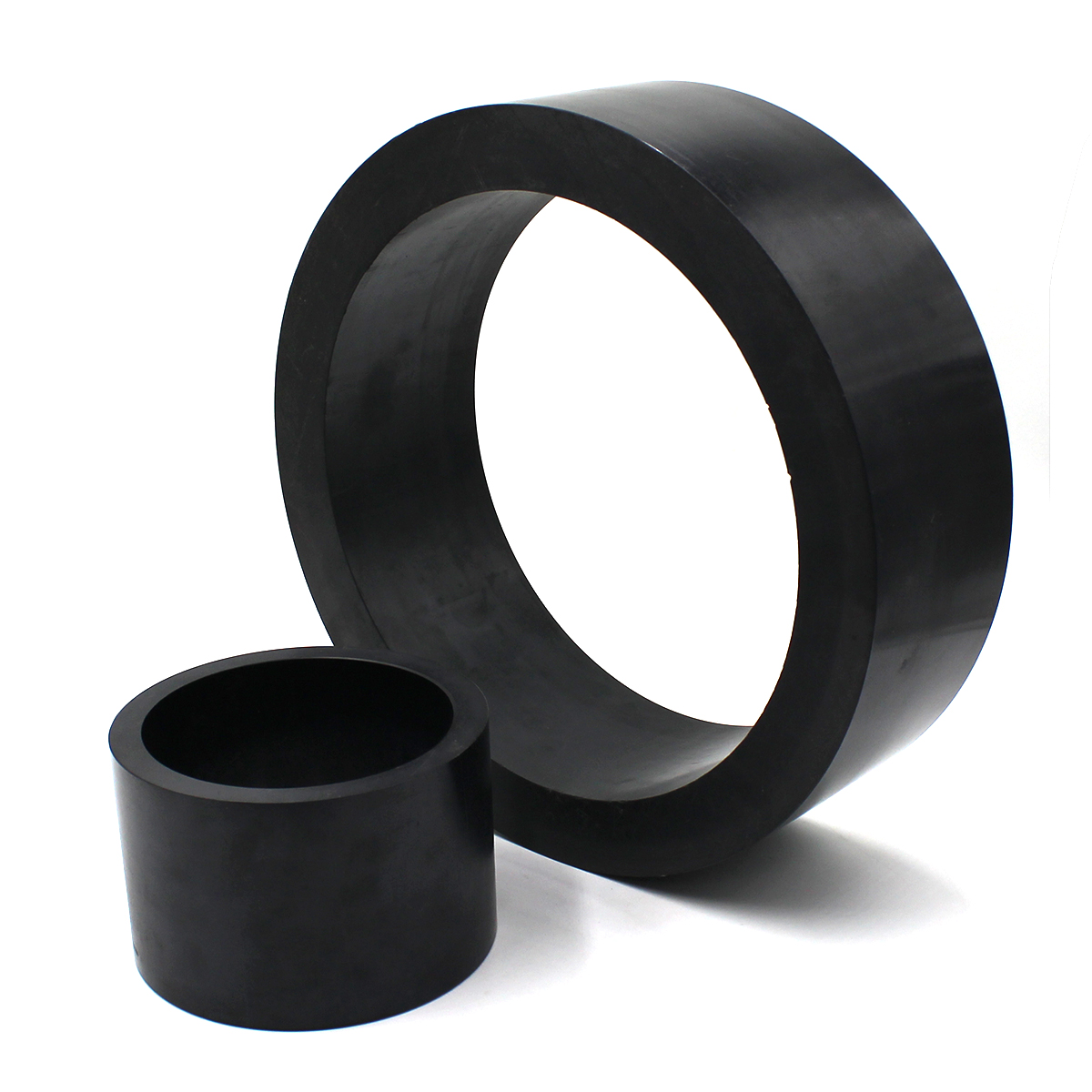

The product is available in rod, tube, and plate. Sheet / Plate Sizes Thicknesses from 0.375 to 2.500 inches Sizes 12.000 x 12.000 and 12.000 x 24.000 inches Rod Sizes Rod Diameters 1.000 to 4.000 inches Rod Lengths 4.000 to 8.000 inches Tubes Tube Outside Dimensions 1.750 OD to 24.000 inches OD Tube Lengths 1.000 to 8.000 inches, depending on OD  All BOETEK Static Control 48-SD shapes are compression molded. BOETEK Static Control 48-SD is a made-to-order product; minimum order quantities and lead times vary depending on shape and size.

Available Colors

Black

Safety Data Sheet

Typical Properties of BOETEK™ Static Control 48-SD PEEK

DETAIL
Description			Value
Material Type			Semi-Crystalline Thermoplastic
Chemical Name			PEEK Polyetheretherketone
Trade Name			BOETEK™ Static Control 48-SD PEEK
Additives			Proprietary ESD Additives
Color			Black
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	1.47
	ASTM D792	lb/in³	0.053
Water Absorption, 24 hrs, Immersion	ASTM D570	% by wt.	0.2
Water Absorption, Saturation, Immersion	ASTM D570	% by wt.	1.8
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi	15,000
Tensile Modulus	ASTM D638	psi	950,000
Tensile Elongation at Break	ASTM D638	%	1.7
Flexural Strength	ASTM D790	psi	22,000
Flexural Modulus	ASTM D790	psi	1,200,000
Compressive Strength	ASTM D695	psi	27,000
Compressive Modulus	ASTM D695	psi	580,000
Hardness	ASTM D785	Rockwell M & R	Rockwell M105 (R120)
IZOD Impact-Notched	ASTM D256	ft-lb/in	1.2
Dynamic Coefficient of Friction	Dry vs. Steel, QTM 55007	NA	0.2
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	ASTM D696	x 10-5 in./in./°F	1.6
Heat Deflection Temp	ASTM D648	°C at 264 psi	260
	ASTM D648	°F at 264 psi	500
Melting Point Temp	ASTM D3418	°C	340
	ASTM D3418	°F	644
Max Continuous Operating Temp		°C	246
		°F	475
Minimum Operating Temp		°C	-60
		°F	-76
Flammability Rating	UL94	Estimated .125" Thick	V-0
ELECTRICAL
Property	Test	Unit of Measure	Value
Dielectric Constant at 1 MHz	ASTM D150	NA	10.9
Dissipation Factor at 1 MHz	ASTM D150	NA	0.518
Surface Resistivity	ANSI/ESD STM 11.11	ohm/square	10^6 – 10^9
COMPLIANCE
Description			Value
FDA			No
USDA			No
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
UV Resistant			Yes
Relative Cost			$$$$$$
Machinability			4

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

BOETEK™ is a trademark of Boedeker Plastics, Inc, with registration currently pending.
