General Info

Designboard® family of materials provides a new, trend-setting addition to our color and texture palette. Whether you are looking for rich designer shades or the toughness of HDPE with the brilliance of metal, our product has superior performance. Unlike wood or metal alternatives, our products will not rust, corrode, rot, delaminate, or splinter. With their superior scratch resistance, stiffness, and UV packages, our HDPE products are ideal for a wide range of applications, from outdoor cabinetry, to POP displays, signage and more.

Key Properties

Easy to Fabricate
Weather Ability (UV Stabilized)
Excellent Scratch Resistance
Will Not Delaminate, Chip, Rot, Or Swell
No Moisture Absorption
Great Impact and Stiffness
Designer Color and Textures
Maintenance Free
Will Not Rust
Never Needs Painting

Limitations

Difficult to Bond
Poor Dimensional Stability – High Thermal Expansion

Applications

Indoor / Outdoor Furniture
Point of Purchase Displays
Signage
Metal and Wood Replacements

Resin Trade Names

Manufacturer Trade Names

Designboard® HDPE

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

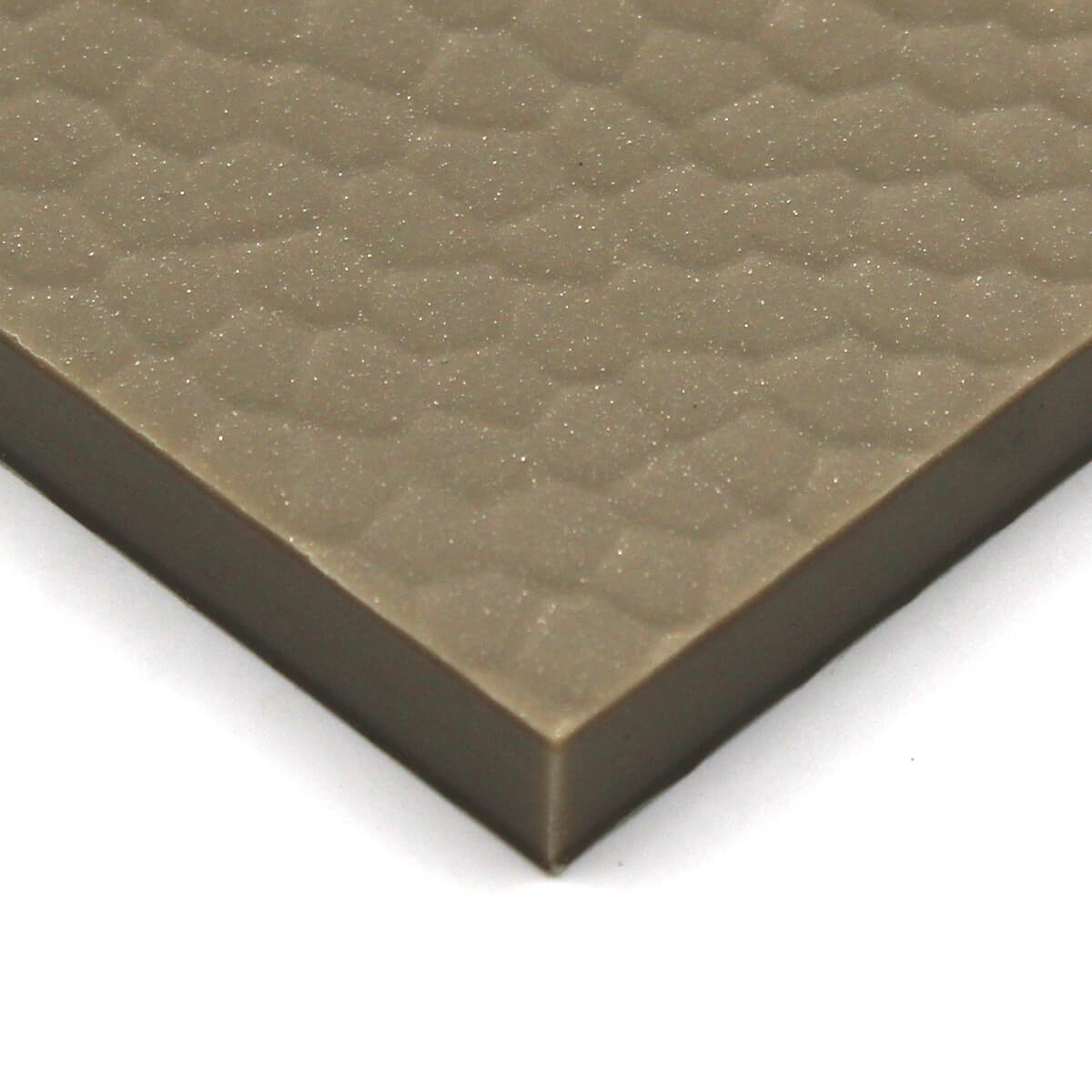

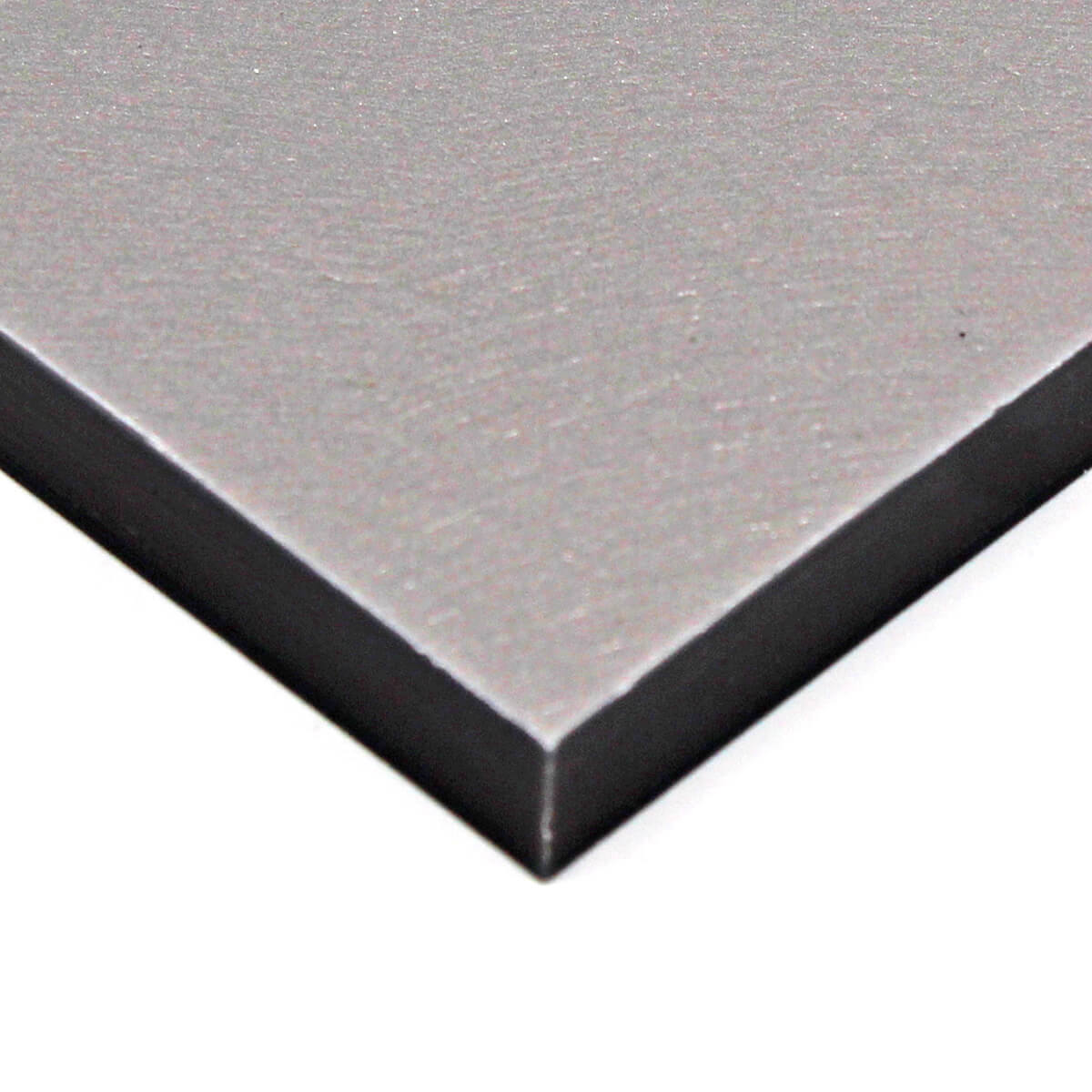

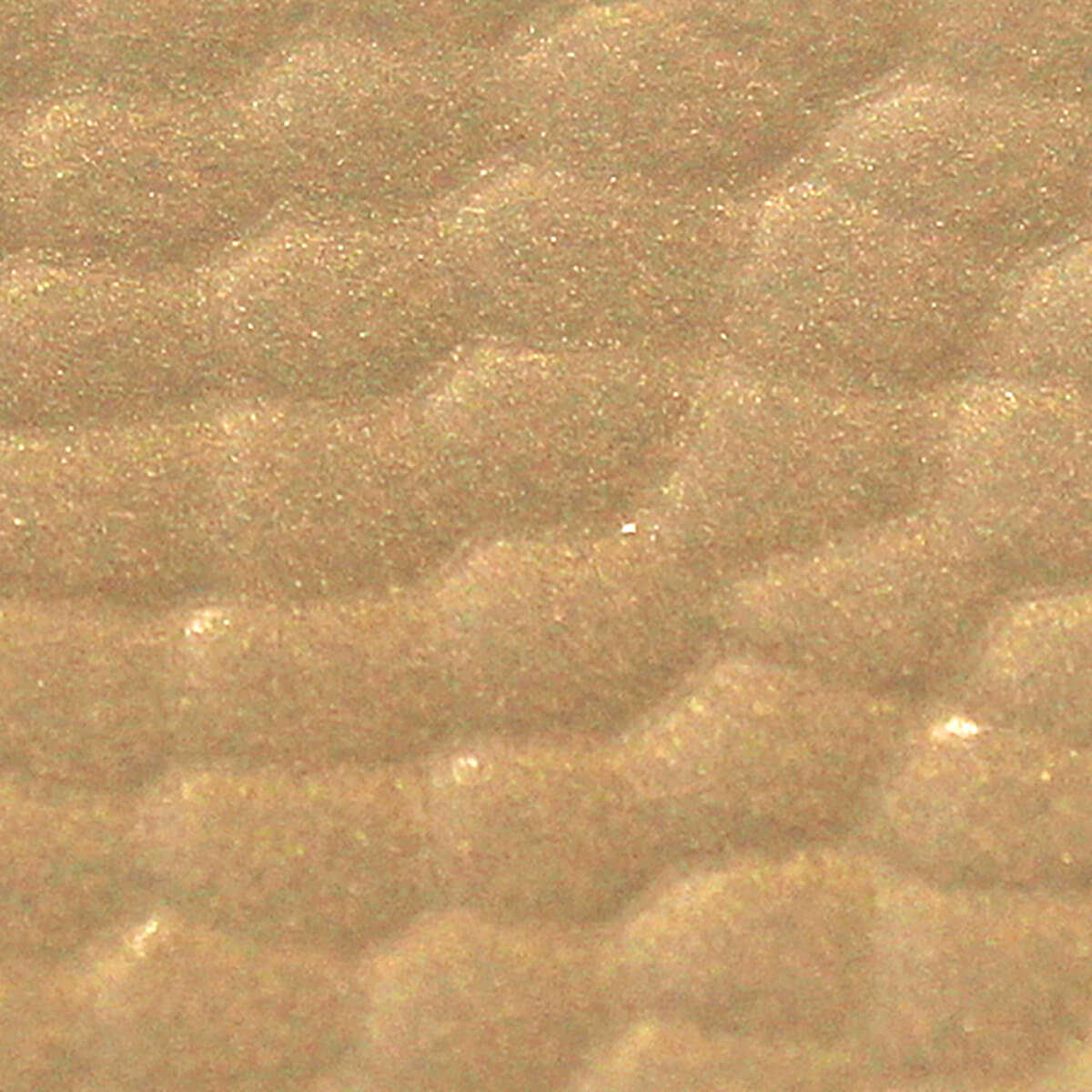

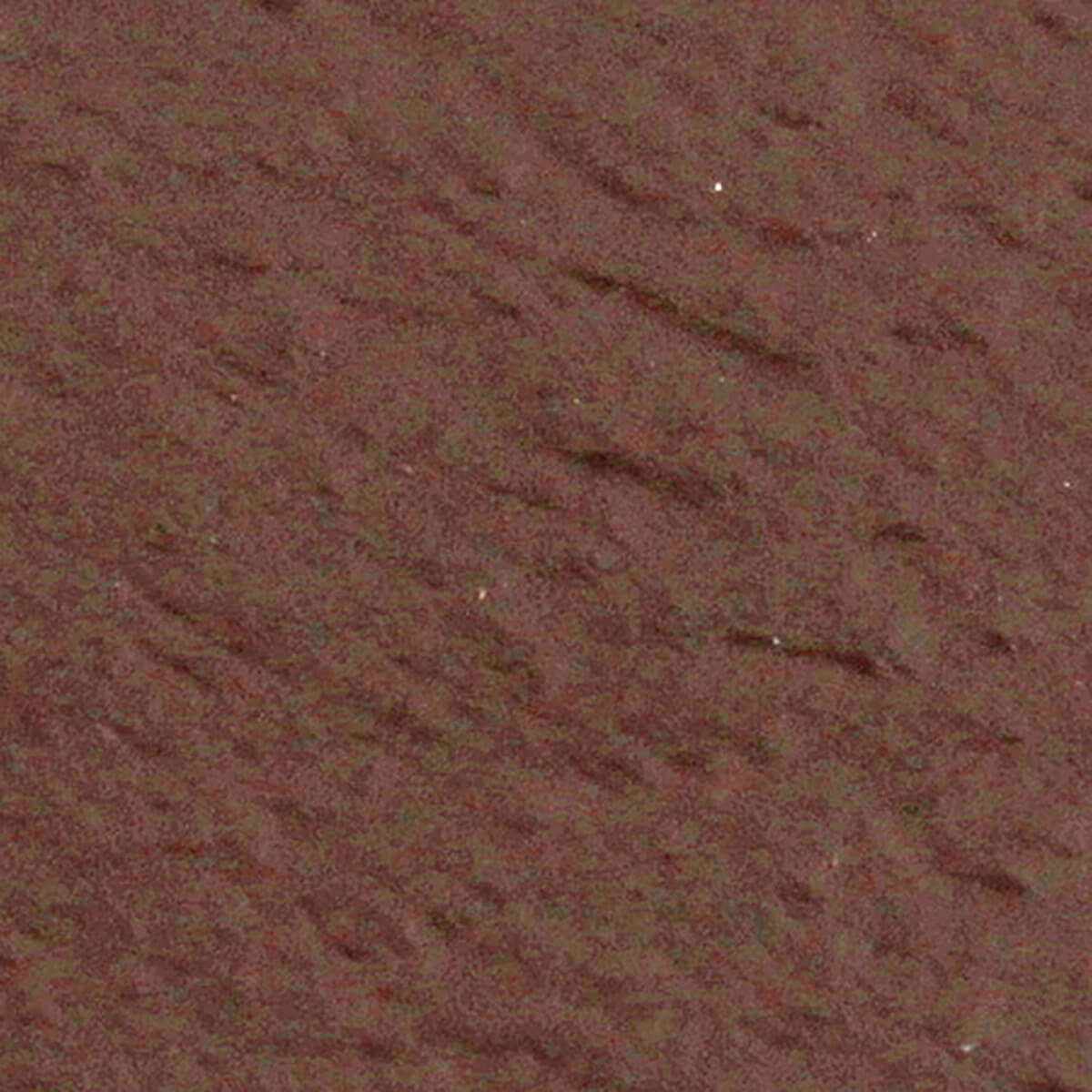

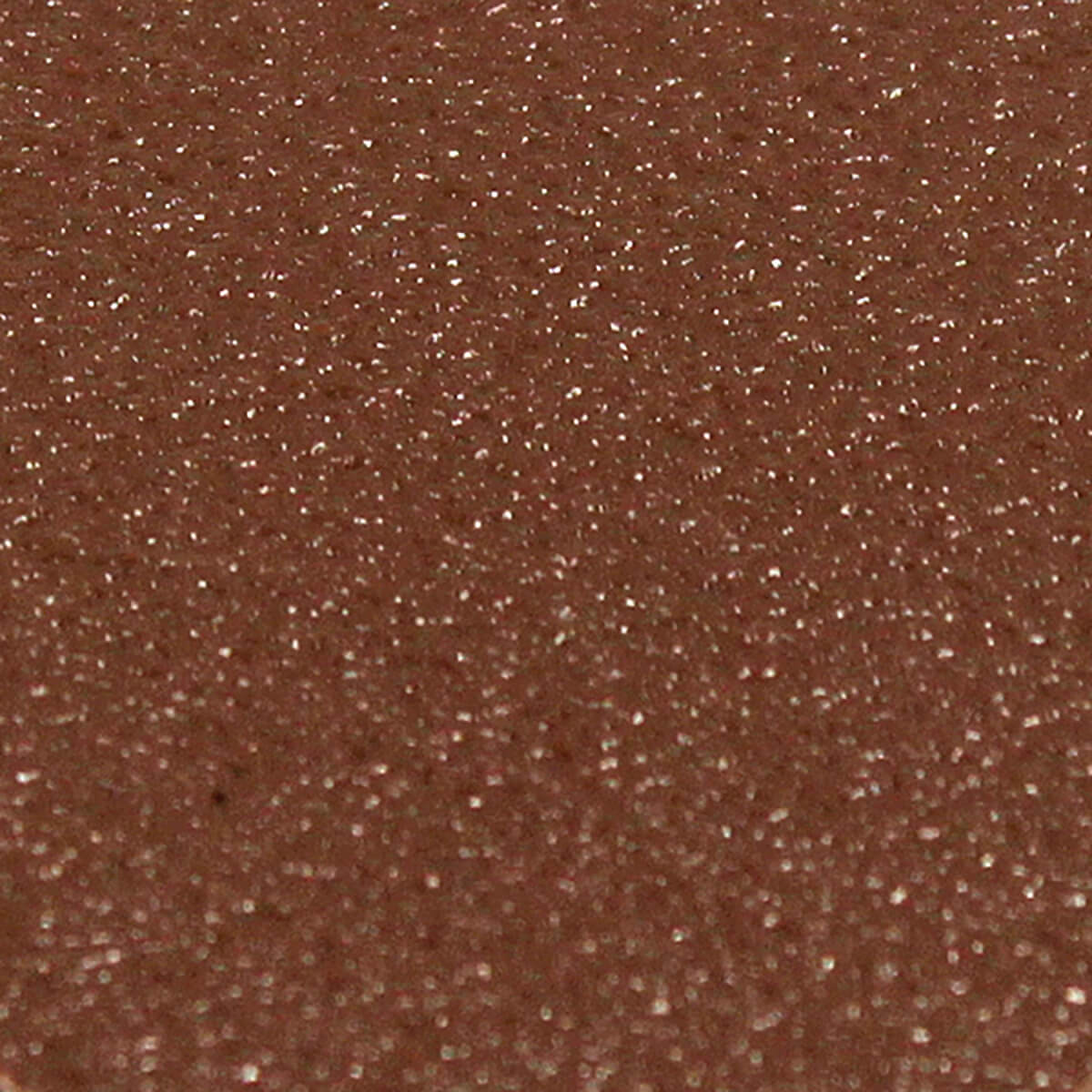

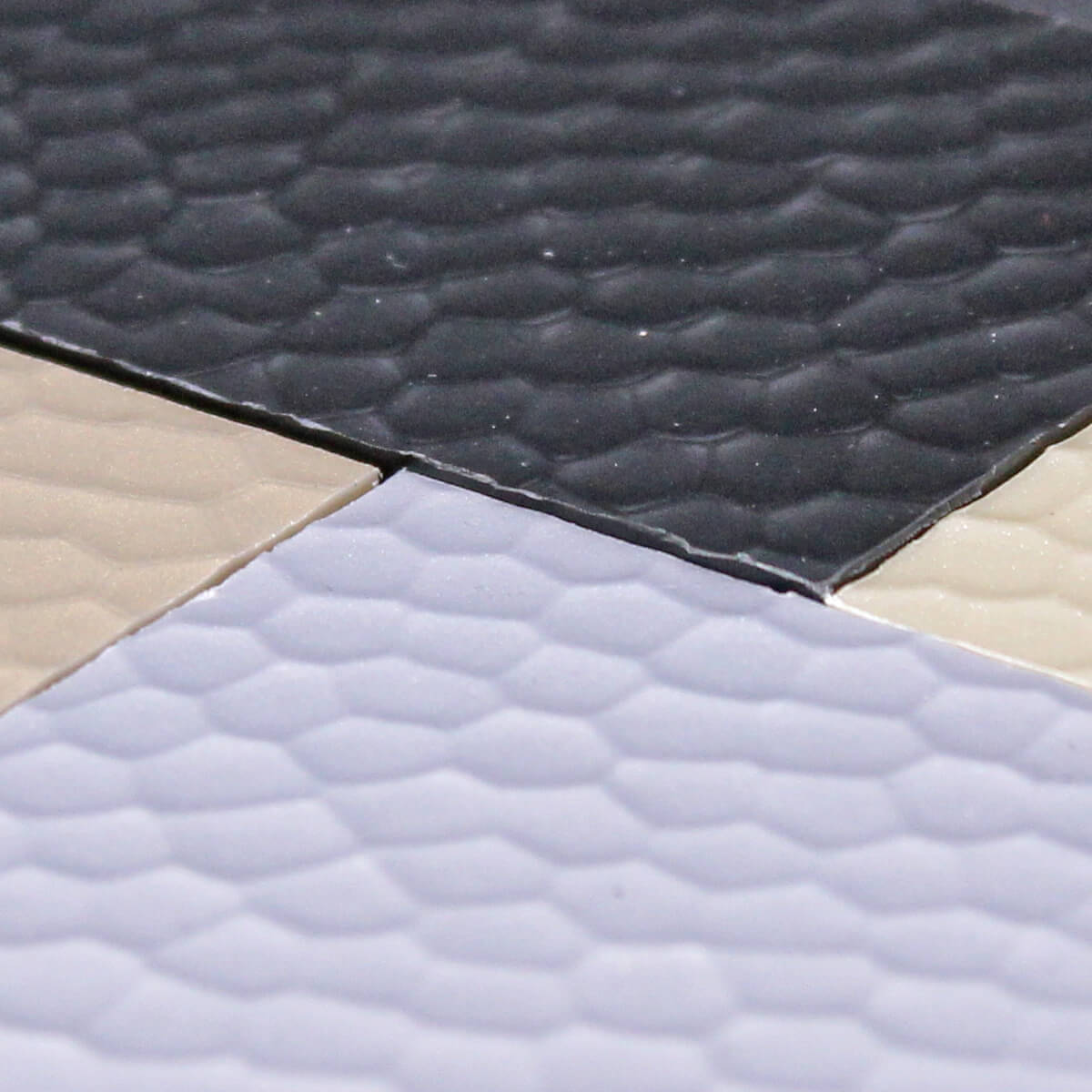

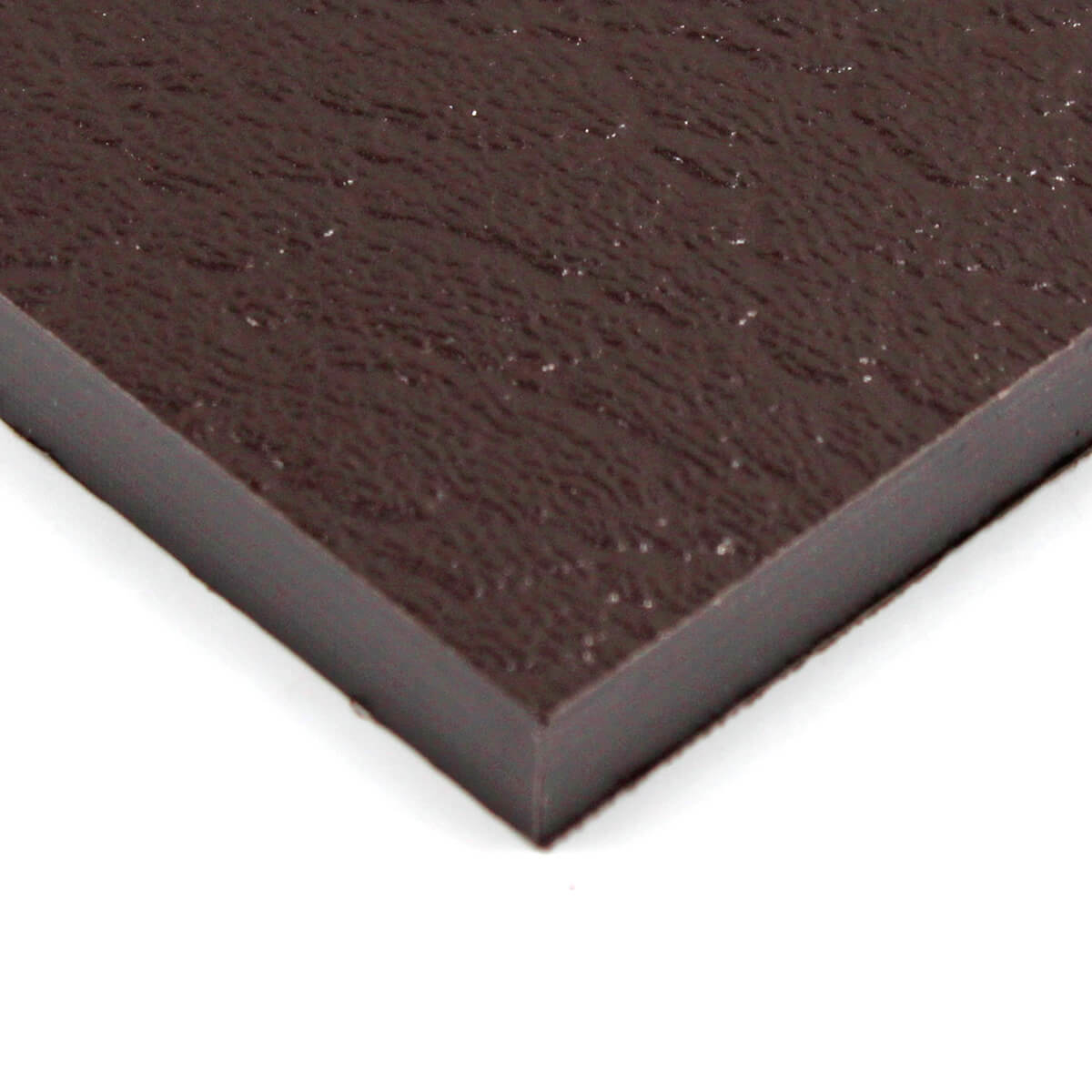

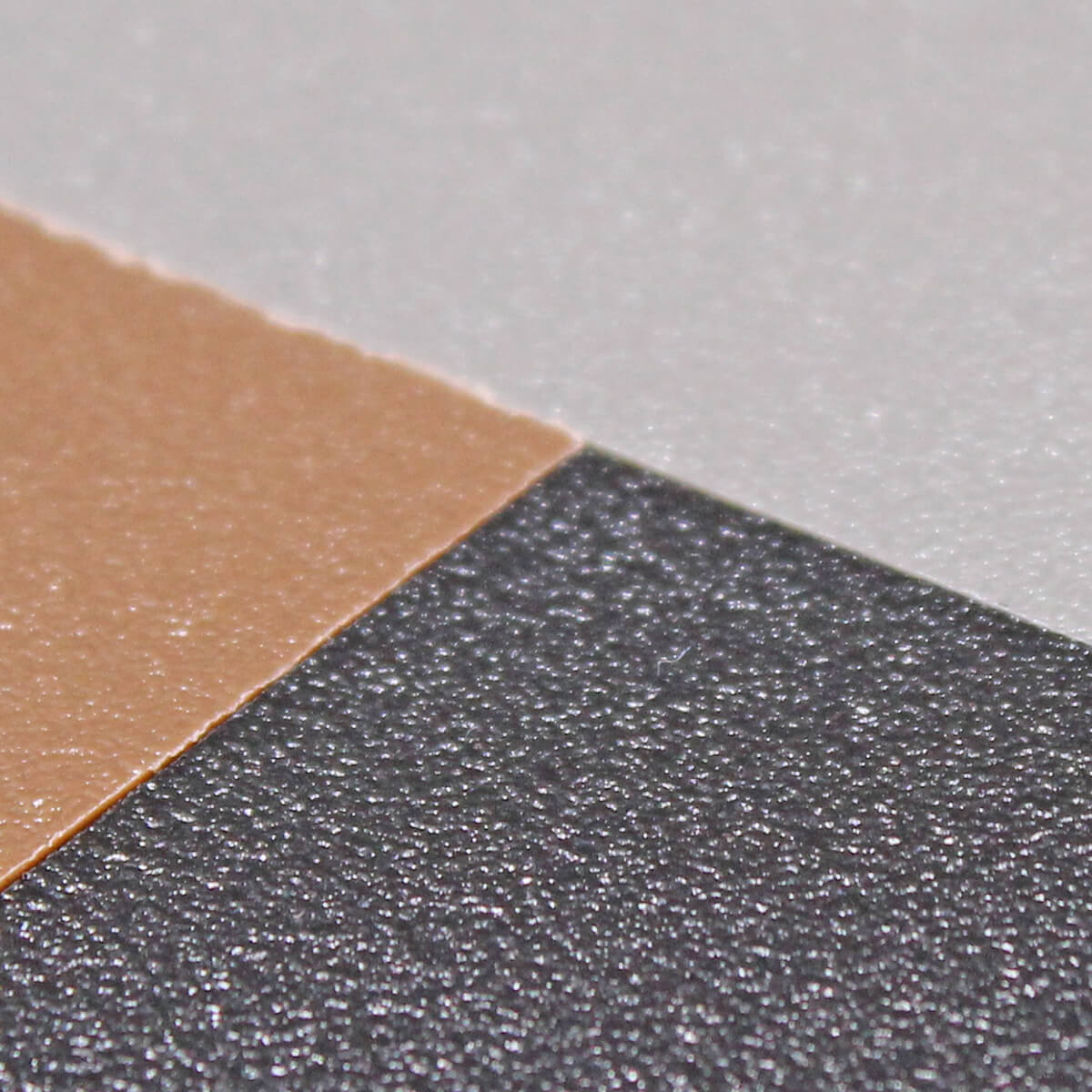

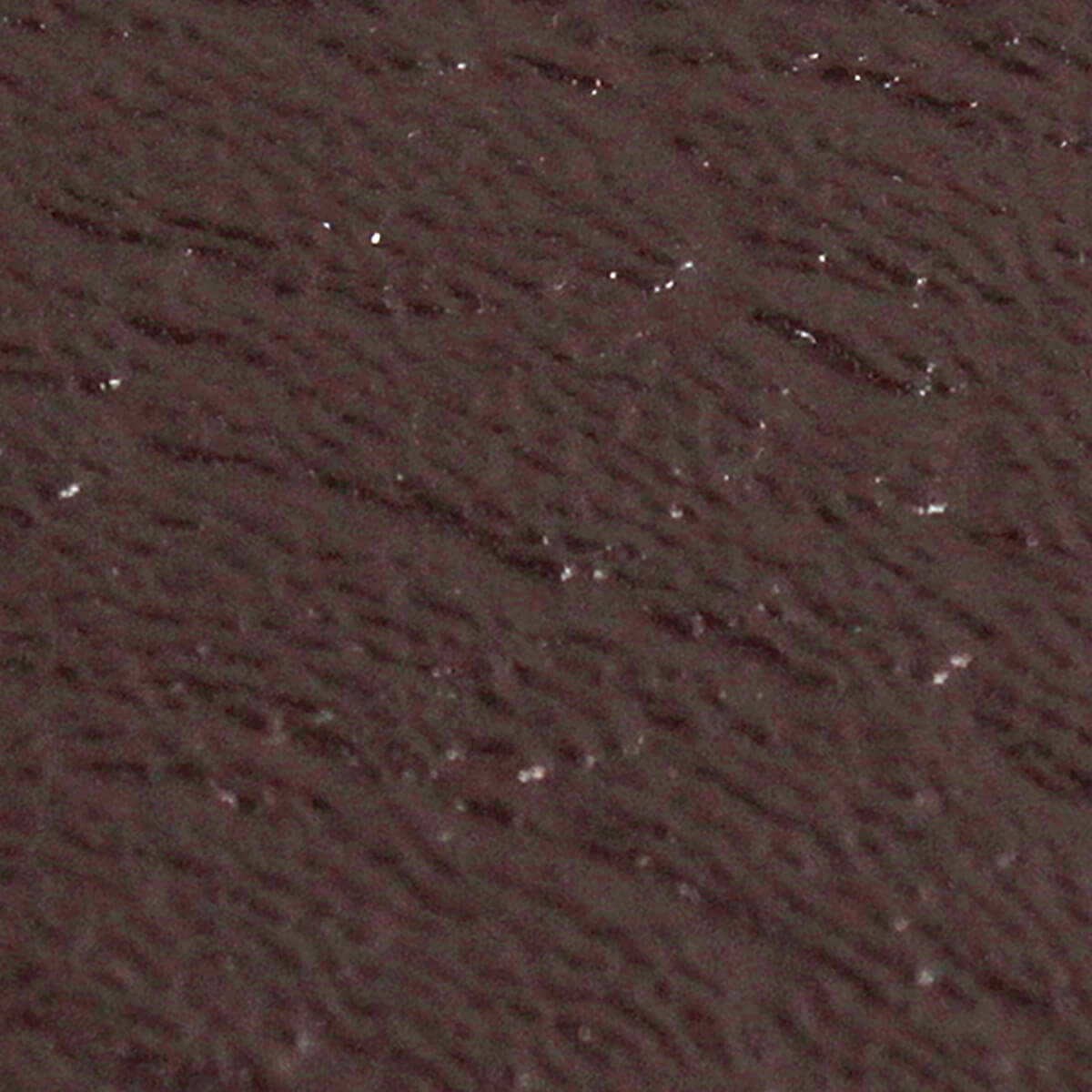

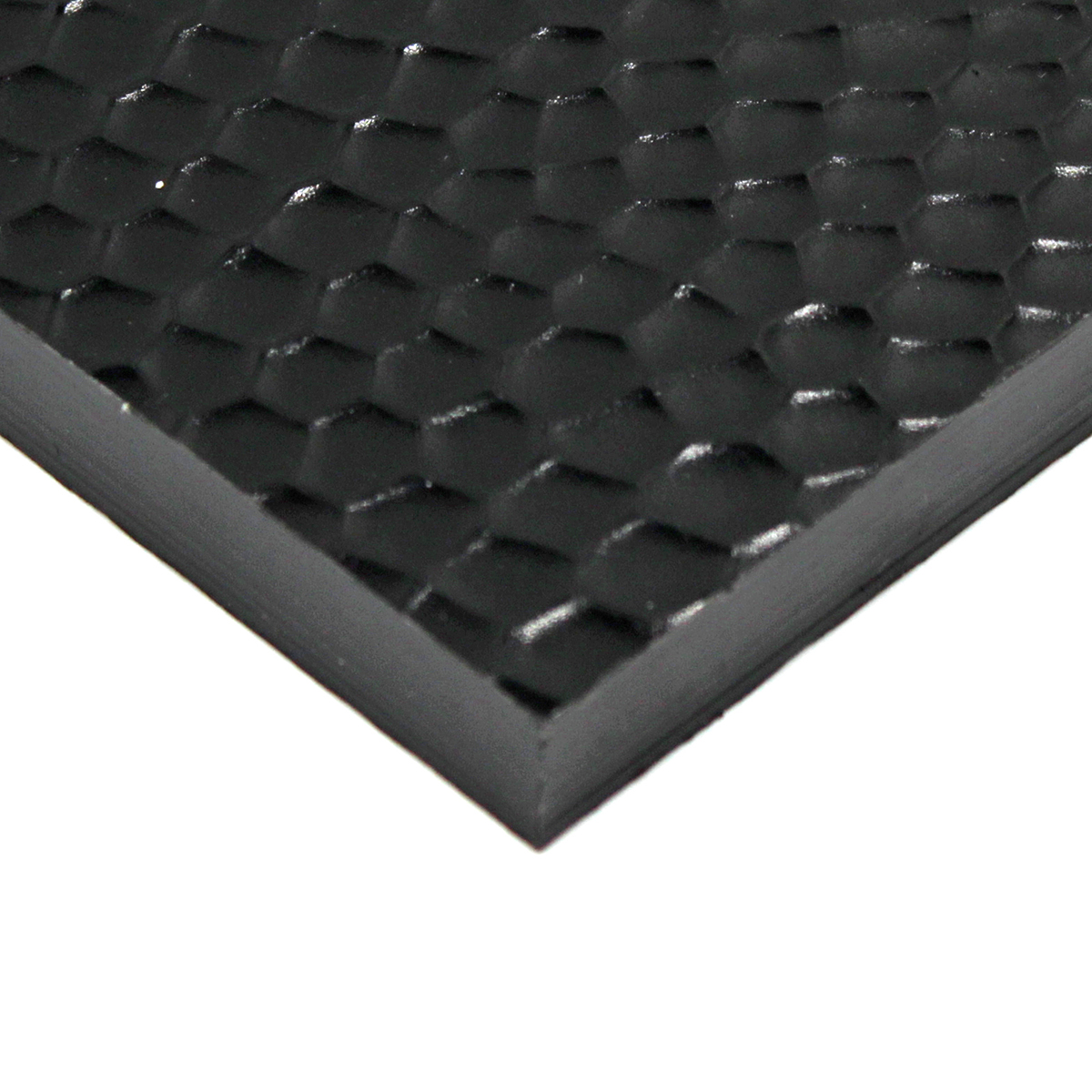

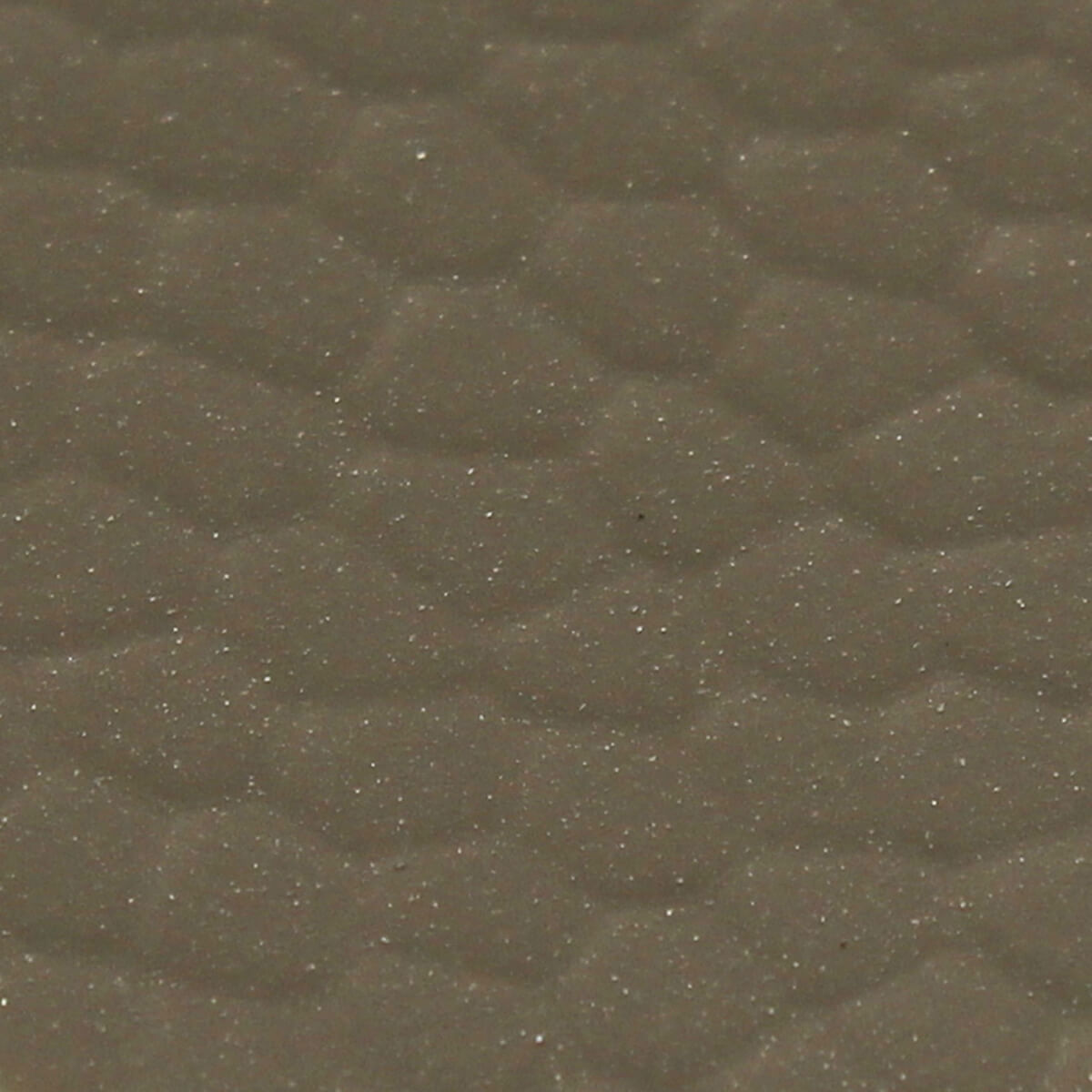

Sheet Finish | Rotary Brushed Stainless Steel & Nickel | Thickness .500” to 1.000” Finish | Hammered Stainless Steel & Bronze | Thickness .500” to 1.000” Finish | Orange Peel Java & Shale | Thickness .500” to 1.000” Standard sheet size is 48.000” x 96.000” Additional colors & contour finish available on a special-order basis. Boedeker offers cut to size service on all in-stock items and same day shipping. If you don’t see the size your looking for contact us for alternative options.

Available Colors

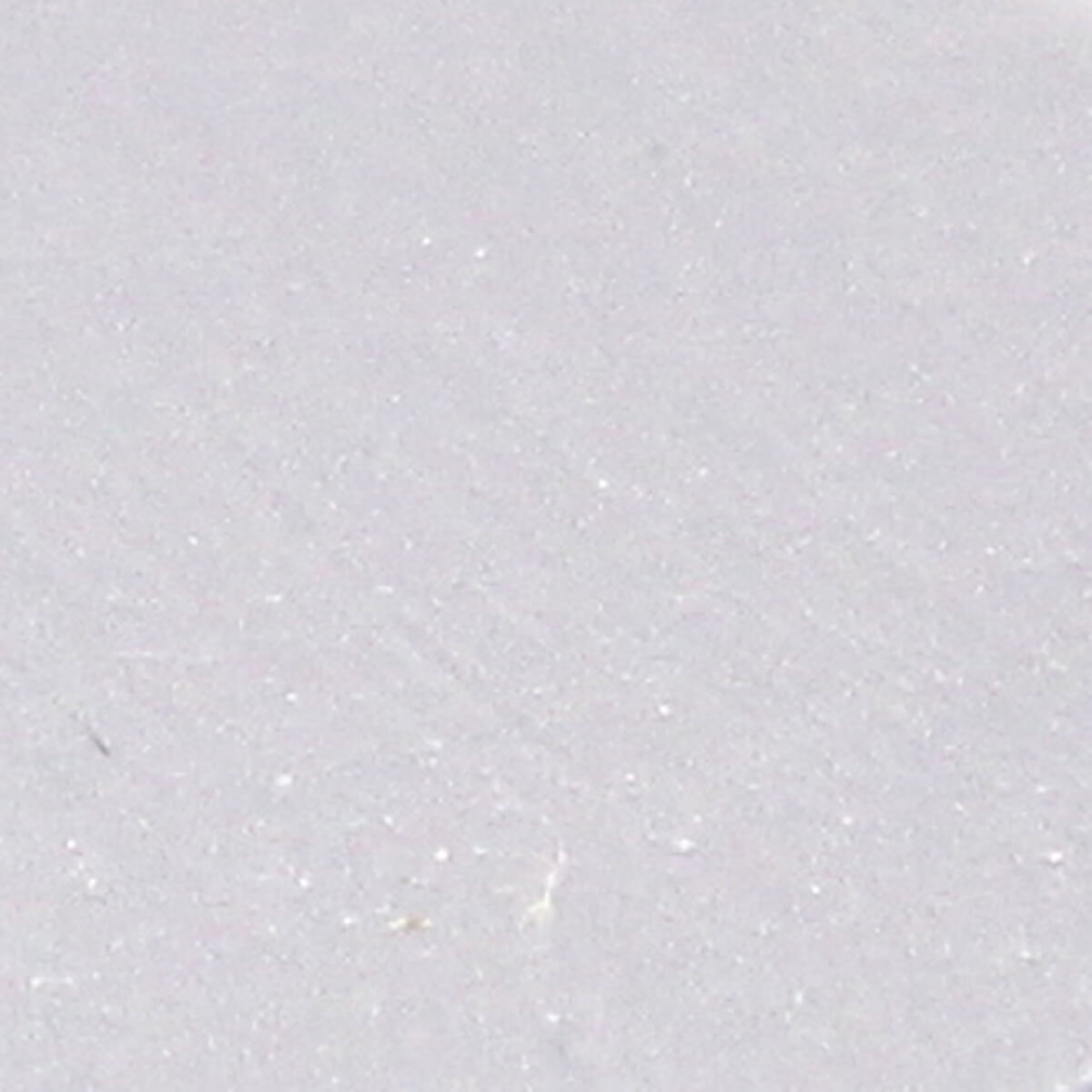

Stainless Steel
Nickel
Bronze

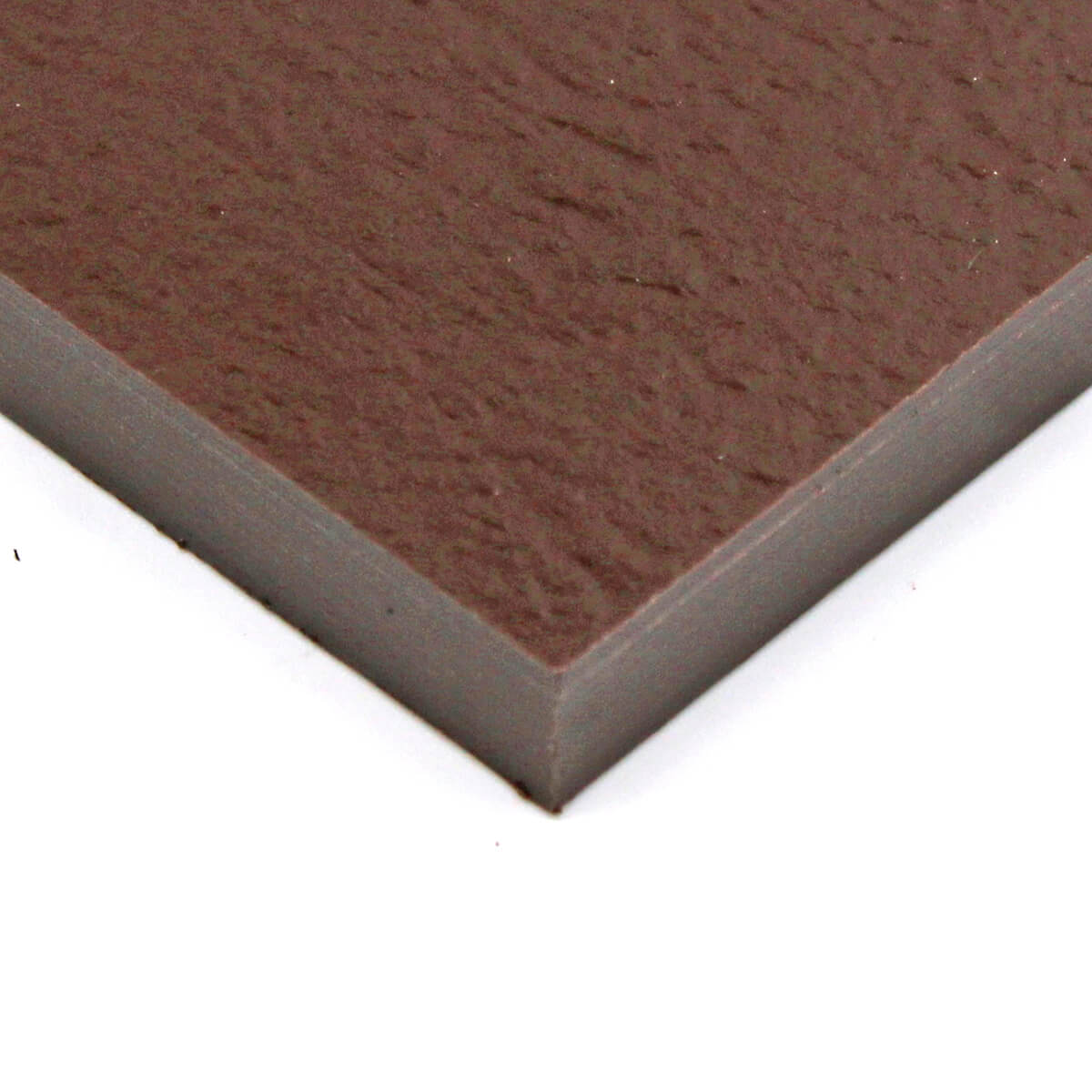

Java

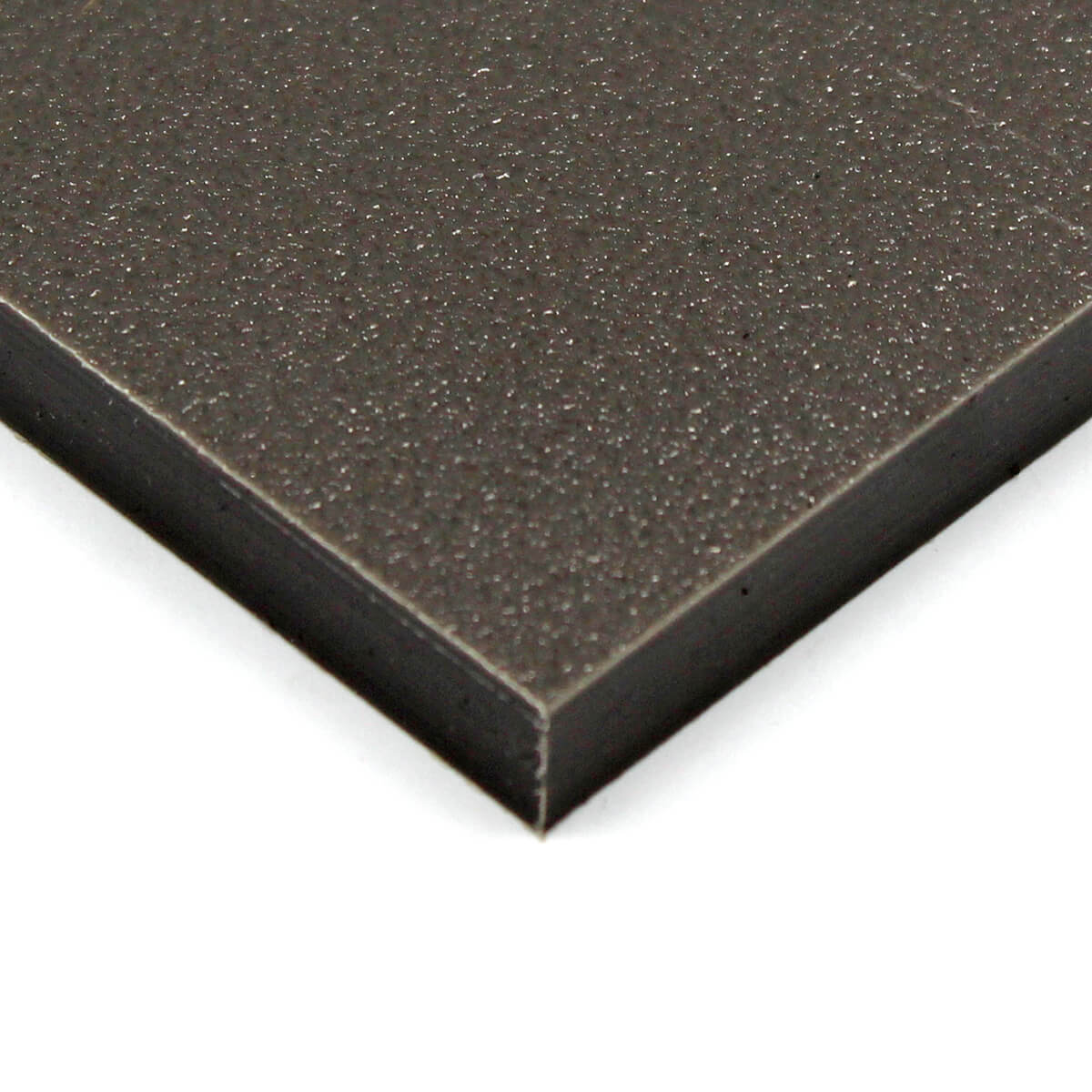

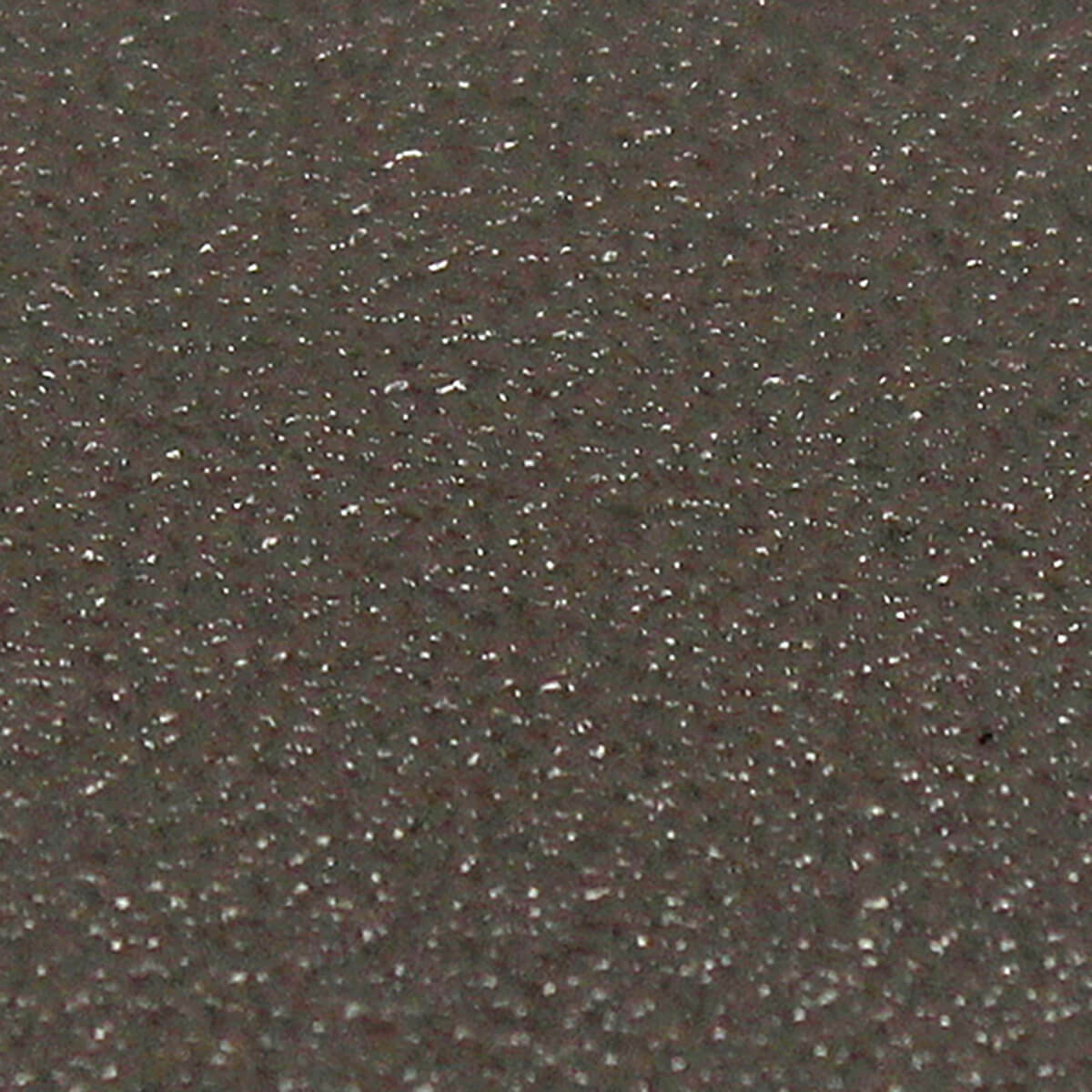

Shale

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of Designboard ® HDPE

DETAIL
Description			Value
Material Type			Semi-Crystalline Thermoplastic
Chemical Name			HDPE High Density Polyethylene
Trade Name			Designboard® HDPE
Additives			Proprietary
Color			Multiple Colors
Manufacturer			Vycom
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	0.96
	ASTM D792	lb/in³	0.035
Water Absorption, 24 hrs, Immersion	ASTM D570	% by wt.	0.01
Water Absorption, Saturation, Immersion	ASTM D570	% by wt.	0.01
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi	4,600
Tensile Elongation at Break	ASTM D638	%	600
Flexural Modulus	ASTM D790	psi	225,000
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	ASTM D703	x 10-5 in./in./°F	3.3
Max Continuous Operating Temp		°C	82
		°F	180
Minimum Operating Temp		°C	-60
		°F	-76
Flammability Rating	UL94	NA	HB
COMPLIANCE
Description			Value
FDA			No
USDA			No
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
UV Resistant			No
Relative Cost			$$
Machinability			1

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

Designboard® is a registered trademark of Vycom.
