King ColorCore ® Engraving Stock HDPE

Compare Go To Comparison Add Additional Products For Comparison

-

1. Select Shape

2. Please Select Thickness

2. Please Select Diameter

2. Please Select Outer Diameter

2. Please Select Type & Size

Unit of Measure

In order to provide an accurate quote for your part, you'll need to provide some information through our custom quote request form.

3. Please Select Dimensions *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

3. Please Select Length *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

General Info

King ColorCore® is a versatile, environmentally stabilized sheet with multiple layers of contrasting colors. Its thin cap layers and bright primary colors make it ideal for signage, marine, playground and recreational applications. For maximum versatility, standard colors are made to coordinate with King ColorBoard®. King ColorCore® is easy to engrave and machine, as the cap is approximately .050” thick. King ColorCore® is made with high-impact-resistant polymer to handle more abuse than conventional sign materials. It will not warp, rot or delaminate. King ColorCore® is a superior homogeneous sheet, made with a unique state-of-the-art continuous process called Polyfusion, manufactured to the highest standards in the industry. Base materials are FDA approved.

Key Properties

  • High Impact Strength
  • UV Stabilized
  • Polyfusion Co-Extruded Cap
  • Will Not Warp, Rot or Delaminate
  • FDA & USDA Compliant

Limitations

  • High Coefficient of Thermal Linear Thermal Expansion
  • Low Heat Defection & Continuous Use Temp
  • Relatively Low Mechanical Properties

Applications

  • Architectural Applications
  • Carnival Games
  • Children’s Furniture
  • Furniture
  • Marine Applications
  • Museums
  • Picnic Tables
  • Point-of-Purchase Displays

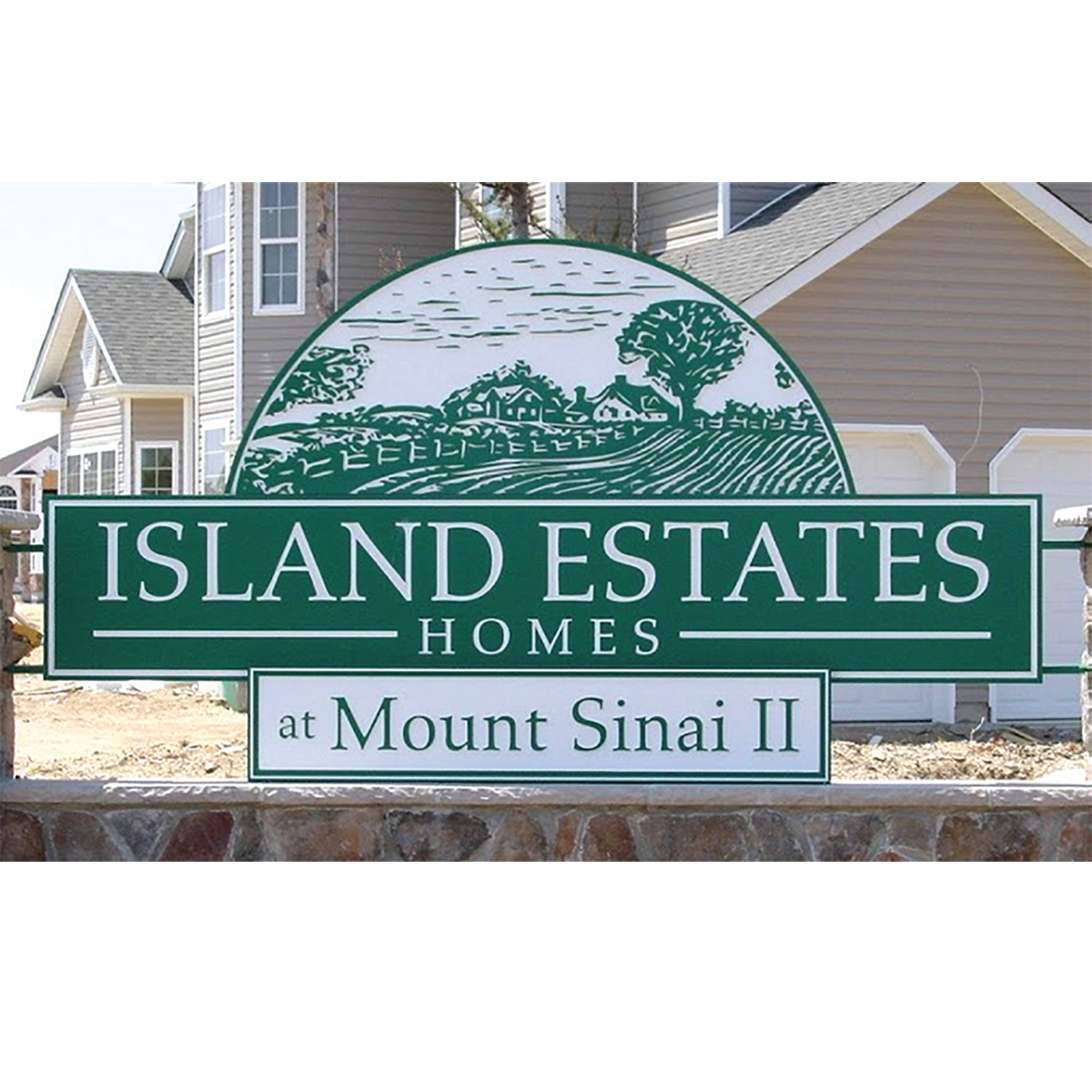

  • Signage and Wayfinding

Resin Trade Names

Manufacturer Trade Names

  • King ColorCore®

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Sheet Thickness .250” (6.4 mm) to .750” (19 mm) Width & Length 48.000” (1219 mm) x 96.000” (2438 mm) Boedeker offers cut to size service on all in-stock items and same day shipping. If you don’t see the size your looking for contact us for alternative options.

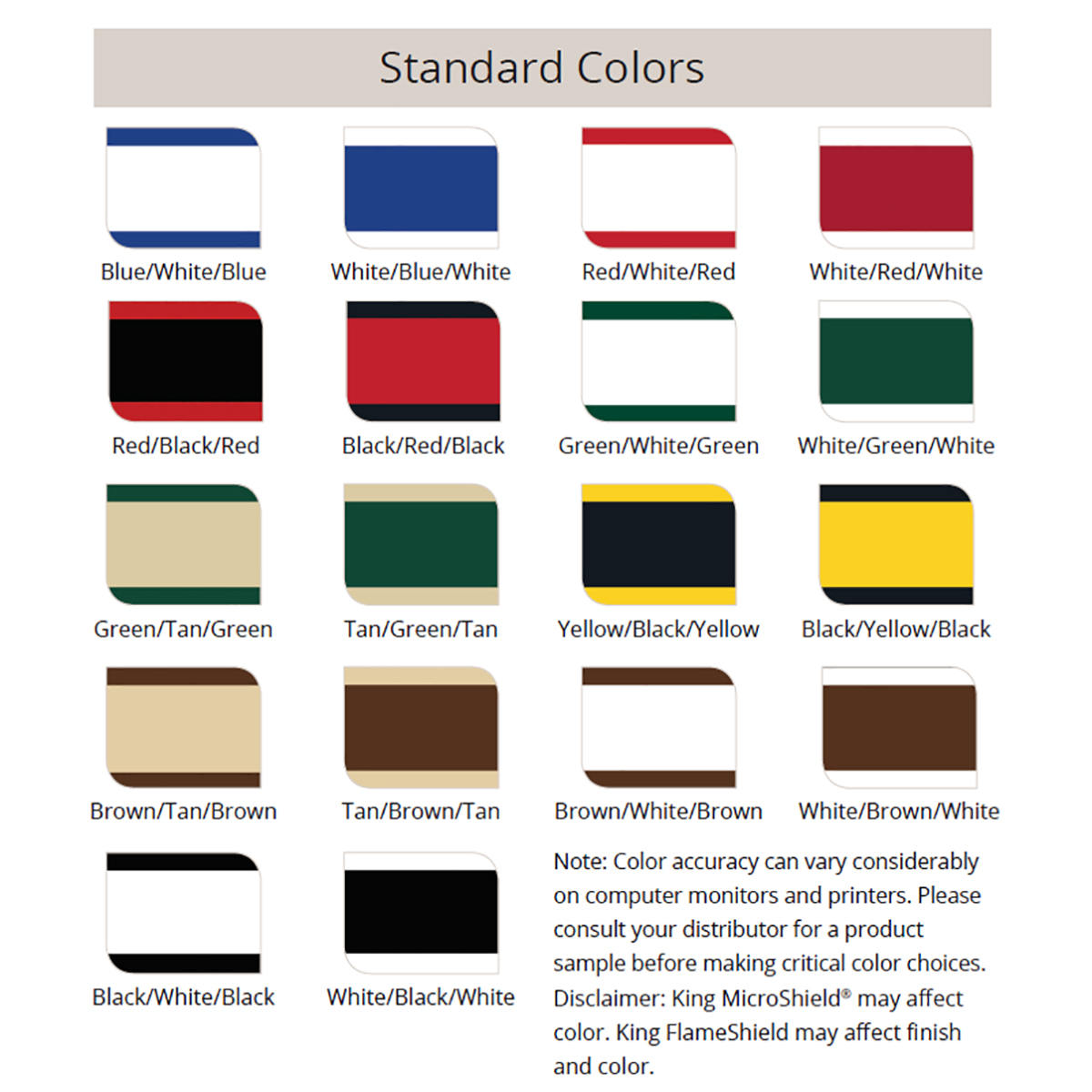

Available Colors

  • Blue / White / Blue
  • White / Blue / White
  • Red / White / Red
  • White / Red / White
  • Red / Black / Red
  • Black / Red / Black
  • Green / White / Green
  • White / Green / White
  • Green / Tan / Green
  • Tan / Green / Tan
  • Yellow / Black Yellow
  • Black / Yellow / Black
  • Brown / Tan / Brown
  • Tan / Brown / Tan
  • Brown / White / Brown
  • White / Brown / White
  • Black / White / Black
  • White / Black / White

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of King ColorCore ® Engraving Stock HDPE

DETAIL
Description Value
Material Type Semi-Crystalline Thermoplastic
Chemical Name HDPE High Density Polyethylene
Trade Name King ColorCore®
Additives Proprietary Additives
Color Multiple Colors
Manufacturer King Plastic Corp.
PHYSICAL
Property Test Unit of Measure Value
Density ASTM D792 g/cm³ 0.955
  ASTM D792 lb/in³ 0.035
MECHANICAL
Property Test Unit of Measure Value
Tensile Strength ASTM D638 psi 4,100
Tensile Modulus ASTM D638 psi 255,000
Tensile Elongation at Break ASTM D638 % 600
Flexural Modulus ASTM D790 psi 185,000
Compressive Strength ASTM D695 psi 4,950
Hardness ASTM D785 NA Shore D68
IZOD Impact-Notched ASTM D256 ft-lb/in 1.1
THERMAL
Property Test Unit of Measure Value
Heat Deflection Temp ASTM D648 °C at 264 psi 75
  ASTM D648 °F at 264 psi 167
Max Continuous Operating Temp °C 82
  °F 180
Minimum Operating Temp °C -60
  °F -76
Flammability Rating UL94 NA HB
COMPLIANCE
Description Value
FDA Yes
USDA Yes
NSF No
3-A Dairy No
Canadian Food Inspection Agency No
USP Class VI No
OTHER
Description Value
ASTM Shape Spec ASTM D4976
UV Resistant Yes
Relative Cost $$
Machinability 1

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

King ColorCore® is a registered trademark of King Plastic Corporation.
