G-3 Glass Phenolic Laminate

Compliance Info
G-3 Glass Phenolic Laminate
Previous Next
  • Slide 1 of 2, currently active
  • Slide 2 of 2
Previous Next

Compare Go To Comparison Add Additional Products For Comparison

-

1. Select Shape

2. Please Select Thickness

2. Please Select Diameter

2. Please Select Outer Diameter

2. Please Select Type & Size

Unit of Measure

In order to provide an accurate quote for your part, you'll need to provide some information through our custom quote request form.

3. Please Select Dimensions *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

3. Please Select Length *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

General Info

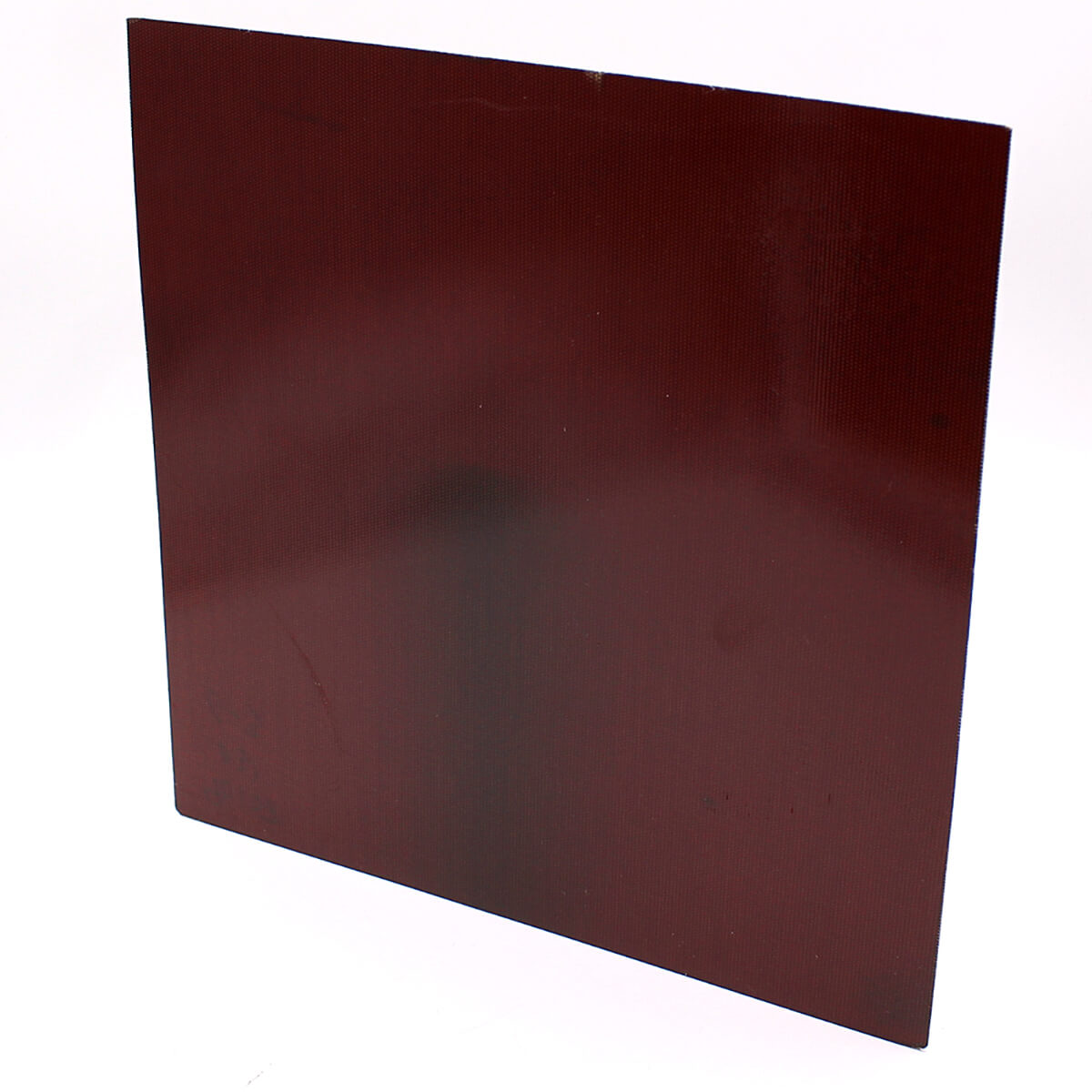

G-3 Glass Phenolic Laminate is made from woven glass cloth and high-temperature phenolic resin. It has excellent flexural, compressive and impact strengths and is capable of continuous operation over 350°F (175°C). NOTE: G-3 is not a common material ... call for more information about availability.

Click for more information on the complete line of Glass Filled Industrial Laminates

Click for more information on the complete line of Phenolic Industrial Laminates

Key Properties

Limitations

Applications

Resin Trade Names

Manufacturer Trade Names

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Available Colors

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of G-3 Glass Phenolic Laminate

DETAIL
Description Value
Material Type Thermoset Composite
Chemical Name Glass Phenolic Laminate
Additives Glass
PHYSICAL
Property Test Unit of Measure Value
Density ASTM D792 g/cm³ 1.8
  ASTM D792 lb/in³ 0.065
Water Absorption, 24 hrs, Immersion ASTM D570 % by wt. 2.65
MECHANICAL
Property Test Unit of Measure Value
Tensile Strength ASTM D638 psi 42,000
Flexural Strength ASTM D790 psi 40,500
Compressive Strength ASTM D695 psi 55,000
Hardness ASTM D785 NA Rockwell M110
IZOD Impact-Notched ASTM D256 ft-lb/in 0
THERMAL
Property Test Unit of Measure Value
Max Continuous Operating Temp °C 171
  °F 340
Minimum Operating Temp °C -129
  °F -200
Thermal Conductivity ASTM C117 BTU-in/ft²-hr-°F 2
Flammability Rating UL94 NA HB
ELECTRICAL
Property Test Unit of Measure Value
Dielectric Strength ASTM D149 V/mil 460
Dielectric Constant at 1 MHz ASTM D150 NA 7.3
COMPLIANCE
Description Value
FDA No
USDA No
NSF No
3-A Dairy No
Canadian Food Inspection Agency No
USP Class VI No
OTHER
Description Value
MIL SPEC Mil-I-24768/18 Type GPG
UV Resistant Yes
Relative Cost $$
Machinability 10

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.
