General Info
PolyTetraFluoroEthylene is a fluorocarbon-based polymer and is commonly abbreviated PTFE. This grade is pigmented with a blue FDA compliant pigment for visual detection and engineered for food and pharmaceutical applications.
It offers outstanding chemical resistance, a wide operating temperature range from cryogenic to 500F, resistance to weathering, high impact strength, low friction, electrical and thermal insulation, and self-lubricating properties. Ideal for bearing and wear applications requiring visual detectability and low friction.
Click for more information on the complete line of Fluoropolymers
Click for more information on the complete line of PTFE Plastics
Key Properties
- FDA Compliant Blue Color for Visual Detection
- Excellent Chemical Resistance
- Excellent Dielectric Properties
- Resistance to Weathering
- Self-Lubricating
- Very Low Coefficient of Friction
- Wide Operating Temperature Range from Cryogenic to 500F
Limitations
- High Loads
- Subject to Creep, Cold Flow
- High Thermal Expansion
- Tight Tolerance Applications
- Affected only by molten alkali metals, fluorine and chlorine tri-fluoride at elevated temperatures and pressure.
Applications
- Bushings and Bearings
- Food and Pharma Processing Components
- Components
- Gaskets
- Seals
- Valve Seats
- Wear Pads
Resin Trade Names
Manufacturer Trade Names
Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.
Available Sizes

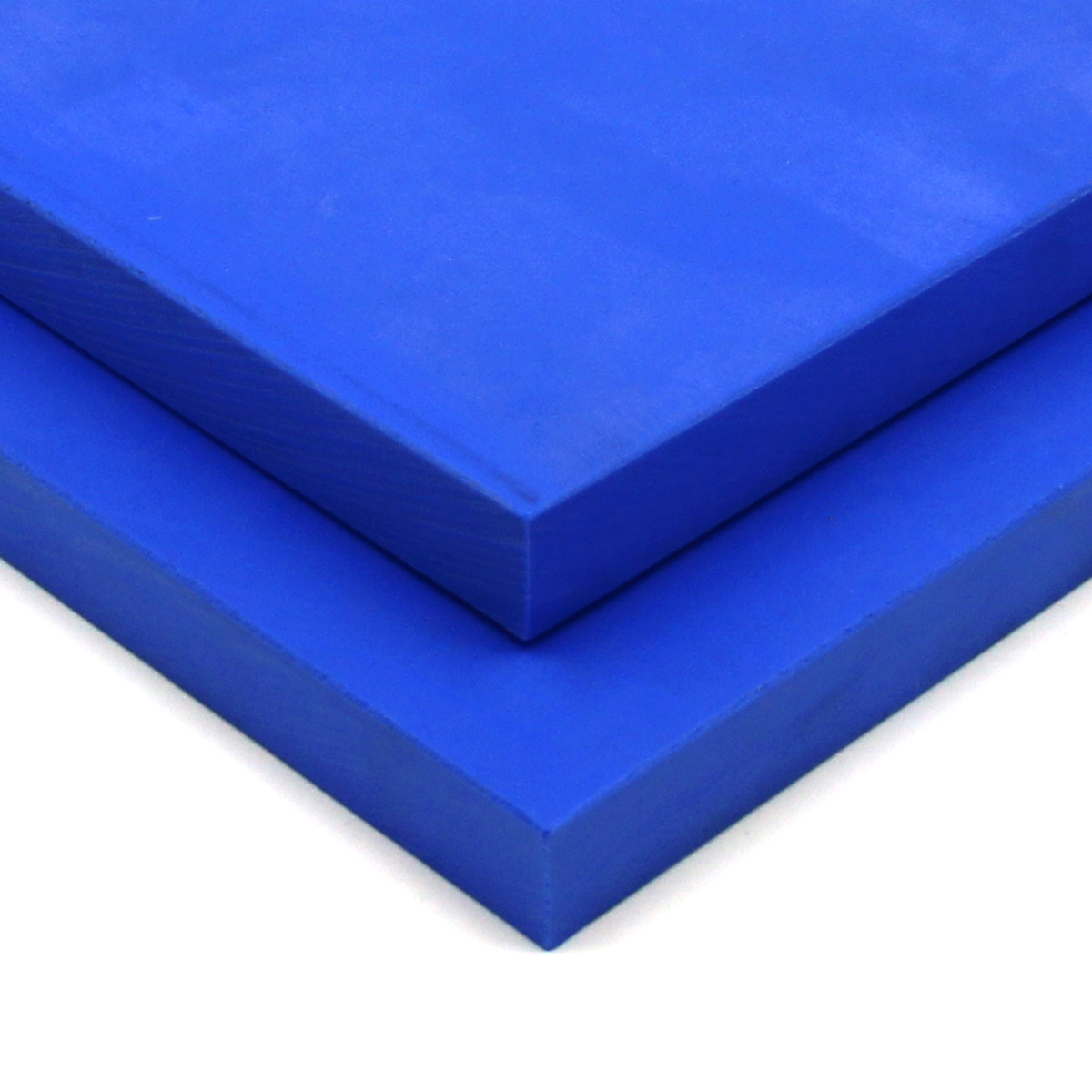

Molded Sheet PTFE Blue FDA
Thickness 0.25 Inch to 2.50 Inch.
Standard width 24 Inch, standard length 24 Inch.
Molded Rod PTFE Blue FDA
Diameters from 1.25 Inch to 8 Inch OD.
Lengths can be made up to 12 Inch long.
Molded Tube PTFE Blue FDA
Outside Diameters from 1.25 Inch to 12 Inch OD.
Lengths can be made up to 12 Inch long.

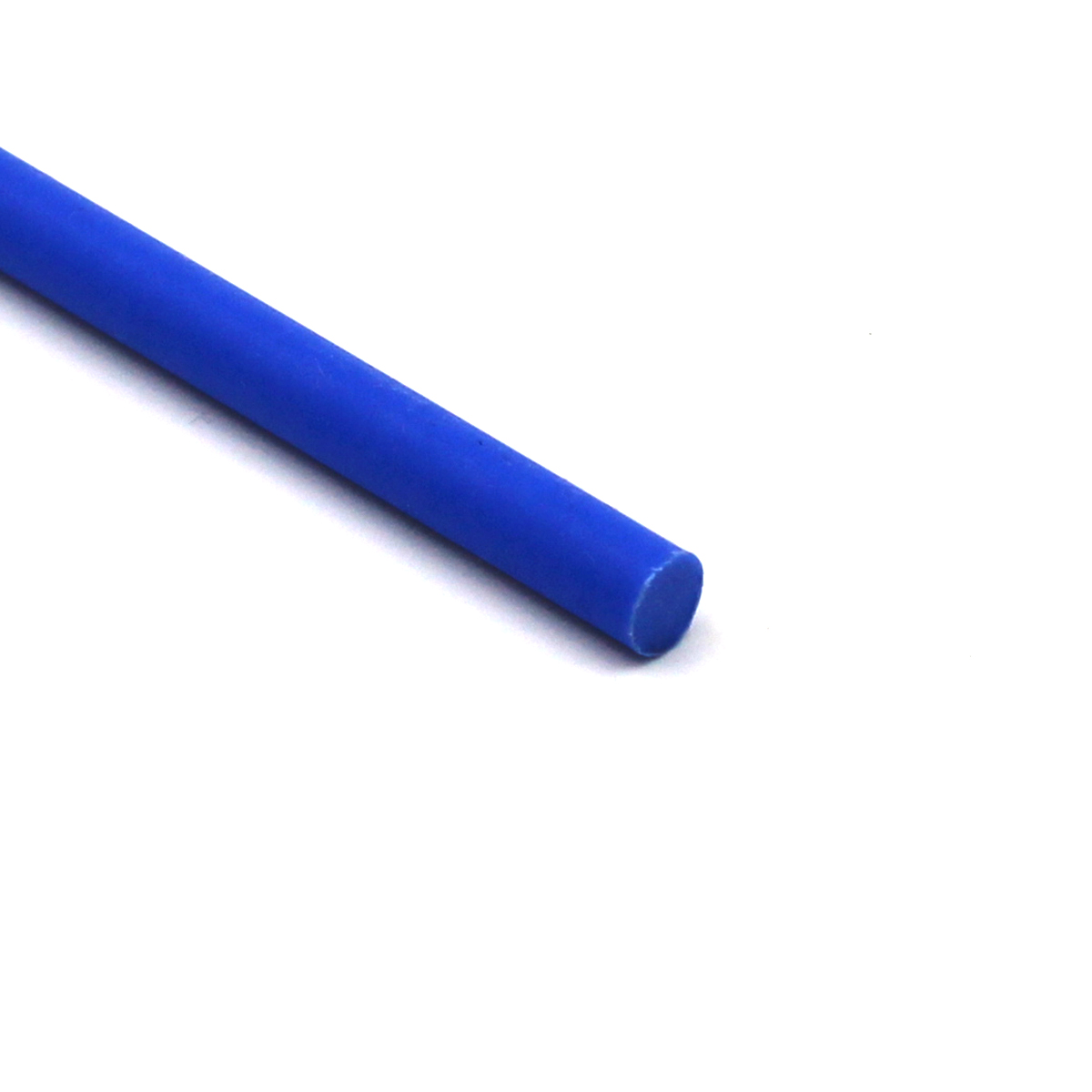

Extruded Rod PTFE Blue FDA
Diameters from 0.25 Inch to 2.50 Inch OD.
Standard lengths are 6 ft long.
Extruded Tubing PTFE Blue FDA
Diameters from 0.25 Inch to 2.50 Inch OD.
Standard lengths are 6 ft long.
Skived Sheet PTFE Blue FDA
Thicknesses from 0.010 Inch to 0.125 Inch in widths to 24 Inch. Custom slitting available.
Contact us for a quote on the above sizes or customs sizes, minimums and longer lead times may apply.
