General Info
SIMONA® developed two ECTFE (ethylene chlorotrifluoroethylene) grades for semiconductor and other chemical process applications. Virtually identical in physical properties, ECTFE 902 is preferred for deep draw thermoforming, and adds gauges to 2.0 in. (50.8 mm).
Key Properties
- Forms and Welds Easily - SIMONA E-CTFE Weld Rod Available
- High Purity, High Gloss Surface
- Impact and UV Resistant
- Meets FM 4910 And UL 94 V-0 Criteria
- Service Temperatures To 300°F (149°C)
- Thicknesses Up To 2 In. (50.8 Mm)
- Wide Range Chemical Resistance
Limitations
- High Heat Environments
- High Loads
- Subject to Creep, Cold Flow
- Thermal Expansion
- Tight Tolerance Applications
Applications
- Chemical Handling, Storage
- DI Water Systems
- Processing Tanks, Liners
- System Components
- Virtually Any Wet Process Tool Application
Resin Trade Names
Manufacturer Trade Names
Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.
Available Sizes

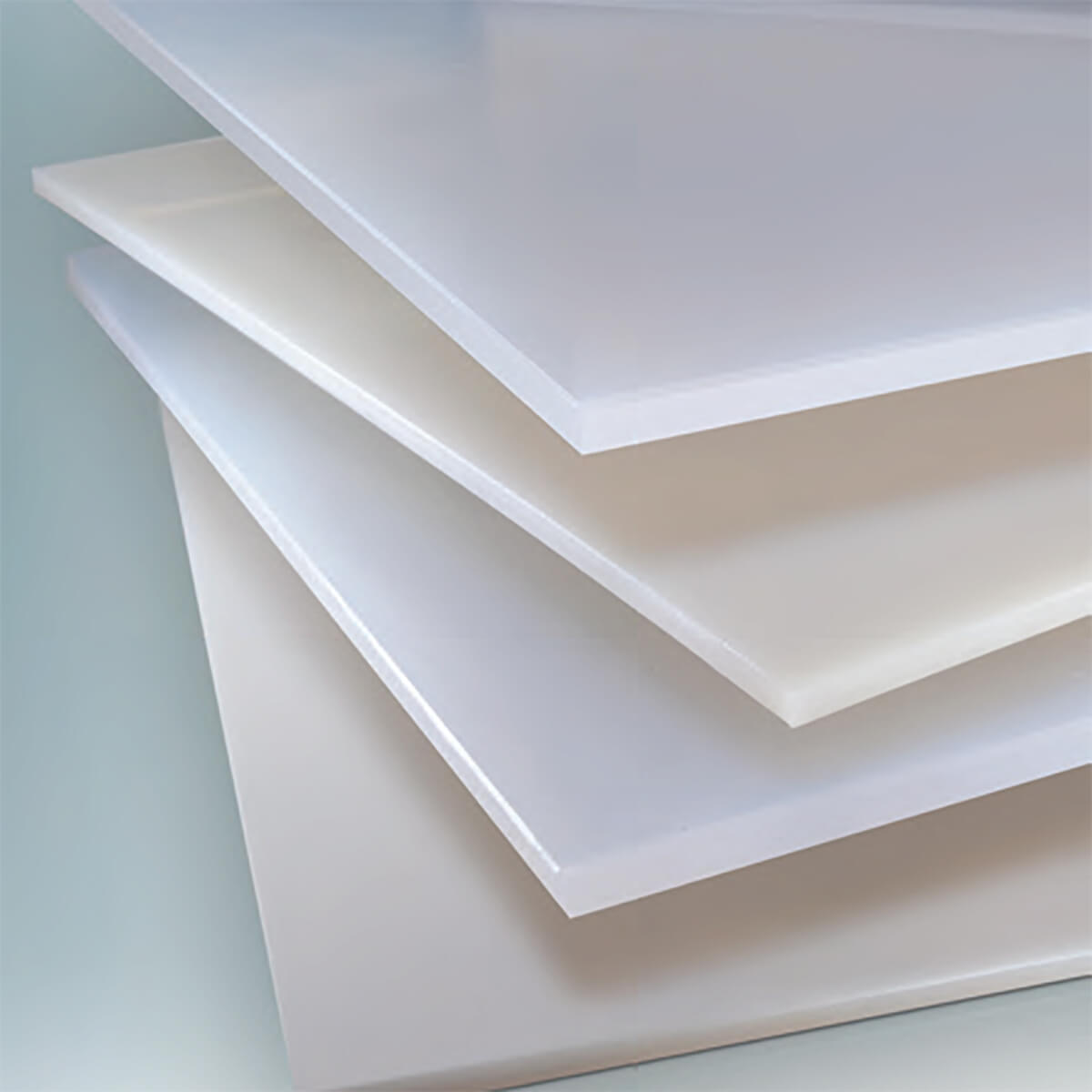

Sheet
Natural | Thickness 1.000” to 2.000”
Standard sheet size is 48.000” x 48.000”
Welding Rod
ECTFE | Diameters .118” & .156”
Cap Strip
.375” & .625”
Boedeker offers cut to size service on all in-stock items and same day shipping. If you don’t see the size your looking for contact us for alternative options.
