ZL ® 1100 T Cast Nylon Type 6 Self-Lubricated

Compliance Info

Slide 1 of 1, currently active

General Info

ZL® 1100 T is an internally lubricated Type 6 nylon containing uniformly dispersed solid lubricant additives, allowing proper bearing function even without external lubrication. ZL® 1100 T has the lowest coefficient of friction, lowest wear rate, highest PV (pressure x velocity) capability and the lowest “slip-stick” of any standard engineering thermoplastic material! Color is gray.

Key Properties

Lowest Coefficient of Friction of all ZL Nylon Grades
Eliminates “Slip Stick” issues with linear wear pads
This Grade is available in larger shapes due to the casting process.

Limitations

High Moisture Absorption
Limited Resistance to Strong Acids & Alkalies

Applications

Bushings & Bearings
Conveyor Wear Components
Gears
Metal Replacement Applications
Pulleys
Roller Wheels
Sheaves
Wear Pads
Bearing & Wear Parts for a Wide Range Automated Equipment
Valve Seats & Seals

Resin Trade Names

Manufacturer Trade Names

ZL® 1100 T

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

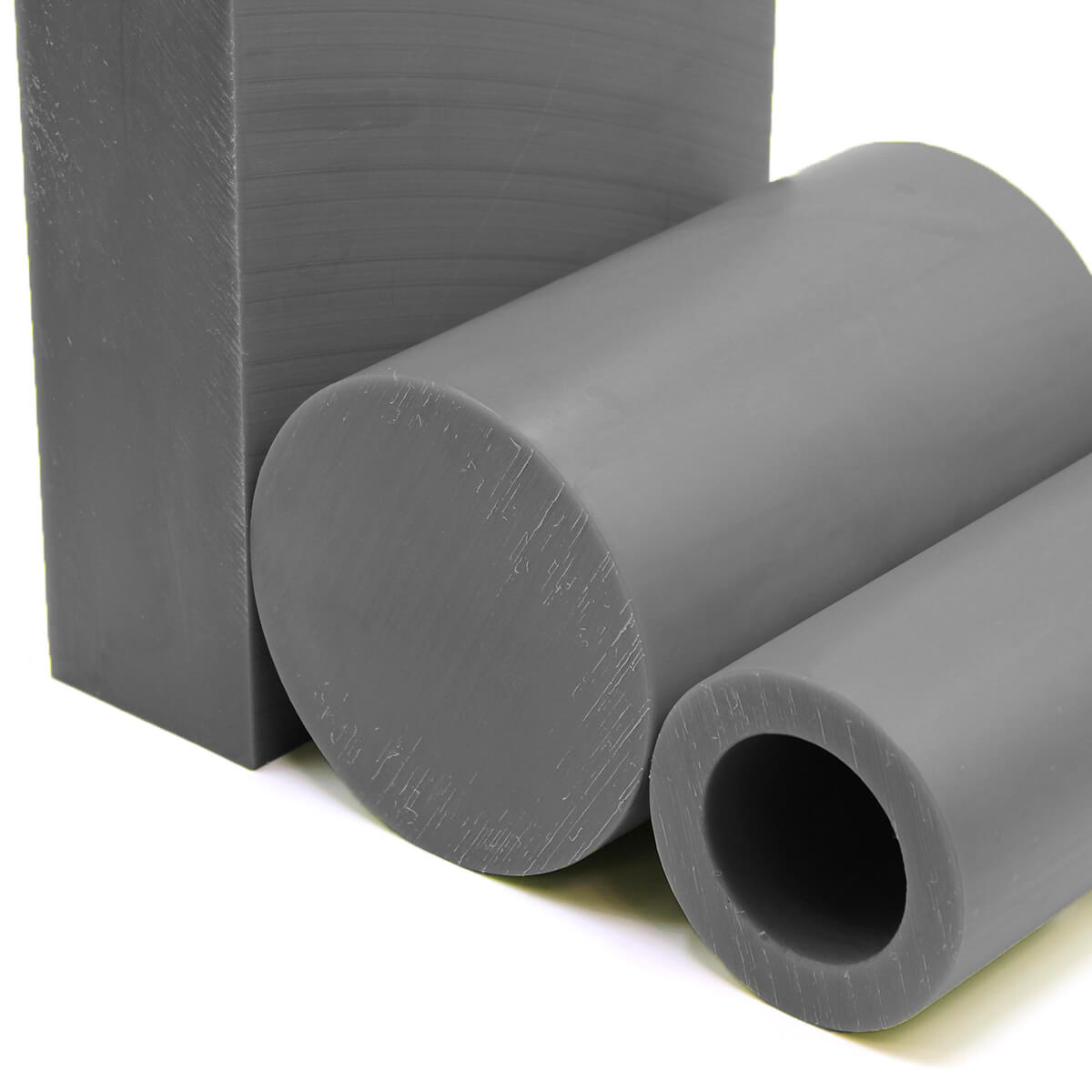

Available Sizes

Sheet Natural & Black | Thickness .250” to 6.000” Standard sheet size is 24.000” x 48.000” Natural & Black | Thickness .500” to .625” Standard sheet size is 24.000” x 72.000” Natural & Black | Thickness .625” to 4.000” Standard sheet size is 48.000” x 120.000” Rod Natural & Black | Diameter 2.000” to 8.000” Standard Lengths 4’ Natural & Black | Diameter 8.250” to 28.000” Standard Lengths 3’ Some sizes may have minimum order quantities. | *Tube is available on a custom run basis for ZL® 1100 (Cast Nylon) | Boedeker offers cut to size service on all in-stock items and same day shipping. If you don’t see the size your looking for contact us for alternative options.

Available Colors

Gray

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of ZL ® 1100 T Cast Nylon Type 6 Self-Lubricated

DETAIL
Description			Value
Material Type			Semi-Crystalline Thermoplastic
Chemical Name			PA Polyamide Type 6
Trade Name			ZL® 1100 T
Additives			Solid Lubricant
Color			Gray
Manufacturer			ZL Plastics
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	1.14
	ASTM D792	lb/in³	0.041
Water Absorption, 24 hrs, Immersion	ASTM D570	% by wt.	0.3
Water Absorption, Saturation, Immersion	ASTM D570	% by wt.	5.5
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi	12,500
Tensile Modulus	ASTM D638	psi	400,000
Tensile Elongation at Break	ASTM D638	%	30
Flexural Strength	ASTM D790	psi	12,350
Flexural Modulus	ASTM D790	psi	400,000
Compressive Strength	ASTM D695	psi	14,000
Compressive Modulus	ASTM D695	psi	400,000
Hardness	ASTM D785	NA	Shore D85
IZOD Impact-Notched	ASTM D256	ft-lb/in	0.6-0.9
Static Coefficient of Friction	Against Steel	NA	0.15
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	ASTM D696	x 10-5 in./in./°F	5
Heat Deflection Temp	ASTM D648	°C at 264 psi	93
	ASTM D648	°F at 264 psi	200
Melting Point Temp	ASTM D3418	°C	216
	ASTM D3418	°F	420
Max Continuous Operating Temp		°C	93
		°F	200
Minimum Operating Temp		°C	-30
		°F	-22
Thermal Conductivity	ASTM C117	BTU-in/ft²-hr-°F	1.7
Flammability Rating	UL94	NA	HB
ELECTRICAL
Property	Test	Unit of Measure	Value
Dielectric Strength	ASTM D149	V/mil	400
Dielectric Constant at 1 MHz	ASTM D150	NA	3.7
COMPLIANCE
Description			Value
FDA			No
USDA			No
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
UV Resistant			No
Relative Cost			$$$
Machinability			1

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

ZL® is a registered trademark of ZL Engineering Plastics, Inc.
