TECATOR ® 5031 PAI

Compliance Info
TECATOR ® 5031 PAI
Previous Next
  • Slide 1 of 1, currently active

Compare Go To Comparison Add Additional Products For Comparison

Share Facebook Twitter Email LinkedIn Print

-

1. Select Shape

2. Please Select Thickness

2. Please Select Diameter

2. Please Select Outer Diameter

2. Please Select Type & Size

Unit of Measure

In order to provide an accurate quote for your part, you'll need to provide some information through our custom quote request form.

3. Please Select Dimensions *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

3. Please Select Length *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

General Info

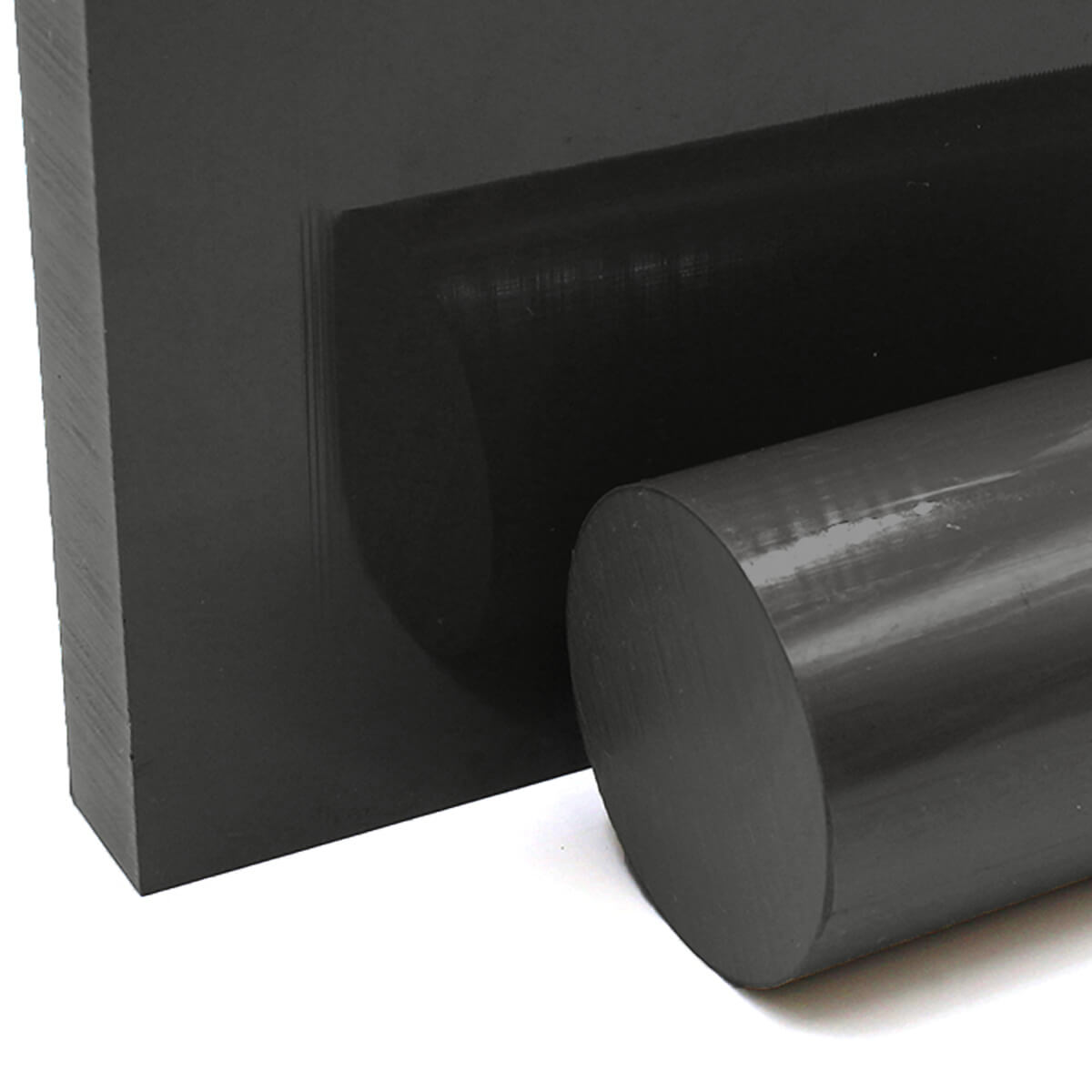

TECATOR® TI5031 bearing grade PAI Polyamide-imide maintains its excellent mechanical and wear properties in temperature environments exceeding 500°F. TECATOR® TI5031 offers high PV capabilities in bearing applications, primarily at high loads and low speeds.

Key Properties

  • Excellent Weather and Gamma Radiation Resistance
  • Outstanding Bearing and Wear Properties
  • High Strength and Stiffness
  • Good Chemical Resistance - Not Attacked by Common Solvents or Fuels And Is Acceptable For Use In Contact With Many Acids
  • Maintains A High Proportion of Mechanical Properties Over a Broad Temperature Spectrum - Cryogenic To 500°F

Limitations

  • High Moisture Absorption

Applications

  • Bearing Cages
  • Bushings & Bearings
  • Pump & Valve Applications
  • Thrust Washers

Resin Trade Names

Manufacturer Trade Names

  • TECATOR® 5031

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Available Colors

  • Black

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of TECATOR ® 5031 PAI

DETAIL
Description Value
Material Type Imidized Amorphous Thermoplastic
Chemical Name PAI Polyamide-imide
Trade Name TECATOR® 5031
Additives Lubricated
Color Black
Manufacturer Ensinger
PHYSICAL
Property Test Unit of Measure Value
Density ASTM D792 g/cm³ 1.46
  ASTM D792 lb/in³ 0.053
MECHANICAL
Property Test Unit of Measure Value
Tensile Elongation at Break ASTM D638 % 10
Flexural Strength ASTM D790 psi 23,000
Flexural Modulus ASTM D790 psi 870,000
Hardness ASTM D785 NA Rockwell M109
IZOD Impact-Notched ASTM D256 ft-lb/in 2
THERMAL
Property Test Unit of Measure Value
Heat Deflection Temp ASTM D648 °C at 264 psi 279
  ASTM D648 °F at 264 psi 534
Max Continuous Operating Temp °C 260
  °F 500
Minimum Operating Temp °C -200
  °F -328
Flammability Rating UL94 NA V-0
COMPLIANCE
Description Value
FDA No
USDA No
NSF No
3-A Dairy No
Canadian Food Inspection Agency No
USP Class VI No
OTHER
Description Value
UV Resistant Yes
Relative Cost $$$$$$$
Machinability 6

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

TECATOR® is a registered trademark of Ensinger.
