XtremeEPP ™ 316 Non-Metallic Spinning Wheel

Compliance Info

Slide 1 of 2, currently active
Slide 2 of 2

General Info

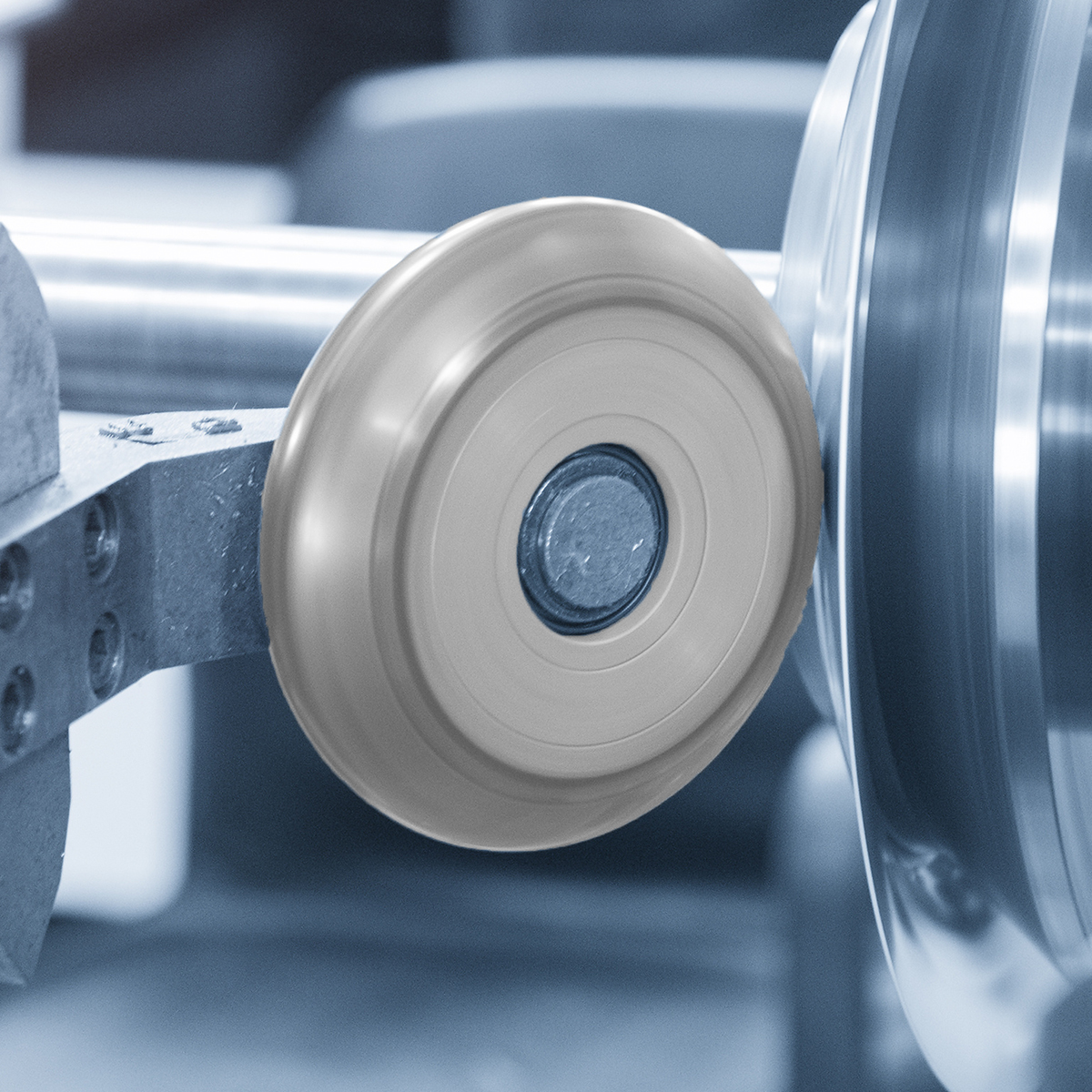

XtremeEPP 316 is a non-metallic spinning wheel for the metal forming industry that offers precision surface finishes. Available as a near net cut to size solid disks that can be machined to the most common spinning wheel sizes. Unlike metal wheels the Xtremeepp 316 rollers meet and exceeds the industry finish expectations for reflective and cosmically appealing products along with precision spun components. OEM Compatibility with Leifeld®, M&M®, Autospin® & Denn®. Our proprietary polymer maintains its performance over other polymer wheels in lifetime. It also exceeds the performance over basic nylon, acetal & fiber filled products by as much as 5 to 6X.

Key Properties

Advantages over metal wheels: The hardness and wear characteristics of the 316 rollers produces a high-quality finish. Unlike metal wheels the 316 rollers meet and exceeds the industry finish expectations for reflective and cosmically appealing products along with precision spun components.
Throughput advantages over metal wheels: The 316 maintains its machined shape to reduce down-time for longer run times keeping your CNC machines $pinning.
316 vs. other polymer wheels: The 316 proprietary polymer offers customers a cost effective long-lasting roller solution for the CNC spinning market today, designed to meet the customers overall needs –Cost –Quality -Performance.
Lifetime advantage: Our proprietary polymer maintains its performance over other polymer wheels. It also exceeds the performance over basic nylon, acetal & fiber filled products by a much higher performance ratio.

Limitations

Applications

Spinning Wheel for Metal Spinning / Forming Applications

Resin Trade Names

Manufacturer Trade Names

XtremeEPP ™ 316 Non-Metallic Spinning Wheel

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Cut to size solid Disks Diameters from 4.000" to 9.000" 2.000" + Lengths Available in custom lengths in 1" increments

Available Colors

Safety Data Sheet

Typical Properties of XtremeEPP ™ 316 Non-Metallic Spinning Wheel

DETAIL
Description			Value
Material Type			Proprietary
Chemical Name			Proprietary
Trade Name			XtremeEPP ™ 316 Non-Metallic Spinning Wheel
Additives			Proprietary
Color			Tan
Manufacturer			Boedeker Plastics, Inc.
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	1.31
	ASTM D792	lb/in³	0.047
Water Absorption, 24 hrs, Immersion	ASTM D570	% by wt.	0.02
Water Absorption, Saturation, Immersion	ASTM D570	% by wt.	0.45
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi	16,000
Tensile Modulus	ASTM D638	psi	650,000
Tensile Elongation at Break	ASTM D638	%	40
Flexural Strength	ASTM D790	psi	26,000
Flexural Modulus	ASTM D790	psi	600,000
Compressive Strength	ASTM D695	psi	17,500
Compressive Modulus	ASTM D695	psi	493,000
Hardness	ASTM D785	NA	Rockwell M99
IZOD Impact-Notched	ASTM D256	ft-lb/in	0.95
THERMAL
Property	Test	Unit of Measure	Value
Thermal Conductivity	ASTM C117	BTU-in/ft²-hr-°F	2.01
ELECTRICAL
Property	Test	Unit of Measure	Value
Dielectric Strength	ASTM D149	V/mil	630
COMPLIANCE
Description			Value
FDA			Yes
USDA			Yes
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
UV Resistant			No
Relative Cost			$$$$$$
Machinability			5

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

XtremeEPP™ is a registered trademark of Boedeker Plastics, Inc. Leifeld®, M&M®, Autospin® and Denn® are registered trademarks and property of their respective owners.
