ULTEM ™ 2300 30% Glass Filled PEI

Compliance Info
ULTEM ™ 2300 30% Glass Filled PEI
Previous Next
  • Slide 1 of 4, currently active
  • Slide 2 of 4
  • Slide 3 of 4
  • Slide 4 of 4
Previous Next

Compare Go To Comparison Add Additional Products For Comparison

-

1. Select Shape

2. Please Select Thickness

2. Please Select Diameter

2. Please Select Outer Diameter

2. Please Select Type & Size

Unit of Measure

In order to provide an accurate quote for your part, you'll need to provide some information through our custom quote request form.

3. Please Select Dimensions *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

3. Please Select Length *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

Unit Price

Subtotal

Note: There is a $50.00 line item minimum on all orders.

General Info

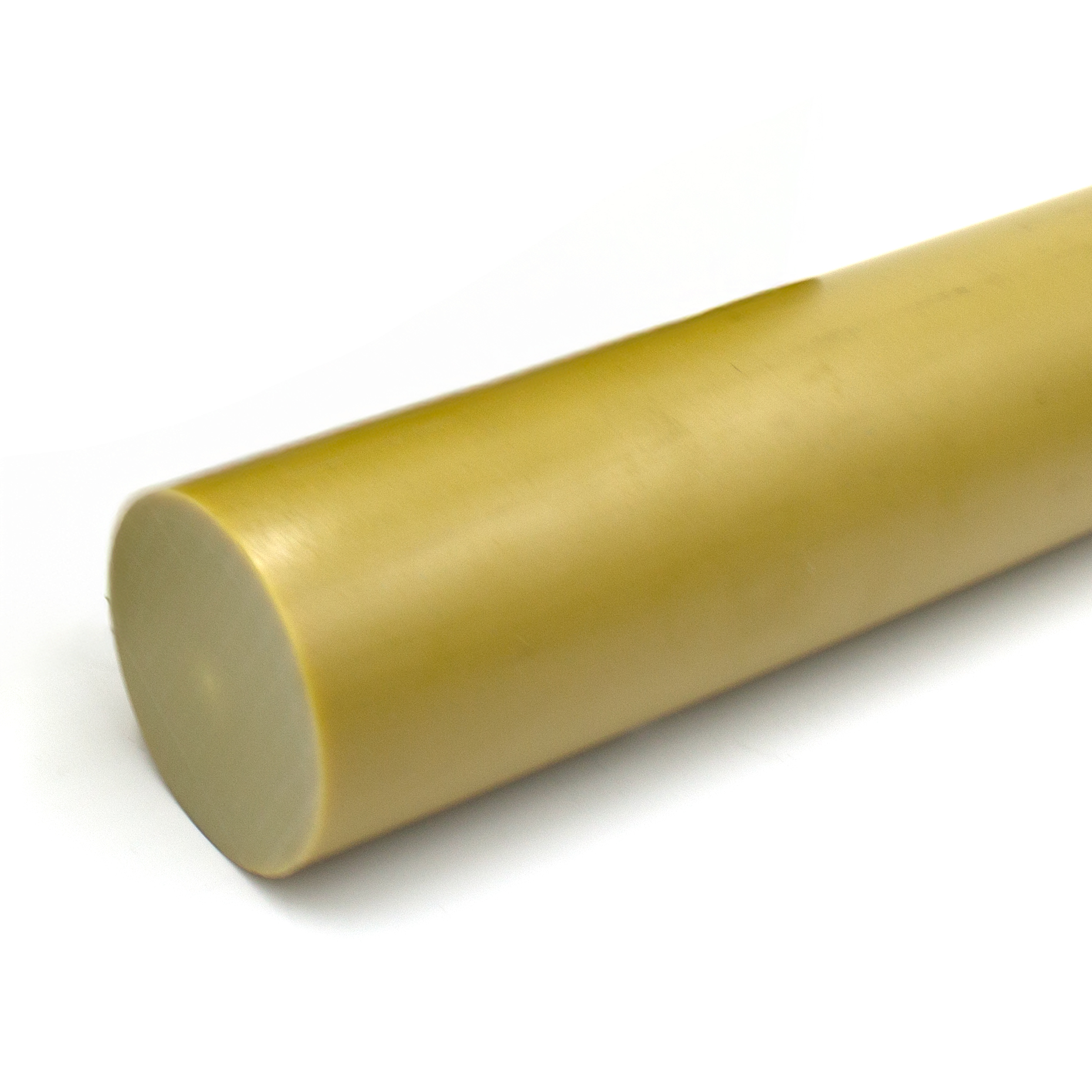

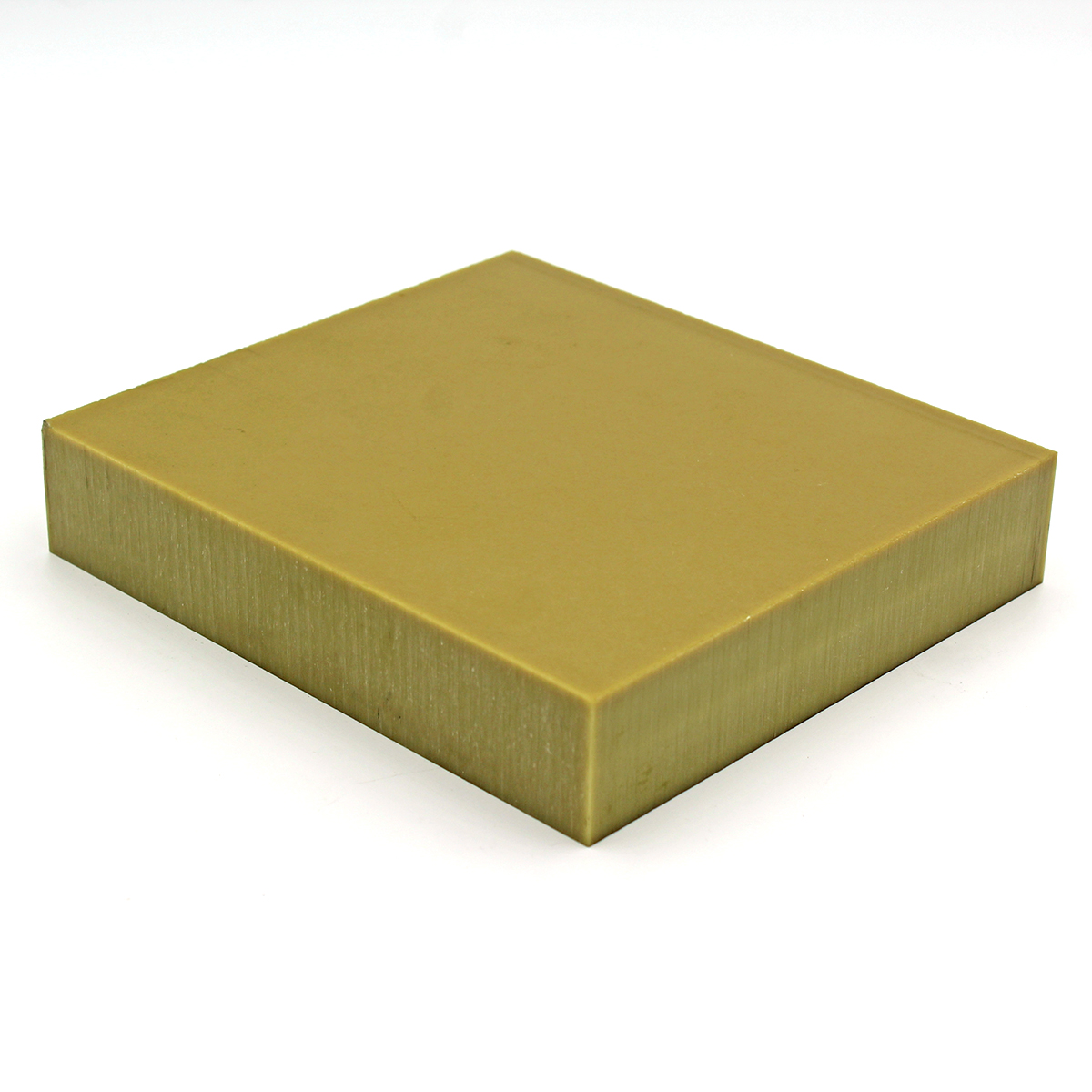

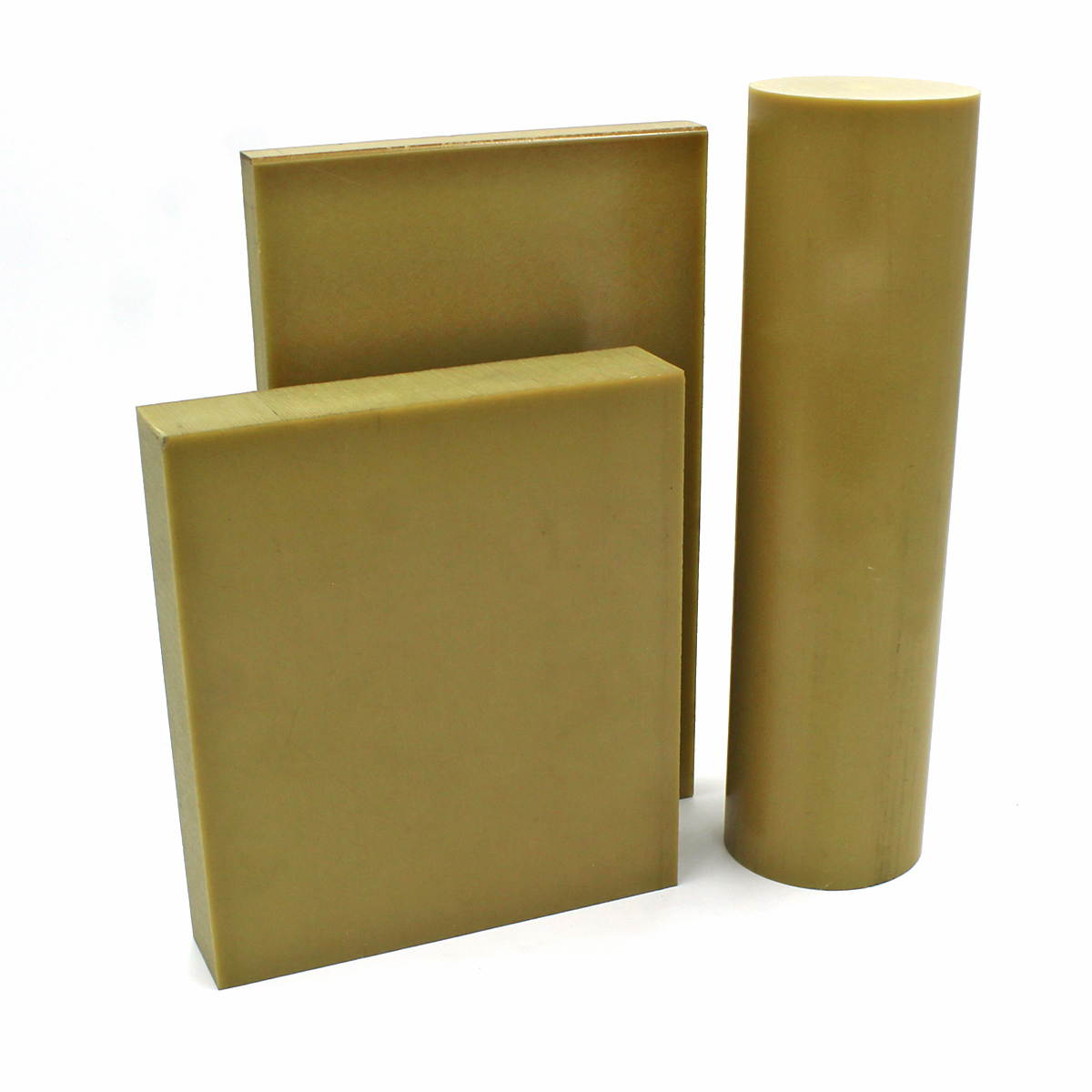

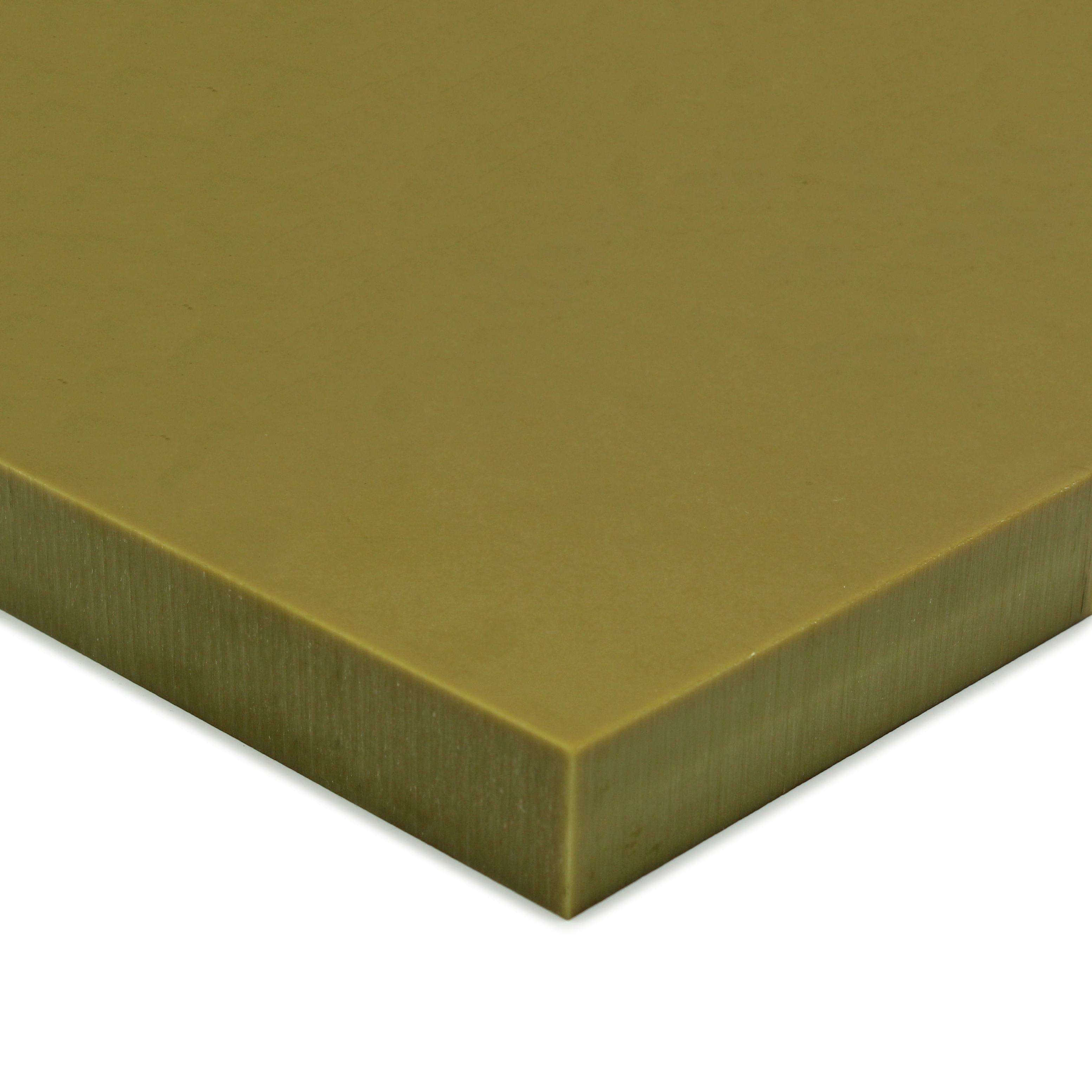

ULTEM™ PEI PolyEtherImide (PEI) combines high strength and rigidity at elevated temperatures with long term heat resistance. ULTEM™ PEI offers excellent dimensional stability combined with broad chemical resistance. ULTEM™ PEI is also inherently flame resistant and low smoke generating. Glass reinforced ULTEM™ PEI provides even greater rigidity and dimensional stability while maintaining many of the useful characteristics of basic ULTEM™ PEI. The glass reinforcement yields a product with an exceptional strength-to-weight ratio and increased tensile strength. This 30% glass-reinforced grade is the most common filled ULTEM™ and is readily available from stock in sheet and rod forms.

Click for more information on the complete line of ULTEM ™ PEI Plastics

Key Properties

  • Capable of Withstanding Multiple Autoclaving Cycles
  • High Continuous Use Temp of 340F
  • High Dielectric Strength
  • High Heat Deflection Temperature
  • Hydrolysis Resistant
  • Inherently Flame Retardant – UL 94 V-0 Rated
  • UV Resistant

Limitations

Applications

  • Aircraft components
  • Analytical instrumentation Components
  • Electrical Connectors
  • Electrical Housings
  • Insulators
  • Medical device components
  • Semiconductor components
  • Structural Components

Resin Trade Names

  • ULTEM ™ 2300 30% Glass Filled

Manufacturer Trade Names

  • Duratron® PEI Grades
  • GEHR PEI
  • SUSTAPEI Grades
  • TECAPEI™ Grades
  • TEMPALUX® PEI Grades
  • UNITEM® PEI
  • ZL® PEI

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Available Colors

  • Tan Opaque & Black

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of ULTEM ™ 2300 30% Glass Filled PEI

DETAIL
Description Value
Material Type Imidized Amorphous Thermoplastic
Chemical Name PEI Polyetherimide
Trade Name ULTEM ™ 2300
Additives 30% Glass
Color Tan
PHYSICAL
Property Test Unit of Measure Value
Density ASTM D792 g/cm³ 1.51
  ASTM D792 lb/in³ 0.055
Water Absorption, 24 hrs, Immersion ASTM D570 % by wt. 0.21
Water Absorption, Saturation, Immersion ASTM D570 % by wt. 1.21
MECHANICAL
Property Test Unit of Measure Value
Tensile Strength ASTM D638 psi 17,000
Tensile Modulus ASTM D638 psi 800,000
Tensile Elongation at Break ASTM D638 % 3
Flexural Strength ASTM D790 psi 27,000
Flexural Modulus ASTM D790 psi 850,000
Compressive Strength ASTM D695 psi 32,000
Compressive Modulus ASTM D695 psi 625,000
Hardness ASTM D785 NA Rockwell 114 / R127
IZOD Impact-Notched ASTM D256 ft-lb/in 1
THERMAL
Property Test Unit of Measure Value
Coefficient of Linear Thermal Expansion ASTM D696 x 10-5 in./in./°F 1.1
Heat Deflection Temp ASTM D648 °C at 264 psi 210
  ASTM D648 °F at 264 psi 410
Max Continuous Operating Temp °C 171
  °F 340
Minimum Operating Temp °C -50
  °F -58
Thermal Conductivity ASTM C117 BTU-in/ft²-hr-°F 1.56
  ASTM C117 x 10^4 cal/cm-sec-°C 5.37
Flammability Rating UL94 NA V-0
ELECTRICAL
Property Test Unit of Measure Value
Dielectric Strength ASTM D149 V/mil 770
Dielectric Constant at 1 MHz ASTM D150 NA 3.7
Dissipation Factor at 1 MHz ASTM D150 NA 0.002
Surface Resistivity ASTM D257 ohm/square >10^13
COMPLIANCE
Description Value
FDA No
USDA No
NSF No
3-A Dairy No
Canadian Food Inspection Agency No
USP Class VI No
OTHER
Description Value
UV Resistant Yes
Relative Cost $$$$$
Machinability 7

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

ULTEM is a registered trademark of SABIC.

Related Products



Product Details

ULTEM ™ 1000 Natural Unfilled PEI

Product Details

ULTEM ™ 2300 30% Glass Filled PEI

Product Details

ULTEM ™ 2100 10% Glass Filled PEI

Product Details

ULTEM ™ 2200 20% Glass Filled PEI

Product Details

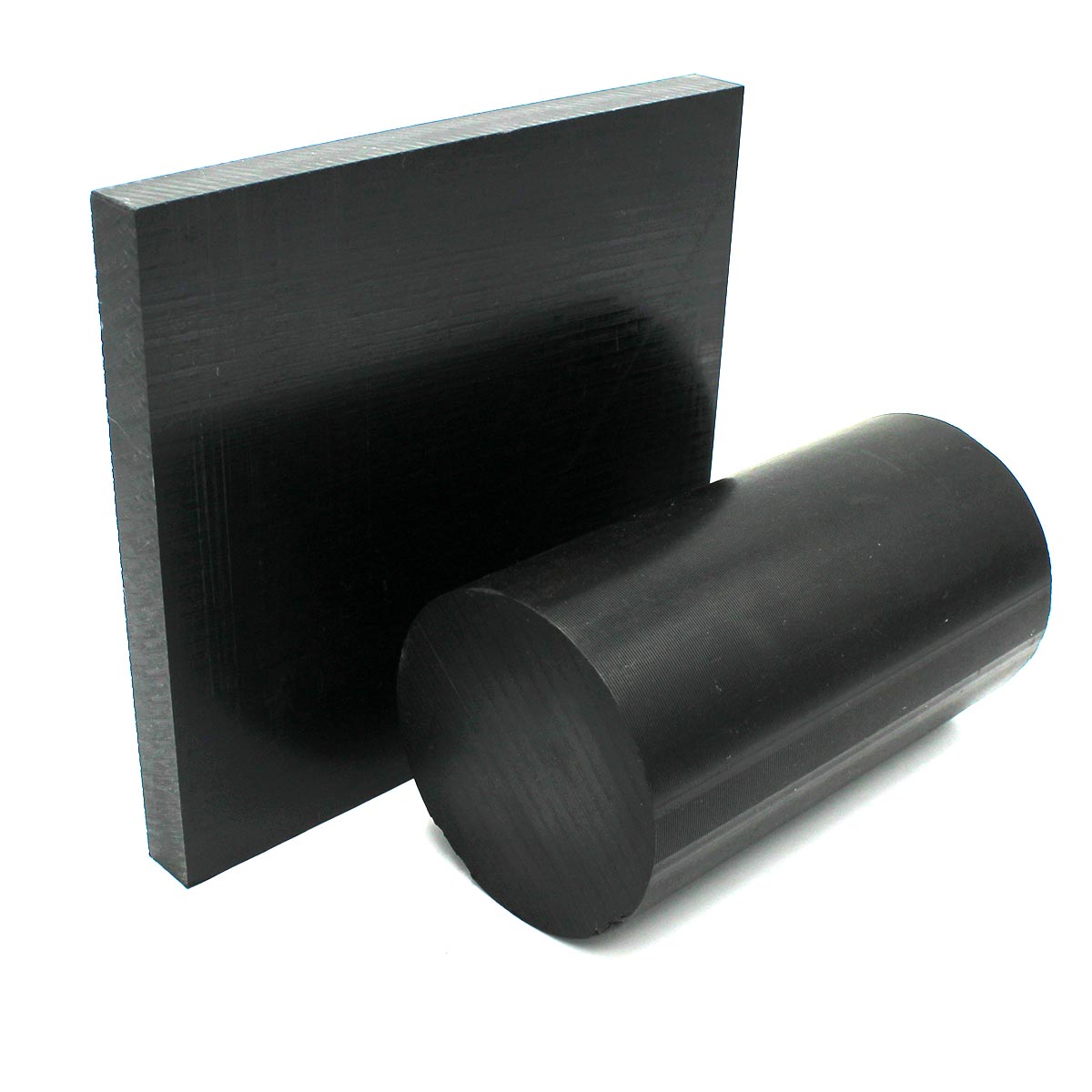

ULTEM ™ 1000 Black PEI
