TECAFINE ® PP

Compare Go To Comparison Add Additional Products For Comparison

-

1. Select Shape

2. Please Select Thickness

2. Please Select Diameter

2. Please Select Outer Diameter

2. Please Select Type & Size

Unit of Measure

In order to provide an accurate quote for your part, you'll need to provide some information through our custom quote request form.

3. Please Select Dimensions *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

3. Please Select Length *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

General Info

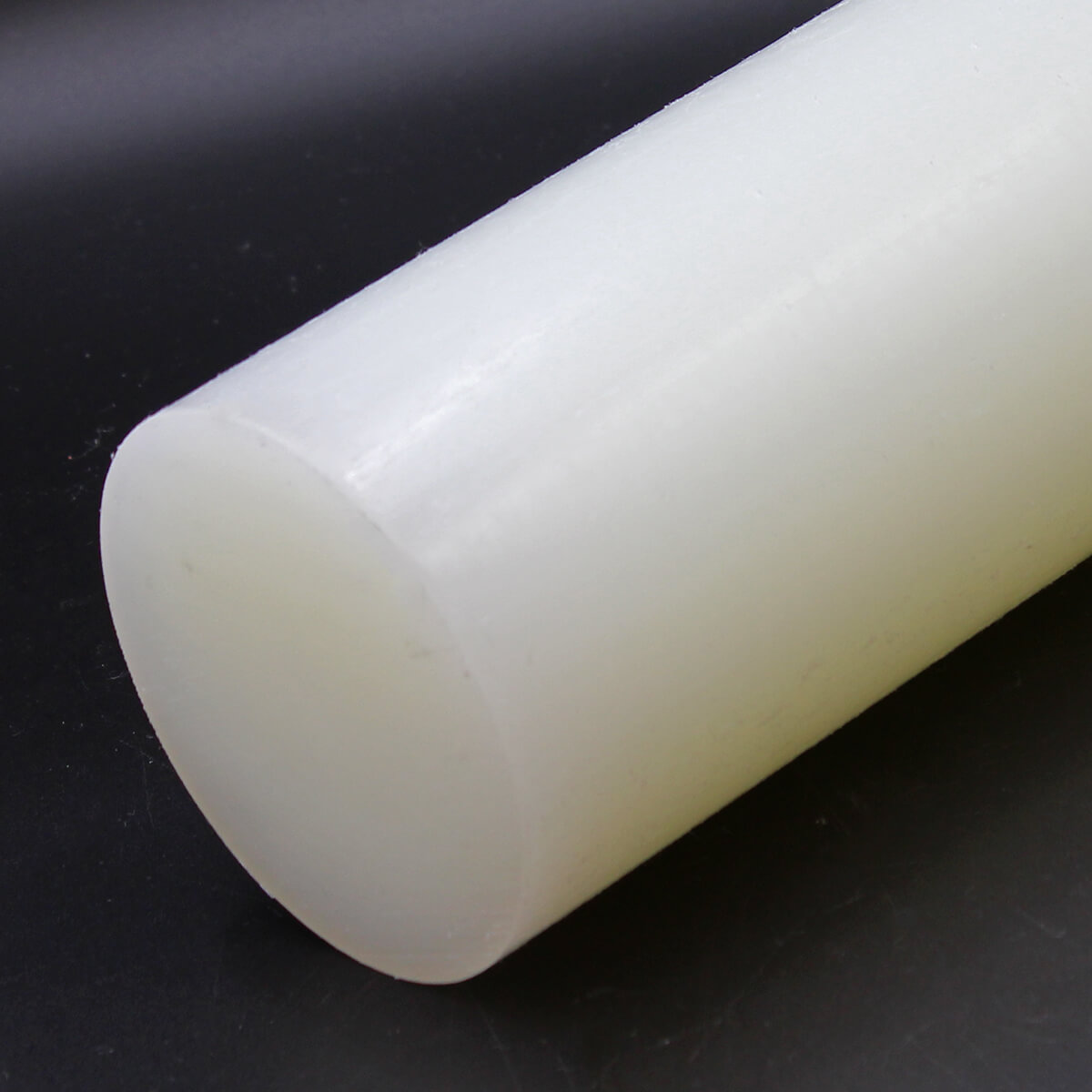

TECAFINE™PP (polypropylene) is a random copolymer polyolefin engineering plastic providing excellent chemical resistance and high purity. FDA compliant with better mechanical properties than other typical polyolefin materials, it is light weight, weldable, and unaffected by moisture.

Key Properties

  • Excellent chemical resistance - TECAFINE™PP is resistant to organic chemicals, solvents, mineral acids, and inorganic salts.
  • Weldable
  • High purity - TECAFINE™PP nonparticulating and suitable for high purity environments.
  • Light weight TECAFINE™PP has a specific gravity of less than 1.
  • Moisture resistant TECAFINE™PP is unaffected by water or moist environments.

Limitations

  • Difficult to Bond
  • Poor Impact at Low Temperatures

Applications

  • Corrosion Resistant Parts
  • Laboratory Equipment
  • Pump & Valve Components
  • Tanks

Resin Trade Names

Manufacturer Trade Names

  • TECAFINE® PP

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Available Colors

  • Natural

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of TECAFINE ® PP

DETAIL
Description Value
Material Type Semi-Crystalline Thermoplastic
Chemical Name PP Polypropylene
Trade Name TECAFINE® PP
Additives Unfilled
Color Natural
Manufacturer Ensinger
PHYSICAL
Property Test Unit of Measure Value
Density ASTM D792 g/cm³ 0.9
  ASTM D792 lb/in³ 0.033
Water Absorption, 24 hrs, Immersion ASTM D570 % by wt. 0.02
MECHANICAL
Property Test Unit of Measure Value
Tensile Modulus ASTM D638 psi 130,000
Tensile Elongation at Break ASTM D638 % 100
Flexural Strength ASTM D790 psi 6,000
Flexural Modulus ASTM D790 psi 180,000
Hardness ASTM D785 NA Rockwell R90
IZOD Impact-Notched ASTM D256 ft-lb/in 0.9
THERMAL
Property Test Unit of Measure Value
Coefficient of Linear Thermal Expansion ASTM D696 x 10-5 in./in./°F 5
Melting Point Temp ASTM D3418 °C 166
  ASTM D3418 °F 330
Max Continuous Operating Temp °C 32
  °F 180
Minimum Operating Temp °C -10
  °F 14
Flammability Rating UL94 NA HB
ELECTRICAL
Property Test Unit of Measure Value
Dielectric Constant at 1 MHz ASTM D150 NA 2.2
COMPLIANCE
Description Value
FDA Yes
USDA Yes
NSF No
3-A Dairy No
Canadian Food Inspection Agency No
USP Class VI No
OTHER
Description Value
Relative Cost $
Machinability 2

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

TECAFINE® is a registered trademark of Ensinger.
