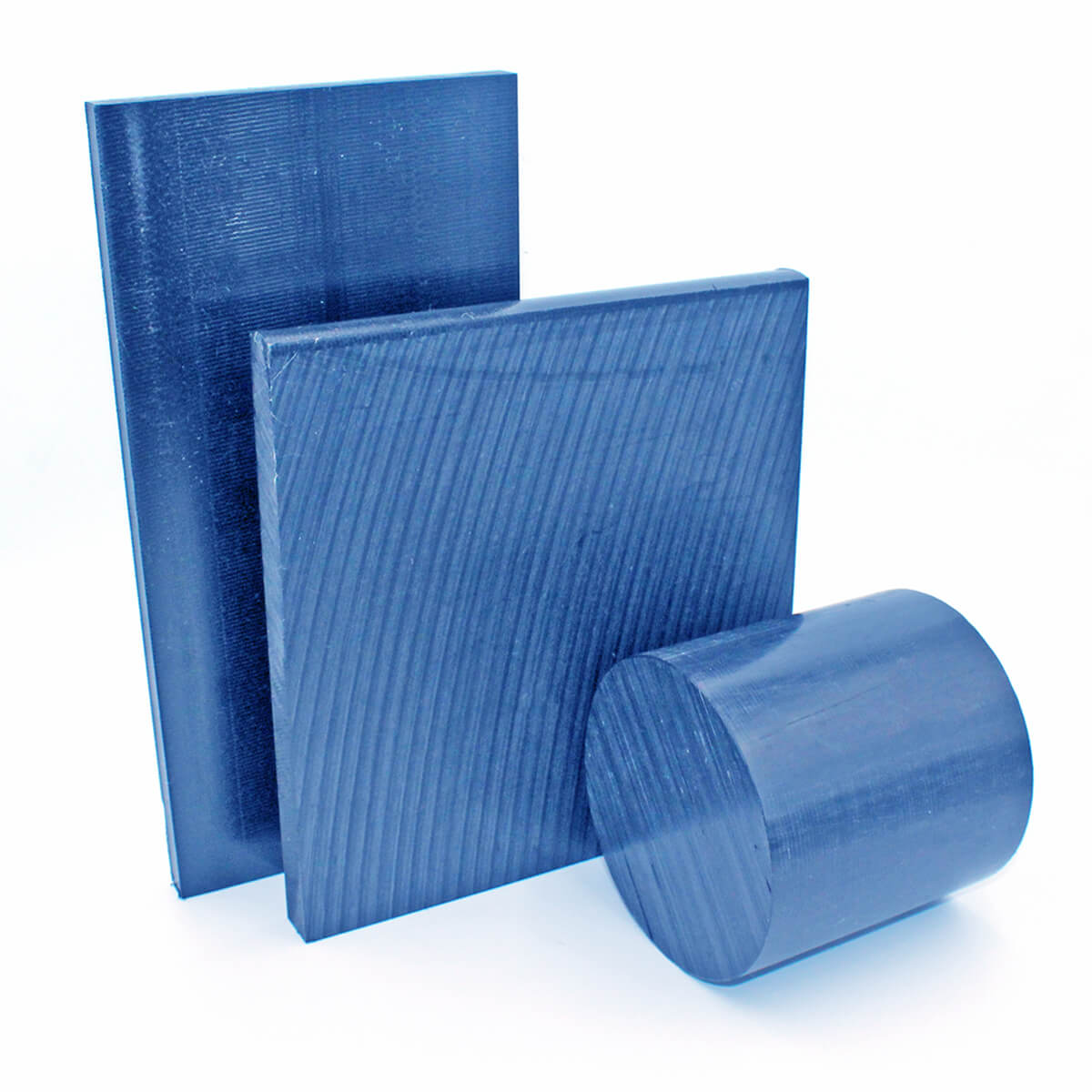

HYDEX ® 4101 UD Blue Ultra Detectable PBT-P

Compliance Info

Slide 1 of 2, currently active
Slide 2 of 2

General Info

HYDEX® 4101 UD Blue is a FDA compliant PBT (Polybutylene terephthalate) Polyester developed for detectability for all three detection processes in one material. Formulated with proprietary fillers that are detectable to both x-ray and metal detection systems, and its blue coloration is visible to optical inspection systems. In addition, as part of the polyester family, HYDEX® 4101 UD blue exhibits the very good physical properties typical of the family, as well as excellent resistance to chlorine and caustic cleaning solutions.

Click for more information on the complete line of Hydex Plastic Products

To find out how detectable Metal & X-Ray detectable plastics are, go to our Metal & X-Ray Detectability Page, watch our technical video and download our free white paper on this topic. Learn More

Key Properties

Resistant to Cleaning Chemicals
Food Grade Blue
Metal Detectable
X-Ray Opaque
Good Impact Strength
Good Dimensional Stability

Limitations

Slightly Lower Strength and Rigidity Than PET
Chemical Attack by Strong Bases

Applications

Bushings and Bearings
Cams
Feeder Blocks
Food Piston Pumps
Fuel Pump Components
Gears
Timing Screws
Valves and Valve Bodies
Wear Strips

Resin Trade Names

Manufacturer Trade Names

HYDEX® 4101 UD blue

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Available Colors

Blue

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of HYDEX ® 4101 UD Blue Ultra Detectable PBT-P

DETAIL
Description			Value
Material Type			Semi-Crystalline Thermoplastic
Chemical Name			PBT (Polybutylene terephthalate) Polyester
Trade Name			HYDEX® 4101 UD blue
Additives			Ultra Detectable Additive
Color			Blue
Manufacturer			Ensinger
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	1.59
	ASTM D792	lb/in³	0.057
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi	9,300
Tensile Modulus	ASTM D638	psi	550,000
Tensile Elongation at Break	ASTM D638	%	3.53
Flexural Strength	ASTM D790	psi	15,250
Flexural Modulus	ASTM D790	psi	556,150
Compressive Strength	ASTM D695	psi	13,760
Compressive Modulus	ASTM D695	psi	346,360
Hardness	ASTM D785	NA	Rockwell M92
IZOD Impact-Notched	ASTM D256	ft-lb/in	0.58
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	ASTM D696	x 10-5 in./in./°F	4.05
Heat Deflection Temp	ASTM D648	°C at 264 psi	135
	ASTM D648	°F at 264 psi	275
Melting Point Temp	ASTM D3418	°C	225
	ASTM D3418	°F	437
Max Continuous Operating Temp		°C	105
		°F	221
Minimum Operating Temp		°C	-20
		°F	-29
COMPLIANCE
Description			Value
FDA			Yes
USDA			Yes
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
ASTM Shape Spec			D6261 S-TPES0100
Relative Cost			$$$$$
Machinability			2

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

HYDEX® is a registered trademark of Ensinger.
