PEEK HT ™

Compliance Info

Slide 1 of 2, currently active
Slide 2 of 2

General Info

PEEK HT ™ is a high performance materials developed for applications that demand superior high temperature resistance. With a glass transition temperature of 315°F (157°C) and a Melting Point Temperature of 705°F (374°C), PEEK HT ™ delivers extended high temperature performance while offering all the key characteristics of natural PEEK ™ PolyEtherEther-Ketone polymer, including toughness, strength, and chemical resistance.

Click for more information on the complete line of PEEK Plastic Products

Key Properties

Superior High Temperature Performance
Retention of Mechanical and Physical Properties to Temperatures 54°F (30°C) Higher Than Standard PEEK
Up To 3 Times the Wear Resistance of Standard PEEK at High Temperatures
Long-Term Creep and Fatigue Resistance Over a Wide Temperature Range
Substantially Higher Tensile Strength and Flexural Modulus At 482°F (250°C)
Improved Compressive Strength
Exceptional Resistance to Chemicals, Solvents, Fuels
Inherent Low Flammability, Low Smoke Emission
Good Electrical Properties
Excellent Hydrolysis Resistance

Limitations

Applications

Downhole & Sub-Sea Connectors
Electrical Components
Engine Compartment Applications
Exchanger Parts
Metal Replacement Applications

Resin Trade Names

PEEK HT ™

Manufacturer Trade Names

PEEK HT ™

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

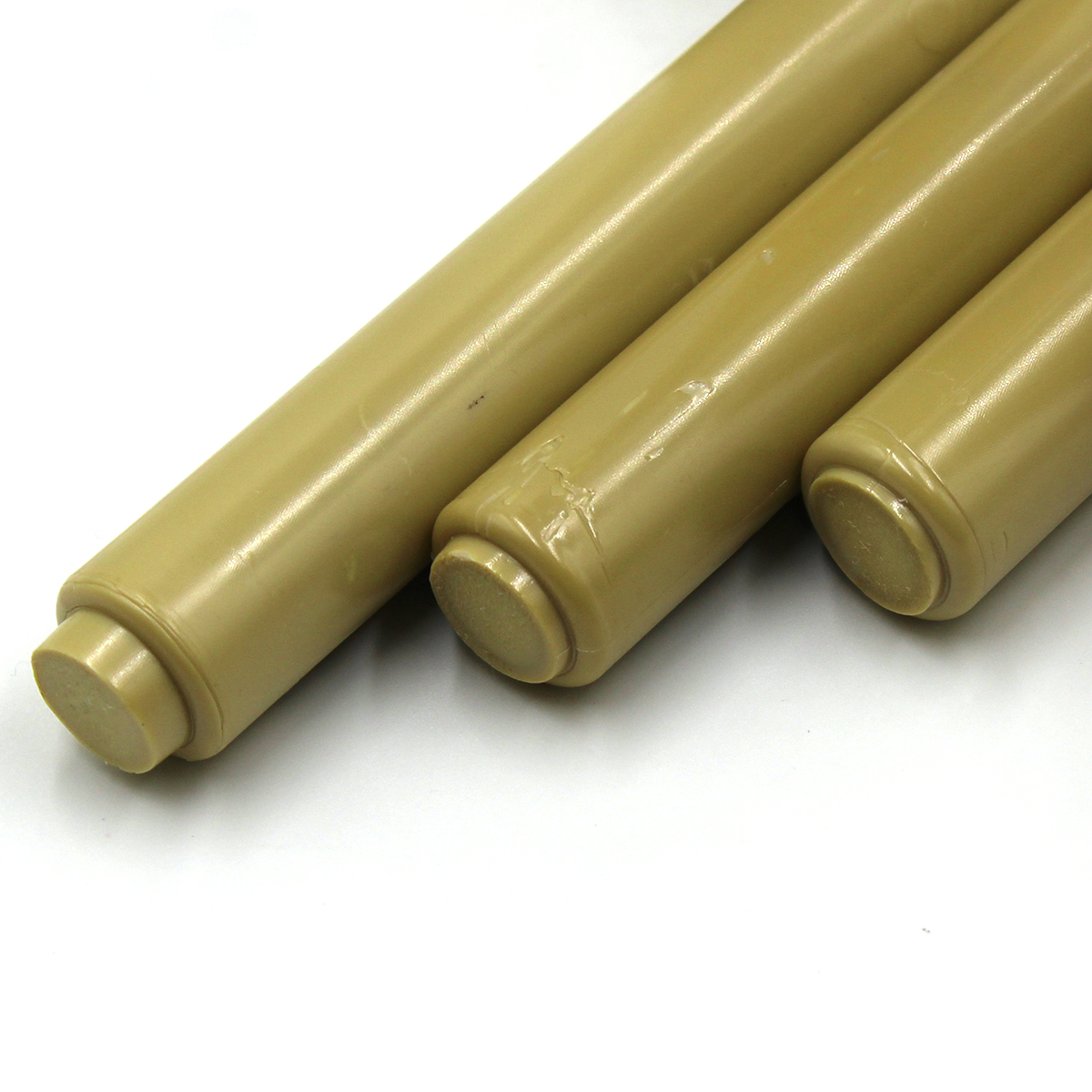

Rod Only Diameters .750” to 2.000”

Available Colors

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of PEEK HT ™

DETAIL
Description			Value
Material Type			Semi-Crystalline Thermoplastic
Chemical Name			PEEK Polyetheretherketone
Trade Name			PEEK HT ™
Additives			Unfilled
Color			Tan
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	1.32
	ASTM D792	lb/in³	0.048
Water Absorption, 24 hrs, Immersion		% by wt.	-
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	D638	psi	16,500
Tensile Modulus	ASTM D638	psi	500,000
Tensile Elongation at Break	ASTM D638	%	20
Flexural Strength	ASTM D790	psi	27,000
Flexural Modulus	ASTM D790	psi	600,000
Compressive Strength	ASTM D695	psi	20,000
Hardness	ASTM D785	NA	Rockwell R108
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	ASTM D696	x 10-5 in./in./°F	2.2
Heat Deflection Temp	ASTM D648	°C at 264 psi	165
	ASTM D648	°F at 264 psi	329
Minimum Operating Temp		°C	-60
		°F	-76
Flammability Rating	UL94	NA	V-0
ELECTRICAL
Property	Test	Unit of Measure	Value
Dielectric Strength	ASTM D149	V/mil	584
Dielectric Constant at 1 MHz	ASTM D150	NA	-
COMPLIANCE
Description			Value
FDA			Yes
USDA			Yes
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
UV Resistant			No
Relative Cost			$$$$$$$$
Machinability			5

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

PEEK HT ™ is a trademark of Victrex USA, Inc.
