Corrtec ® Vintec ® Clear PVC Type 1

Compliance Info

Slide 1 of 3, currently active
Slide 2 of 3
Slide 3 of 3

General Info

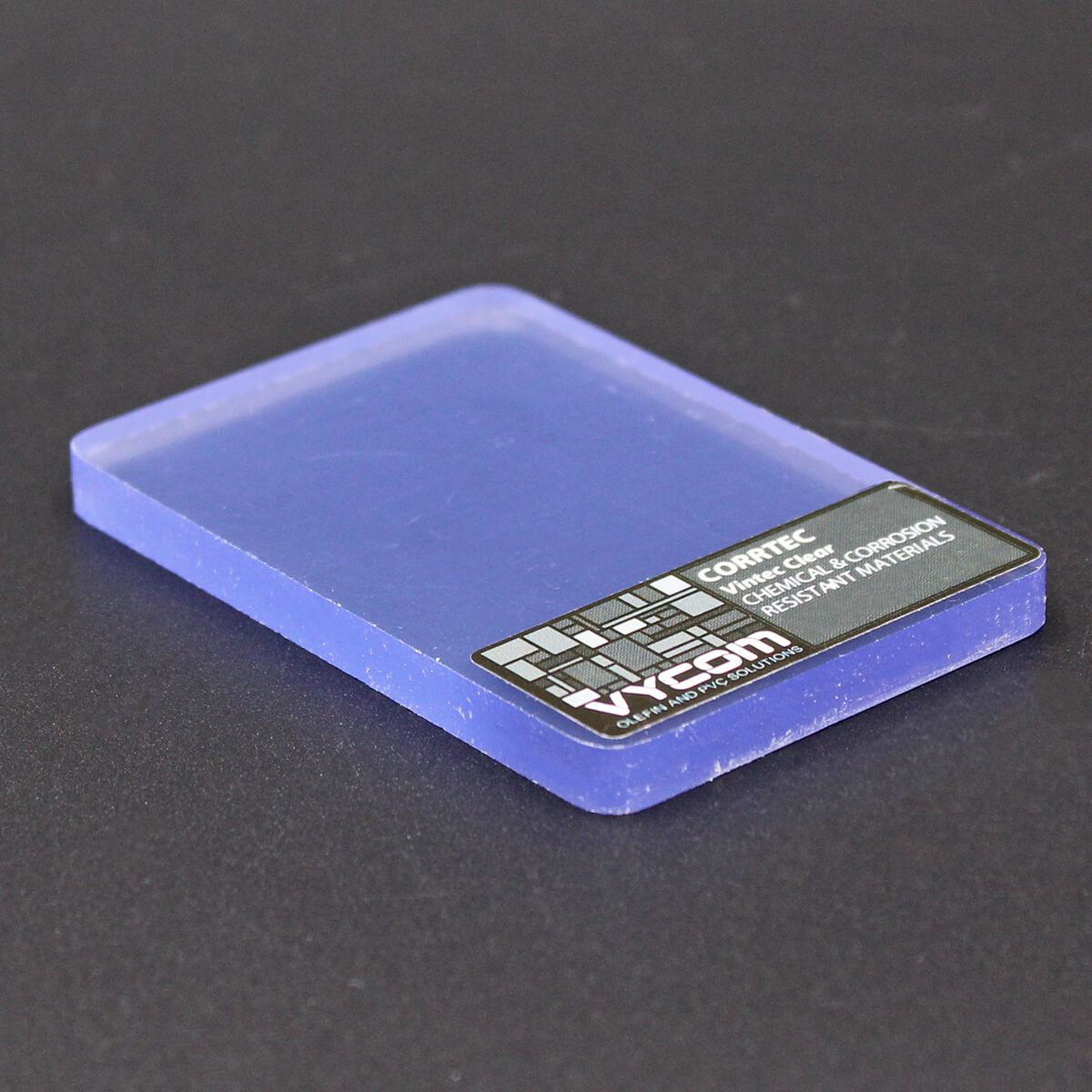

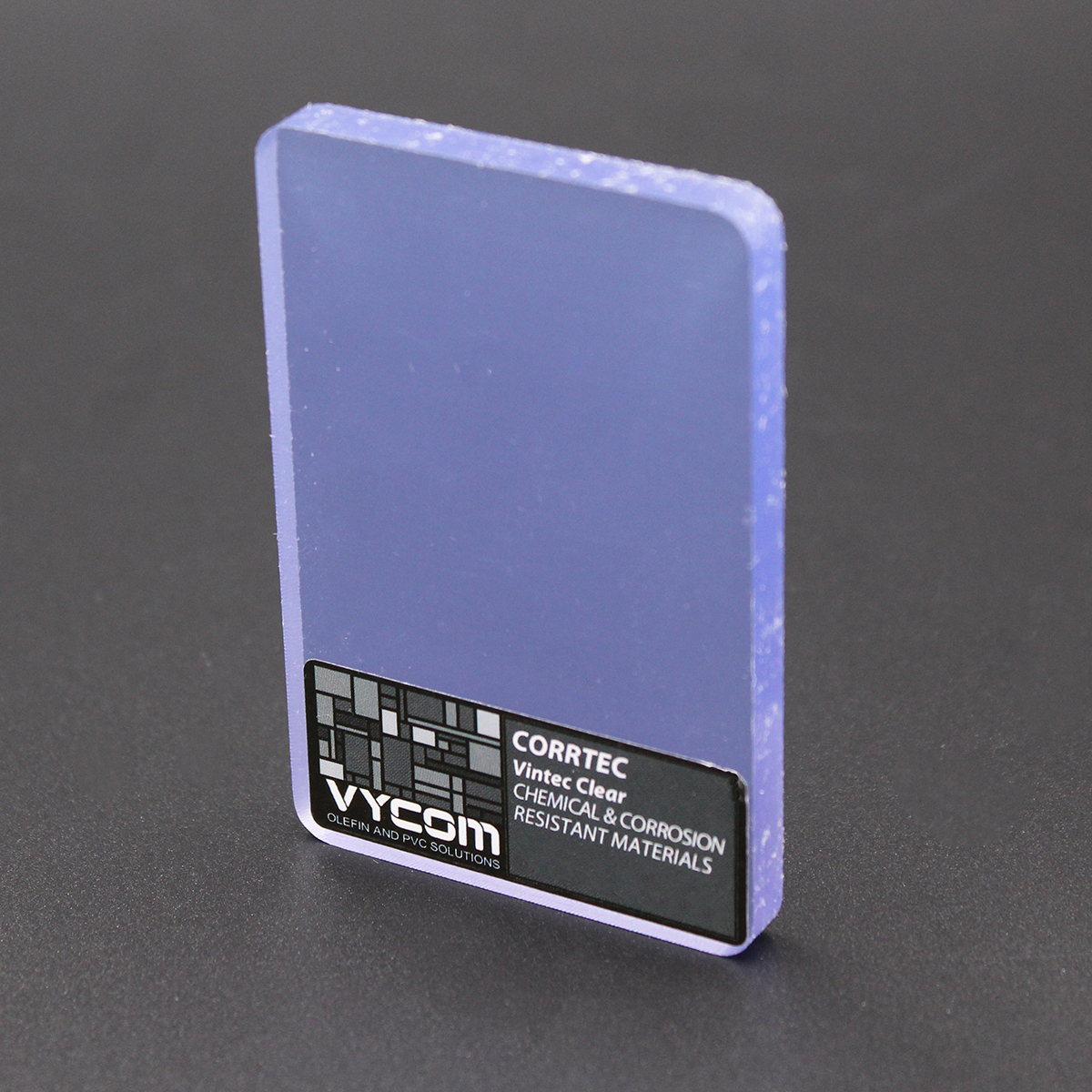

Vintec® Clear is a transparent PVC material that is highly recommended where visibility of a process or an operation is essential. Vycom’s Clear PVC is impact and corrosion resistant.

Click for more information on the complete line of PVC & CPVC Plastics

Key Properties

Chemical Resistance
Transparency
Stiffness
Impact
Heat Forming without Clouding
Good Light Transmittance
Consistent Blue Tint
Oversized Sheets Available
UL 94 V-0

Limitations

Attacked by Some Solvents
Lower Operating Temp that CPVC

Applications

Sight Windows
Sight Ports
Machine Guards
Inspection Panels
Formed Covers

Resin Trade Names

Manufacturer Trade Names

Corrtec® Vintec® Clear PVC Type 1

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Sheet Transparent (Blue Tint) | Thickness .062” to 1.000” Standard sheet size is 48.000” x 96.000” Custom sizes available upon request. Boedeker offers cut to size service on all in-stock items and same day shipping. If you don’t see the size your looking for contact us for alternative options.

Available Colors

Transparent (Slight Blue Tint)

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of Corrtec ® Vintec ® Clear PVC Type 1

DETAIL
Description			Value
Material Type			Amorphous Thermoplastic
Chemical Name			PVC Polyvinyl Chloride
Trade Name			Corrtec® Vintec® Clear PVC Type 1
Additives			Proprietary
Color			Transparent (Slight Blue Tint)
Manufacturer			Vycom
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	1.4
	ASTM D792	lb/in³	0.051
Water Absorption, 24 hrs, Immersion	ASTM D570	% by wt.	0.07
Water Absorption, Saturation, Immersion	ASTM D570	% by wt.	0.07
MECHANICAL
Property	Test	Unit of Measure	Value
Flexural Strength	ASTM D790	psi	480,000
Hardness	ASTM D2240	NA	Shore D80
IZOD Impact-Notched	ASTM D256	ft-lb/in	0.9
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	ASTM D703	x 10-5 in./in./°F	3.7
Heat Deflection Temp	ASTM D648	°C at 264 psi	86
	ASTM D648	°F at 264 psi	154
Flammability Rating	UL94	NA	V-0
COMPLIANCE
Description			Value
FDA			No
USDA			No
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
ASTM Shape Spec			ASTM-D-1784-09
UV Resistant			No
Relative Cost			$$
Machinability			2

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

Corrtec® Vintec® is a registered trademark of Vycom.
