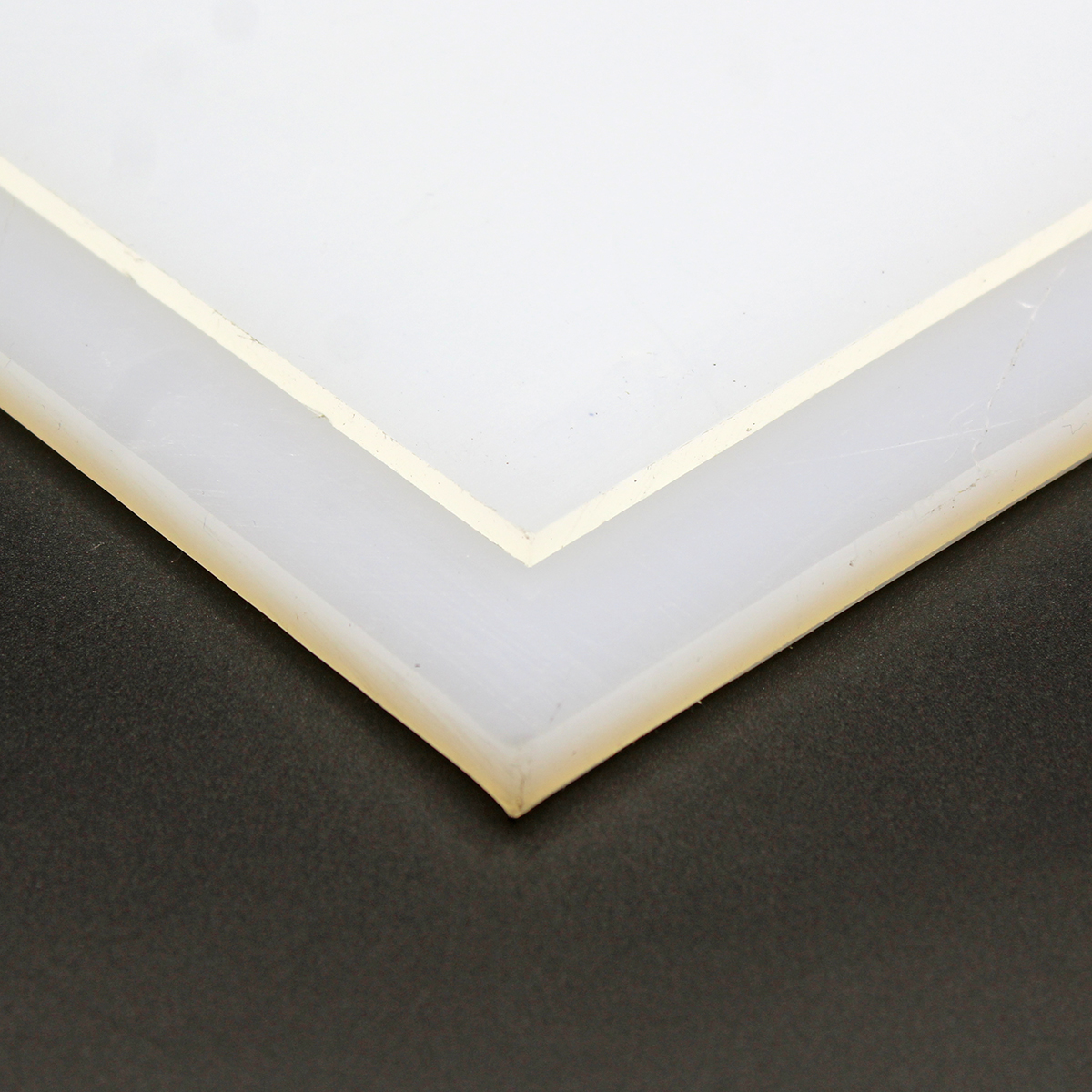

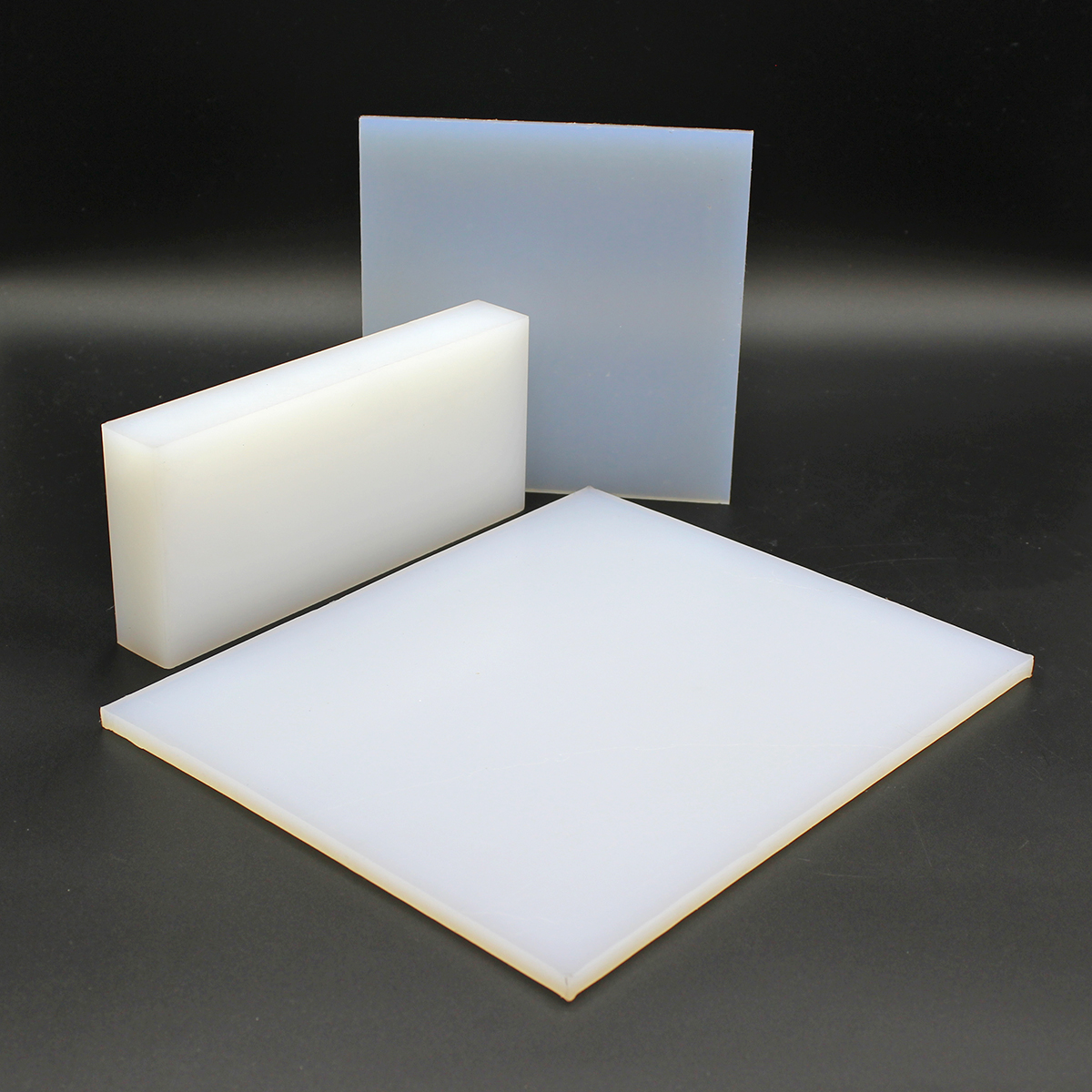

FEP Fluorinated Ethylene Propylene

Compare Go To Comparison Add Additional Products For Comparison

-

1. Select Shape

2. Please Select Thickness

2. Please Select Diameter

2. Please Select Outer Diameter

2. Please Select Type & Size

Unit of Measure

In order to provide an accurate quote for your part, you'll need to provide some information through our custom quote request form.

3. Please Select Dimensions *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

3. Please Select Length *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

Unit Price

Subtotal

Note: There is a $50.00 line item minimum on all orders.

General Info

FEP possesses a very high degree of stress crack resistance, a low coefficient of friction, exceptional dielectric properties, heat resistance, retention of properties after service at 400°F (204°C) with useful properties at -454°F (-270°C), and meets FDA 21CFR.177.1550. FEP has high transparency (with good transmittance of Ultraviolet and visible wavelengths.) It has long term weatherability and excellent resistance to ozone, sunlight and weather. FEP offers the lowest refractive index of all thermoplastics with low light reflection (the same as water).

Click for more information on the complete line of Fluoropolymers

Key Properties

  • Excellent Optical Characteristics
  • Outstanding Weather Resistance
  • Superior Anti-Stick/Low Friction Properties
  • Superior Electrical Properties
  • Withstands Both High- And Low-Temperature Extremes

Limitations

Applications

  • Fire Alarm Cable
  • Including Aircraft Wire
  • Linings for Pipe and Chemical Processing Equipment
  • Plenum Cable
  • Roll Covers
  • Well Logging Cable
  • Wire and Cable Applications

Resin Trade Names

  • DuPont™ Teflon® FEP
  • Dyneon™ FEP
  • Hyflon®
  • NEOFLON™

Manufacturer Trade Names

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Available Colors

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of FEP Fluorinated Ethylene Propylene

DETAIL
Description Value
Material Type Semi-Crystalline Thermoplastic Fluoropolymer
Chemical Name FEP Fluorinated Ethylene Propylene
Additives Unfilled
Color Natural
PHYSICAL
Property Test Unit of Measure Value
Density ASTM D792 g/cm³ 2.15
  ASTM D792 lb/in³ 0.078
Water Absorption, 24 hrs, Immersion ASTM D570 % by wt. <.01
Water Absorption, Saturation, Immersion ASTM D570 % by wt. 0.01
MECHANICAL
Property Test Unit of Measure Value
Tensile Strength ASTM D638 psi 3,400
Tensile Elongation at Break ASTM D638 % 325
Flexural Modulus ASTM D790 psi 85,000
Hardness ASTM D785 NA Shore D56
IZOD Impact-Notched ASTM D256 ft-lb/in No Break
Dynamic Coefficient of Friction ASTM D 1894 NA 0.2
THERMAL
Property Test Unit of Measure Value
Melting Point Temp ASTM D3418 °C 360
  ASTM D3418 °F 680
Max Continuous Operating Temp °C 204
  °F 400
Minimum Operating Temp °C -250
  °F -418
Flammability Rating UL94 NA V-0
ELECTRICAL
Property Test Unit of Measure Value
Dielectric Constant at 1 MHz ASTM D150 NA 2.1
COMPLIANCE
Description Value
FDA Yes
USDA Yes
NSF No
3-A Dairy Yes
Canadian Food Inspection Agency No
USP Class VI Yes
OTHER
Description Value
ASTM Shape Spec ASTM D 3307 Type II
UV Resistant Yes
Relative Cost $$$$$
Machinability 3

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

DuPont™ Teflon® FEP is a registered trademark of DuPont. Dyneon™ FEP is a registered trade mark of 3M. Hyflon is a registered trademark of Solvay. NEOFLON™ is a registered trademark of Daikin.
