General Info
SUSTAMID 66 GF 30 is a Nylon (Polyamide) Type 6/6 that is reinforced with 30% glass fibers and offers strength and stiffness primarily for structural applications.
Key Properties
- Increased Heat Defection Temperature vs. Unfilled Type 6/6 Nylon
- Improved Strength & Stiffness vs. Unfilled Type 6/6 Nylon
- Continuous use temperature of 220°F
- Very easy to fabricate
- Outstanding chemical resistance to alkalies and oxidizing agents
- High strength and stiffness at elevated temperatures
- Light weight (approx. 1/8 vs. bronze)
- Good impact strength at low temperature
Limitations
- High Moisture Absorption
- Limited Resistance to Strong Acids & Alkalies Note - Nylons can absorb up to 7% (by weight) water under high humidity or submerged in water. This can result in dimensional changes up to 2% and a corresponding reduction of physical properties. Proper design techniques can frequently compensate for this factor.
Applications
- Electrical Components
- Housings
- Structural Components
Resin Trade Names
Manufacturer Trade Names
- Sustamid® 66 GF 30 Type 6/6 Nylon
Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.
Available Sizes

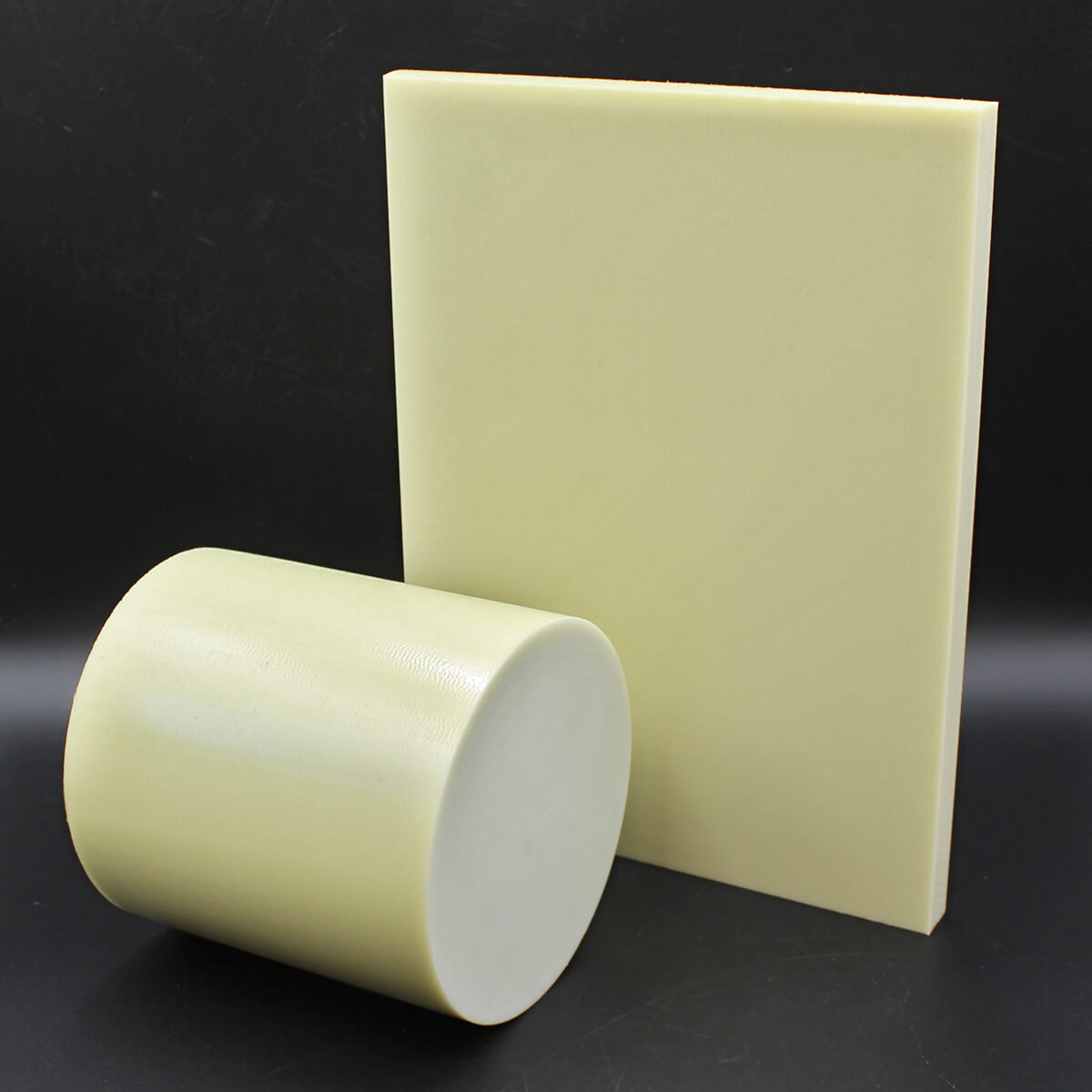

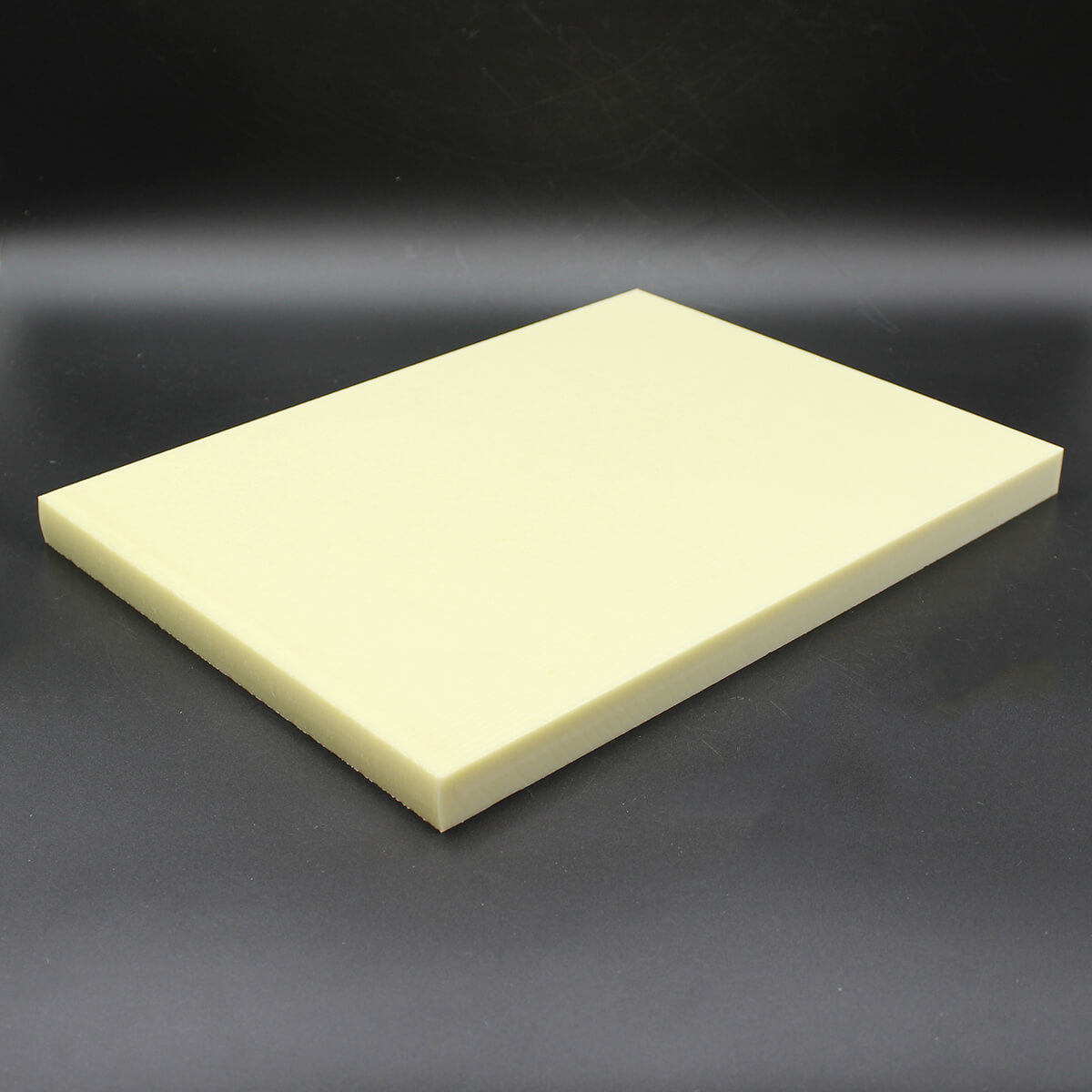

Sheet*
Thickness .375” to 6.000”
Width & Length 24.000” x 48.000”
Thickness .500” to 2.000”
Width & Length 48.000” x 96.000”
Width & Length 48.000” x 120.000”
Rod*
Diameters .250” to 6.000” Length 10’
Diameters 7.000” to 12.000” Length 3’
Tube*
Various Sizes Available OD & ID vary depending on formulation.
(*) Minimums may apply for some formulations depending on grade & shape size required.
Boedeker offers cut to size service on all in-stock items and same day shipping. If you don’t see the size your looking for contact us for alternative options.
