SIMONA ® PE 100 Pipe Grade

Compare Go To Comparison Add Additional Products For Comparison

-

1. Select Shape

2. Please Select Thickness

2. Please Select Diameter

2. Please Select Outer Diameter

2. Please Select Type & Size

Unit of Measure

In order to provide an accurate quote for your part, you'll need to provide some information through our custom quote request form.

3. Please Select Dimensions *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

3. Please Select Length *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

General Info

SIMONA® PE 100 Pipe Grade is a pipe grade high density polyethylene that is UV stabilized.

Key Properties

  • Easily Fabricated & Welded
  • Good Ductility
  • UV Stabilized

Limitations

  • High Heat Environments
  • High Loads
  • Subject to Creep, Cold Flow
  • Thermal Expansion
  • Tight Tolerance Applications

Applications

  • Air-Conditioning and Ventilation Systems
  • Chemical Process Industry
  • Chemical Tank and Equipment Construction
  • Environmental Technology
  • Industrial Waste Water
  • Mechanical Engineering
  • Mobility
  • Piping Systems
  • Power and Electrical
  • Tanks and Equipment
  • Transport, Materials Handling and Storage Systems
  • Water Purification

Resin Trade Names

Manufacturer Trade Names

  • SIMONA® PE 100 Pipe Grade

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

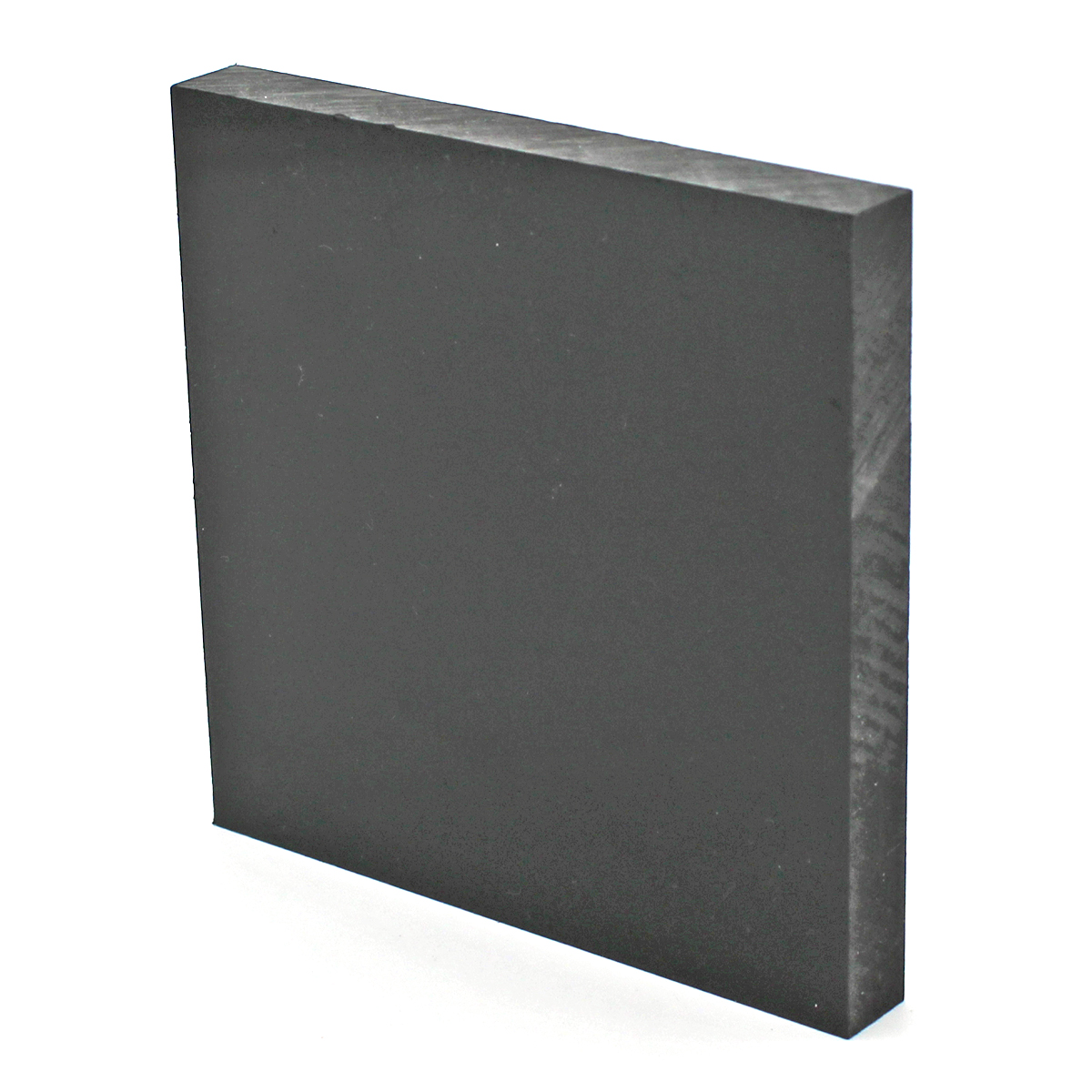

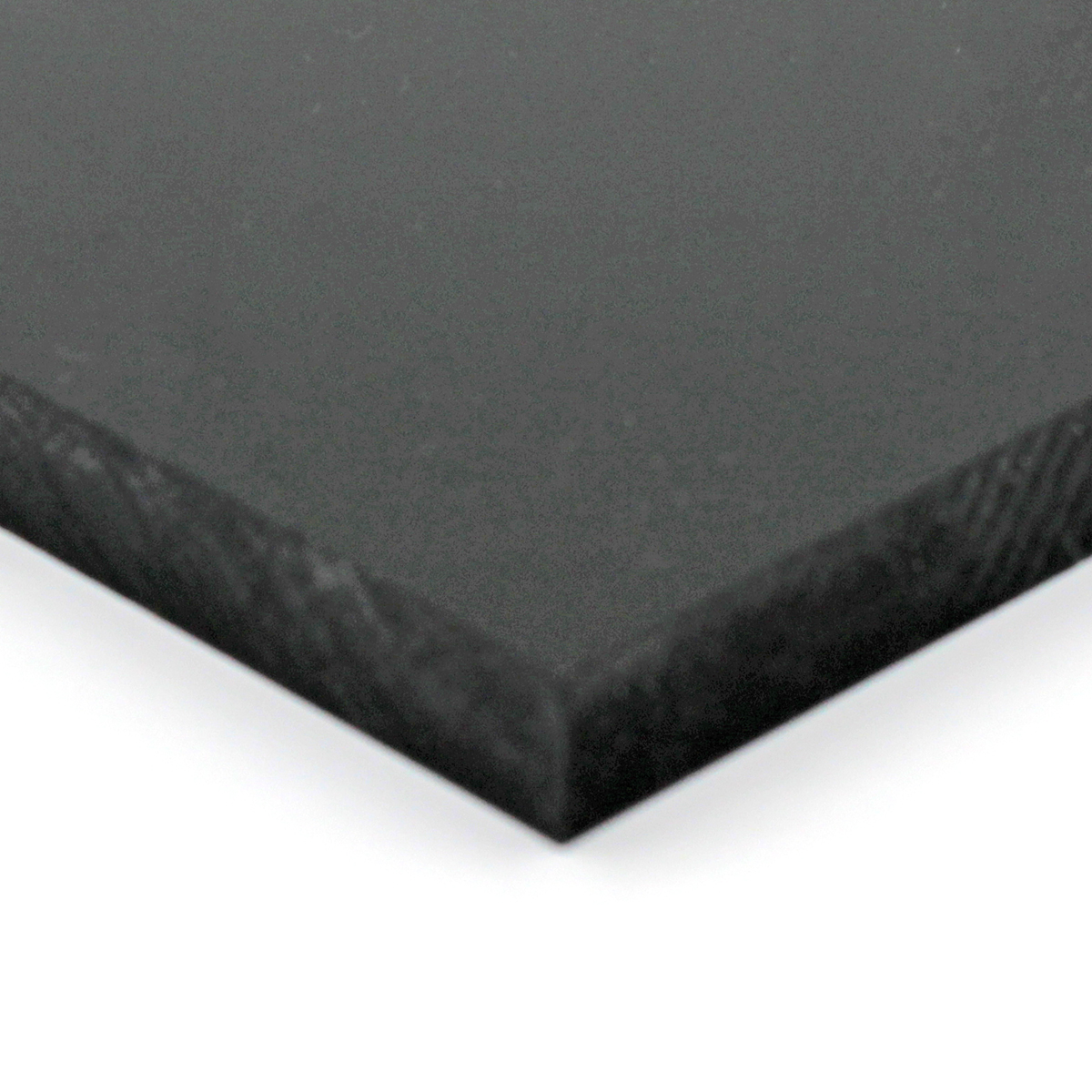

Sheet Black | Thickness .500” to 2.000” Width & Length 48.000” x 96.000” & 60.000” x 120.000” Welding Rod Black | Diameters .157” Boedeker offers cut to size service on all in-stock items and same day shipping. If you don’t see the size your looking for contact us for alternative options.

Available Colors

  • Black

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of SIMONA ® PE 100 Pipe Grade

DETAIL
Description Value
Material Type Semi-Crystalline Thermoplastic
Chemical Name HDPE High Density Polyethylene
Trade Name SIMONA® PE 100 Pipe Grade
Additives Unfilled
Color Black
Manufacturer SIMONA
PHYSICAL
Property Test Unit of Measure Value
Density ASTM D792 g/cm³ 0.96
  ASTM D792 lb/in³ 0.035
MECHANICAL
Property Test Unit of Measure Value
Tensile Strength ASTM D638 psi 3,300
Tensile Modulus ASTM D638 psi 160,000
Hardness ASTM D2240 NA Shore D70
IZOD Impact-Notched ASTM D256 ft-lb/in 9
THERMAL
Property Test Unit of Measure Value
Coefficient of Linear Thermal Expansion ASTM D696 x 10-5 in./in./°F 10
Heat Deflection Temp ASTM D648 °C at 264 psi 48
  ASTM D648 °F at 264 psi 118
Melting Point Temp ASTM D3418 °C 127
  ASTM D3418 °F 260
Max Continuous Operating Temp °C 82
  °F 180
Minimum Operating Temp °C -60
  °F -76
COMPLIANCE
Description Value
FDA
3-A Dairy No
Canadian Food Inspection Agency No
USP Class VI No
OTHER
Description Value
UV Resistant Yes
Relative Cost $
Machinability 1

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

SIMONA® is a registered trademark of Simona.
