EPM-2204U-W Ceramic-Filled PEEK

Compliance Info

Slide 1 of 2, currently active
Slide 2 of 2

General Info

EPM-2204U-W is a proprietary grade of VICTREX® PEEK™ that has been blended with ceramic fillers to significantly improve its mechanical properties. This product has excellent dimensional stability and tolerance control across a broad range of temperature and humidity conditions. The EPM-2204U-W grade maintains impact strength, stiffness and minimum levels of creep.

Key Properties

When compared to some traditional materials such as polyamideimide (PAI) and other imidized polymers, this grade based on VICTREX® PEEK™ polymer has greater hydrolytic stability.
And, when compared with ceramics, it is half the weight and offers greater impact resistance and toughness.
It also has excellent processability and wear performance. Additional benefits include good dielectric properties for insulative applications.
The EPM-2204U-W grade offers excellent machinability for tighter pitch and fine diameter holes as required to produce integrated circuit test sockets.

Limitations

Applications

Back End Test Sockets

Resin Trade Names

Manufacturer Trade Names

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

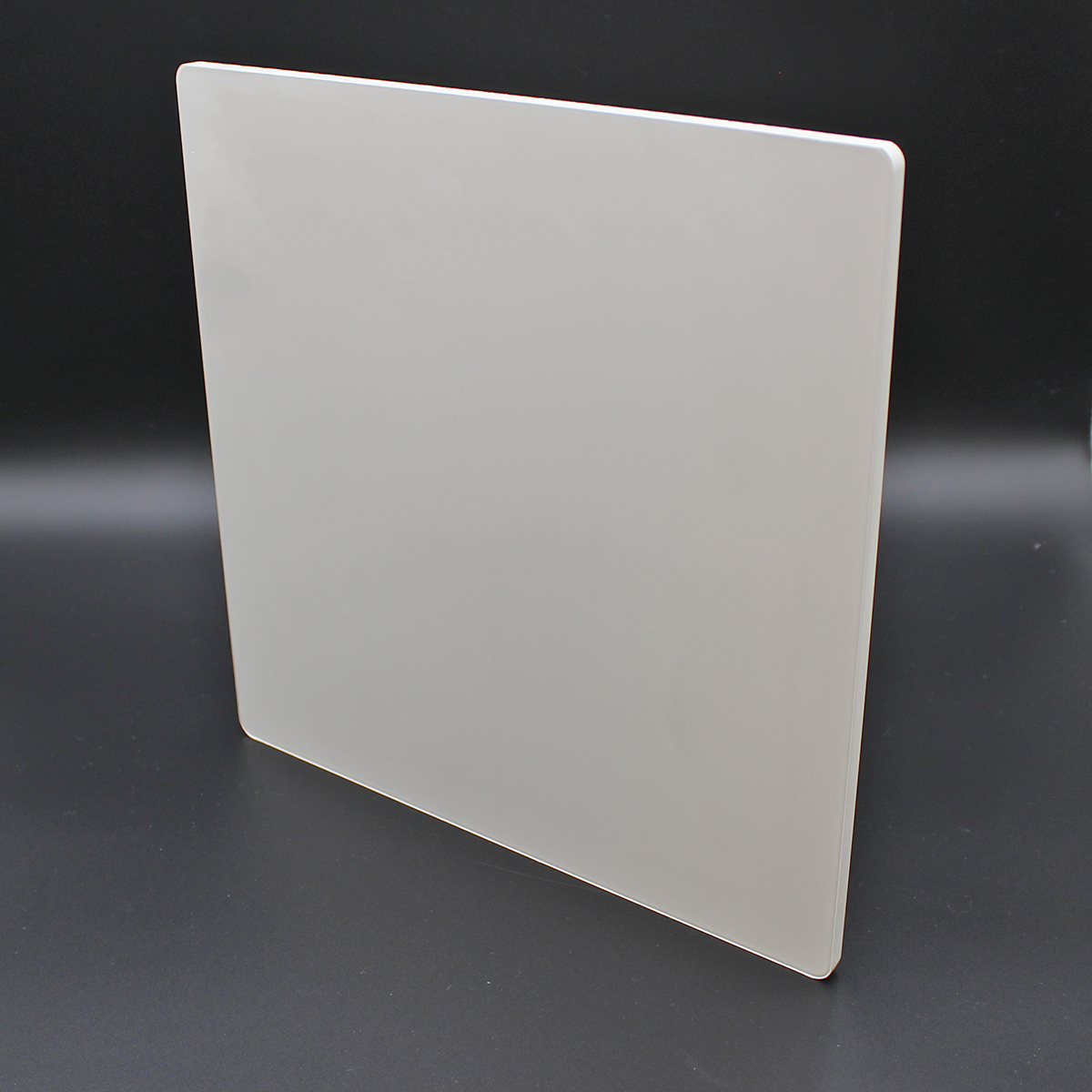

Gray Plate (Sheet) .080 x 6.000 x 12.000 inch .250 x 12.000 x 12.000 inch .375 x 12.000 x 12.000 inch .500 x 12.000 x 12.000 inch .750 x 6.000 x 12.000 inch .750 x 12.000 x 12.000 inch White Plate (Sheet) .080 x 6.000 x 12.000 inch .118 x 6.000 x 12.000 inch .200 x 10.000 x 10.000 inch .250 x 10.000 x 10.000 inch .375 x 10.000 x 10.000 inch .500 x 10.000 x 10.000 inch .625 x 12.000 x 12.000 inch .750 x 6.000 x 12.000 inch 1.00 x 6.000 x 12.000 inch Minimums and Longer Lead-Times May Apply

Available Colors

White or Gray

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of EPM-2204U-W Ceramic-Filled PEEK

DETAIL
Description			Value
Material Type			Semi-Crystalline Thermoplastic Fluoropolymer
Chemical Name			PEEK Polyetheretherketone
Trade Name			EPM-2204U-W
Additives			Ceramic
Color			White or Gray
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	1.51
	ASTM D792	lb/in³	0.055
Water Absorption, Saturation, Immersion	ASTM D570	% by wt.	0.37
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Elongation at Break	ASTM D638	%	>10
Hardness	ASTM D785	NA	Rockwell M103
IZOD Impact-Notched	ASTM D256	ft-lb/in	1
THERMAL
Property	Test	Unit of Measure	Value
Max Continuous Operating Temp		°C	249
		°F	480
Minimum Operating Temp		°C	-60
		°F	-76
Thermal Conductivity	ASTM C117	BTU-in/ft²-hr-°F	2
ELECTRICAL
Property	Test	Unit of Measure	Value
Dielectric Strength	ASTM D149	V/mil	400
Dissipation Factor at 1 MHz	ASTM D150	NA	<0.005
COMPLIANCE
Description			Value
FDA			No
USDA			No
NSF			No
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
UV Resistant			No
Relative Cost			$$$$$$$
Machinability			5

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

VICTREX PEEK ™ is a trademark of Victrex PLC.
