General Info
NYCAST XHA Blue Type 6 Cast Nylon has a heat stabilizer that retards the loss of physical properties as temperature increases. This allows the material to function at approximately 10% higher temperatures than standard grades; meaning NYCAST XHA operating at 200°F will have approximately the same physical properties as a standard grade operating at 185°F. Maximum intermittent temperature for NYCAST XHA is 350°F and continuous operating temperature is 250°F (compared to 230°F for standard grades). Also available in Natural, Black, and Forest Green.
Key Properties
- Can Work at Higher Operating Temperatures
- Retains Physical Properties Under Higher Temperatures
- Light Weight
- Excellent Abrasion and Wear Resistance
- Easy to Machine
Limitations
- High Moisture Absorption
- Limited Resistance to Strong Acids & Alkalies
Applications
- Bushings & Bearings
- Metal Replacement Applications
- Rollers
- Sheaves
- Structural Components
- Wear Strip
Resin Trade Names
Manufacturer Trade Names
Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

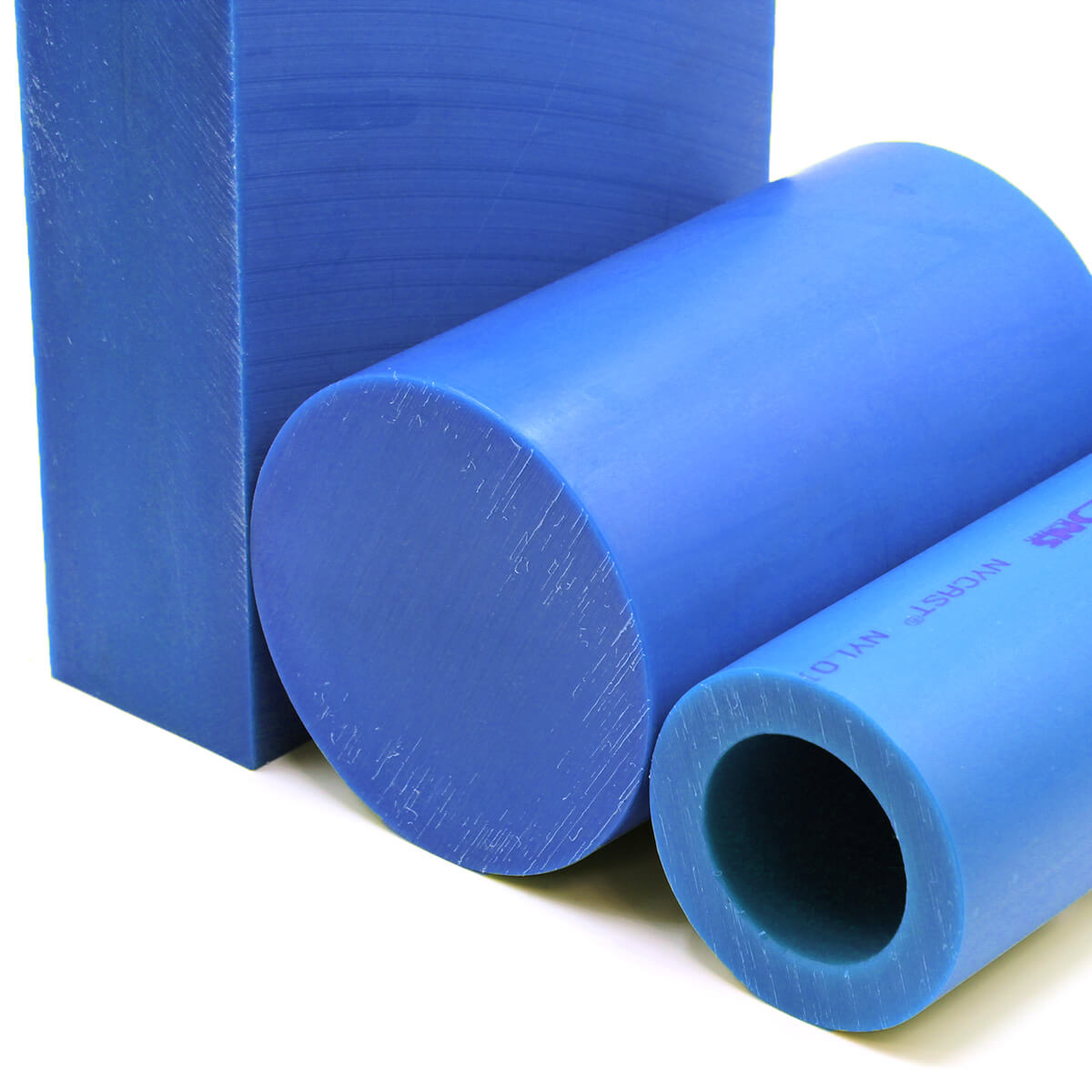

Available Sizes
Sheet
Thickness .125”
Standard sheet size is 48.000” x 120.000”
Thickness .250” to 2.000”
Standard Sheet Sizes 24.000” x 48.000”, 28.000” x 57.000”, 36.000” x 48.000” & 48.000” x 120.000”
Thickness 2.250” to 4.000”
Standard Sheet Sizes 24.000” x 48.000” & 48.000” x 120.000”
Thickness 6.000” & 8.000”
Standard Sheet Size 24.000” x 48.000”
Rod
Diameter 1.000” to 28.000”
Standard Lengths 24.000”, 48.000” & 120.000” depending on size
Tube
Outside Diameter 2.000” to 40.000”
Inside Diameter .750” to 30.500”
Standard Lengths 26.000”, 39.000” & 52.000” depending on size
Discs
Outside Diameter 12.250” to 84.000”
Thicknesses 2.000” and up
Rings
Outside Diameter 12.250” to 84.000”
Inside Diameter Call for Availability
Thicknesses 2.000” and up
Custom Cast Near Net Shapes & Cast Parts Available Upon Request
Some sizes may have minimum order quantities.
Boedeker offers cut to size service on all in-stock items and same day shipping. If you don’t see the size your looking for contact us for alternative options.
Available Colors
- Blue
- Natural
- Black
- Forest Green
- NYCAST nylons are available in 13 colors of nylon 6 to choose from to allow color-coding of components
