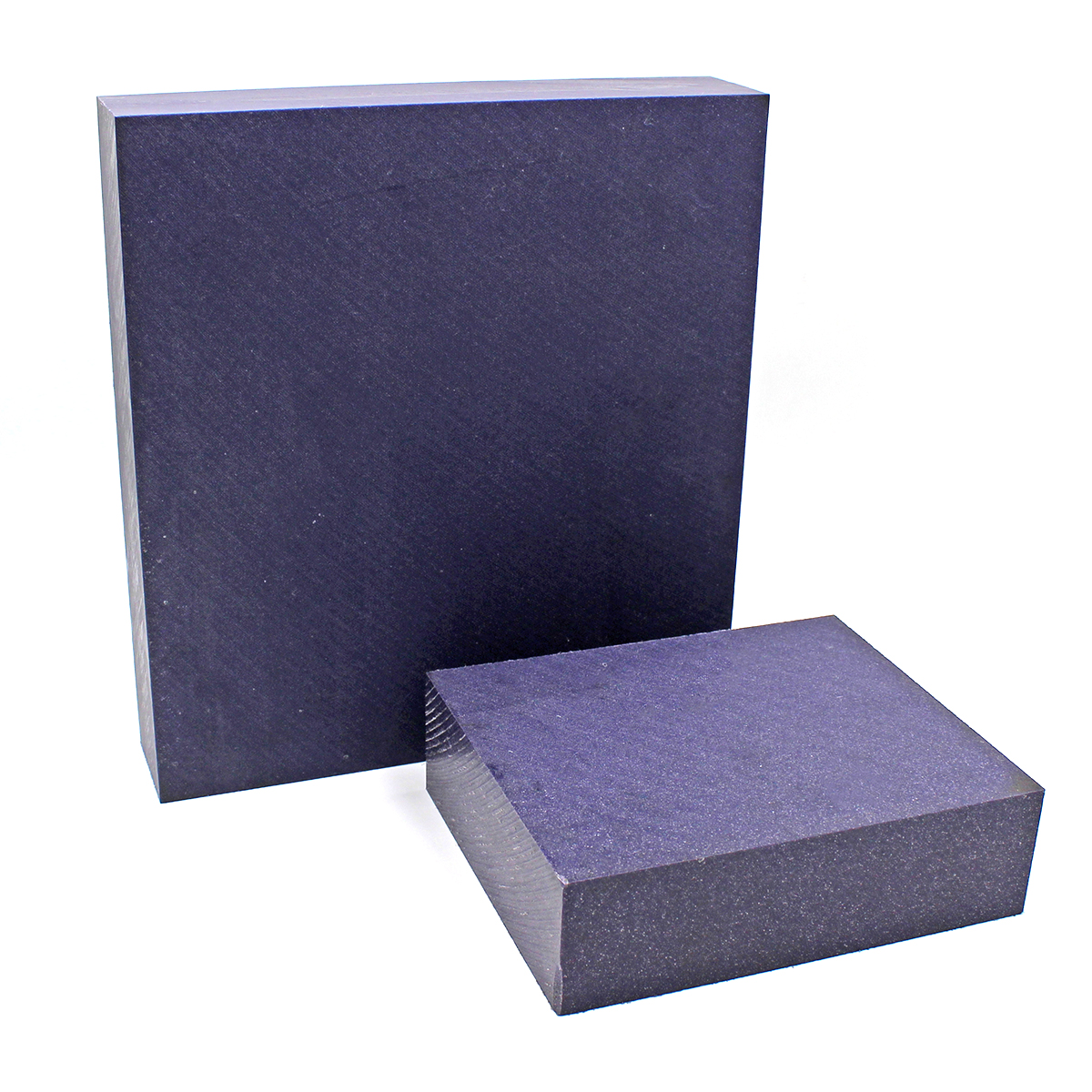

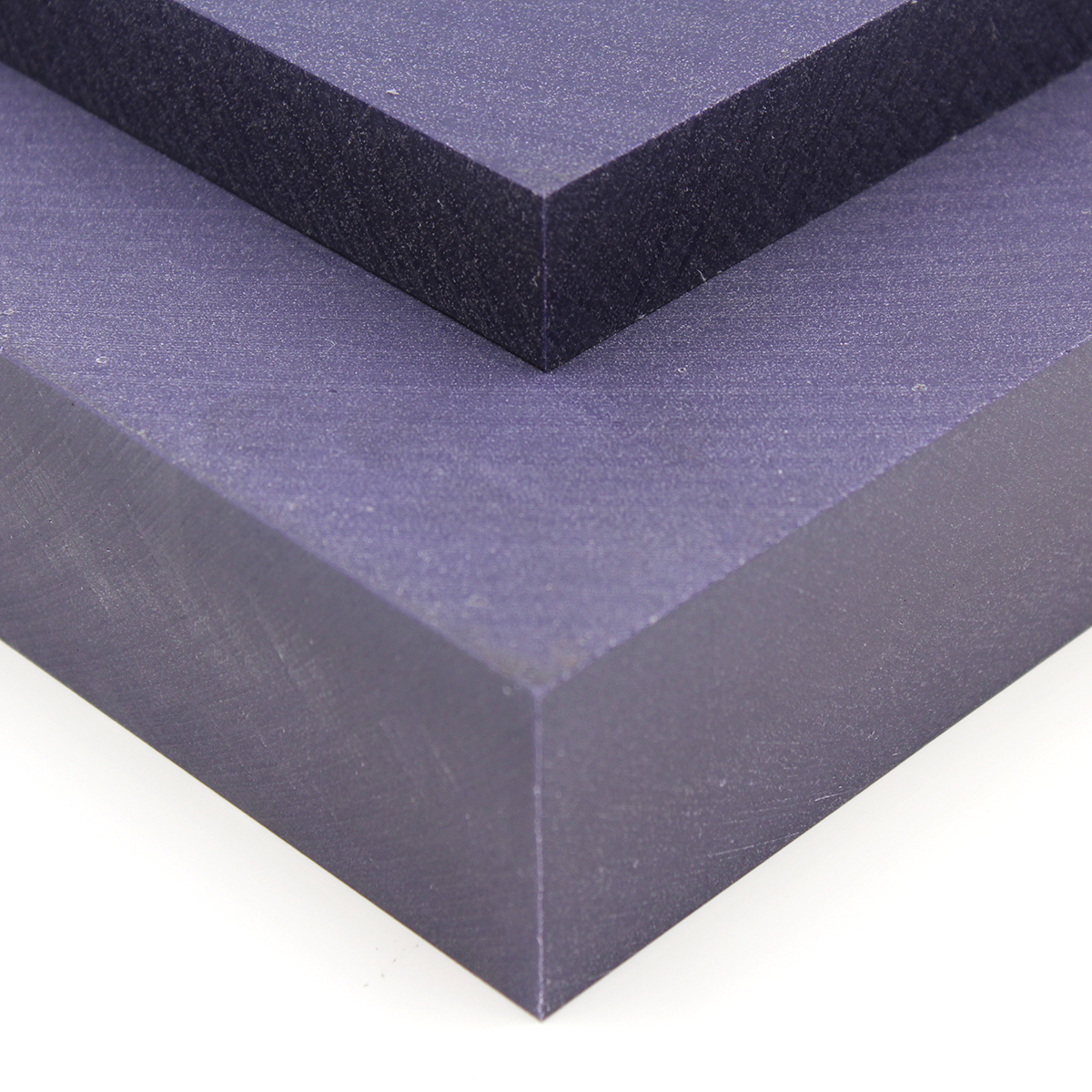

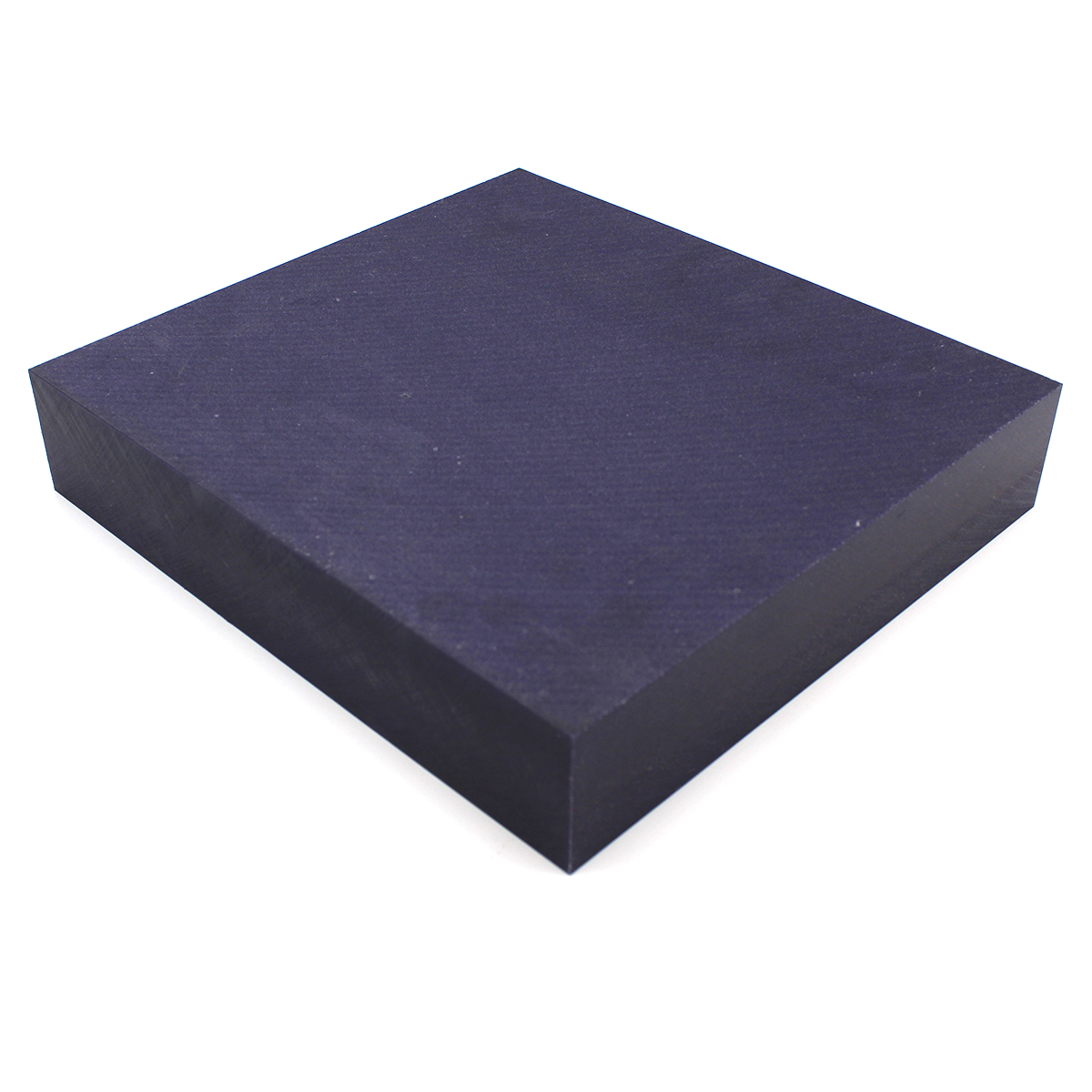

Nylatron ® 703XL Type 6 Nylon Low Stick Slip

Compliance Info
Nylatron ® 703XL Type 6 Nylon Low Stick Slip
Previous Next
  • Slide 1 of 4, currently active
  • Slide 2 of 4
  • Slide 3 of 4
  • Slide 4 of 4
Previous Next

Compare Go To Comparison Add Additional Products For Comparison

-

1. Select Shape

2. Please Select Thickness

2. Please Select Diameter

2. Please Select Outer Diameter

2. Please Select Type & Size

Unit of Measure

In order to provide an accurate quote for your part, you'll need to provide some information through our custom quote request form.

3. Please Select Dimensions *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

3. Please Select Length *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

General Info

Nylatron® 703XL Polyamide Type 6 is an ultra-high performance bearing grade of PA6 provides wear resistance near the levels of Nylatron® NSM with superior load bearing capability and an industry first – a near zero level of “stick-slip.” This elimination of chatter provides an extraordinary amount of control for high-precision applications.

Click for more information on the complete line of Nylatron Nylon Products

Key Properties

  • Low Coefficient of Friction (COF)
  • Near Zero Slip Stick
  • Formulated for Linear Wear Pads for Ultimate Control and Load Handling Capability
  • Can Be Cast as Finished Parts and Near Net Shapes (Nylon 6)

Limitations

  • High Moisture Absorption
  • Limited Resistance to Strong Acids & Alkalies Note - Nylons can absorb up to 7% (by weight) water under high humidity or submerged in water. This can result in dimensional changes up to 2% and a corresponding reduction of physical properties. Proper design techniques can frequently compensate for this factor.

Applications

  • Any Wear Pad or Wear Surface that requires Vibration, Chatter or Slip Stick Elimination
  • Sliding/Wear Pads in Telescopic Crane Booms
  • Conveyor Components
  • Conveyor Corner Tracks
  • Forestry Equipment Wear Pads
  • Pneumatic Control Surfaces

Resin Trade Names

Manufacturer Trade Names

  • Nylatron® 703XL

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Sheet Only Thickness | .250” to 4.000”* Width & Length | 24.000” x 48.000” & 48.000” x 120.000” ** * Greater than 2.000” thick is not a stocked item, minimums may apply **48.000” x 120.000” available in .250” & .375” thicknesses only Custom Castings Boedeker offers cut to size service on all in-stock items and same day shipping. If you don’t see the size your looking for contact us for alternative options.

Available Colors

  • Purple

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of Nylatron ® 703XL Type 6 Nylon Low Stick Slip

DETAIL
Description Value
Material Type Semi-Crystalline Thermoplastic
Chemical Name PA Polyamide Type 6
Trade Name Nylatron® 703XL
Additives Premium, Solid Lubricant
Color Purple
Manufacturer Quadrant
PHYSICAL
Property Test Unit of Measure Value
Density ASTM D792 g/cm³ 1.11
  ASTM D792 lb/in³ 0.04
Water Absorption, 24 hrs, Immersion ASTM D570 % by wt. 0.47
Water Absorption, Saturation, Immersion ASTM D570 % by wt. 7
MECHANICAL
Property Test Unit of Measure Value
Tensile Strength ASTM D638 psi 9,000
Tensile Modulus ASTM D638 psi 400,000
Tensile Elongation at Break ASTM D638 % 15
Flexural Strength ASTM D790 psi 13,000
Flexural Modulus ASTM D790 psi 360,000
Compressive Strength ASTM D695 psi 10,000
Compressive Modulus ASTM D695 psi 360,000
Hardness ASTM D785 NA Rockwell M65
IZOD Impact-Notched ASTM D256 ft-lb/in 0.7
Dynamic Coefficient of Friction QTM 55007 (Dry vs Steel) NA 0.14
Wear K Factor QTM 55010 in³-min/ft-lbs-hr 26
Limiting PV QTM 55007 psi-fpm 17,000
THERMAL
Property Test Unit of Measure Value
Coefficient of Linear Thermal Expansion ASTM D696 x 10-5 in./in./°F 4.9
Heat Deflection Temp ASTM D648 °C at 264 psi 93
  ASTM D648 °F at 264 psi 200
Melting Point Temp ASTM D3418 °C 216
  ASTM D3418 °F 420
Max Continuous Operating Temp °C 93
  °F 200
Minimum Operating Temp °C -30
  °F -22
Flammability Rating UL94 NA HB
ELECTRICAL
Property Test Unit of Measure Value
Surface Resistivity ASTM D257 ohm/square >10^12
COMPLIANCE
Description Value
FDA No
USDA No
NSF No
3-A Dairy No
Canadian Food Inspection Agency No
USP Class VI No
OTHER
Description Value
UV Resistant No
Relative Cost $$$$
Machinability 1

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

Nylatron® is a registered trademark of Quadrant Engineering Plastic Products.
