XtremeEPP ™ 1891 TEG TFE Toughened Epoxy Grade Foam with PTFE

Compare Go To Comparison Add Additional Products For Comparison

-

1. Select Shape

2. Please Select Thickness

2. Please Select Diameter

2. Please Select Outer Diameter

2. Please Select Type & Size

Unit of Measure

In order to provide an accurate quote for your part, you'll need to provide some information through our custom quote request form.

3. Please Select Dimensions *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

3. Please Select Length *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

General Info

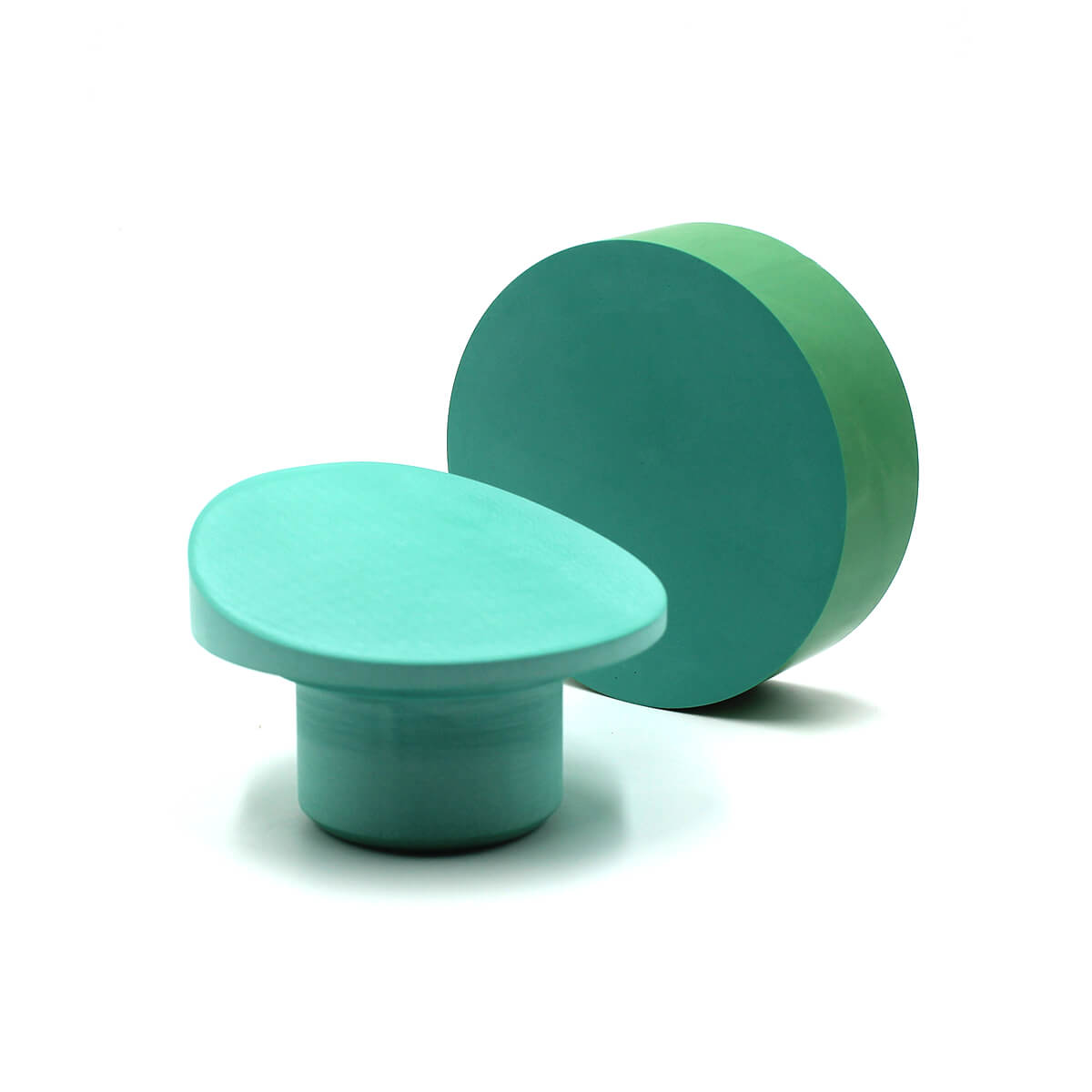

XtremeEPP ™ 1891 TEG TFE is a toughened epoxy resin / PTFE matrix composite with high strength and stiffness. The hollow glass spheres lower the density by roughly 40% as compared to standard epoxy systems. The lower density also results in a lower thermal conductivity thereby increasing its effectiveness as an insulator, better dimensional stability over a range of temperatures, and lower dielectric resistivity for electrical insulation applications

The PTFE additive helps enhance the surface frictional characteristics for enhanced slip and wear resistance. This high strength material is durable over a wide temperature range.

Key Properties

  • Lower Density for Weight Reduction & Buoyancy
  • Enhanced Dimensional Stability Lower CLTE
  • Lower Thermal Conductivity
  • High Operating Temp 350F/176C

Limitations

  • Not Intended For Bearing Applications

Applications

  • Structural Components
  • Thermal Insulating Components
  • Weight Reduction Metal Replacement Structural Applications

Resin Trade Names

Manufacturer Trade Names

  • XtremeEPP ™ 1891 TEG TFE

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Available in Sheet and Rod: Sheet Thickness 1.000 in to 6.000 in Sheet Size 24.000 in x 26.000 in Rod Diameters 2.000 in to 6.000 Rod Length 24.000 in lengths

Available Colors

  • Green

Safety Data Sheet

Contact Us

Typical Properties of XtremeEPP ™ 1891 TEG TFE Toughened Epoxy Grade Foam with PTFE

DETAIL
Description Value
Material Type Thermoset Foam
Trade Name XtremeEPP ™ 1891 TEG TFE
Additives Proprietary
Color Green
PHYSICAL
Property Test Unit of Measure Value
Density ASTM D2240 g/cm³ 0.86
  ASTM D2240 lb/in³ 0.031
Water Absorption, 24 hrs, Immersion ASTM D570 % by wt. <.10
MECHANICAL
Property Test Unit of Measure Value
Tensile Strength ASTM D628 psi 6,440
Tensile Modulus ASTM D628 psi 526,000
Tensile Elongation at Break ASTM D638 % <2
Flexural Strength ASTM D695 psi 8,125
Flexural Modulus ASTM D695 psi 550,000
Compressive Strength ASTM D695 psi max 16,000
Compressive Modulus ASTM D695 psi 520,000
Hardness ASTM D2240 Shore D 82 Shore D
THERMAL
Property Test Unit of Measure Value
Coefficient of Linear Thermal Expansion ASTM E228 x 10-5 in./in./°F 2.2
Max Continuous Operating Temp °C 176
  °F 350
Thermal Conductivity ASTM E1225 BTU-in/ft²-hr-°F 0.1
ELECTRICAL
Property Test Unit of Measure Value
Dielectric Constant at 1 MHz ASTM D150 1 MHz 2.3
COMPLIANCE
Description Value
FDA No
USDA No
NSF No
3-A Dairy No
Canadian Food Inspection Agency No
OTHER
Description Value
UV Resistant No
Relative Cost $$$$
Machinability $

Relative cost based on a scale of one dollar sign ($) as the lowesACt to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

XtremeEPP™ is a registered trademark of Boedeker Plastics, Inc.
