XtremeEPP ™ XU2 Ultraspin2 Non-Metallic Spinning Wheel

Compare Go To Comparison Add Additional Products For Comparison

-

1. Select Shape

2. Please Select Thickness

2. Please Select Diameter

2. Please Select Outer Diameter

2. Please Select Type & Size

Unit of Measure

In order to provide an accurate quote for your part, you'll need to provide some information through our custom quote request form.

3. Please Select Dimensions *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

3. Please Select Length *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

General Info

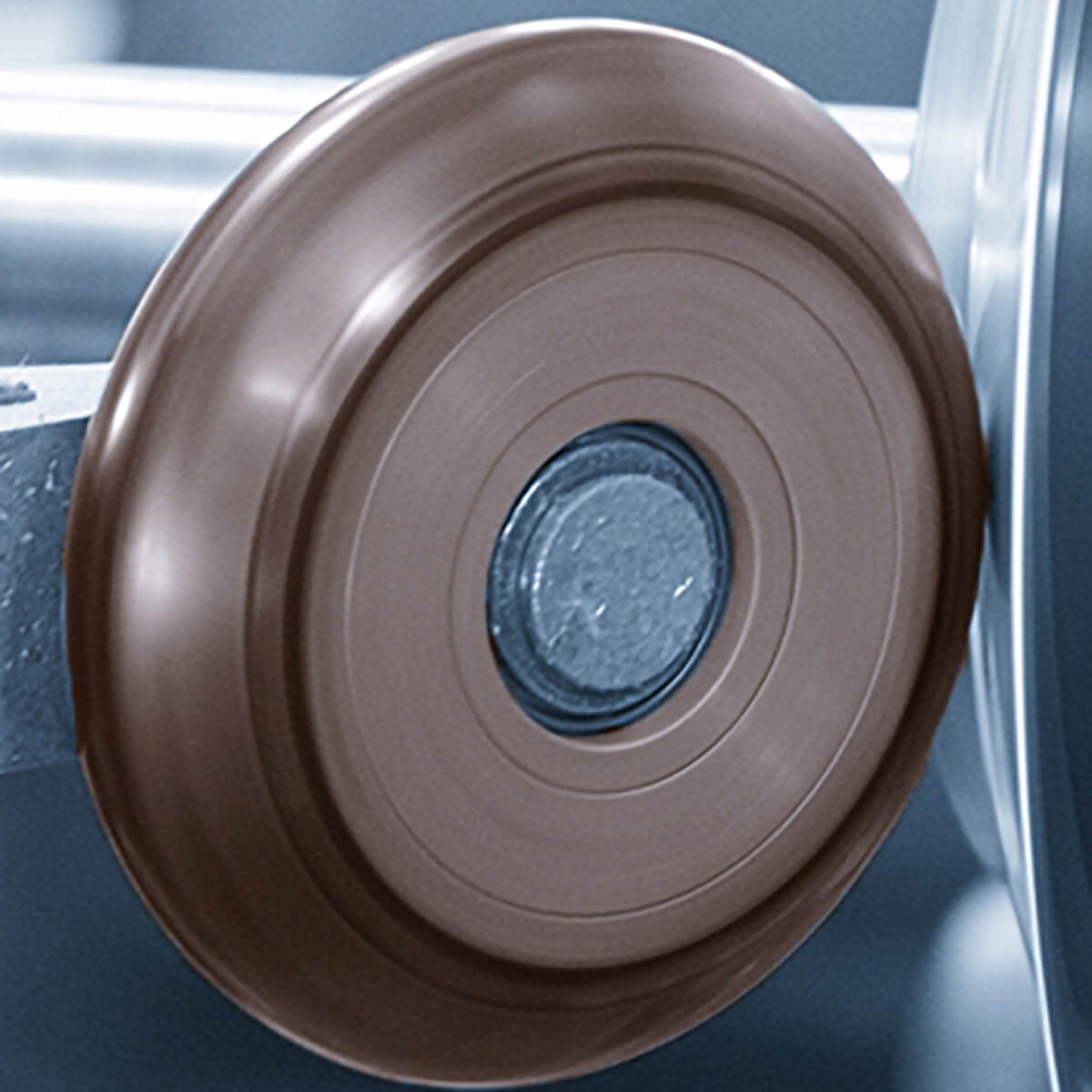

XtremeEPP XU2 Ultraspin² is a non-metallic spinning wheel for the metal forming industry that has set a new standard for precision surface finishes.  Available as a near net tube that can be machined to the most common spinning wheel sizes.  The hardness and wear characteristics of the XU2 rollers produces a high quality finish.  Unlike metal wheels the Xtremeepp Ultraspin² rollers meets and exceeds the industry finish expectations for reflective and cosmically appealing products along with precision spun components. OEM Compatibility with Leifeld®, M&M®, Autospin® & Denn®.  Our proprietary polymer maintains its performance over other PAI wheels in lifetime by 4 to 1. It also exceeds the performance over basic nylon, acetal & fiber filled products by as much as 8X.

Key Properties

  • Advantages over metal wheels: The hardness and wear characteristics of the XU2 rollers produces a high-quality finish. Unlike metal wheels the xtremeepp ultraspin² rollers meets and exceeds the industry finish expectations for reflective and cosmically appealing products along with precision spun components.
  • Throughput advantages over metal wheels: The XU2 maintains its machined shape to reduce down-time for longer run times keeping your CNC machines $pinning.
  • XU2 vs. other polymer wheels: The XU2’s proprietary polymer offers customers a cost effective long-lasting roller solution for the CNC spinning market today, designed to meet the customers overall needs –Cost –Quality -Performance.
  • Lifetime advantage: Our proprietary polymer maintains its performance over other PAI wheels in lifetime by 4 to 1. It also exceeds the performance over basic nylon, acetal & fiber filled products by a much higher performance ratio.

Limitations

Applications

  • Spinning Wheel for Metal Spinning / Forming Applications

Resin Trade Names

Manufacturer Trade Names

  • XU2 XtremeEPP™ Ultraspin2

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

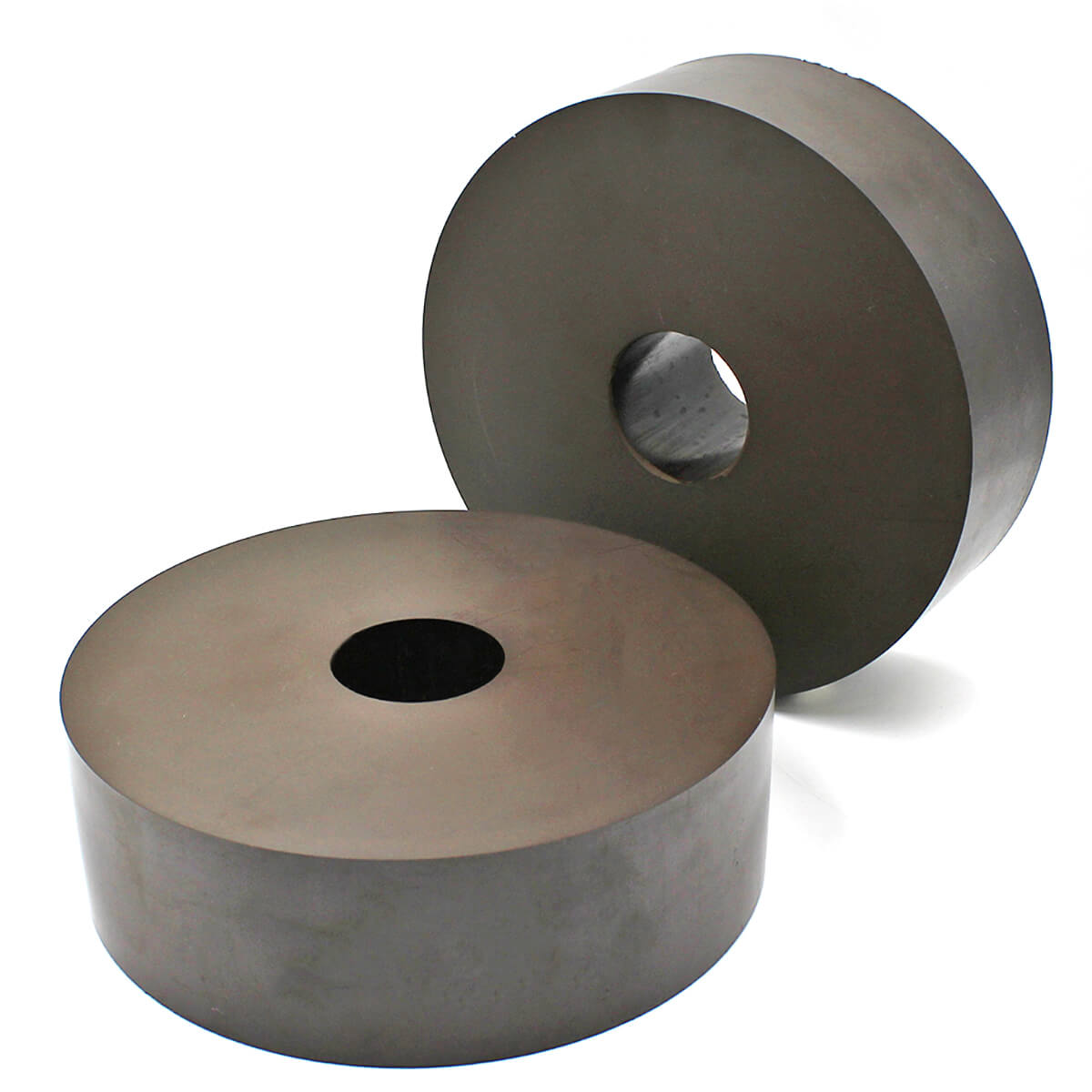

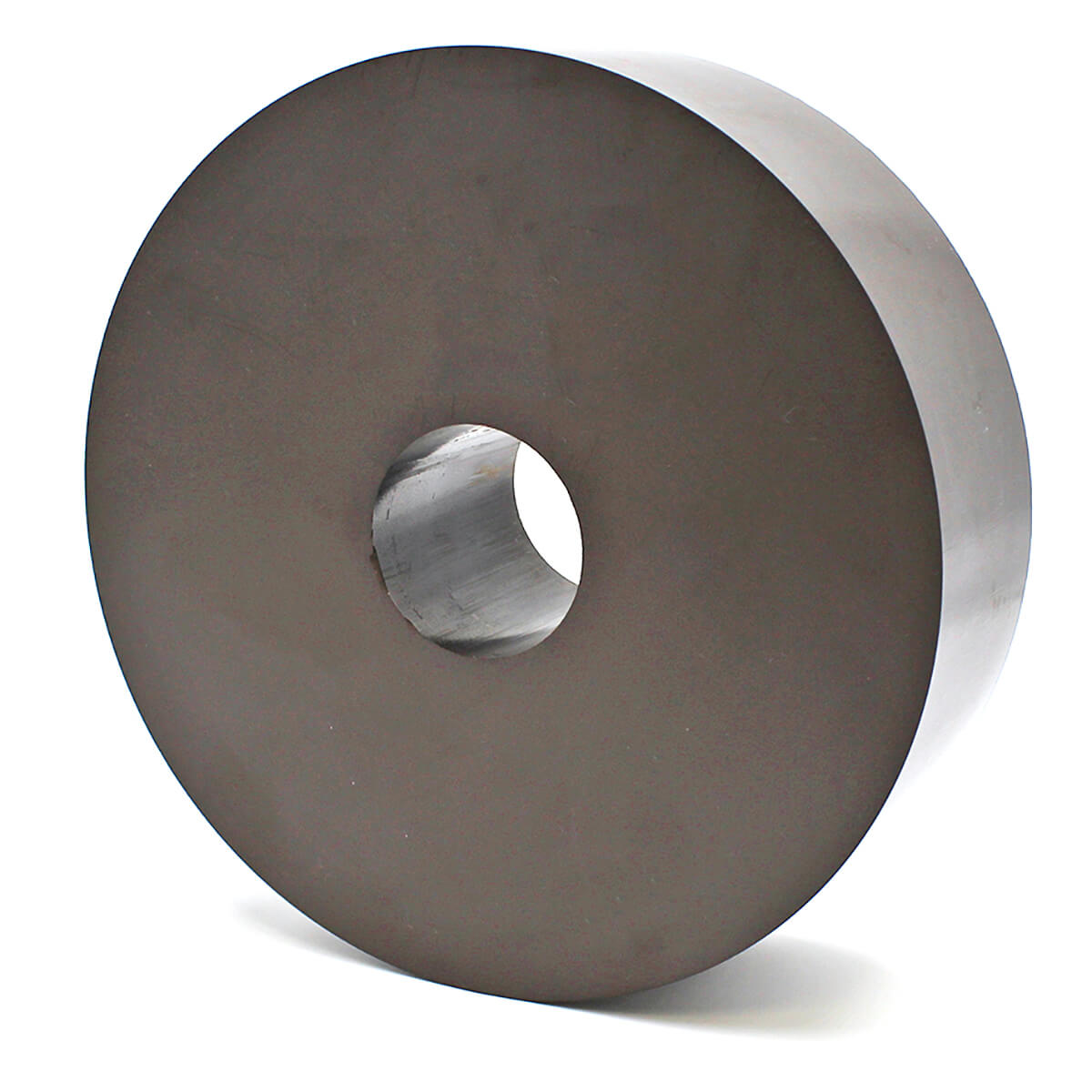

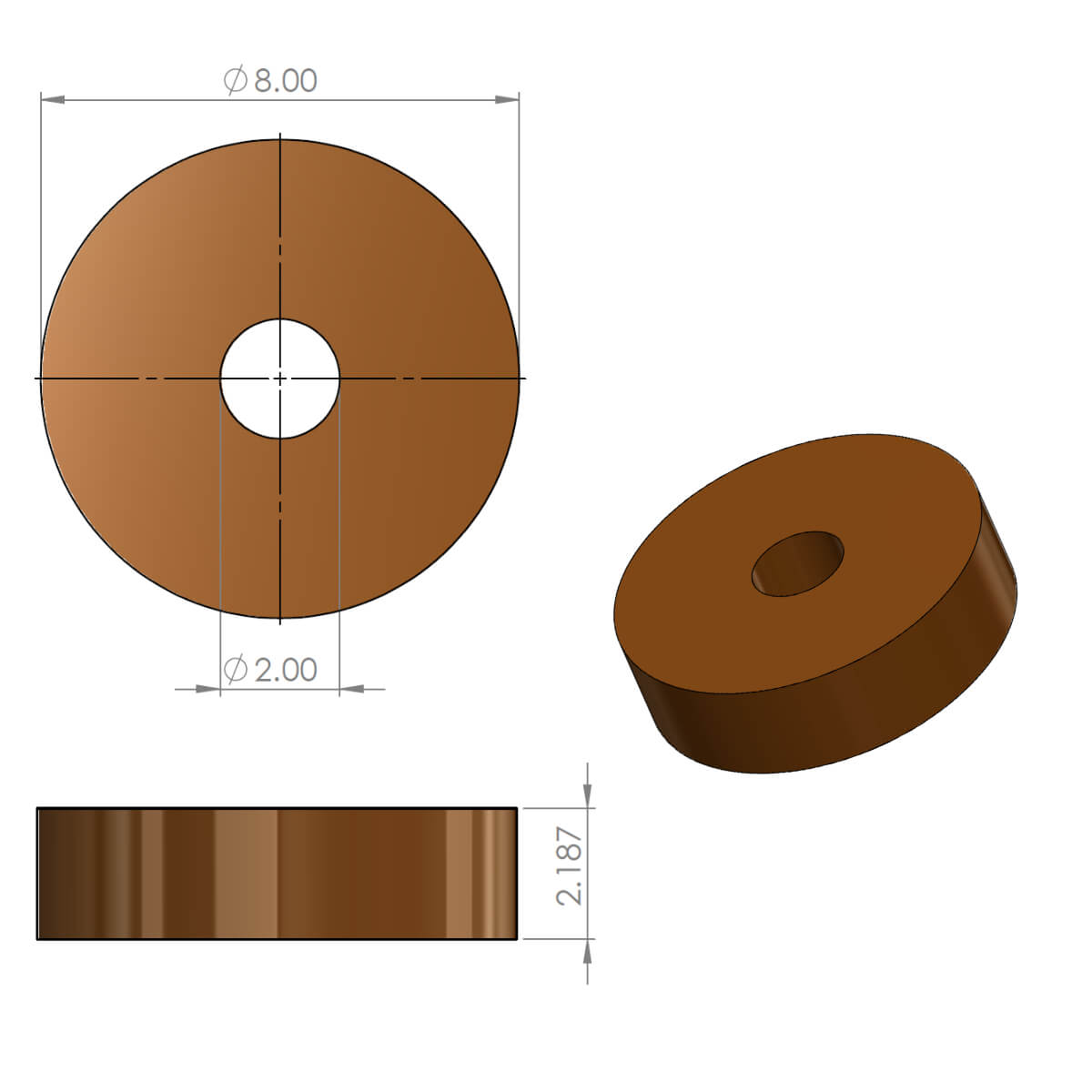

Near Net Tube Blanks 8.00" OD x 2.00" ID x 2.187" thick

Available Colors

  • Brown

Safety Data Sheet

Contact Us

Typical Properties of XtremeEPP ™ XU2 Ultraspin2 Non-Metallic Spinning Wheel

DETAIL
Description Value
Material Type Proprietary
Chemical Name Proprietary
Trade Name XU2 XtremeEPP™ Ultraspin2
Additives Proprietary
Color Brown
Manufacturer Boedeker Plastics, Inc.
PHYSICAL
Property Test Unit of Measure Value
Density ASTM D792 g/cm³ 1.3
  ASTM D792 lb/in³ 0.047
Water Absorption, Saturation, Immersion ASTM D570 % by wt. 6.5
MECHANICAL
Property Test Unit of Measure Value
Tensile Strength D638 psi 14,500
Tensile Modulus ASTM D638 psi 730,000
Tensile Elongation at Break ASTM D638 % 2.2
Flexural Strength ASTM D790 psi 22,500
Flexural Modulus ASTM D790 psi 700,000
Compressive Strength ASTM D695 psi 30,000
Compressive Modulus ASTM D695 psi 430,000
Hardness ASTM D785 A Rockwell A25
IZOD Impact-Notched ISO 180 ft-lb/in 1.9
ELECTRICAL
Property Test Unit of Measure Value
Dielectric Strength ASTM D149 V/mil 433
COMPLIANCE
Description Value
FDA No
USDA No
NSF No
3-A Dairy No
Canadian Food Inspection Agency No
USP Class VI No
OTHER
Description Value
UV Resistant No
Relative Cost $$$$$$$
Machinability 5

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

XtremeEPP™ is a registered trademark of Boedeker Plastics, Inc. Leifeld®, M&M®, Autospin® and Denn® are registered trademarks and property of their respective owners.
