Ensinger PVC Polyvinyl Chloride - Discontinued

Compare Go To Comparison Add Additional Products For Comparison

-

1. Select Shape

2. Please Select Thickness

2. Please Select Diameter

2. Please Select Outer Diameter

2. Please Select Type & Size

Unit of Measure

In order to provide an accurate quote for your part, you'll need to provide some information through our custom quote request form.

3. Please Select Dimensions *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

3. Please Select Length *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

General Info

This product has been discontinued, click here for PVC Type 1.

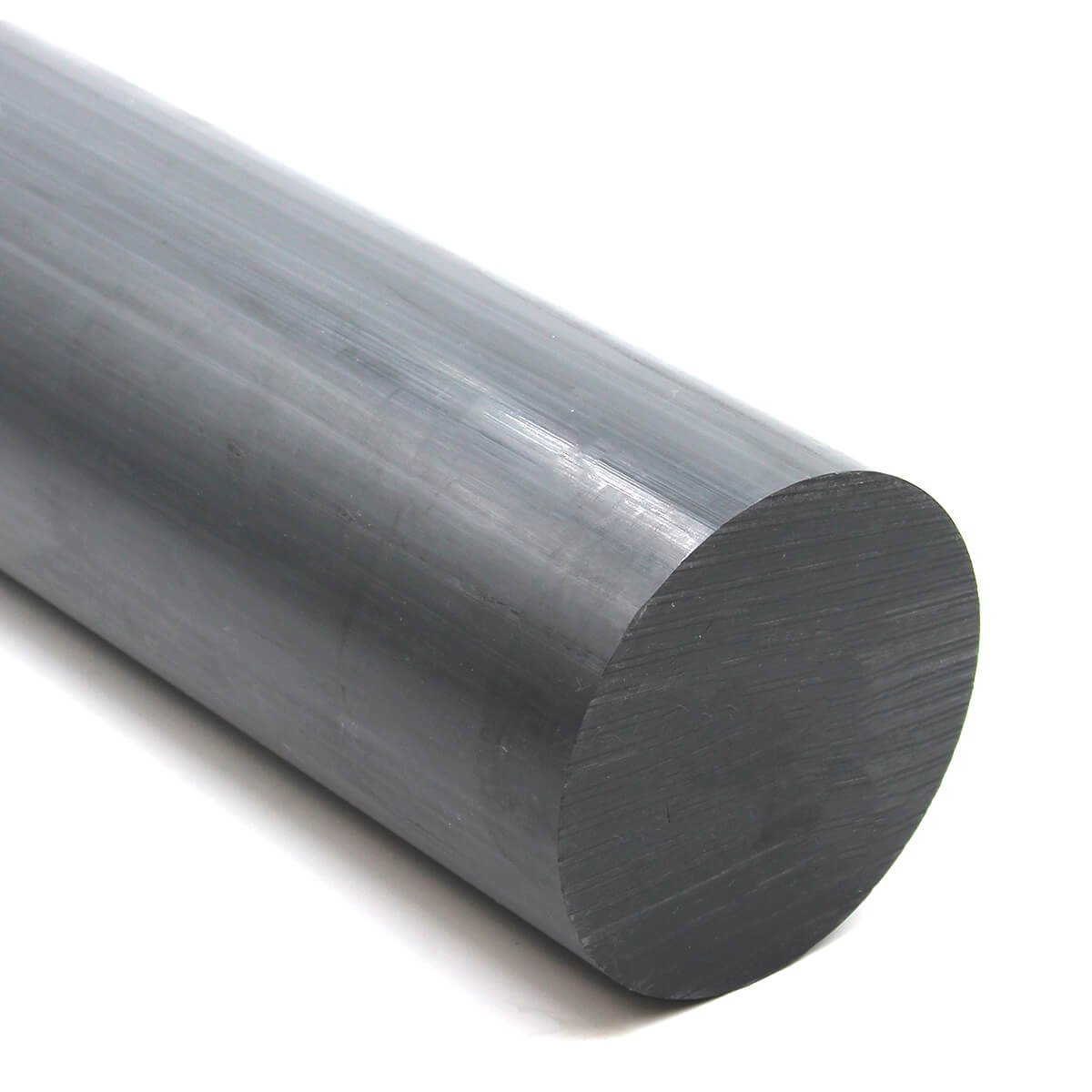

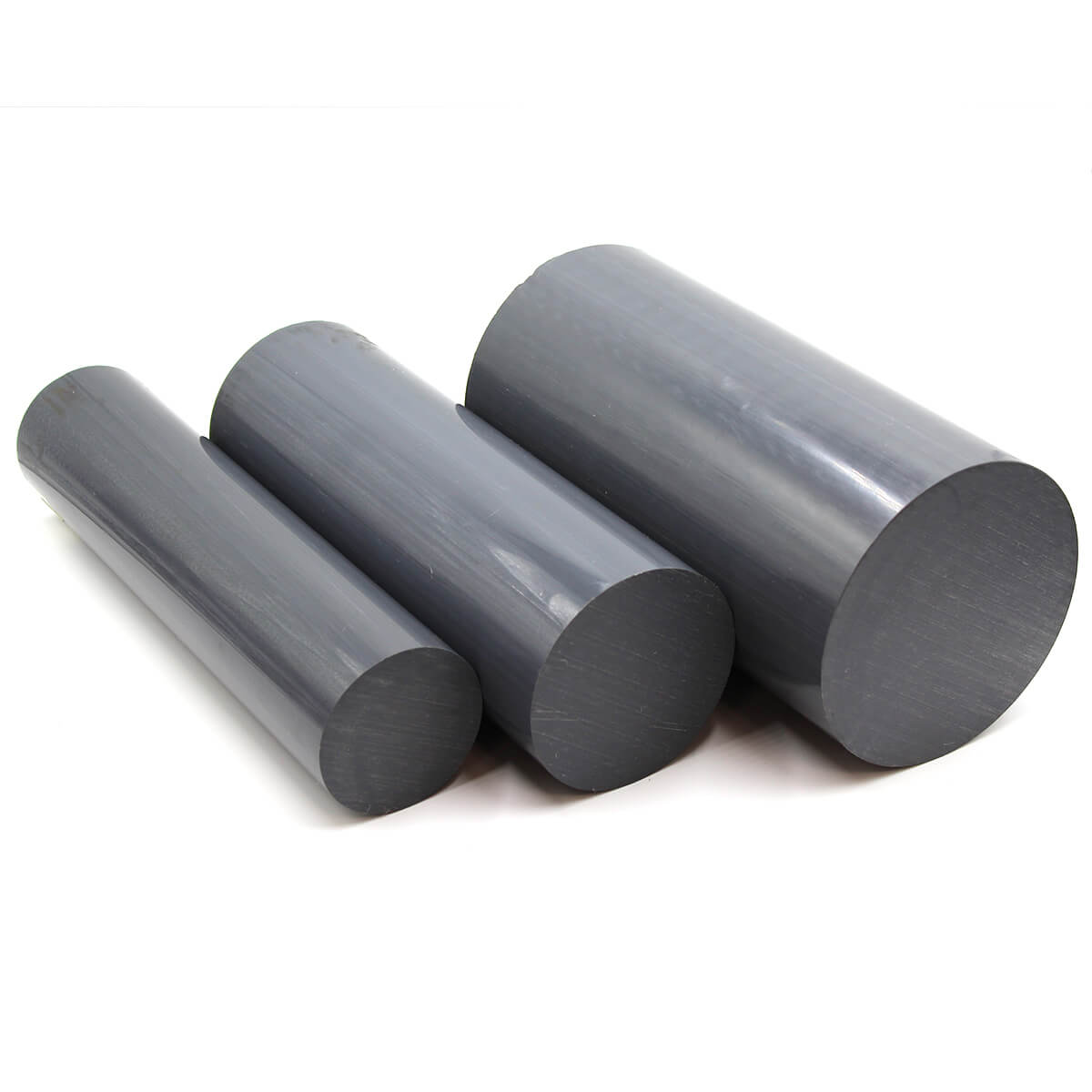

Ensinger's type 1 grey PVC ROD is designed for machining solutions ans is a cost effective solution for general industrial applications. The material offers an excellent combination of chemical resistance and mechanical strength, along with good thermal and electrical properties that are suited to a variety of industries.

Click for more information on the complete line of PVC & CPVC Plastics

Key Properties

  • Excellent chemical and corrosion resistance
  • Very good mechanical strength
  • Non-contamination for application requiring high levels of material purity
  • Excellent flammability characteristics

Limitations

  • Lower Operation Temp 140°F
  • Higher Density than other Thermoplastics

Applications

  • Flanges
  • Manifolds
  • Pump Housings
  • Valve Components

Resin Trade Names

Manufacturer Trade Names

  • PVC

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Available Colors

  • Gray

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of Ensinger PVC Polyvinyl Chloride - Discontinued

DETAIL
Description Value
Material Type Amorphous Thermoplastic
Chemical Name PVC Polyvinyl Chloride
Trade Name PVC
Additives Unfilled
Color Gray
Manufacturer Ensinger
PHYSICAL
Property Test Unit of Measure Value
Density ASTM D792 g/cm³ 1.38
  ASTM D792 lb/in³ 0.05
Water Absorption, 24 hrs, Immersion ASTM D570 % by wt. 0.02
MECHANICAL
Property Test Unit of Measure Value
Tensile Strength ASTM D638 psi 7,300
Tensile Modulus ASTM D638 psi 410,000
Flexural Strength ASTM D790 psi 15,000
IZOD Impact-Notched ASTM D256 ft-lb/in 0.9
THERMAL
Property Test Unit of Measure Value
Coefficient of Linear Thermal Expansion ASTM D696 x 10-5 in./in./°F 2.9
Heat Deflection Temp ASTM D648 °C at 264 psi 70
  ASTM D648 °F at 264 psi 158
Max Continuous Operating Temp °C 60
  °F 140
Flammability Rating UL94 NA V-0
COMPLIANCE
Description Value
FDA No
USDA No
NSF No
3-A Dairy No
Canadian Food Inspection Agency No
USP Class VI No
OTHER
Description Value
UV Resistant No
Relative Cost $$
Machinability 2

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.
