Sustarin ® C MG (Medical Grade) Hostaform® MT® 2U06 Acetal

Compare Go To Comparison Add Additional Products For Comparison

-

1. Select Shape

2. Please Select Thickness

2. Please Select Diameter

2. Please Select Outer Diameter

2. Please Select Type & Size

Unit of Measure

In order to provide an accurate quote for your part, you'll need to provide some information through our custom quote request form.

3. Please Select Dimensions *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

3. Please Select Length *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

General Info

Sustarin® C MG (Medical Grade) Acetal is made from Celanese Hostaform® MT®2U06 medical grade resin which replaced Celanese Celcon® M25.

Sustarin® C MG is easy to machine to close tolerances and dimensionally stabile along with good wear properties and a low coefficient of friction. Available in multiple colors and USP Class VI compliant and ISO 10993-5 certified.

All Medical Grade Rochling materials are subjected to numerous quality tests in all phases of production, including 100% ultrasonic testing. Full lot and batch traceability is available upon request with detailed certification documents and raw material certificates of analysis.

Key Properties

  • 100% ultrasonic testing
  • Full lot and batch traceability is available upon request with detailed certification documents and raw material certificates of analysis
  • Excellent Dimensional Stability
  • Easy to Machine to Close Tolerances
  • Porosity Free
  • Available in Multiple Colors
  • Meets ASTM D6100
  • FDA21 CFR 177.2470
  • USP Class VI & ISO 10993-5 Certified

Limitations

  • Wear Resistance in Dry Environments
  • Lower Temperature Stability (to 180 F)
  • Poor Resistance to Strong Acids and Alkalies
  • Formaldehyde Outgassing
  • Lower Stiffness than Homopolymer Acetal

Applications

  • Handles & Grips for Surgical Instruments
  • Medical Device Bearing & Wear Components
  • Medical Device Structural Components
  • Pharmaceutical & Biotechnology Components
  • Supports & Adaptors for Respiratory Units

Resin Trade Names

  • Celanese Hostaform® MT®2U06

Manufacturer Trade Names

  • Sustarin® C MG (Medical Grade) Acetal

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Sheet Thickness .375” to 4.000” Width & Length 24.000” x 48.000” Rod Diameters .375” to 8.000” Boedeker offers cut to size service on all in-stock items and same day shipping. If you don’t see the size your looking for contact us for alternative options.

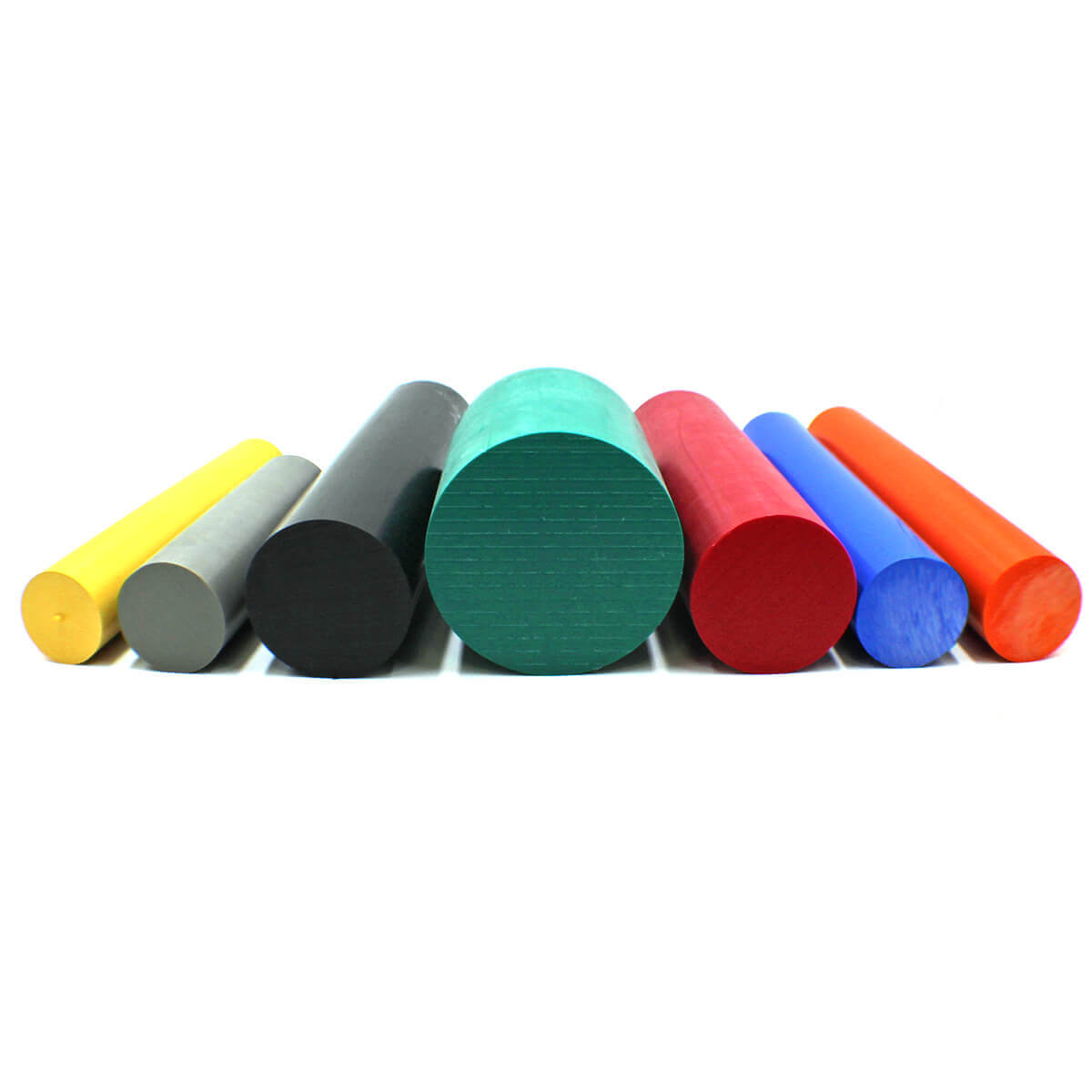

Available Colors

  • Natural
  • Blue
  • Red
  • Yellow
  • Green
  • Brown
  • Custom Colors Available

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of Sustarin ® C MG (Medical Grade) Hostaform® MT® 2U06 Acetal

DETAIL
Description Value
Material Type Semi-Crystalline Thermoplastic
Chemical Name POM Polyoxymethylene Acetal Copolymer
Trade Name Sustarin® C MG (Medical Grade) Acetal
Additives Proprietary
Color Assorted Colors
Manufacturer Rochling
PHYSICAL
Property Test Unit of Measure Value
Density ASTM D792 g/cm³ 1.41
  ASTM D792 lb/in³ 0.051
MECHANICAL
Property Test Unit of Measure Value
Tensile Strength ASTM D638 psi 9,500
Tensile Elongation at Break ASTM D638 % 40
Flexural Strength ASTM D790 psi 12,000
Flexural Modulus ASTM D790 psi 400,000
Hardness ASTM D785 NA Rockwell R120
IZOD Impact-Notched ASTM D256 ft-lb/in 1.2
THERMAL
Property Test Unit of Measure Value
Heat Deflection Temp ASTM D648 °C at 264 psi 107
  ASTM D648 °F at 264 psi 225
Max Continuous Operating Temp °C 82
  °F 180
Minimum Operating Temp °C -50
  °F -58
ELECTRICAL
Property Test Unit of Measure Value
Surface Resistivity ASTM D257 ohm/square 10^16
COMPLIANCE
Description Value
FDA Yes
USDA No
NSF No
3-A Dairy No
Canadian Food Inspection Agency No
USP Class VI Yes
OTHER
Description Value
ASTM Shape Spec ASTM D6100
UV Resistant No
Relative Cost $$$$$
Machinability 1

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

Sustarin® is a registered trademark of Röchling Engineering Plastics. Hostaform® MT® 2U06 are registered trademark of Celanese Corporation.
