General Info
Rulon® 641 is white in color and FDA/USDA & USP Class VI compliant and specifically developed for food and drug applications. Rulon ® 641 is designed to run dry without any moisture or lubrication.
Rulon® 641 offers excellent wear at elevated temperatures, runs against all mating materials. Used primarily in food processing applications. Resistant to caustic wash downs, steam.
Click for more information on the complete line of Rulon Plastics
Key Properties
- Excellent for FDA/USDA, Steam, Wet, Dry & Vacuum Environments
- Compatible with a wide range of mating surface materials including mild steel, 303 & 316 stainless, as well as harder materials.
- FDA & USDA Compliant
- USP Class VI Compliant
- Maximum Pressure Velocity (continuous)(MPa x m/s): 10,000PV (.35)
- Maximum Pressure PSI (Static)(MPa): 1,000 PSI (6.9)
- Maximum Velocity – SFM (no load)m/s): 400 (2)
- Shaft Hardness Minimum: Rc25
- Shaft Finish Ra µin9 (µm): 8-16 (.2-.4)
- Shaft Material: Mild, 303 &316 Stainless Steel
Limitations
- Subject to Creep, Cold Flow
- Tight Tolerance Applications
Applications
- Bushings and Bearings
- Food Processing Applications
- Pharmaceutical Applications
- Piston Rings
- Pump and Valve Components
- Thrust Washers
- Wear Bands
- Wear Pads
- Caustic Wash Down Applications
Resin Trade Names
Manufacturer Trade Names
Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.
Available Sizes
Note: Some Rulon® grades are made to order and have minimum order quantities.
Sheet
Molded
Thickness up to 3.140”
Width & Length 24” x 24”
Skived Tape
Thickness up to .250”
Width 38”

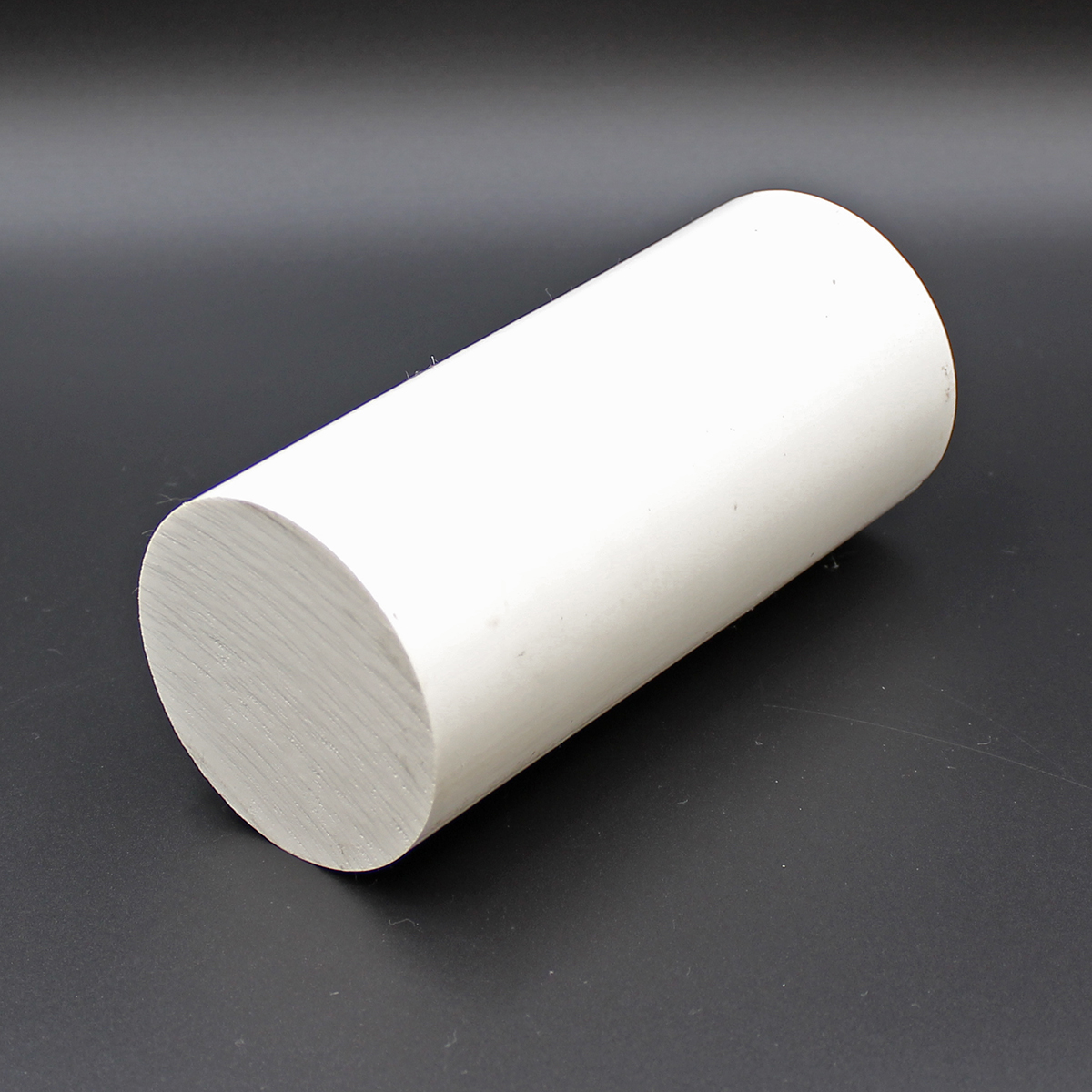

Rod
Extruded Rod
Diameters Up to 3.000”
Length 10’ L
Molded Rod
Diameters Up to 47”
Length 12” L
Molded Tube
OD Outside Diameter Up to 47.000”
ID Inside Diameter Contact US
Length 12” L
Boedeker offers cut to size service on all in-stock items and same day shipping. If you don’t see the size your looking for contact us for alternative options.
