SustaPEEK GF 30

Compare Go To Comparison Add Additional Products For Comparison

-

1. Select Shape

2. Please Select Thickness

2. Please Select Diameter

2. Please Select Outer Diameter

2. Please Select Type & Size

Unit of Measure

In order to provide an accurate quote for your part, you'll need to provide some information through our custom quote request form.

3. Please Select Dimensions *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

3. Please Select Length *

Sheet widths and lengths are cut to nominal dimensions; Rod lengths are also cut to nominal dimensions. Nominal cuts can be undersized by up to .200 inches. Cut-to-size items are non-refundable. See our return policy for more details. Contact us if you need precision cut sizes.

General Info

SUSTAPEEK (polytheretherketone) GF 30 (30% glass reinforced) has improved stiffness, higher HDT and better dimensional stability over unfilled PEEK. SustaPEEK products are manufactured with PEEK resin from Victrex.

Key Properties

  • Continuous use temperature of 480° F
  • Better dimensional stability than unfilled PEEK
  • Improved Stiffness at Higher Temperatures
  • Excellent hydrolysis resistance
  • Excellent chemical resistance

Limitations

  • Poor Chemical Resistance to Halogens and Their Acids Including Bromine, Chlorine, Fluorine, HBr and HF

Applications

  • Structural Components
  • Electrical Connectors
  • Electrical Housings

Resin Trade Names

  • VICTREX® PEEK 450GL30

Manufacturer Trade Names

  • SustaPEEK GF 30

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

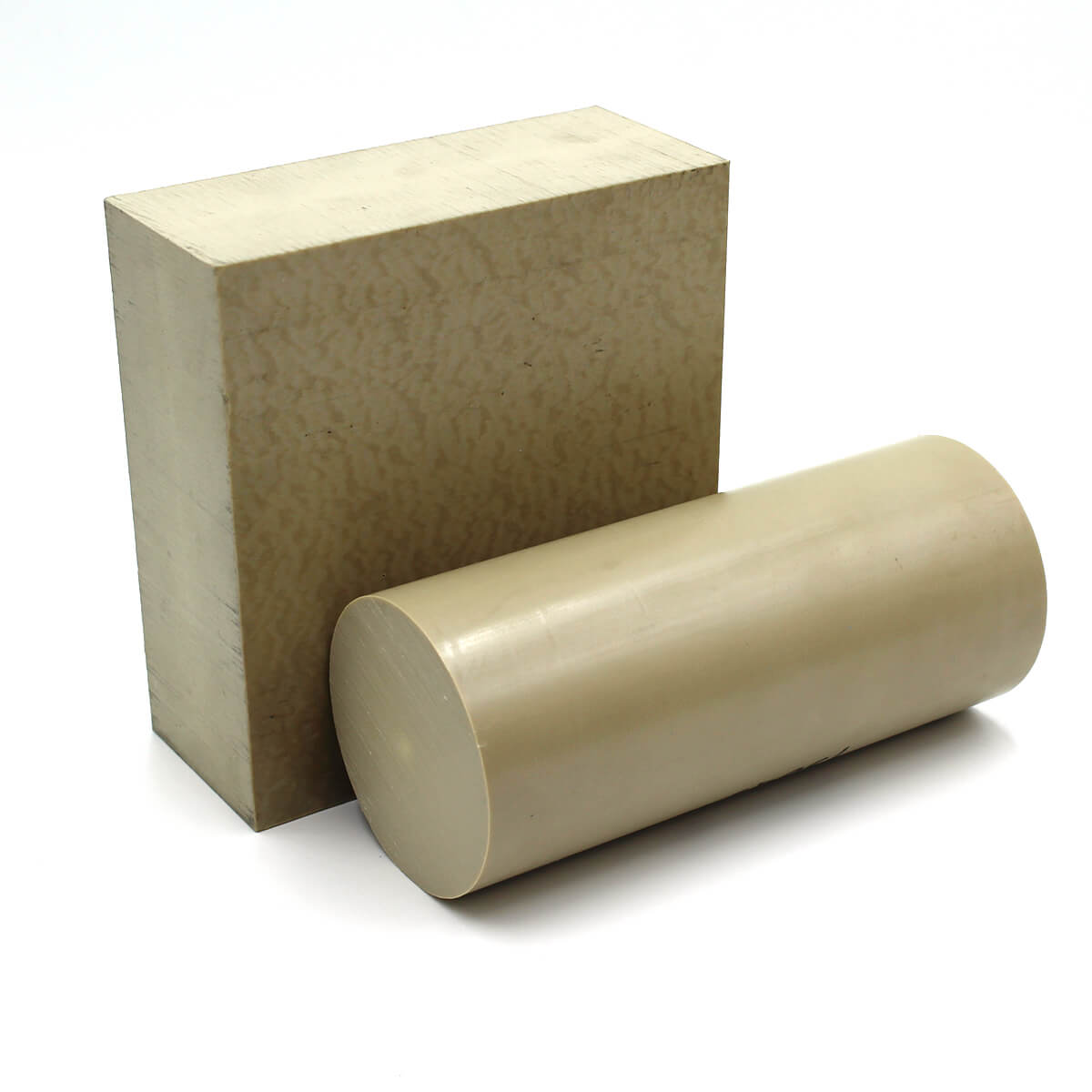

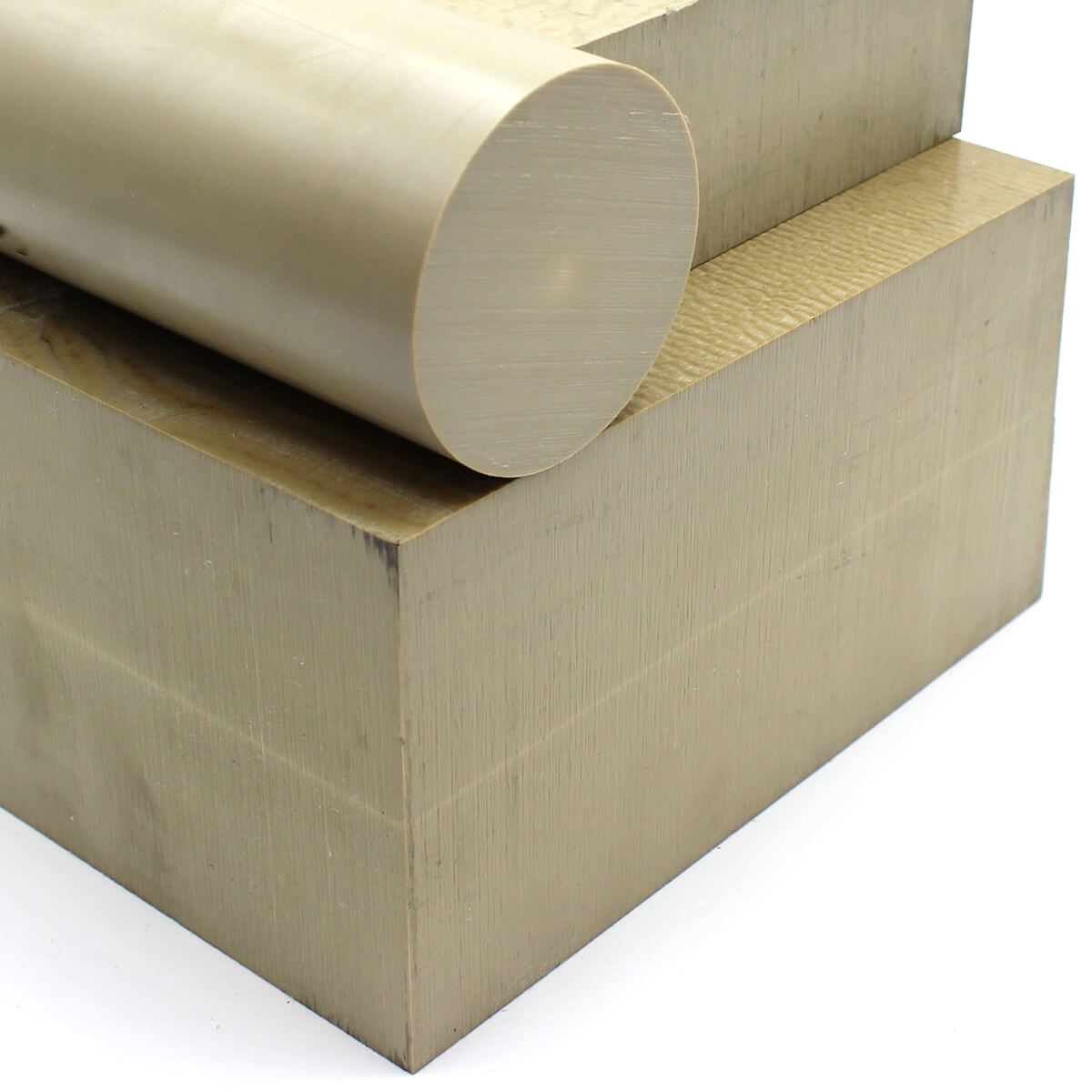

Sheet* Thickness .375” to 6.000” Width & Length 24.000” x 48.000” Thickness .500” to 2.000” Width & Length 48.000” x 96.000” Width & Length 48.000” x 120.000” Rod* Diameters .250” to 6.000” Length 10’ Diameters 7.000” to 12.000” Length 3’ Tube* Various Sizes Available OD & ID vary depending on formulation. (*) Minimums may apply for some formulations depending on grade & shape size required. Boedeker offers cut to size service on all in-stock items and same day shipping. If you don’t see the size your looking for contact us for alternative options.

Available Colors

  • Natural (Tan)

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of SustaPEEK GF 30

DETAIL
Description Value
Material Type Semi-Crystalline Thermoplastic
Chemical Name PEEK Polyetheretherketone
Trade Name SustaPEEK GF 30
Additives 30% Glass
Color Natural Tan
Manufacturer Rochling
PHYSICAL
Property Test Unit of Measure Value
Density ASTM D792 g/cm³ 1.51
  ASTM D792 lb/in³ 0.055
Water Absorption, 24 hrs, Immersion ASTM D570 % by wt. 0.1
Water Absorption, Saturation, Immersion ASTM D570 % by wt. 0.1
MECHANICAL
Property Test Unit of Measure Value
Tensile Strength ASTM D638 psi 24,000
Tensile Modulus ASTM D638 psi 1,300,000
Tensile Elongation at Break ASTM D638 % 3
Flexural Strength ASTM D790 psi 28,000
Flexural Modulus ASTM D790 psi 1,350,000
Compressive Strength ASTM D695 psi 26,000
Hardness ASTM D785 NA Rockwell M105
IZOD Impact-Notched ASTM D256 ft-lb/in 1.4
THERMAL
Property Test Unit of Measure Value
Coefficient of Linear Thermal Expansion ASTM D696 x 10-5 in./in./°F 1.2
Heat Deflection Temp ASTM D648 °C at 264 psi 260
  ASTM D648 °F at 264 psi 500
Melting Point Temp ASTM D3418 °C 341
  ASTM D3418 °F 645
Max Continuous Operating Temp °C 266
  °F 510
Minimum Operating Temp °C -60
  °F -76
Thermal Conductivity ASTM C117 BTU-in/ft²-hr-°F 2.98
Flammability Rating UL94 NA V-0
ELECTRICAL
Property Test Unit of Measure Value
Dielectric Strength ASTM D149 V/mil 500
Surface Resistivity ASTM D257 ohm/square 10^16
COMPLIANCE
Description Value
FDA No
USDA No
NSF No
3-A Dairy No
Canadian Food Inspection Agency No
USP Class VI No
OTHER
Description Value
ASTM Shape Spec ASTM D6262-99
UV Resistant No
Relative Cost $$$$$$
Machinability 7

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

VICTREX® PEEK is a registered trademark of VICTREX PLC.
