General Info
TIVAR Ceram P Ultra High Molecular Weight Polyethylene (UHMW-PE) is a self-lubricating, glass-filled material known for its bright green color. This grade is recognized for its excellent corrosion resistance, toughness, high impact strength, minimal moisture absorption, tensile strength, and exceptional wear resistance, which is better than virgin UHMW grades and other common polymers. In many applications, this leads to increased part life and reduced maintenance downtime.
TIVAR Ceram P UHMW-PE is commonly used in conveying, agriculture, lumber processing, material handling, pulp, paper, and steel milling industries due to its superior performance in high load, high speed, and severe sliding applications as a bearing and wear material for wear strip, linear bearings, wear liners and other bearing and wear applications.

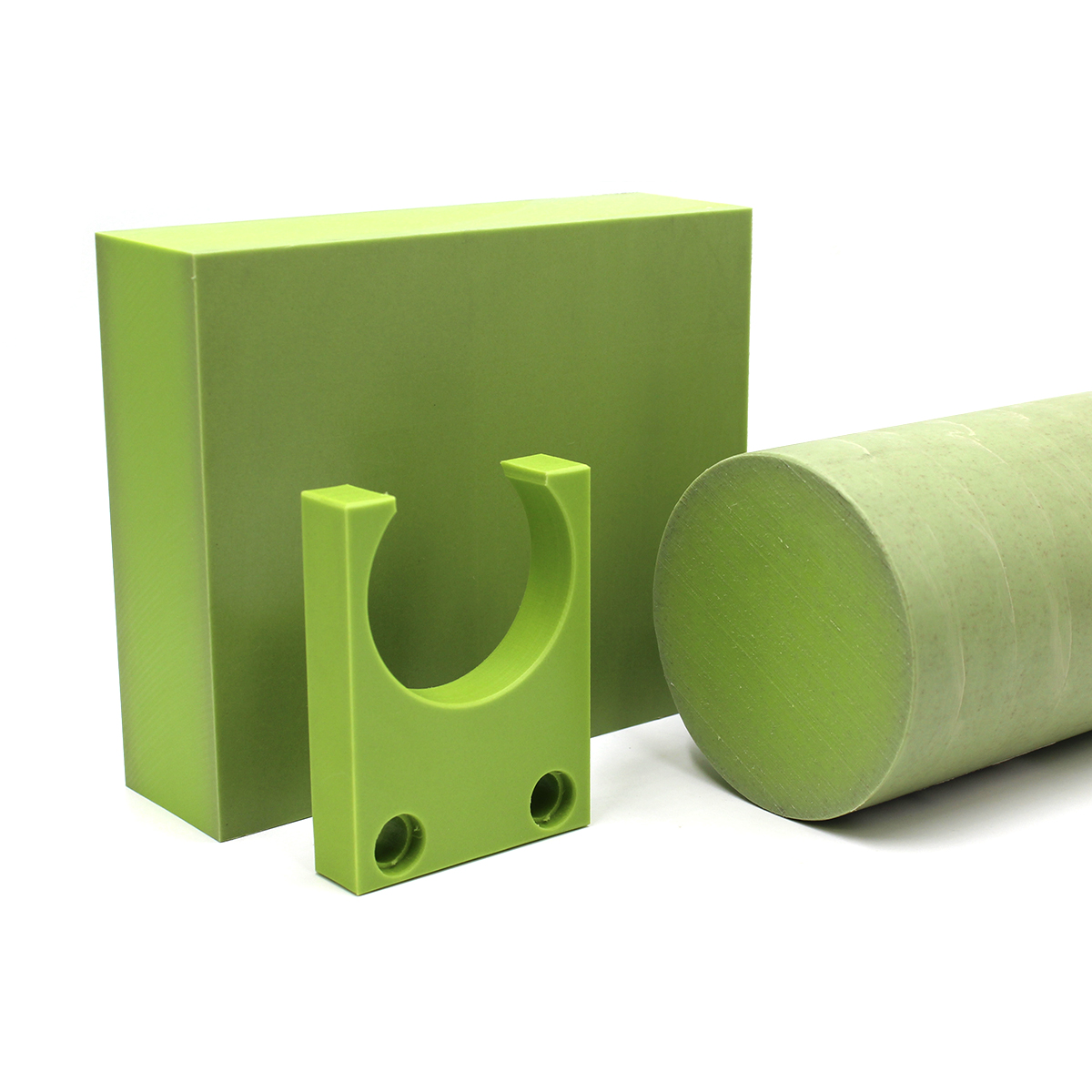

It is available in various sheets, rods, and CNC machined parts, making it an ideal choice for applications requiring longer wear life than unfilled UHMW or other wear-resistant plastics. The increased part life and reduced downtime result in improved productivity and cost savings.
When comparing wear data from the ASTM G65 Sand Slurry Abrasion test (see below), TIVAR Ceram P demonstrates the lowest material loss, which is 15% lower than Unfilled Virgin UHMW and other wear-resistant polymers and metals.
In wear applications involving particulate or abrasive media such as sand, Ceram P offers extended life for chain guides, wear strips, and other sliding wear parts, consistently delivering longer wear life in service and reducing maintenance costs by minimizing downtime
Sand Slurry Abrasion Index TableRelative volume loss "Sand Slurry Abrasion Index" test ASTM G65 vs 1018 Steel | Note: Lower Value = Lower Wear Rate
| Material | Value |
|---|
| TIVAR Ceram P Modified UHMW | 8.5 |
| TIVAR 1000 Virgin UHMW | 10 |
| Recycled UHMW | 15 |
| Nylatron NSM | 38 |
| PTFE | 78 |
| Stainless Steel 304 | 84 |
| Acetal Copolymer | 89 |
| Steel C-1018 | 100 |
Click for more information on the complete line of TIVAR UHMW Plastics
Key Properties
- High load, High-speed, abrasive applications
- Reduces noise
- Self-lubricating
- Wear-resistant
- Corrosion-resistant
- No moisture absorption
Limitations
- High Heat Environments
- High Loads
- Subject to Creep, Cold Flow
- Thermal Expansion
- Tight Tolerance Applications
Applications
- Bearing pads
- Bushings
- CAMS for fruit pitting machines
- Conveyor components—bearings, belt guides, chain guides, curves, guide rails, wear strips
- Pump impellers
- Rollers
- Telescoping boom pads
- Pump Wear rings

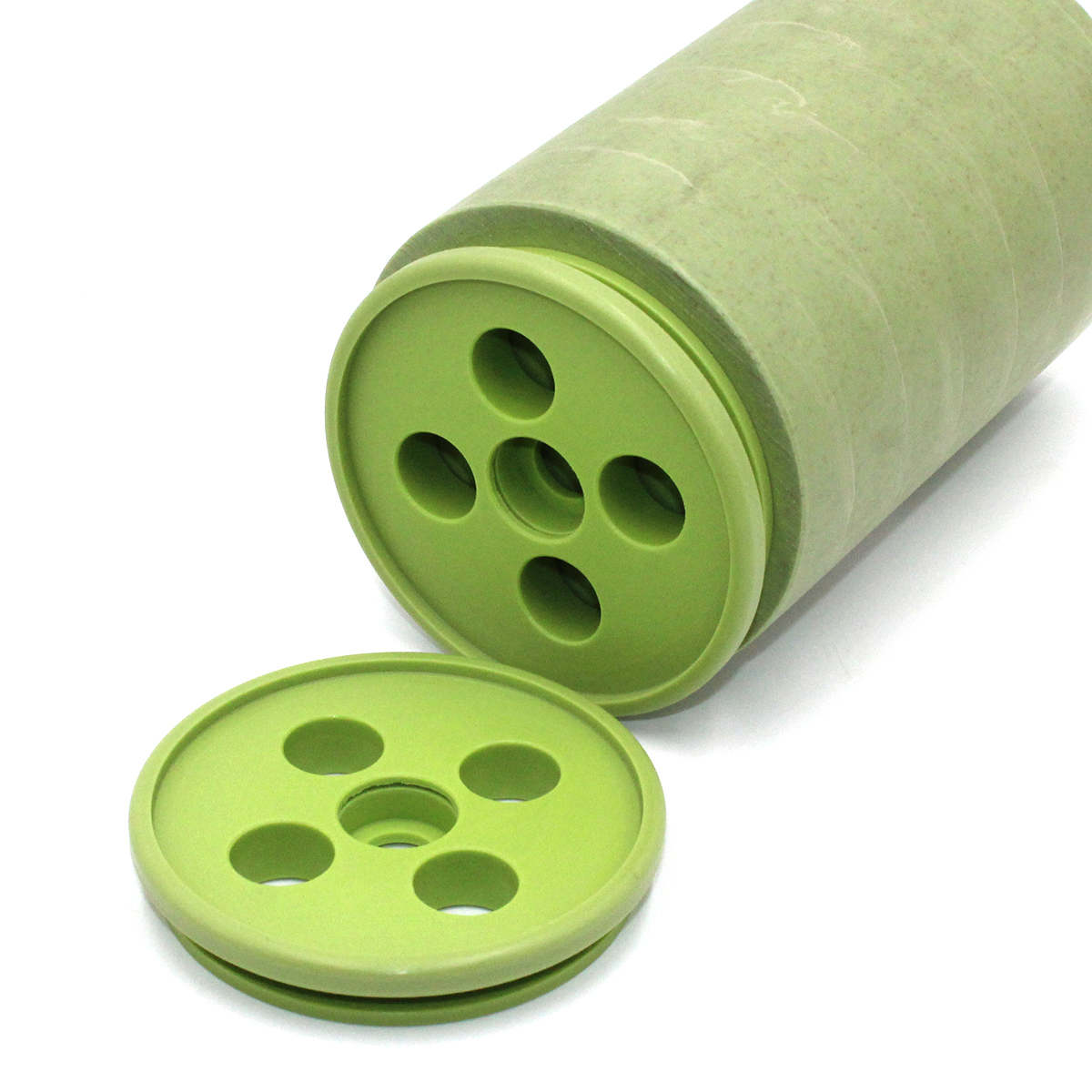

- Wire belt pulleys
Resin Trade Names
Manufacturer Trade Names
Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.
Available Sizes
