Corrtec ® Protec ™ PP

Compliance Info

Slide 1 of 5, currently active
Slide 2 of 5
Slide 3 of 5
Slide 4 of 5
Slide 5 of 5

General Info

Corrtect® Protec PP is highly chemical and corrosion resistant material that exhibits excellent tensile stiffness and low moisture absorption for use in a wide variety of applications and industries.

Key Properties

Chemical and Corrosion Resistant
Low Moisture Absorption
Easy to Fabricate, Weld, Machine, Thermoform, and Vacuum Form
Custom Colors and Sizes with Low Minimums•Oversized Sheets
FDA, USDA & NSF (Natural) Compliant

Limitations

Poor Resistance to Aromatic, Aliphatic and Chlorinated Solvents.

Applications

Chemical and Liquid - Tanks and Secondary Containment
Laboratory and Cleanroom
Containment Cabinetry, Furniture, and Fume Hoods
Medical - Orthotic and Prosthetic
Food Processing - Manufacturing and Preparation Components
Air Processing - Fume Hoods and Ducting
Die Cutting Pads

Resin Trade Names

Manufacturer Trade Names

Corrtec® Protec™ PP

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Sheet Finish | Smooth All Colors | Thickness .125” to 3.000” Standard sheet size is 48.000” x 96.000”, 48.000” x 120.000” & 60.000” x 120.000” Custom colors & sizes available upon request. Boedeker offers cut to size service on all in-stock items and same day shipping. If you don’t see the size your looking for contact us for alternative options.

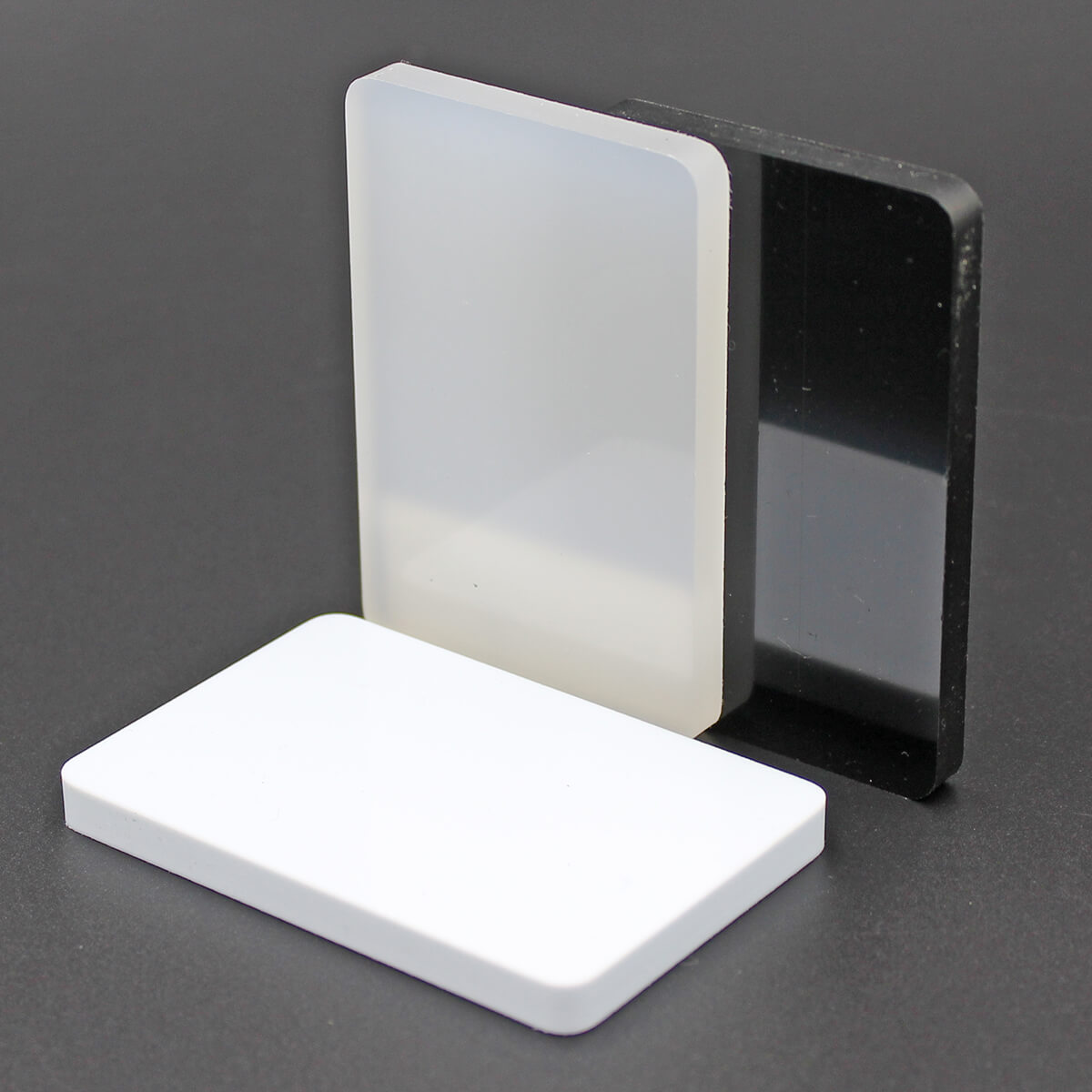

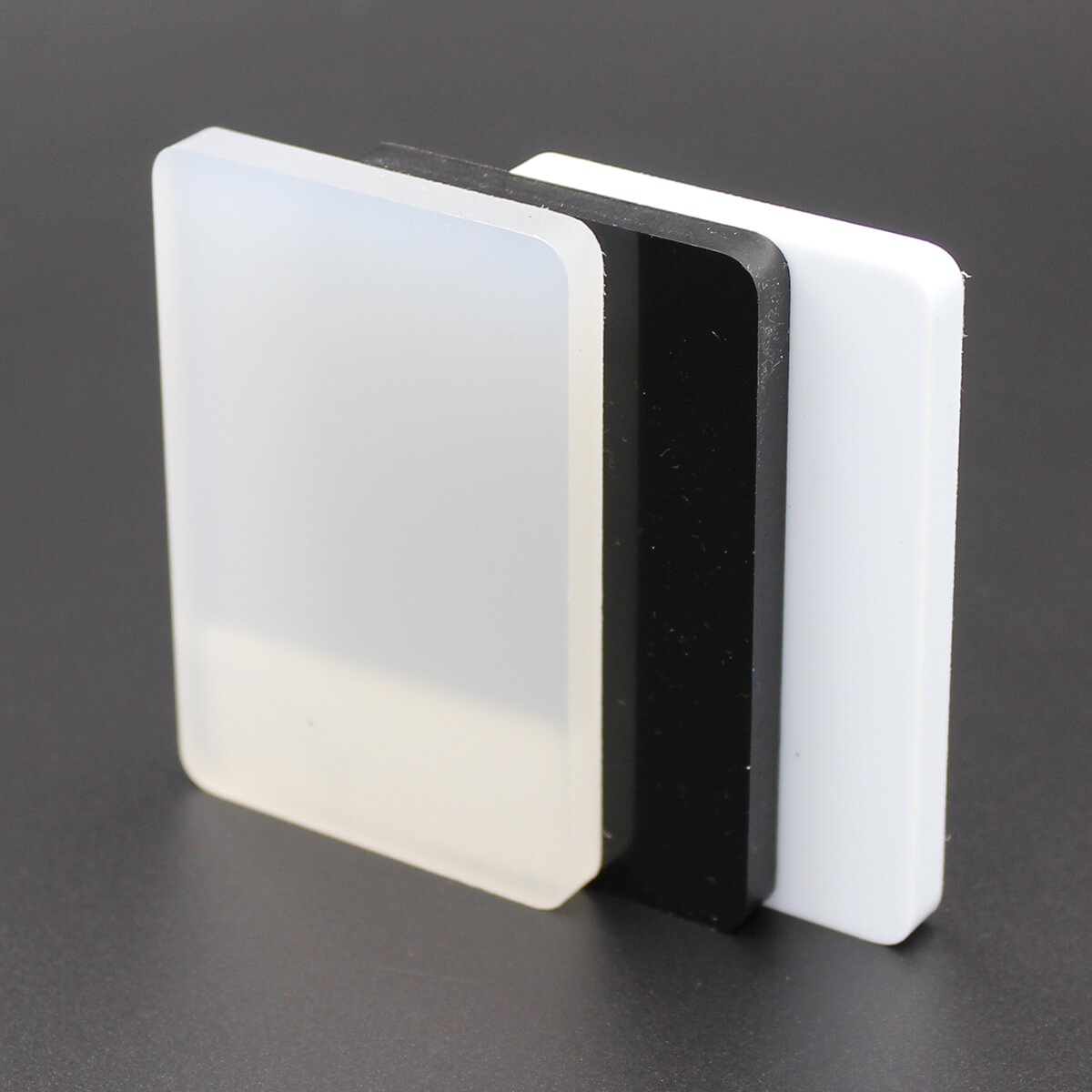

Available Colors

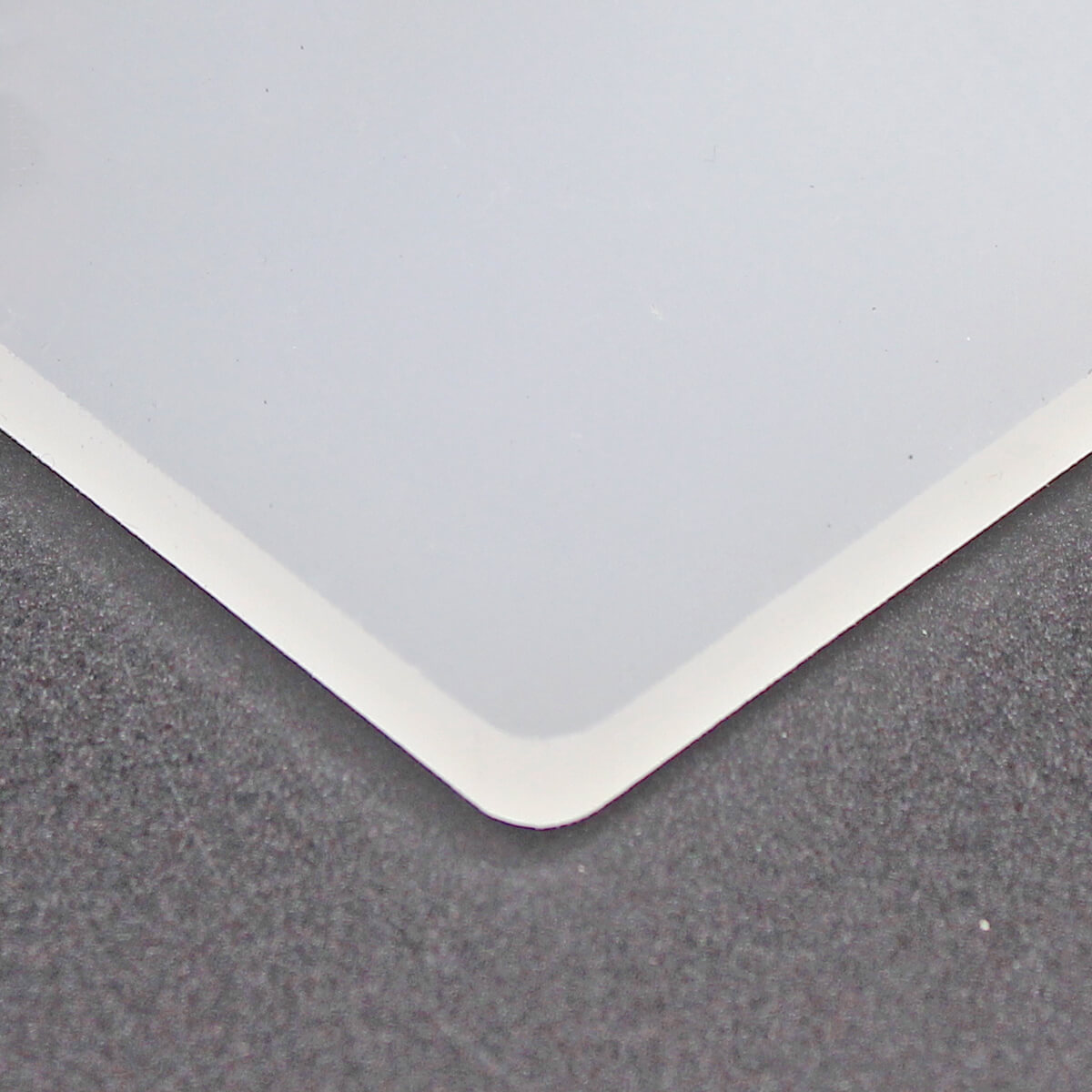

Natural

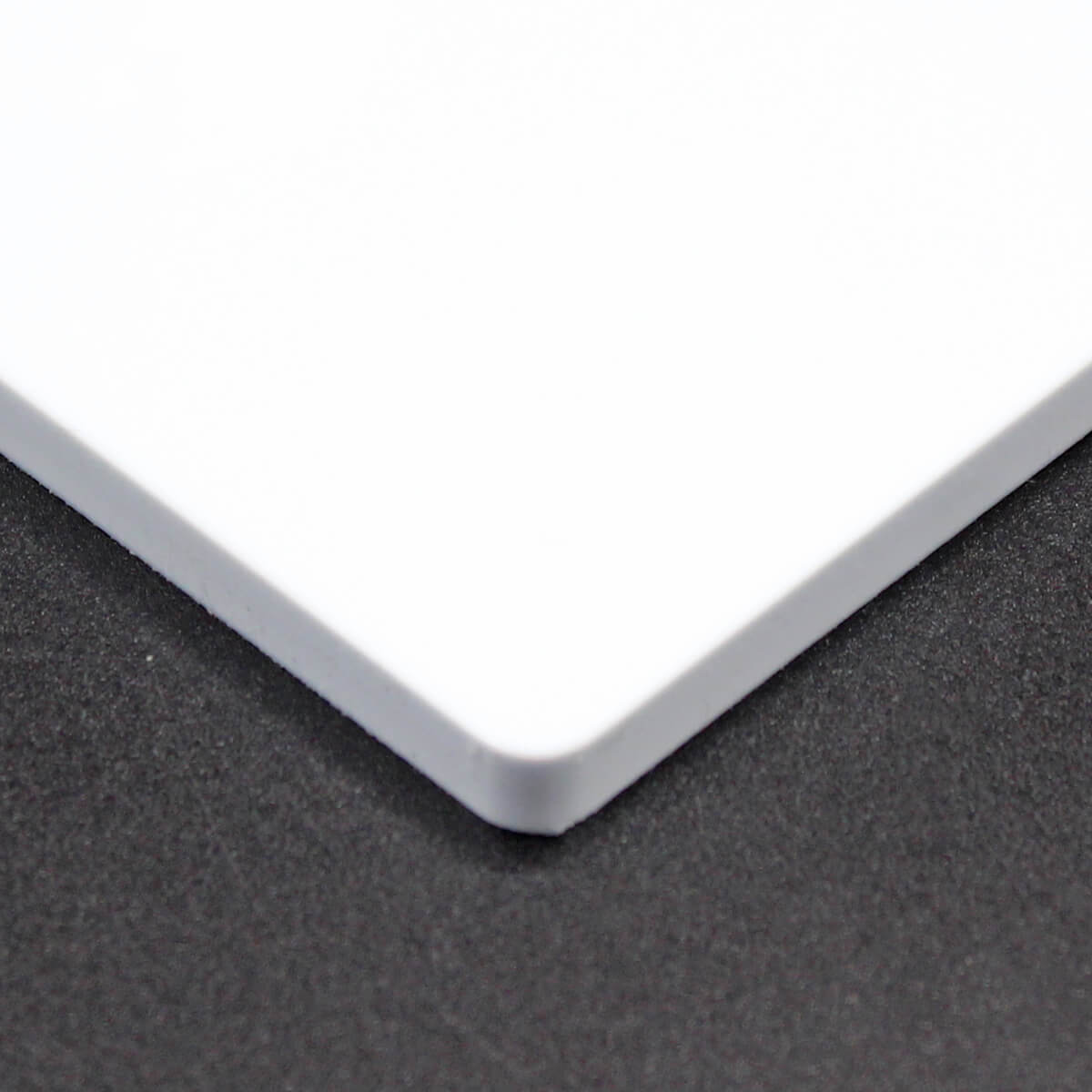

White

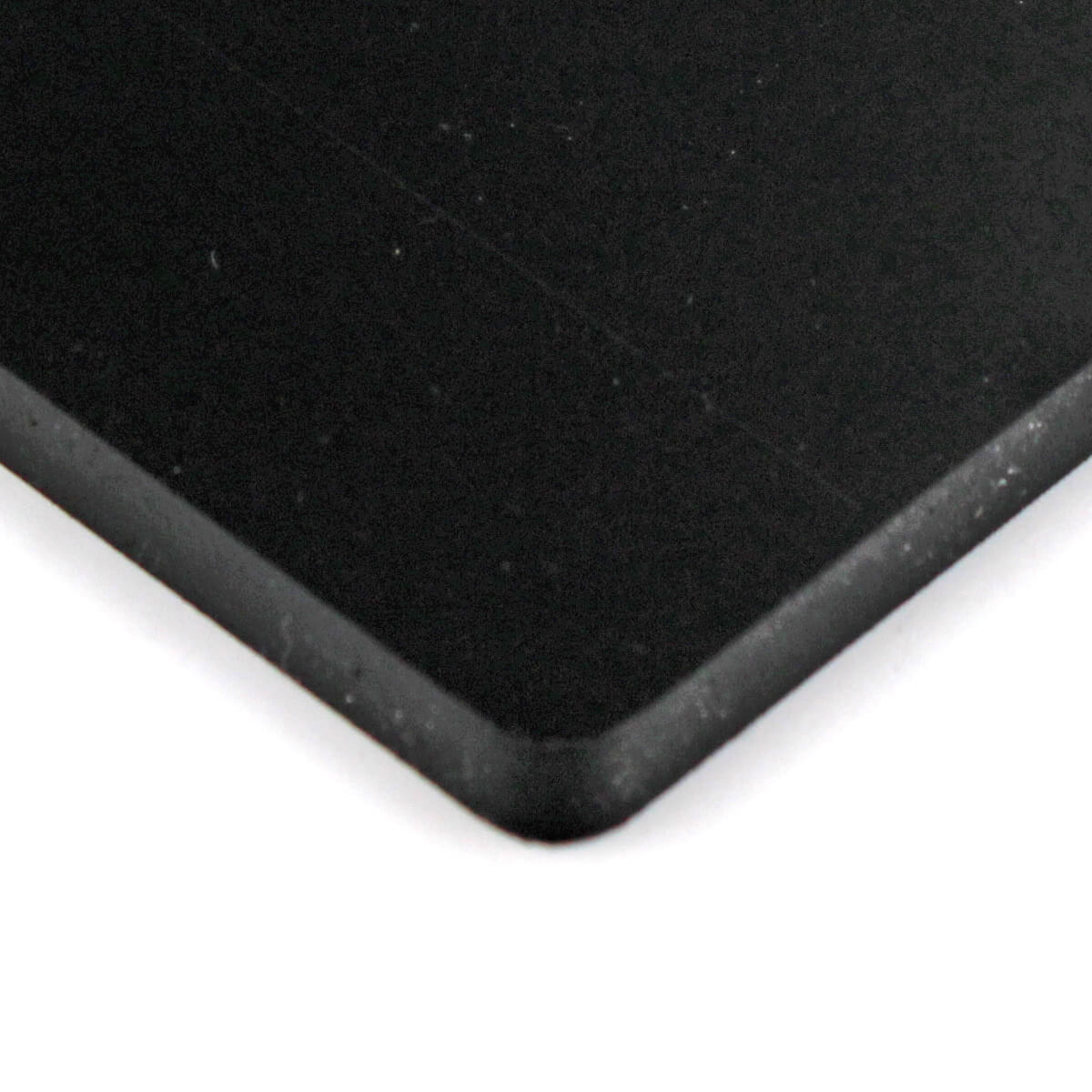

Black
Custom Colors

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of Corrtec ® Protec ™ PP

DETAIL
Description			Value
Material Type			Semi-Crystalline Thermoplastic
Chemical Name			PP Polypropylene
Trade Name			Corrtec® Protec™ PP
Additives			Proprietary
Color			Natural
Manufacturer			Vycom
PHYSICAL
Property	Test	Unit of Measure	Value
Density	ASTM D792	g/cm³	0.9
	ASTM D792	lb/in³	0.033
Water Absorption, 24 hrs, Immersion	ASTM D570	% by wt.	0.01
Water Absorption, Saturation, Immersion	ASTM D570	% by wt.	0.01
MECHANICAL
Property	Test	Unit of Measure	Value
Tensile Strength	ASTM D638	psi	4,900
Flexural Modulus	ASTM D790	psi	190,000
Hardness	ASTM D2240	NA	Shore D78
IZOD Impact-Notched	ASTM D256	ft-lb/in	0.9
THERMAL
Property	Test	Unit of Measure	Value
Coefficient of Linear Thermal Expansion	ASTM D703	x 10-5 in./in./°F	3.61
Max Continuous Operating Temp		°C	82
		°F	180
Minimum Operating Temp		°C	-10
		°F	14
Flammability Rating	UL94	NA	HB
COMPLIANCE
Description			Value
FDA			Yes
USDA			Yes
NSF			Yes
3-A Dairy			No
Canadian Food Inspection Agency			No
USP Class VI			No
OTHER
Description			Value
UV Resistant			No
Relative Cost			$
Machinability			1

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

Corrtec® Protec™ is a registered trademark of Vycom.
