General Info

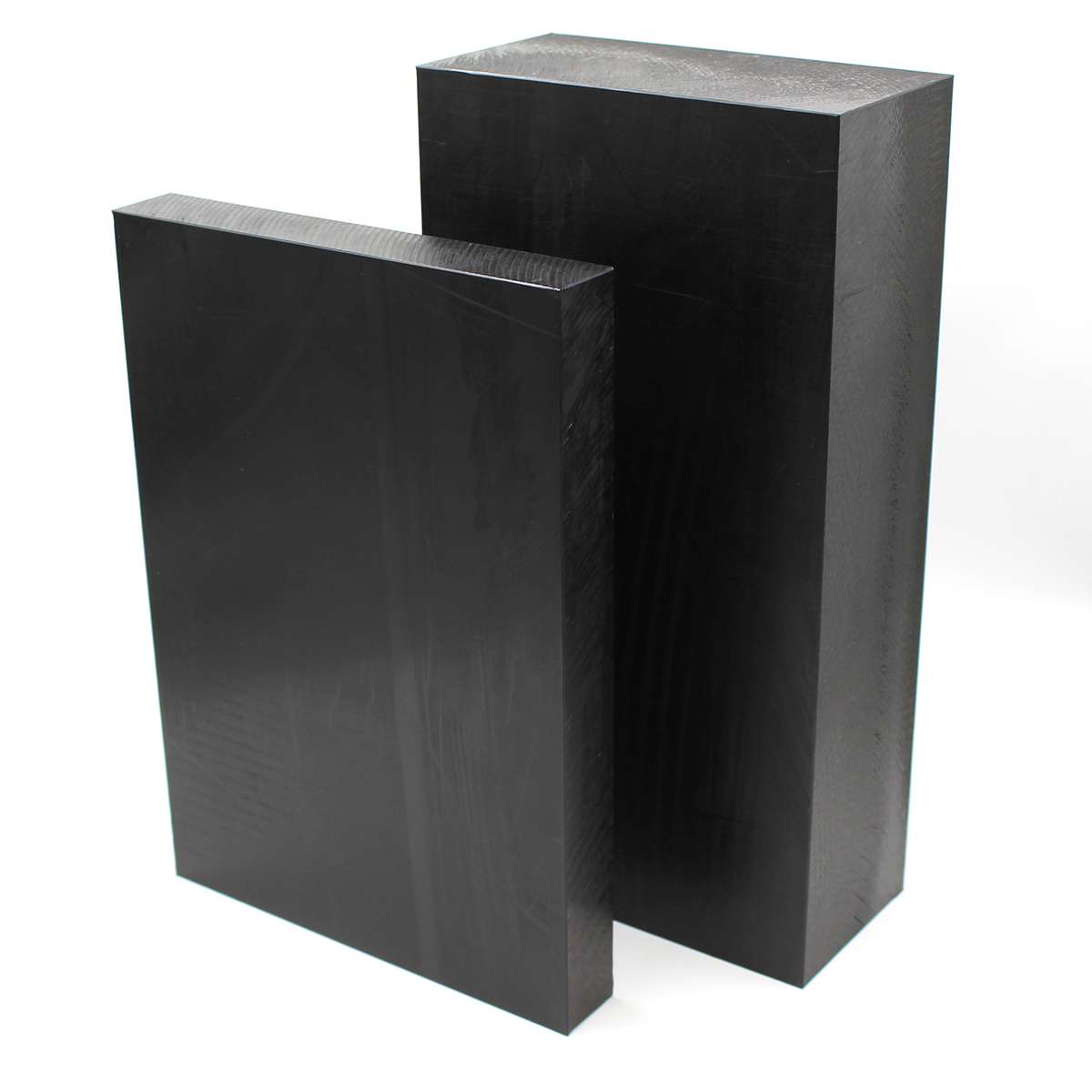

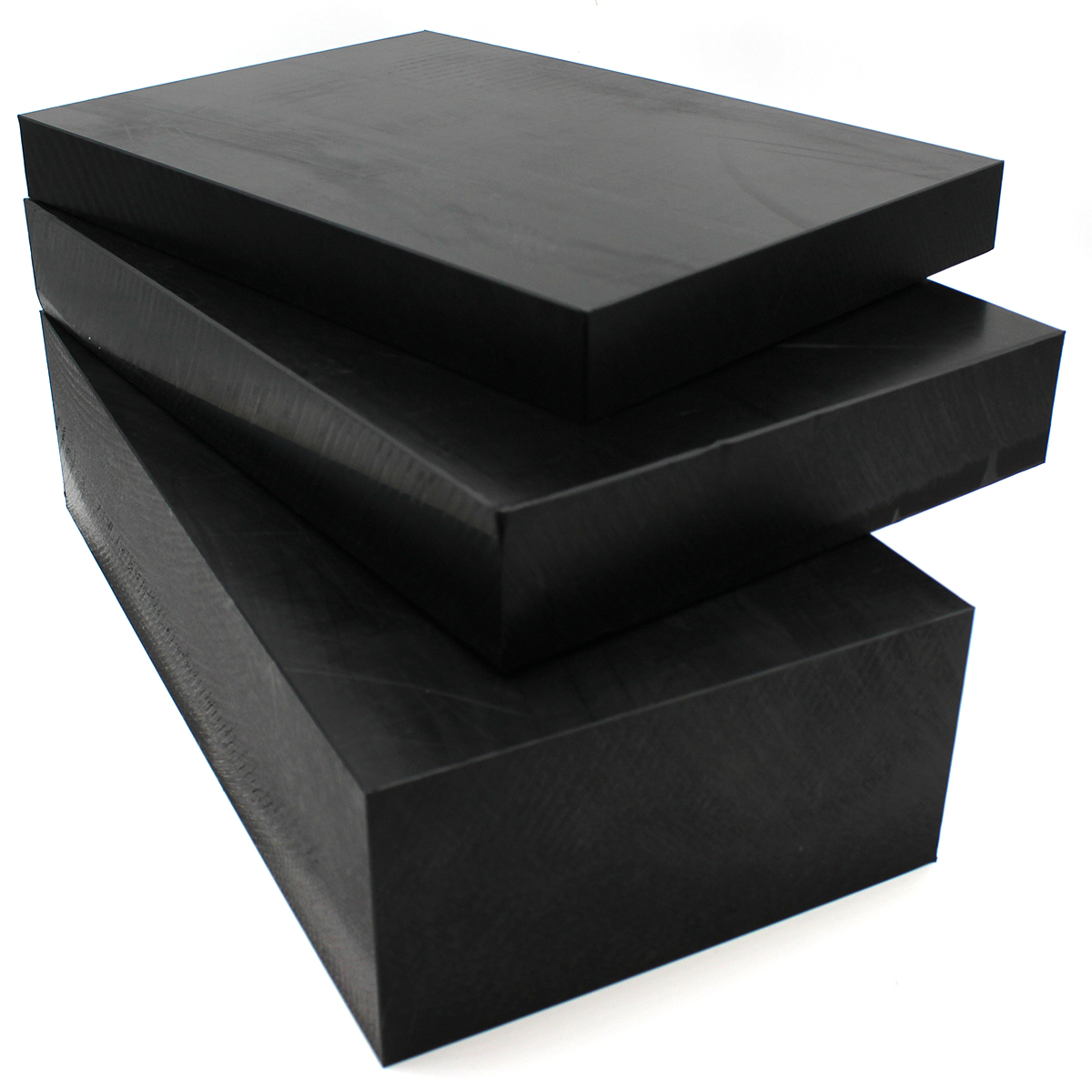

King PipeGrade® is a PE100 special black polyethylene sheet. It is the product of a proprietary process called K-Stran™, the most advanced manufacturing process for superior flatness and consistency up to 1-1/2” thick. It is also available in compression mold greater than 1” through 4” thick, and extrusion mold from 2-1/2” up to 12” thick. Custom mold sizes available. King PipeGrade® has a smooth black finish on both sides of sheet.

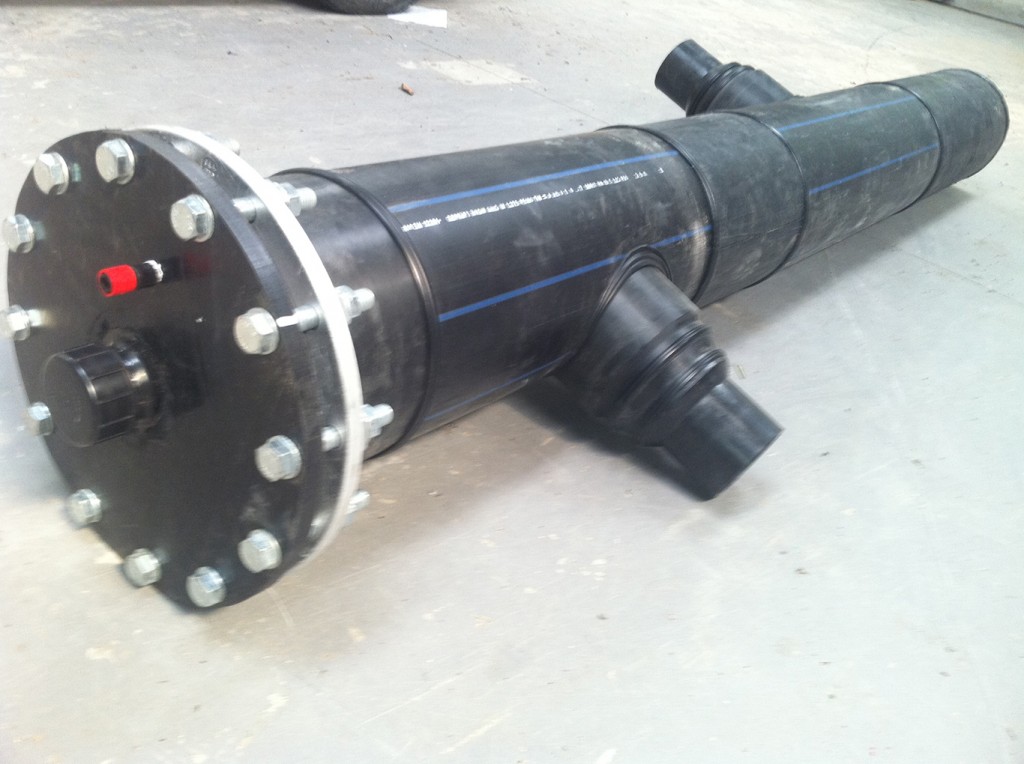

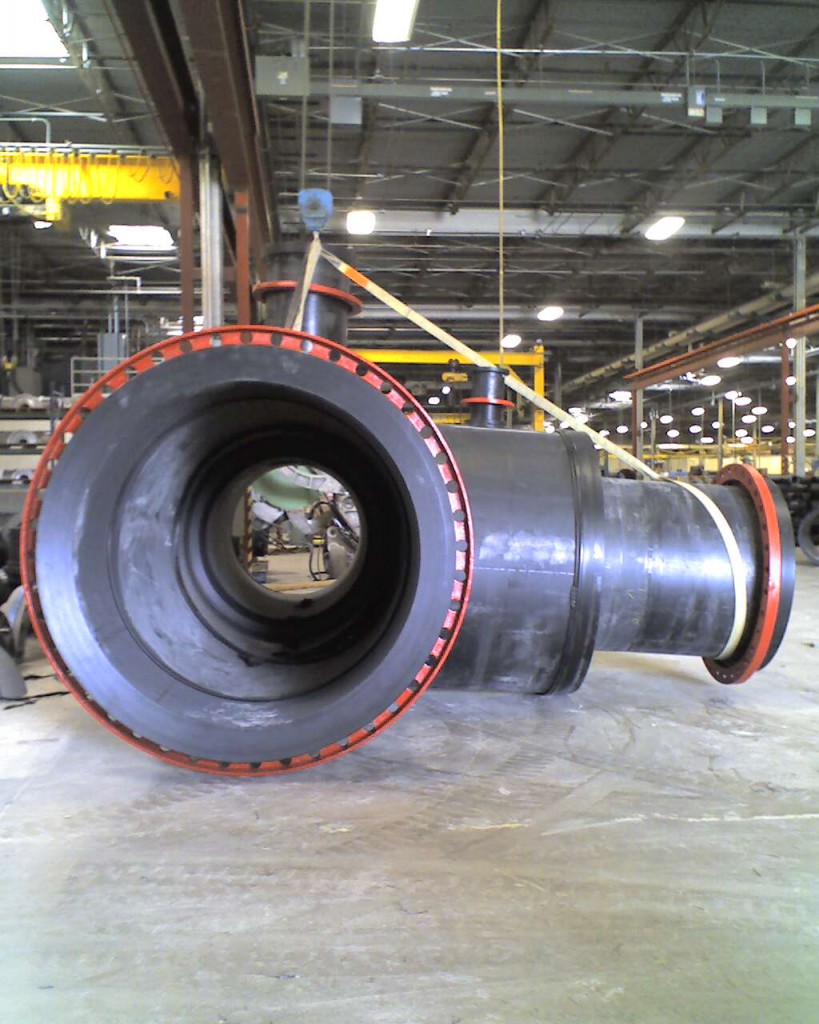

It displays improved performance characteristics in a variety of industrial applications. King PipeGrade® is chemical resistant, UV stabilized, and ideal for use in demanding outdoor applications from flanges and gussets to end caps. The polymer sheet will not rust, corrode or rot like traditional pipe materials and is easy to fabricate and weld using thermoplastic welding equipment.

King PipeGrade® is compliant to ASTM 3350 as a standard material meeting cell classifications: PE445574C CC3 and PE445576C CC3. King PipeGrade® (PE4710/PE100) is completely compatible and 100% interchangeable for use in applications that presently use PE3608/PE80 material. King PipeGrade® is NSF approved for Standards 14 & 61 to be used in potable water piping systems.

PE100 tends to have a higher hydrostatic design basis (HDB) than other resins but most significantly in the notched tensile/slow crack PENT test which is > 10,000 hours vs. 100-200 hours for others.

50 – 100 years service life per ISO CRS 10 MPa @ 20º C.

Key Properties

  • PE 4710- PE 100 tends to have a higher hydrostatic design basis (HDB) than other resins but most significantly is the notched tensile/slow crack PENT test which is > 10,000 hours vs. 100-200 hours for others.
  • 50 - 100 years service life per ISO CRS 10 MPa @ 20º C.
  • FDA Compliant
  • NSF Standard 14 Certified
  • NSF Standard 61 Compliant

Limitations

  • High Coefficient of Thermal Linear Thermal Expansion
  • Low Heat Defection & Continuous Use Temp
  • Relatively Low Mechanical Properties

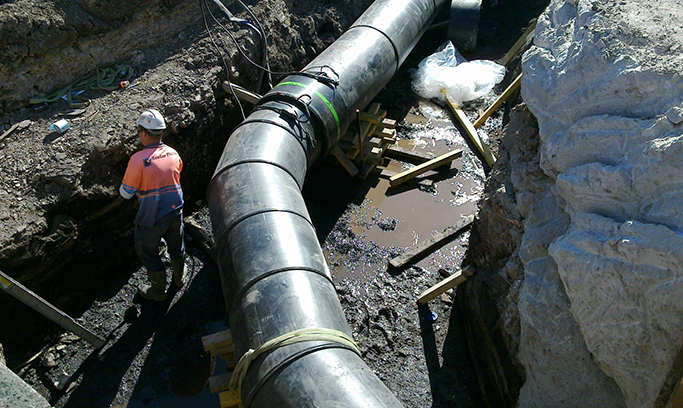

Applications

  • Aquaculture
  • Chain Guides
  • Gas Lines
  • Gravity and Force Mains
  • Industrial Pipe Processing
  • Irrigation
  • Municipal Sewer Systems
  • Paddles, Weirs and Wear Shoes
  • Plumbing Pipes and Fittings
  • Water and Sewage Treatment

Resin Trade Names

Manufacturer Trade Names

  • King PipeGrade®

Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.

Available Sizes

Sheet Thickness .125” (3.175 mm) to 4.000” (101.6 mm) Width & Length 48.000” (1219 mm) x 96.000” (2438 mm) Thickness .250” (6.35 mm) to 1.500” (38.1 mm) Width & Length 60.000” (1524 mm) x 120.000” (3048 mm) Boedeker offers cut to size service on all in-stock items and same day shipping. If you don’t see the size your looking for contact us for alternative options.

Available Colors

  • Black

Safety Data Sheet

Download Safety Data Sheet

Typical Properties of King PipeGrade ® PE

DETAIL
Description Value
Material Type Semi-Crystalline Thermoplastic
Chemical Name HDPE High Density Polyethylene
Trade Name King PipeGrade®
Additives Proprietary Additives
Color Black
Manufacturer King Plastic Corp.
PHYSICAL
Property Test Unit of Measure Value
Density ASTM D792 g/cm³ 0.961
  ASTM D792 lb/in³ 0.035
MECHANICAL
Property Test Unit of Measure Value
Tensile Strength ASTM D638 psi 5,510
Tensile Elongation at Break ASTM D638 % 600
Flexural Modulus ASTM D790 psi 150,000
IZOD Impact-Notched ASTM D256 ft-lb/in 9.2
THERMAL
Property Test Unit of Measure Value
Max Continuous Operating Temp °C 82
  °F 180
Minimum Operating Temp °C -118
  °F -180
COMPLIANCE
Description Value
FDA Yes
USDA Yes
NSF Yes
3-A Dairy No
Canadian Food Inspection Agency No
USP Class VI No
OTHER
Description Value
ASTM Shape Spec ASTM 3350
UV Resistant Yes
Relative Cost $$
Machinability 1

Relative cost based on a scale of one dollar sign ($) as the lowest to ten dollar signs ($$$$$$$$$$) as the highest. Machinability based on a scale of 1 to 10, with 1 being the easiest and 10 being the most difficult to machine. NOTE: All information contained on www.boedeker.com, downloadable documents and printed literature is intended for technical reference only and considered to be accurate for reference purposes only. Boedeker Plastics, Inc. makes no guarantee and offers no warranty for fitness in use and strongly recommends the user validate any plastic, machined part, or product in a specific application for fitness in use.

King PipeGrade® is a registered trademark of King Plastic Corporation.
