General Info
Rulon® 957 is a green speckled material with excellent bearing, vibration absorption & noise dampening capabilities. It is commonly used in commercial and residential clothes dryer applications. Offering excellent wear performance against softer mating materials like coated metals & porcelain.
Click for more information on the complete line of Rulon Plastics
Key Properties
- Excellent for Steam, Wet, Dry & Vacuum Environments
- Low Friction vs. Coated Metals or Porcelain Surfaces
- Vibration & Noise Dampening Capabilities
- Maximum Pressure Velocity (continuous)(MPa x m/s): 10,000PV (.35)
- Maximum Pressure PSI (Static)(MPa): 1,000 PSI (6.9)
- Maximum Velocity – SFM (no load)m/s): 400 (2)
- Shaft Hardness Minimum: Rb25
- Shaft Finish Ra µin9 (µm): 8-16 (.2-.4)
- Shaft Material: Hard, Mild, Stainless Steel & Porcelain Coated
Limitations
- Subject to Creep, Cold Flow
- Tight Tolerance Applications
Applications
- Commercial Dryer Applications
- Residential Dryer Wear Applications
- Bearing Applications with Porcelain & Coated Mating Surfaces
Resin Trade Names
Manufacturer Trade Names
Boedeker Plastics, Inc. stocks & supplies plastic sheet, rod, tube, film and custom profiles and machine parts from these shapes that are produced from plastic resin. In many cases the manufacturer of the shape has their own product trade name. If your specification calls for a specific resin grade or manufacturer trade name, we can supply a shape made from that resin to meet your specification or suggest an equal. If you require a specific resin or brand it must be specified at the time of order.
Available Sizes
Note: Some Rulon® grades are made to order and have minimum order quantities.
Sheet
Molded
Thickness up to 3.140”
Width & Length 24” x 24”

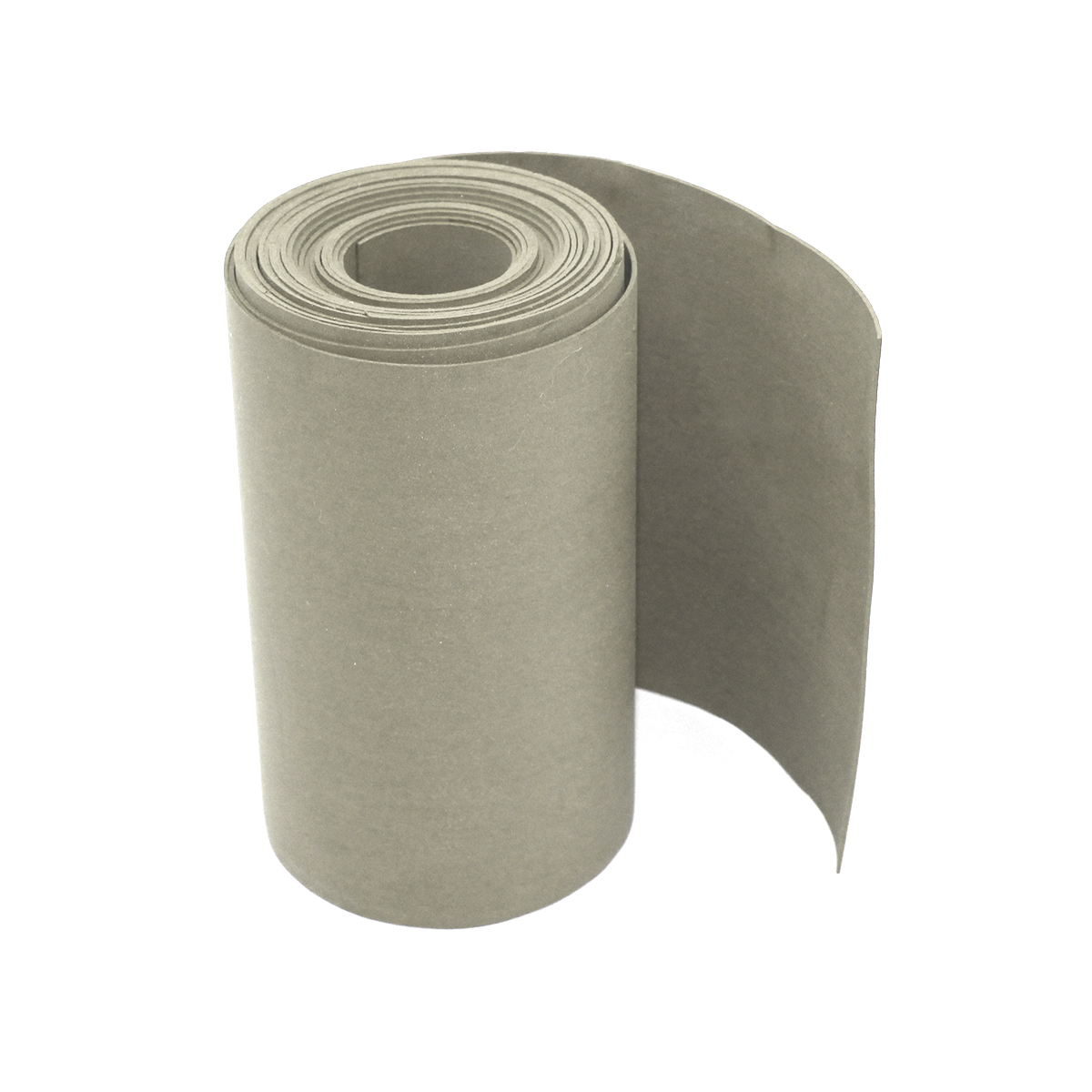

Skived Tape
Thickness up to .250”
Width 38”
Rod
Extruded Rod
Diameters Up to 3.000”
Length 10’ L
Molded Rod
Diameters Up to 47”
Length 12” L
Molded Tube
OD Outside Diameter Up to 47.000”
ID Inside Diameter Contact US
Length 12” L
Boedeker offers cut to size service on all in-stock items and same day shipping. If you don’t see the size your looking for contact us for alternative options.
